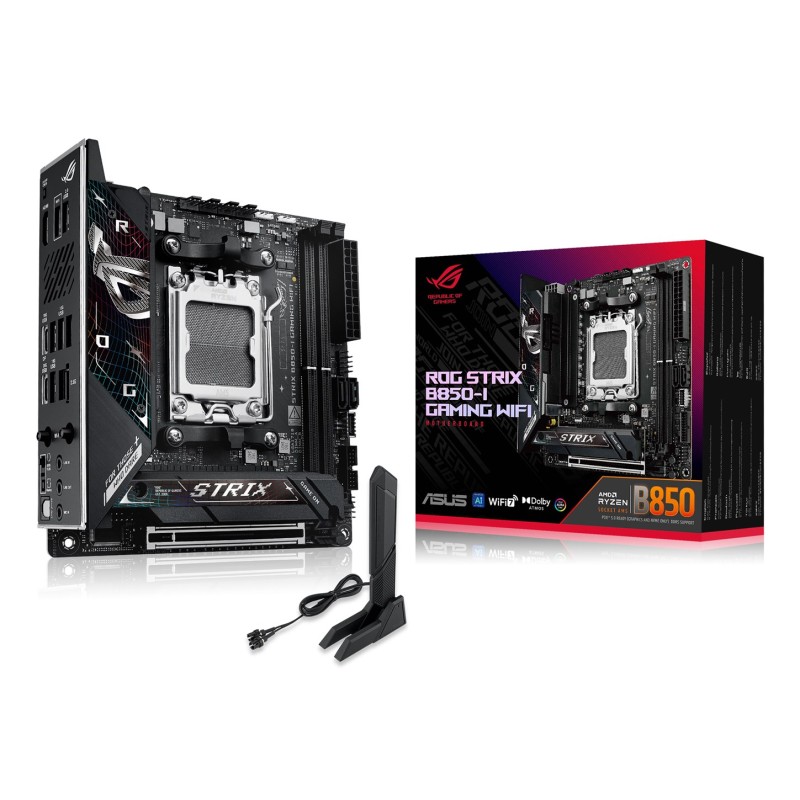

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX

Περιγραφή

Processor

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

Features

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11

Power source type: ATX

Audio chip: Realtek ALC4080

Motherboard form factor: mini ITX

Motherboard chipset: AMD B850

Audio output channels: 7.1 channels

Product colour: Black

Memory

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 8400 MHz

Maximum internal memory: 96 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Weight & dimensions

Width: 170 mm

Depth: 170 mm

Network

Wi-Fi: Yes

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.4

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of CPU fan connectors: 1

RGB LED pin header: Yes

Number of water pump connectors: 1

Number of EPS power connectors (8-pin): 1

Number of temperature sensor headers: 1

Number of RGB LED pin headers: 2

USB 2.0 connectors: 1

Thunderbolt headers: 1

ATX Power connector (24-pin): Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 2

Front panel audio connector: Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 4

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Packaging data

Package height: 94 mm

Package depth: 185 mm

Package weight: 1.06 kg

Package width: 226 mm

Packaging content

Antenna included: Yes

Cables included: SATA

Storage controllers

Number of storage drives supported: 4

Number of HDDs supported: 2

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Rear panel I/O ports

USB 3.2 Gen 2x2 Type-C ports quantity: 1

HDMI version: 2.1

Line-in: Yes

WiFi-AP antenna jack: 2

Headphone outputs: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

Digital audio optical out: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

S/PDIF out port: Yes

USB 2.0 ports quantity: 2

Expansion slots

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

PCI Express x16 (Gen 5.x) slots: 1

1st M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 5.0

Number of M.2 (M) slots: 2

Other features

Weight: 1.06 kg

Quick installation guide: Yes

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
