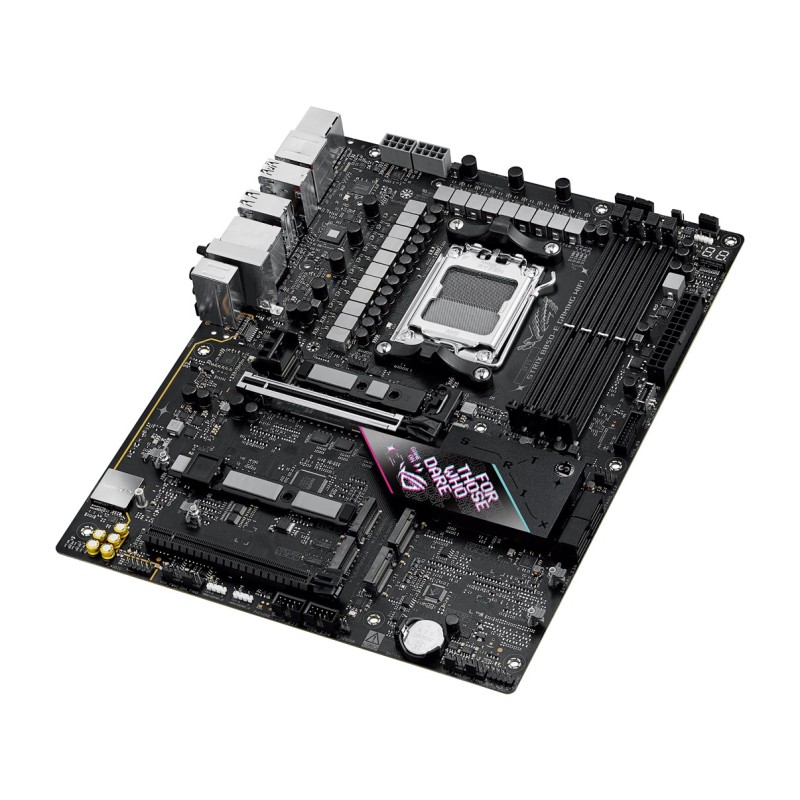

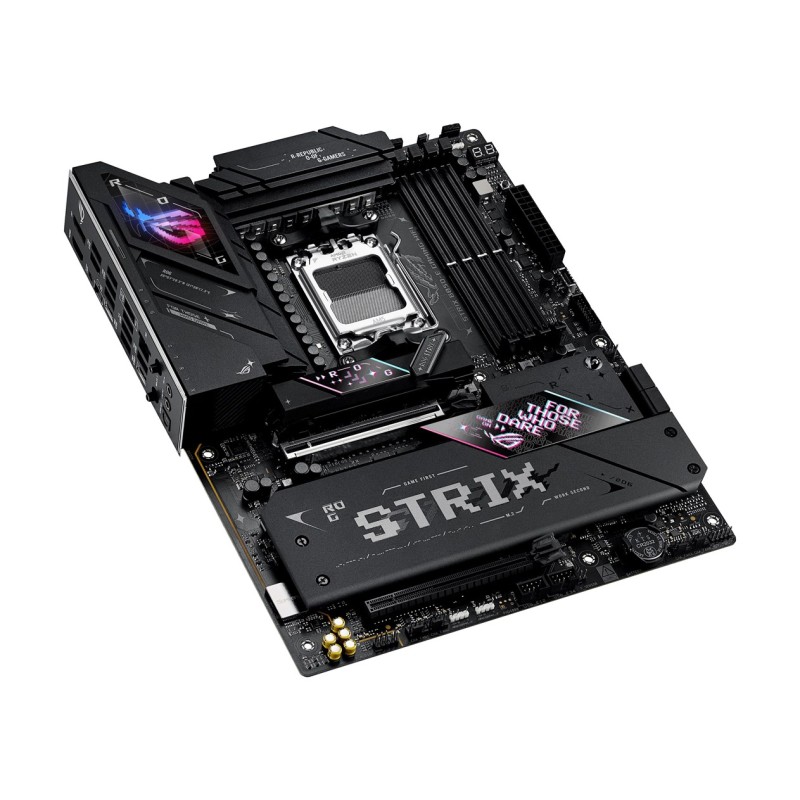

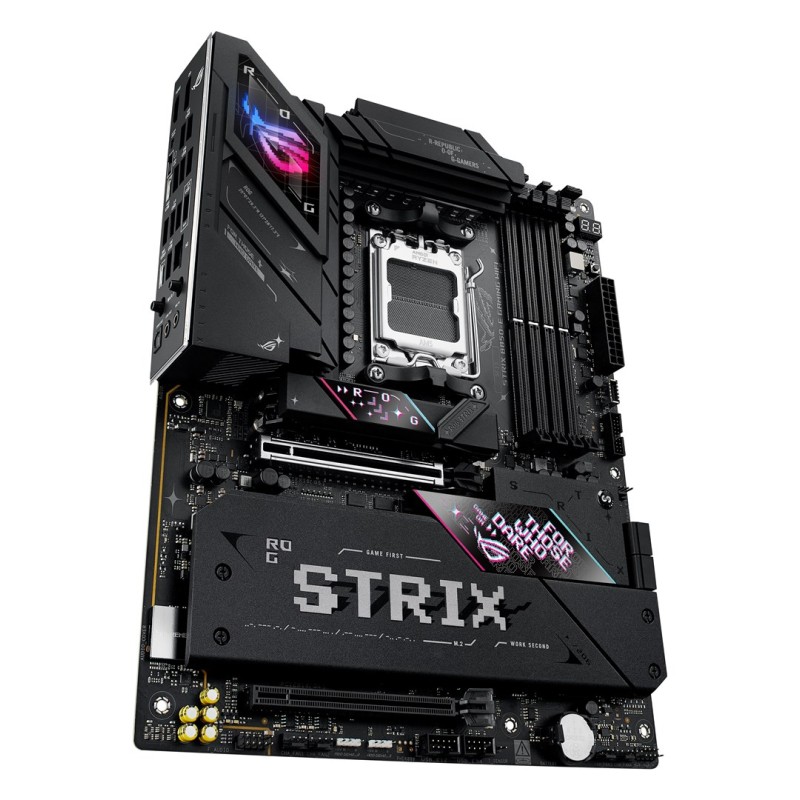

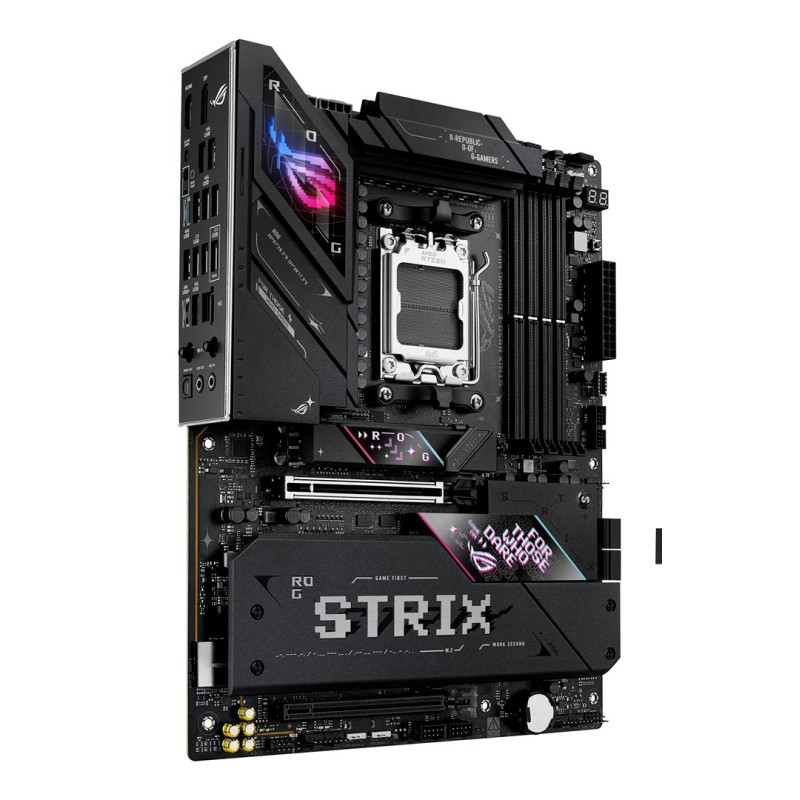

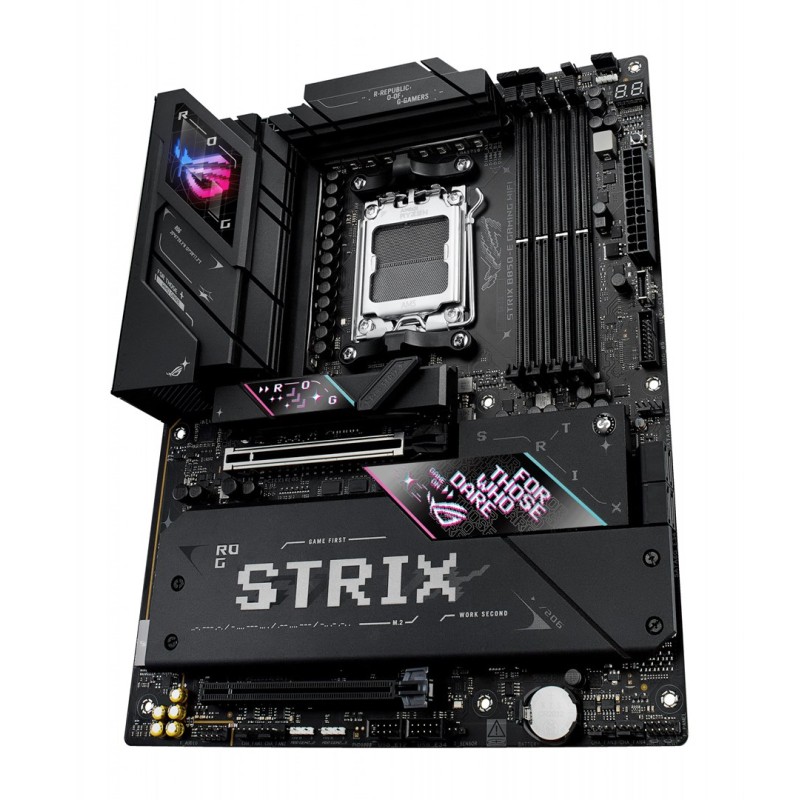

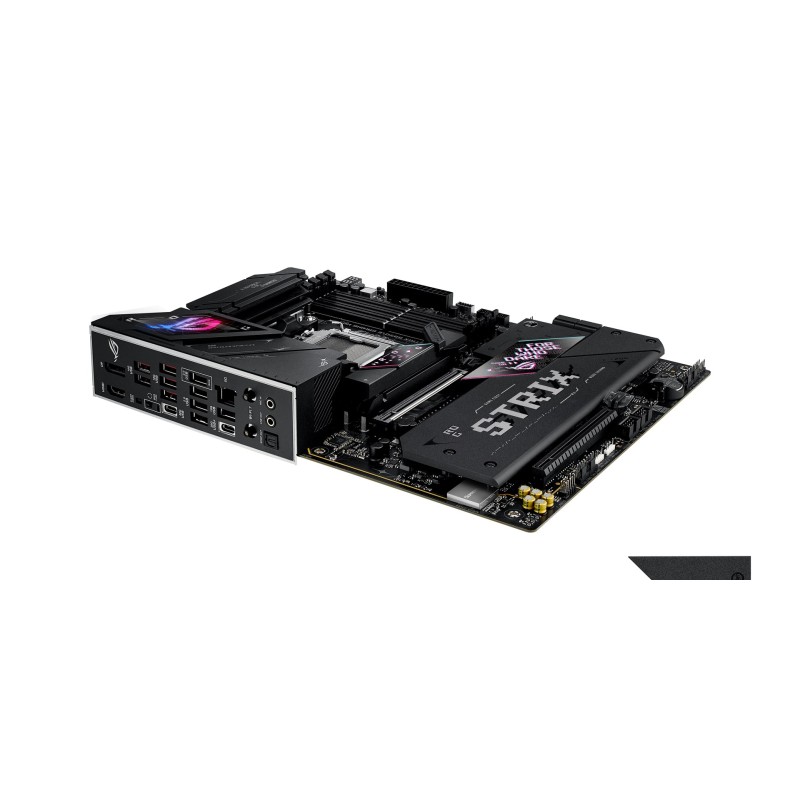

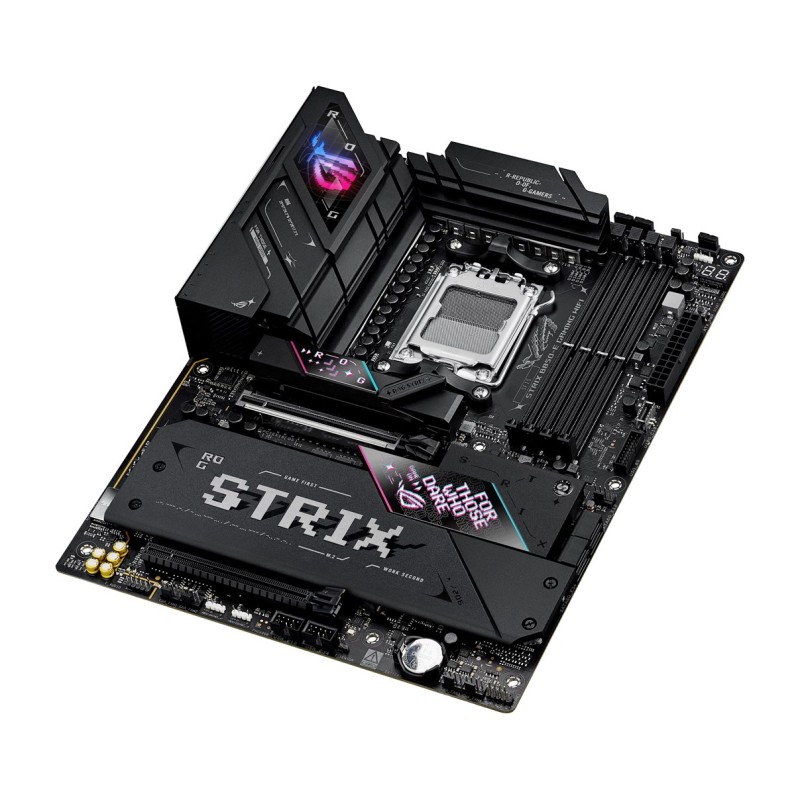

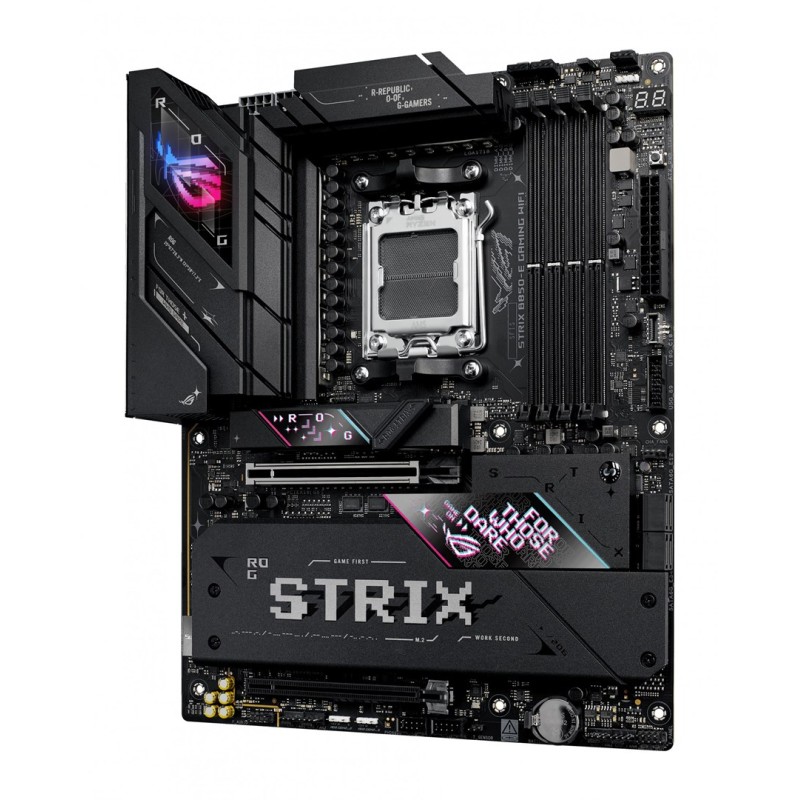

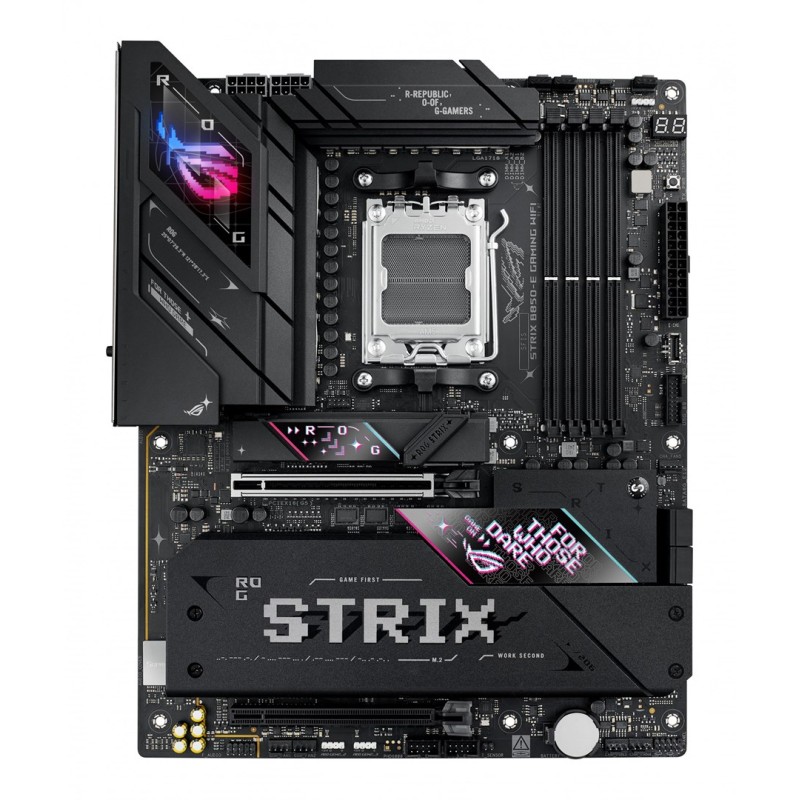

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 socket AM5 ATX motherboard

Περιγραφή

Processor

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Processor manufacturer: AMD

Graphics

Parallel processing technology support: Not supported

Maximum resolution: 7680 x 4320 pixels

Features

Power source type: ATX

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Audio chip: Realtek ALC4080

Product colour: Black

Windows operating systems supported: Windows 11

Motherboard chipset: AMD B850

Memory

ECC сompatibility: ECC & Non-ECC

Supported memory clock speed (max): 8000 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Memory slots type: DIMM

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Number of memory slots: 4

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Ethernet interface type: 5 Gigabit Ethernet

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Wi-Fi: Yes

Bluetooth: Yes

Internal I/O

Number of temperature sensor headers: 1

Number of water pump connectors: 1

Number of RGB LED pin headers: 3

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 2

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

Front panel audio connector: Yes

Number of chassis fan connectors: 5

Number of SATA III connectors: 4

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

EPS power connector (8-pin): Yes

CPU fan connector: Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Packaging data

Package width: 356 mm

Package height: 87 mm

Package depth: 281 mm

Package weight: 2.3 kg

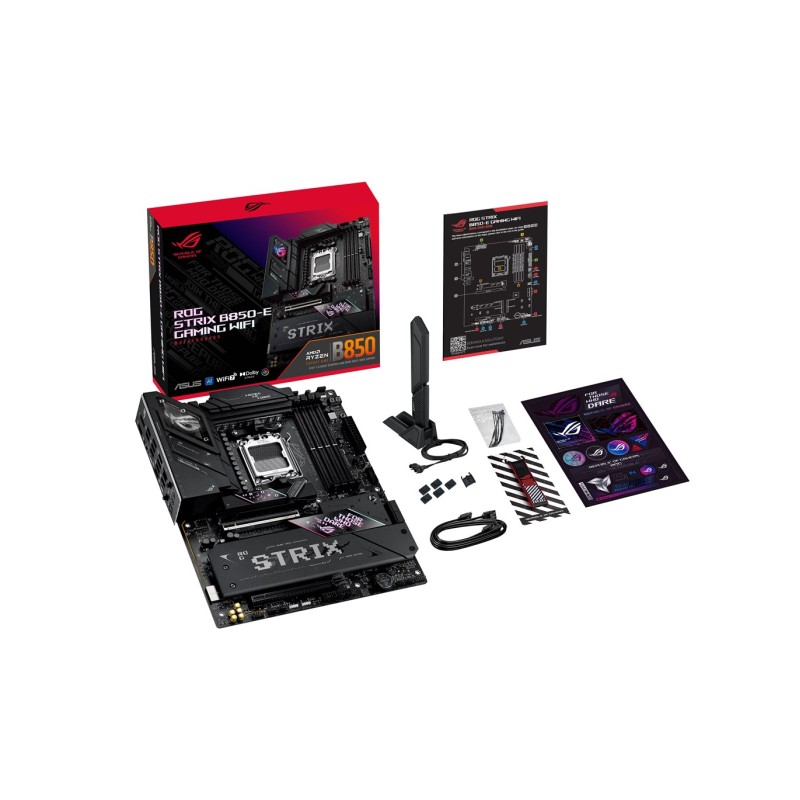

Packaging content

Antenna included: Yes

Cables included: SATA

Storage controllers

RAID levels: 5, 1, 0, 10

RAID support: Yes

Number of storage drives supported: 9

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

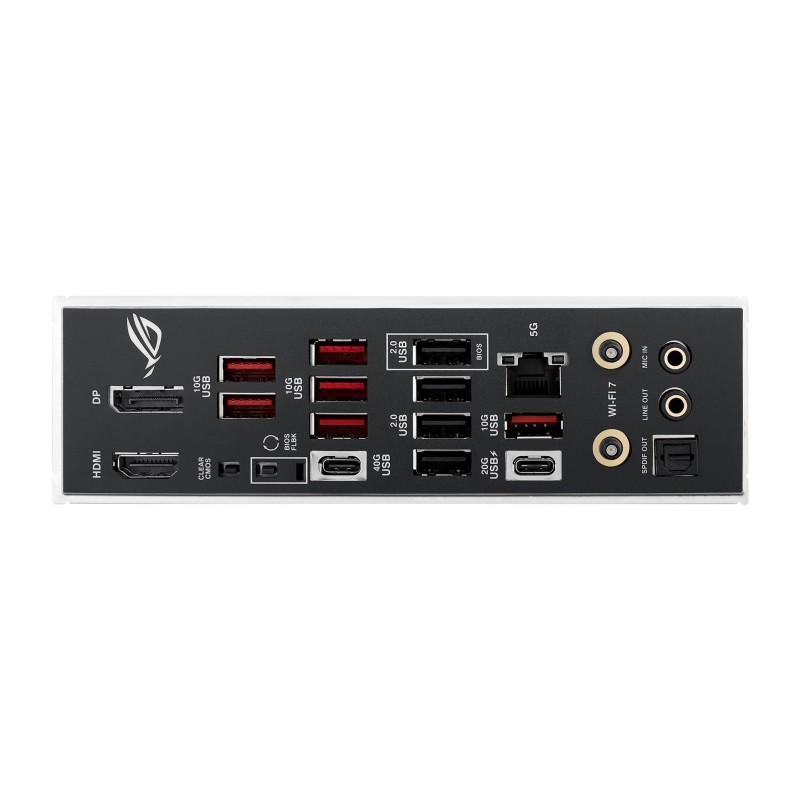

Rear panel I/O ports

USB4 Gen 3x2 ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Line-in: Yes

HDMI version: 2.1

WiFi-AP antenna jack: 2

DisplayPorts quantity: 1

DisplayPort version: 1.4

S/PDIF out port: Yes

Digital audio optical out: 1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

Headphone outputs: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6

Expansion slots

3rd M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 5.0

5th M.2 largest key size: 2280

5th M.2 highest PCI Express generation: 4.0

4th M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 5.0

1st M.2 highest PCI Express generation: 5.0

PCI Express x16 (Gen 5.x) slots: 1

2nd M.2 largest key size: 22110

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 largest key size: 2280

Number of M.2 (M) slots: 5

Other features

Quick installation guide: Yes

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
