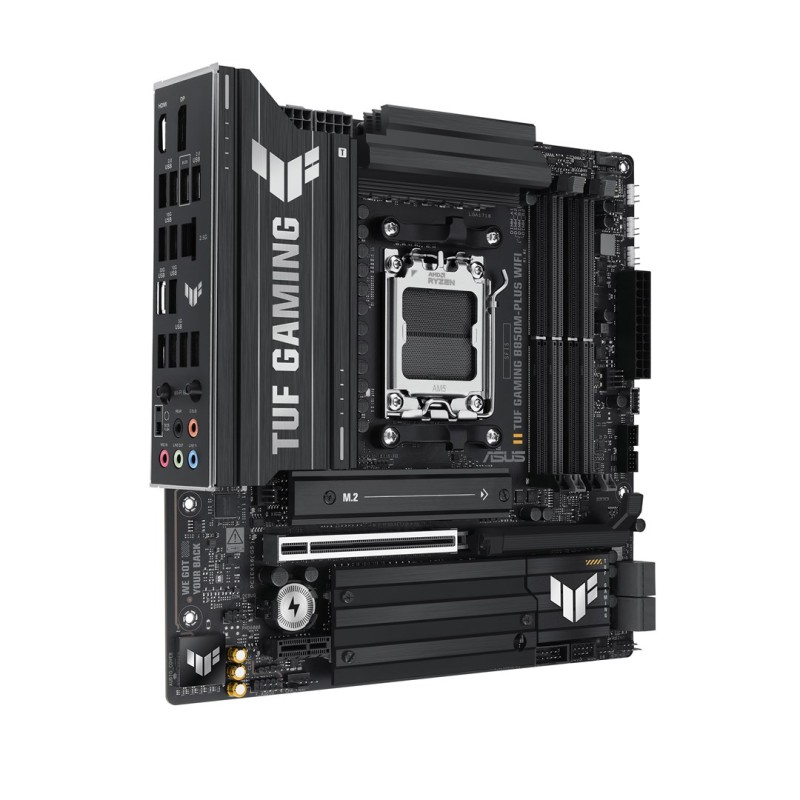

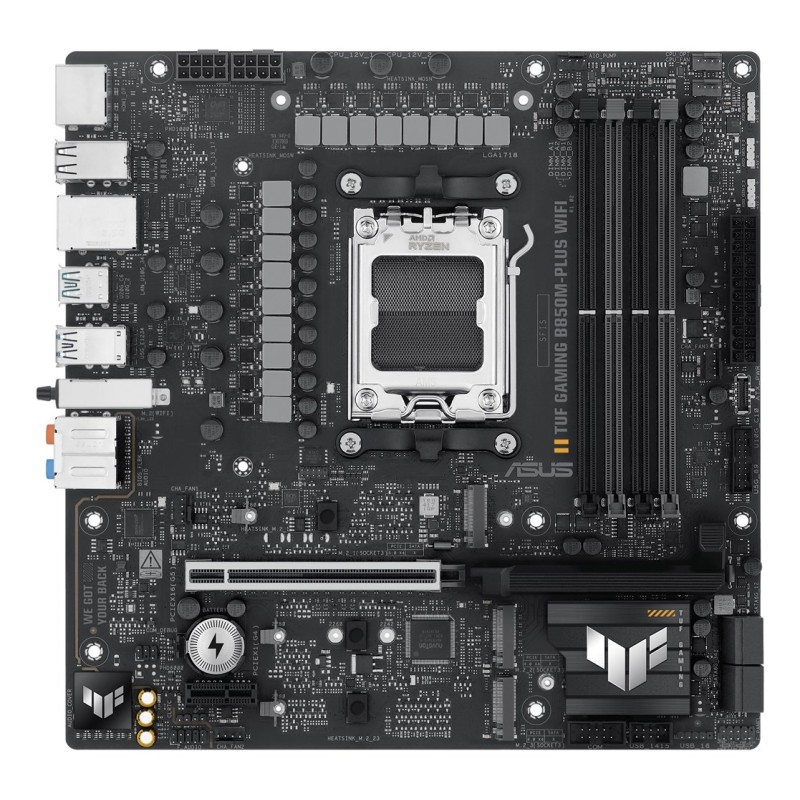

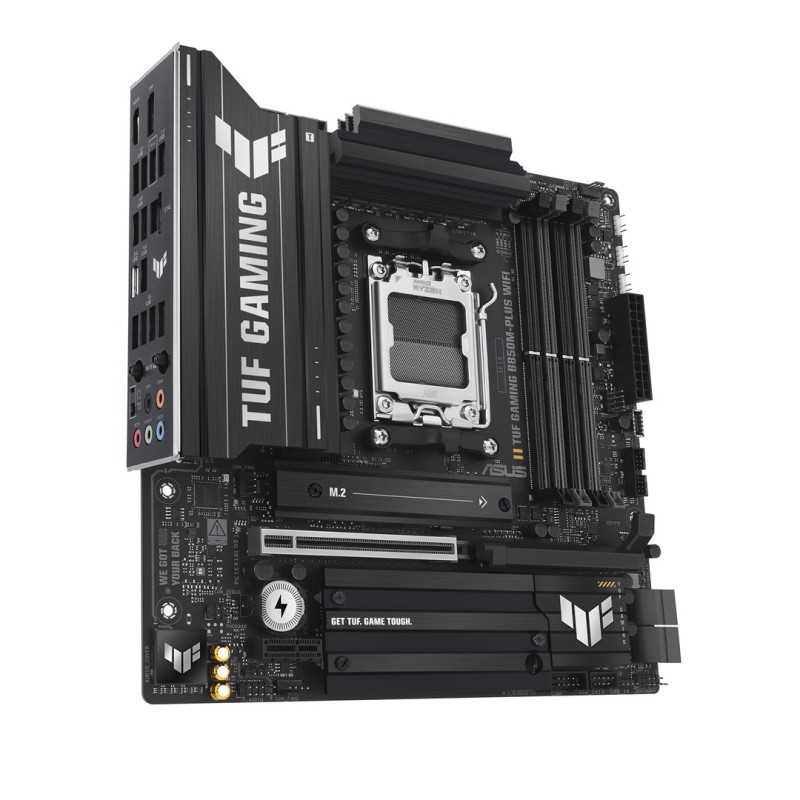

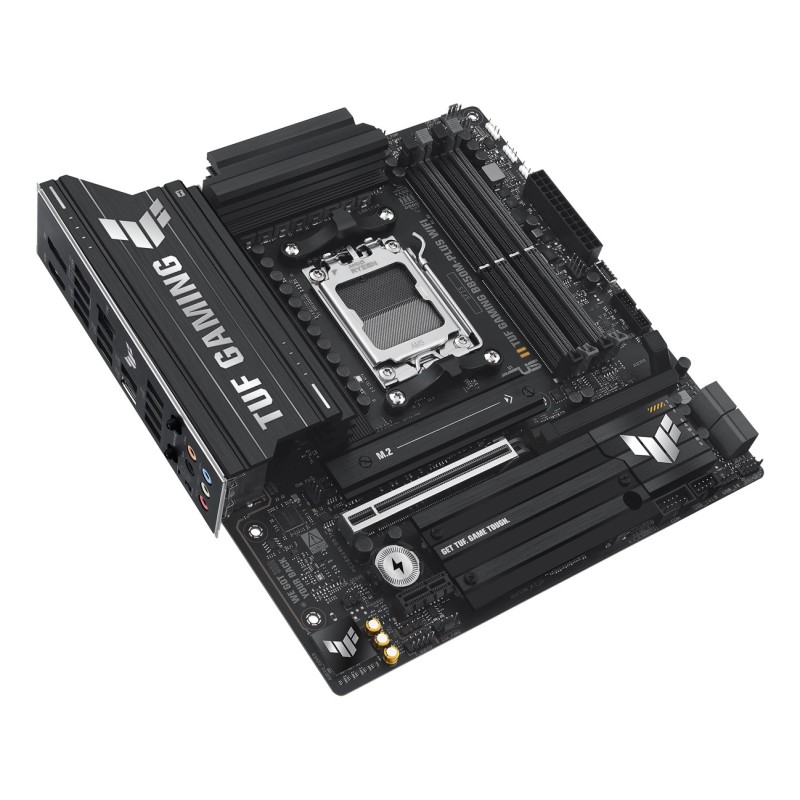

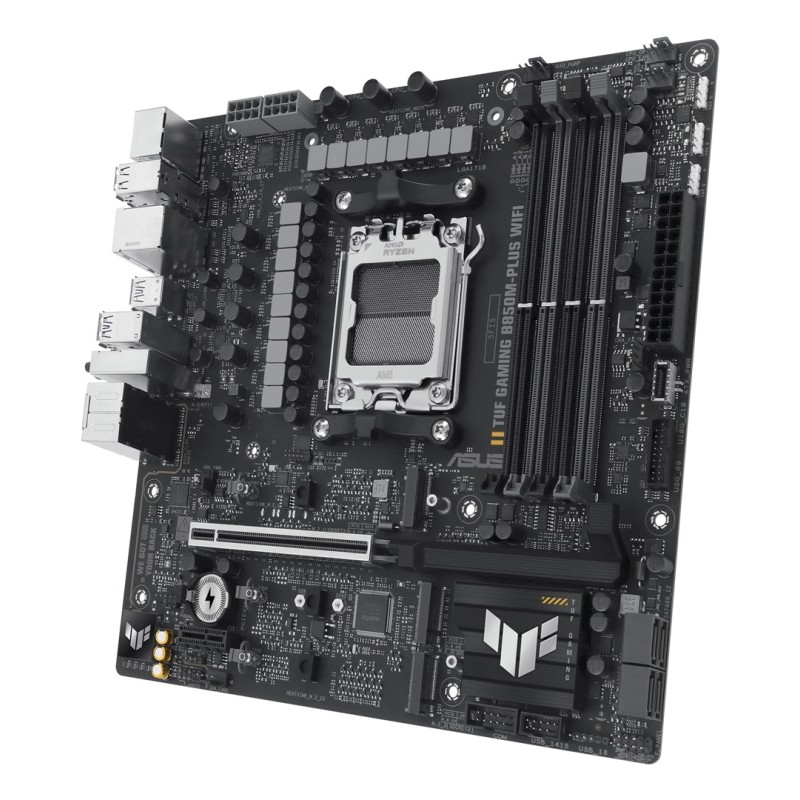

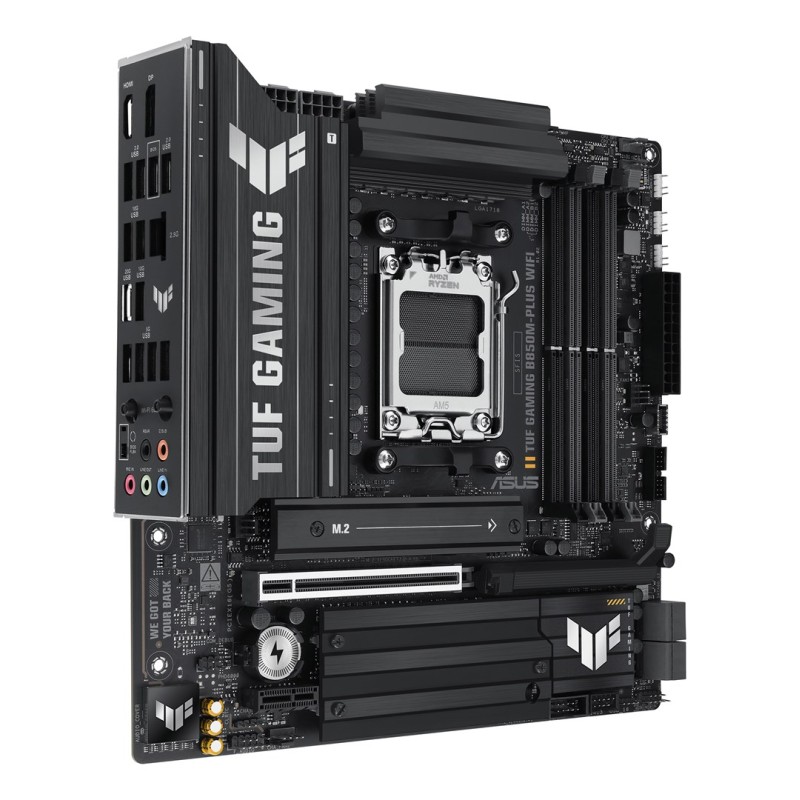

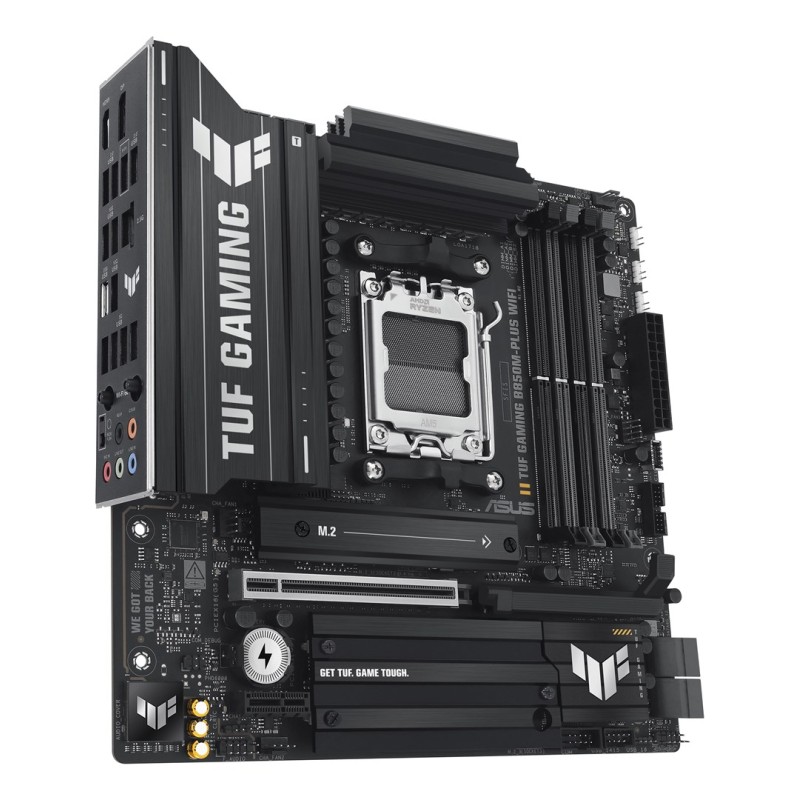

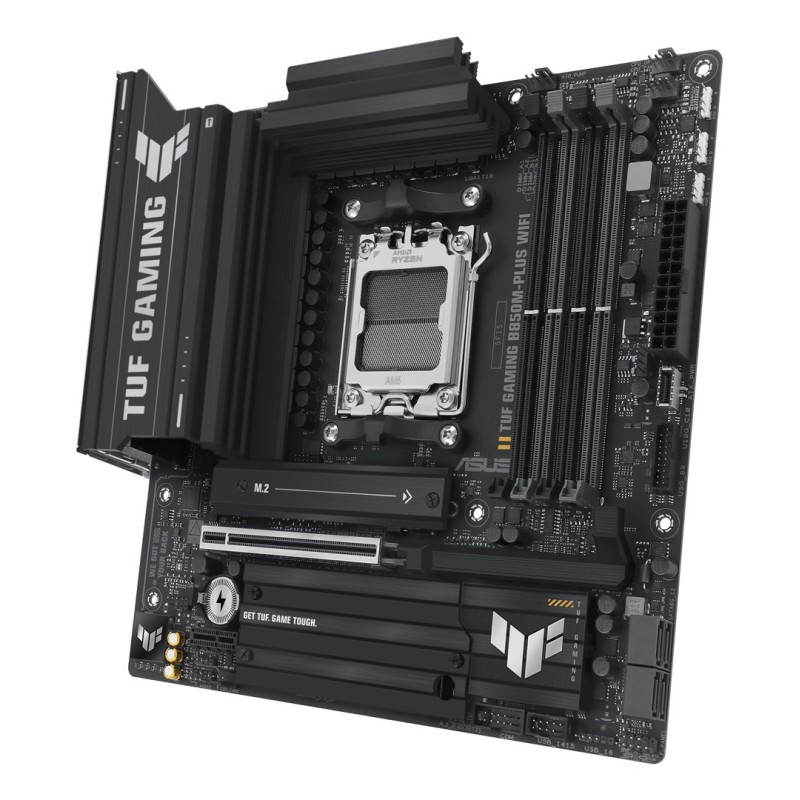

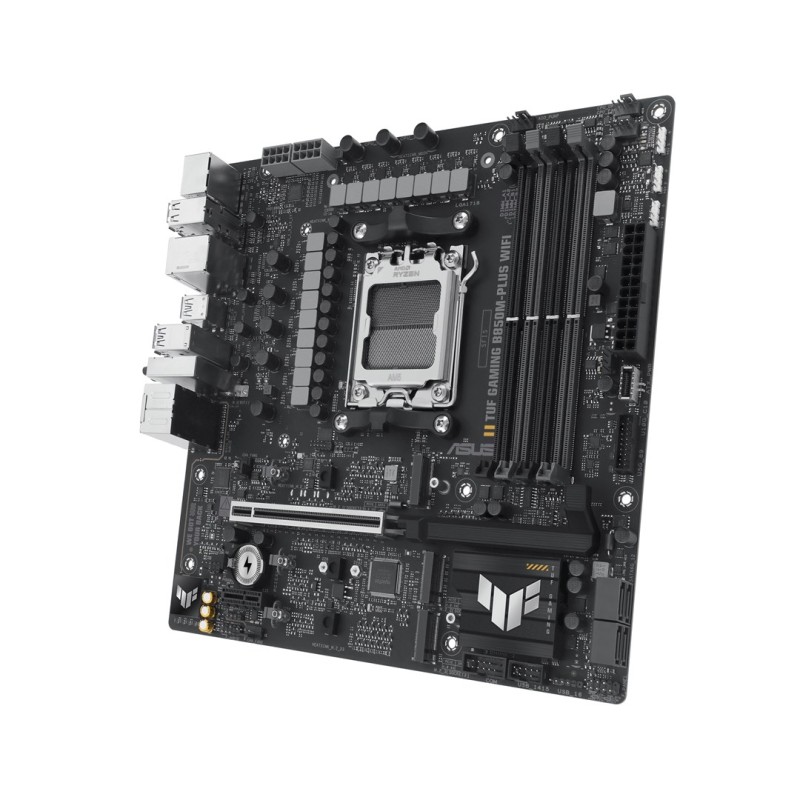

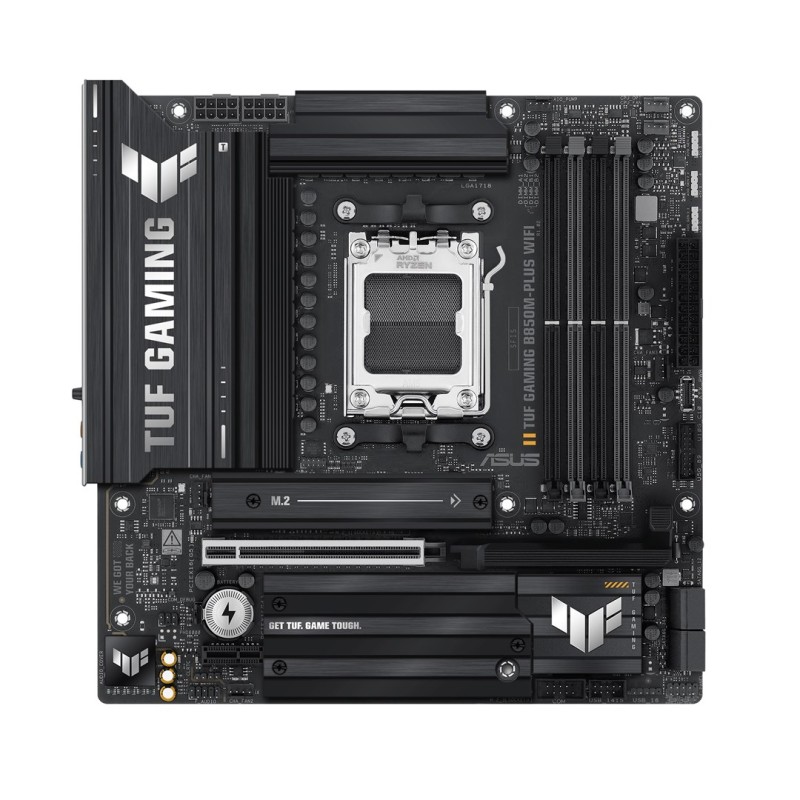

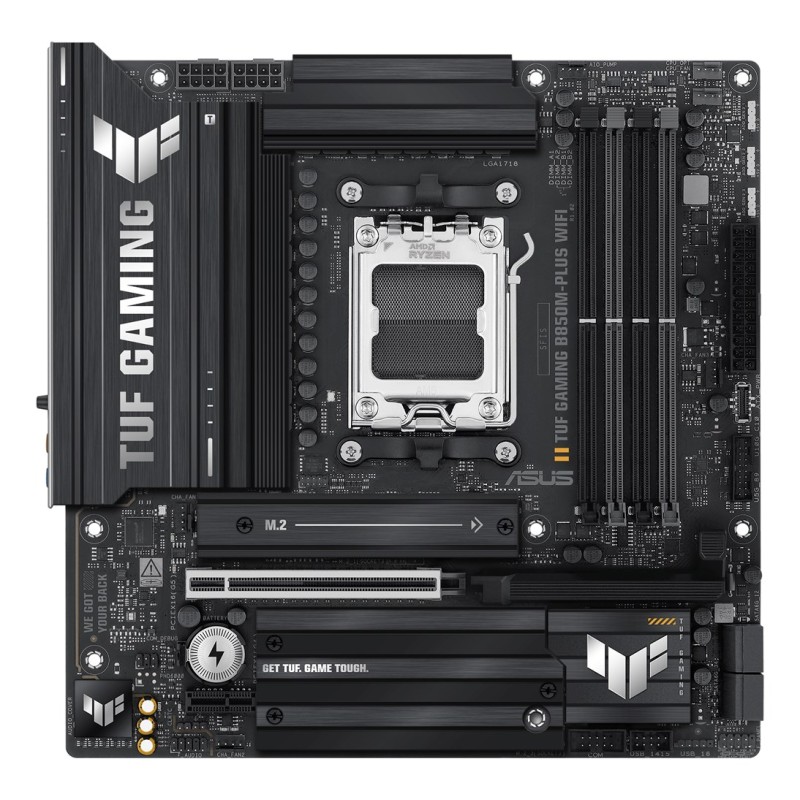

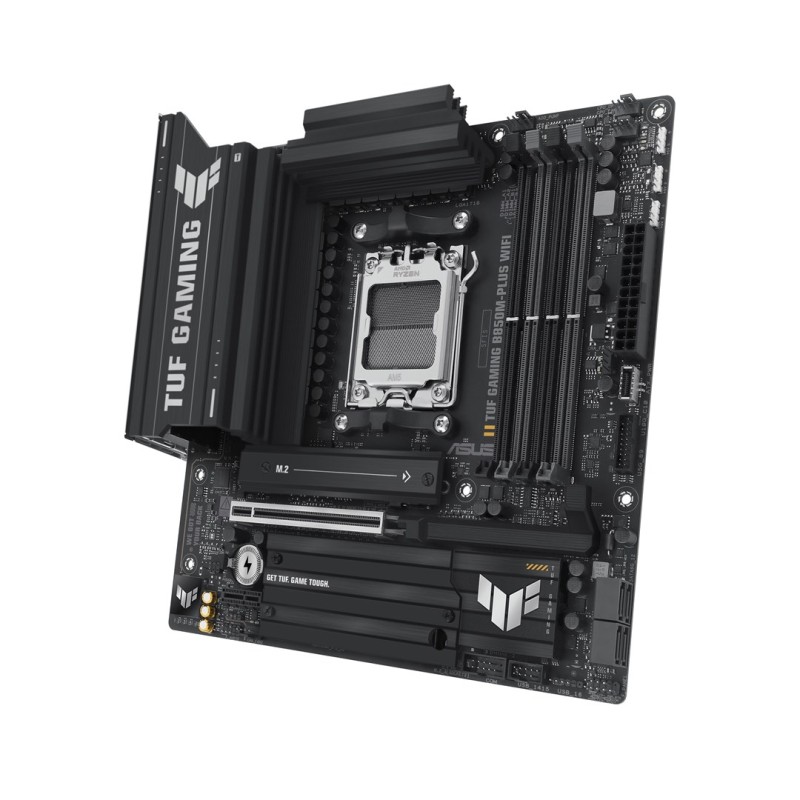

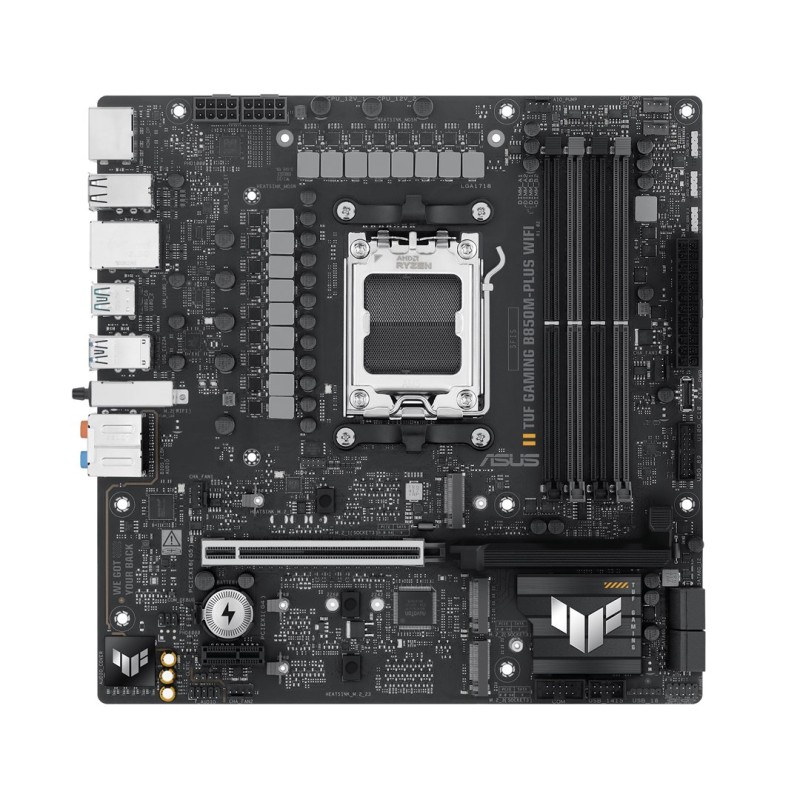

ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Audio output channels: 7.1 channels

Motherboard chipset: AMD B850

Motherboard form factor: micro ATX

Audio chip: Realtek ALC1220P

Product colour: Black

Motherboard chipset family: AMD

Windows operating systems supported: Windows 10 x64, Windows 11

Memory

ECC сompatibility: ECC & Non-ECC

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Ethernet LAN: Yes

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Front panel audio connector: Yes

S/PDIF out connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

12V power connector: Yes

Number of COM connectors: 1

Number of chassis fan connectors: 3

Chassis intrusion connector: Yes

Front panel connector: Yes

CPU fan connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 1.68 kg

Package height: 67.5 mm

Package width: 275 mm

Package depth: 275 mm

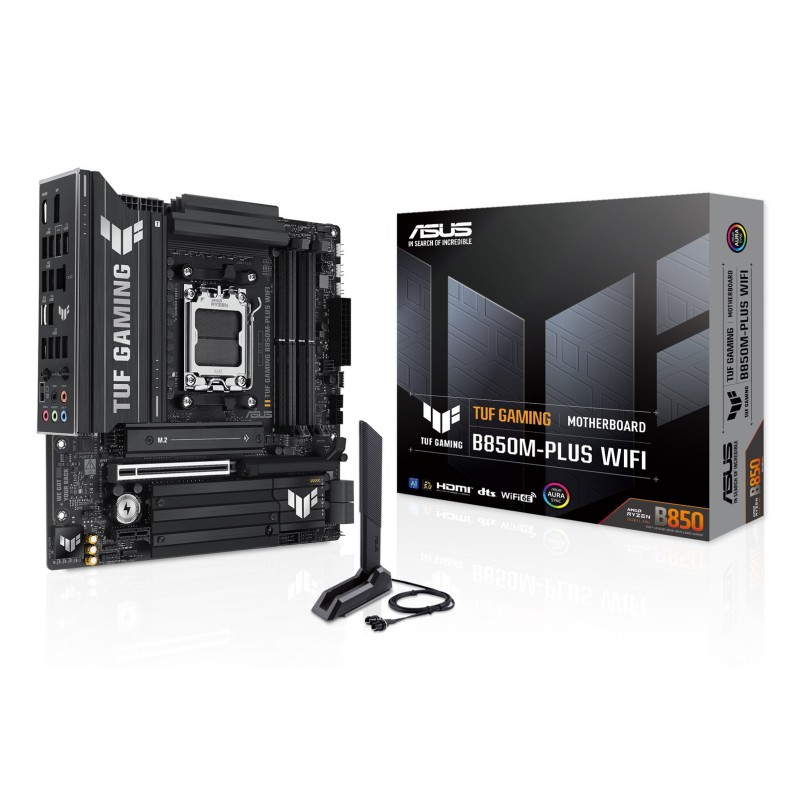

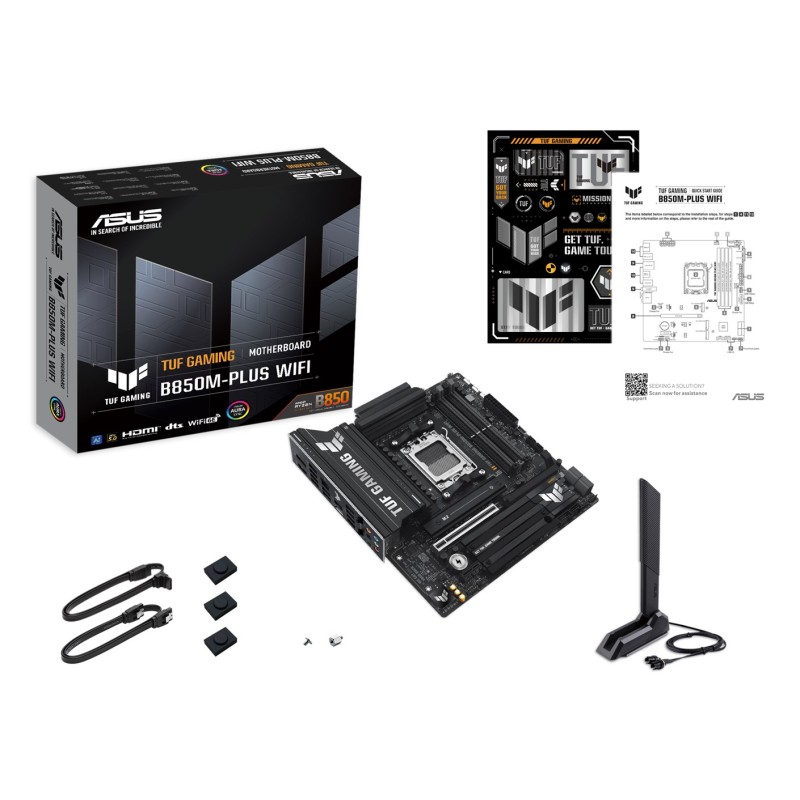

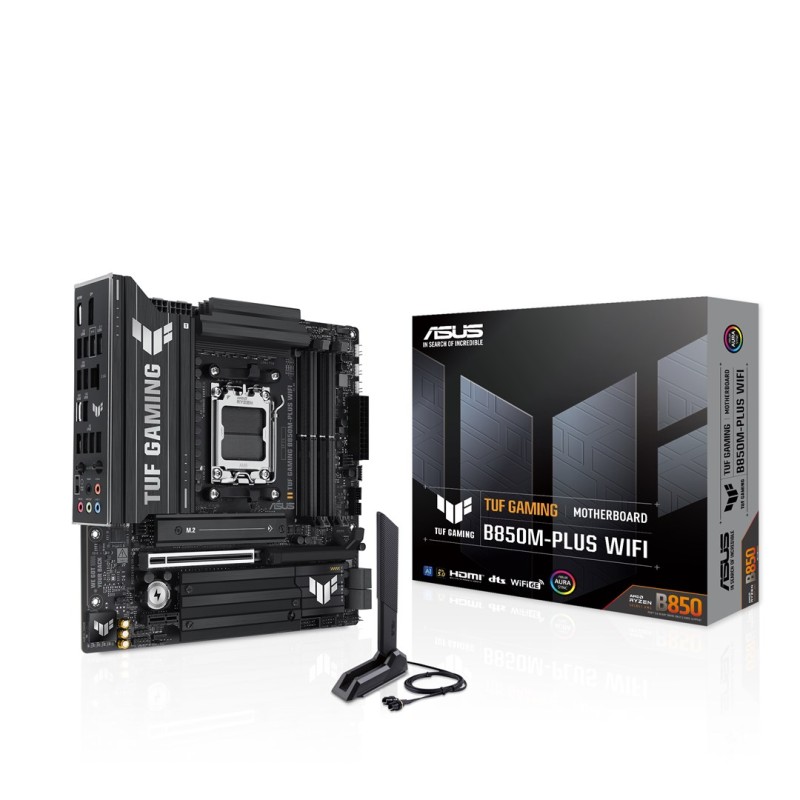

Packaging content

Cables included: SATA

Antenna included: Yes

Screws included: Yes

Storage controllers

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 10, 0, 1, 5

Number of storage drives supported: 7

Number of HDDs supported: 4

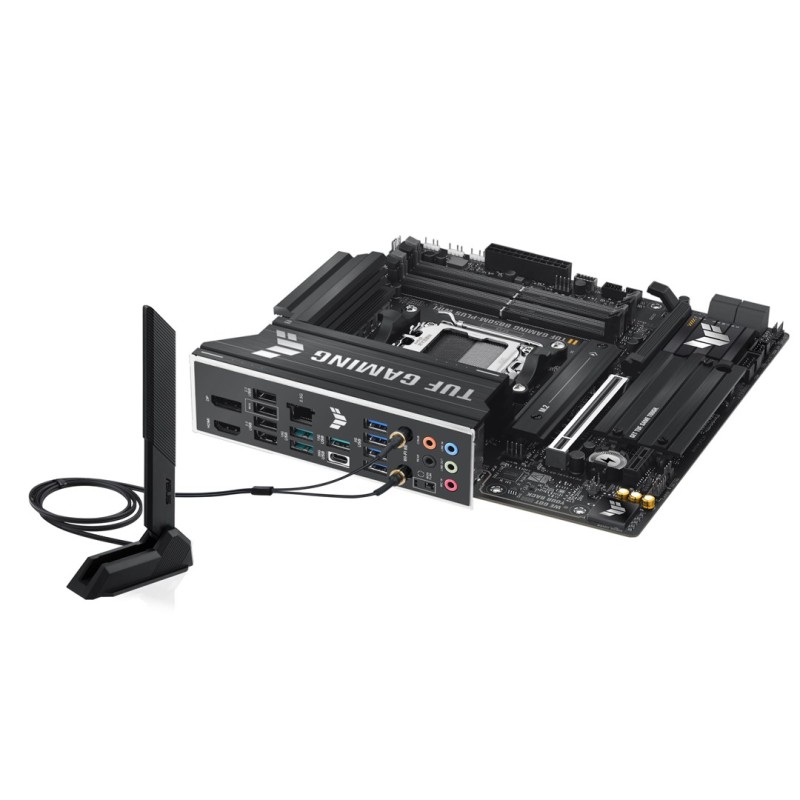

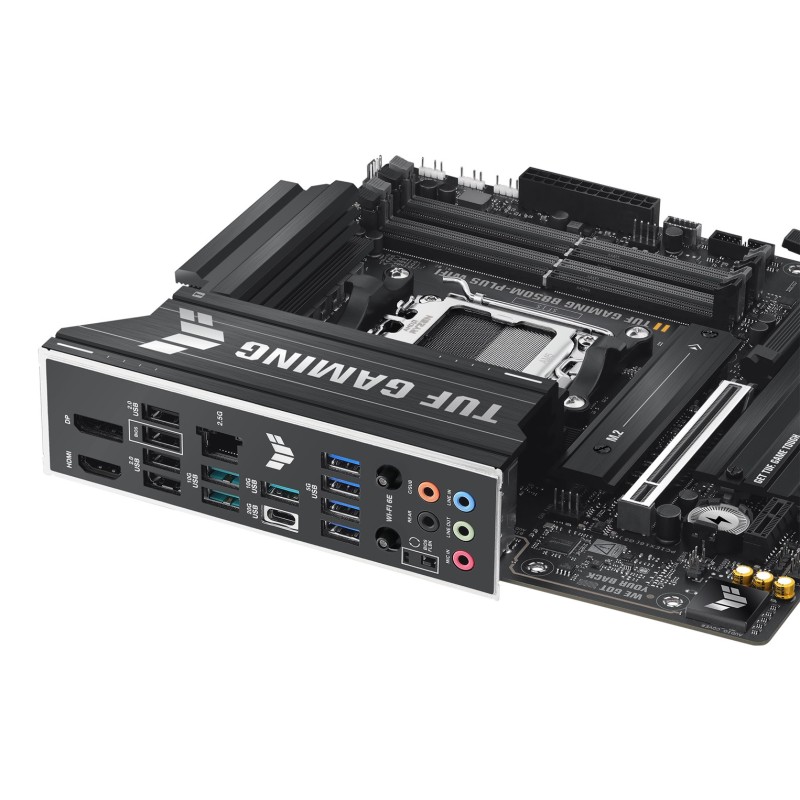

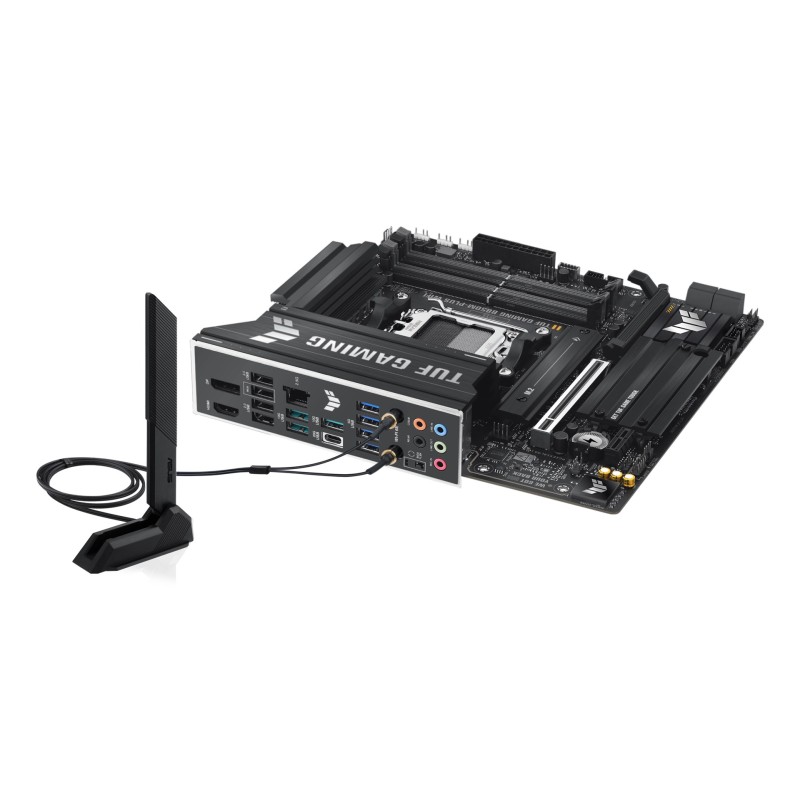

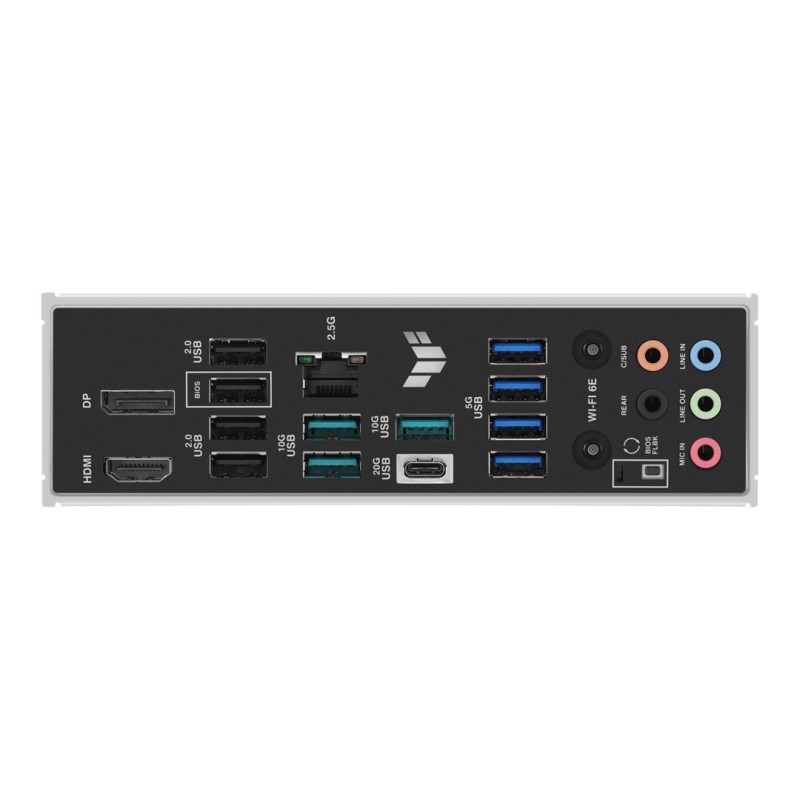

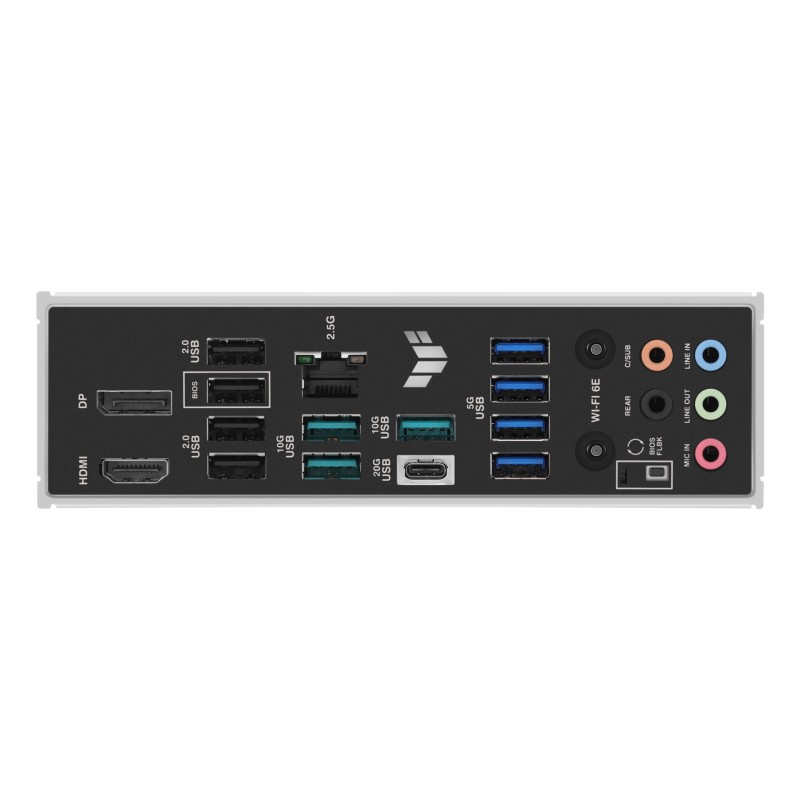

Rear panel I/O ports

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

WiFi-AP antenna jack: 1

HDMI ports quantity: 1

USB 2.0 ports quantity: 4

Expansion slots

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 3

Other features

Weight: 1.2 kg

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
