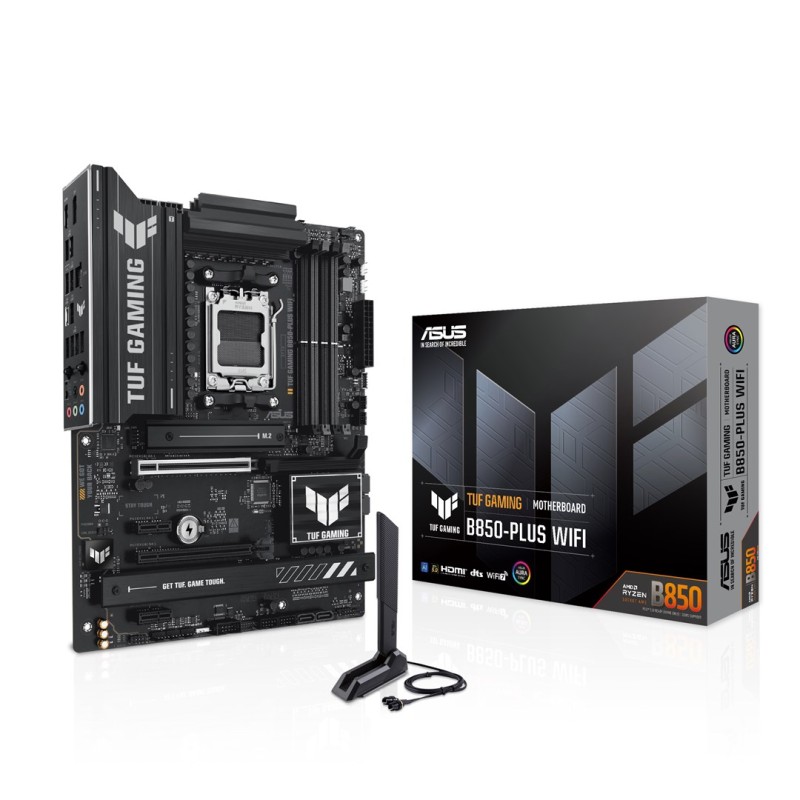

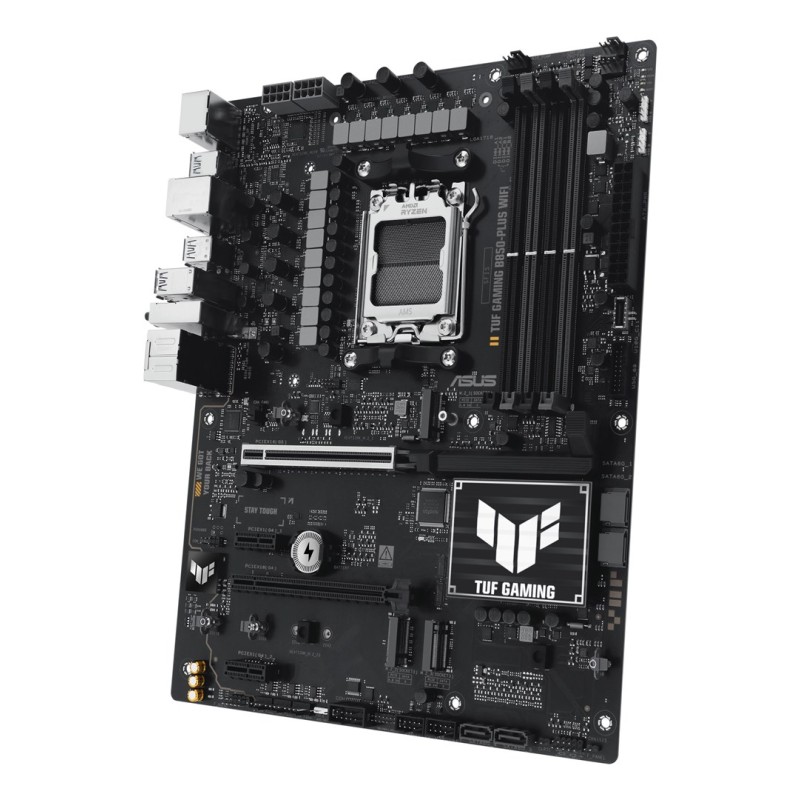

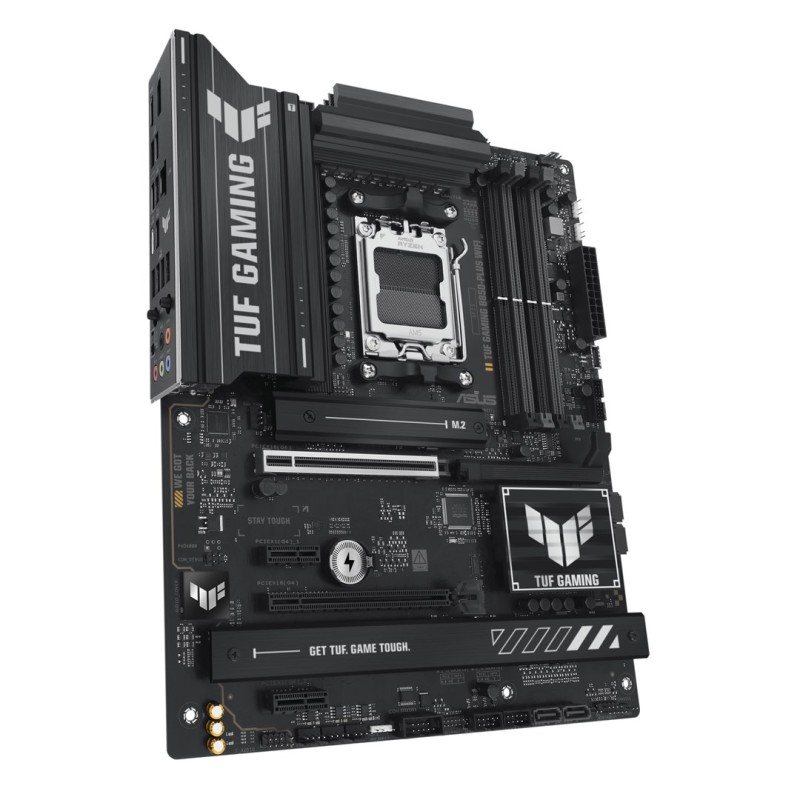

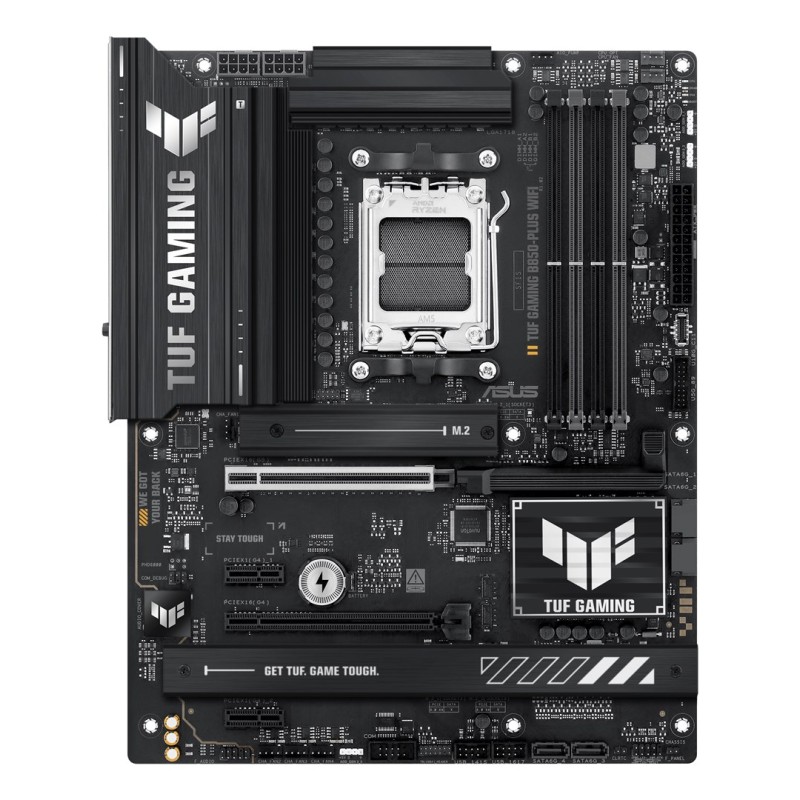

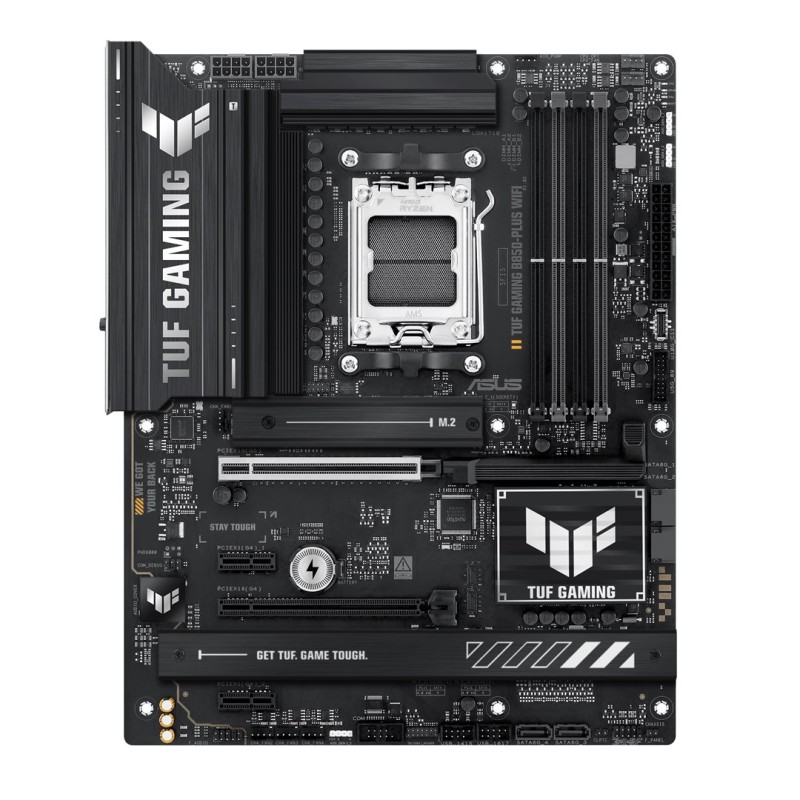

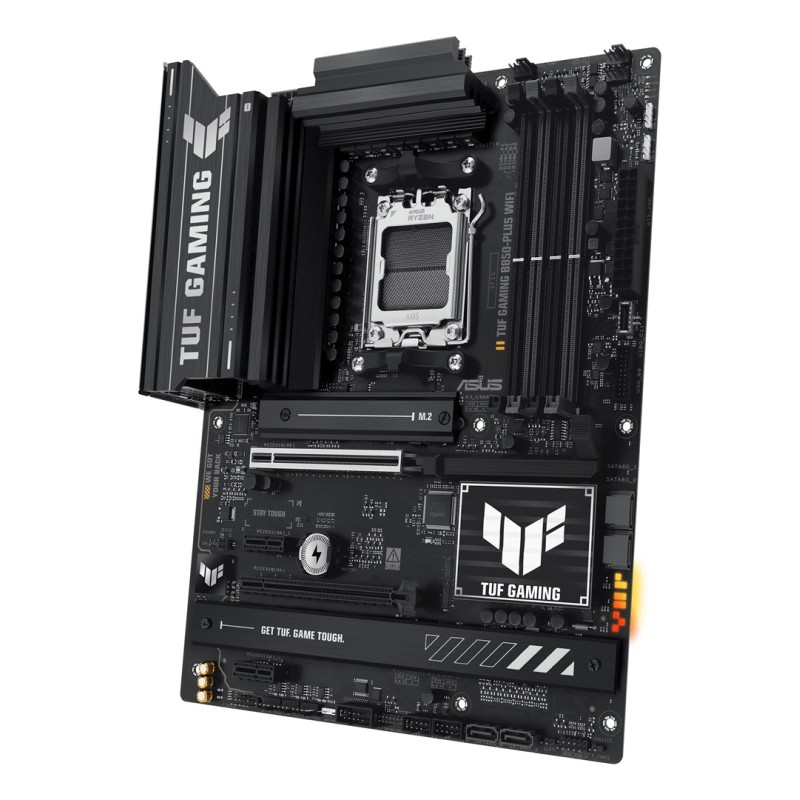

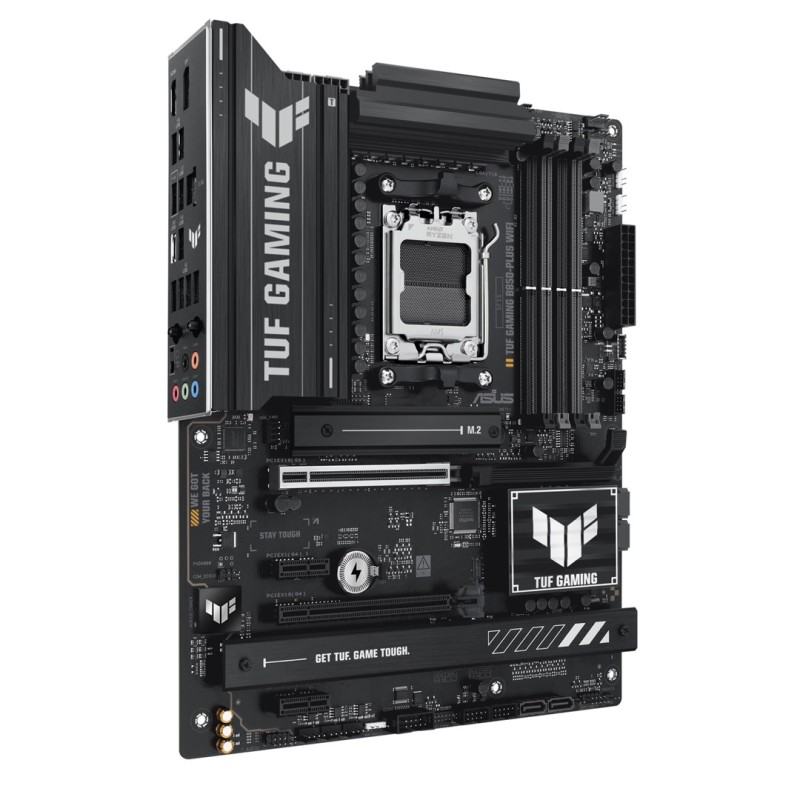

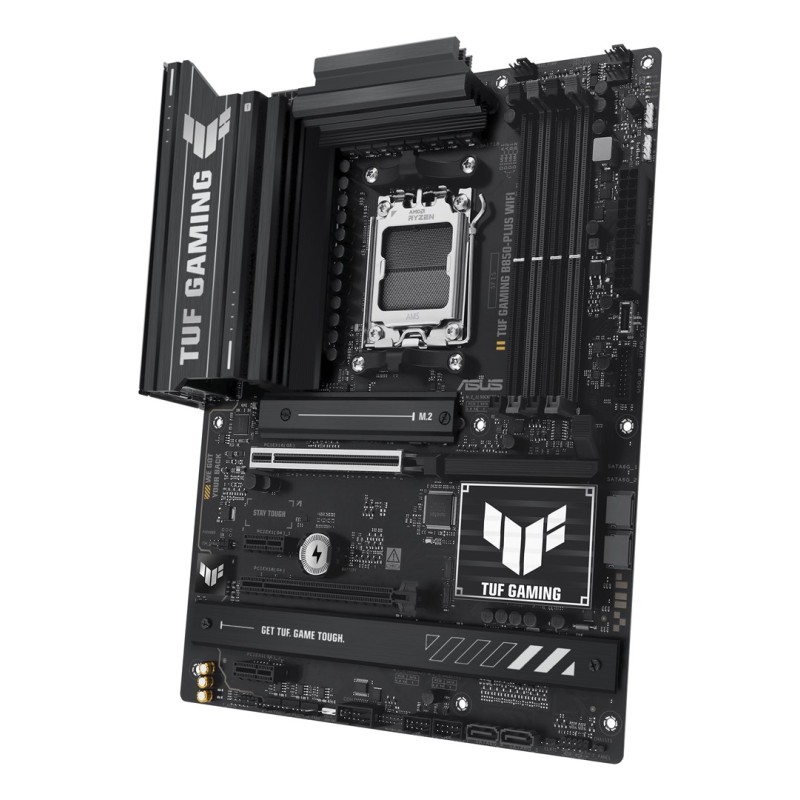

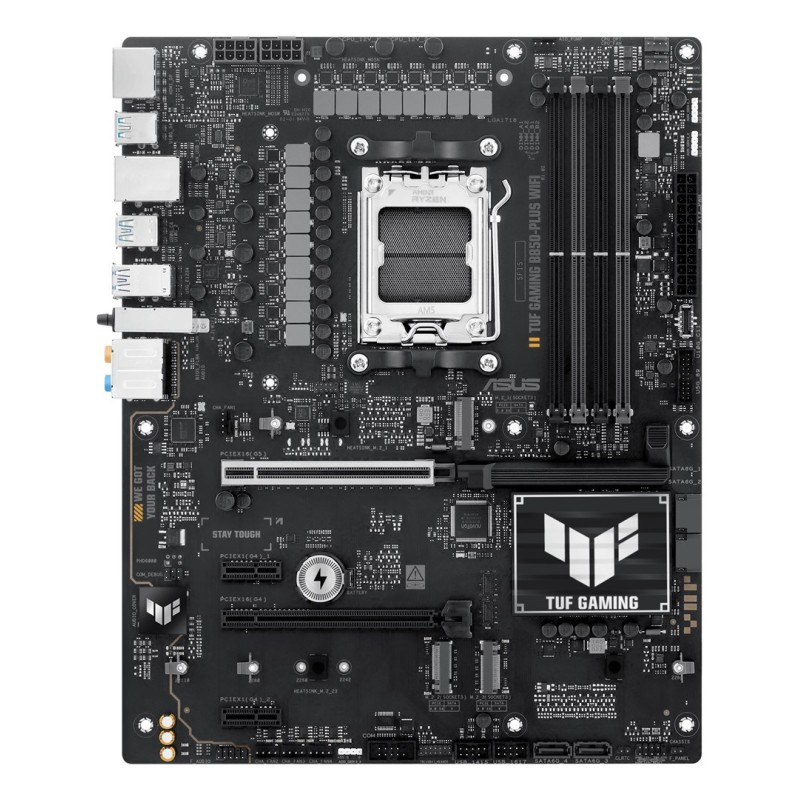

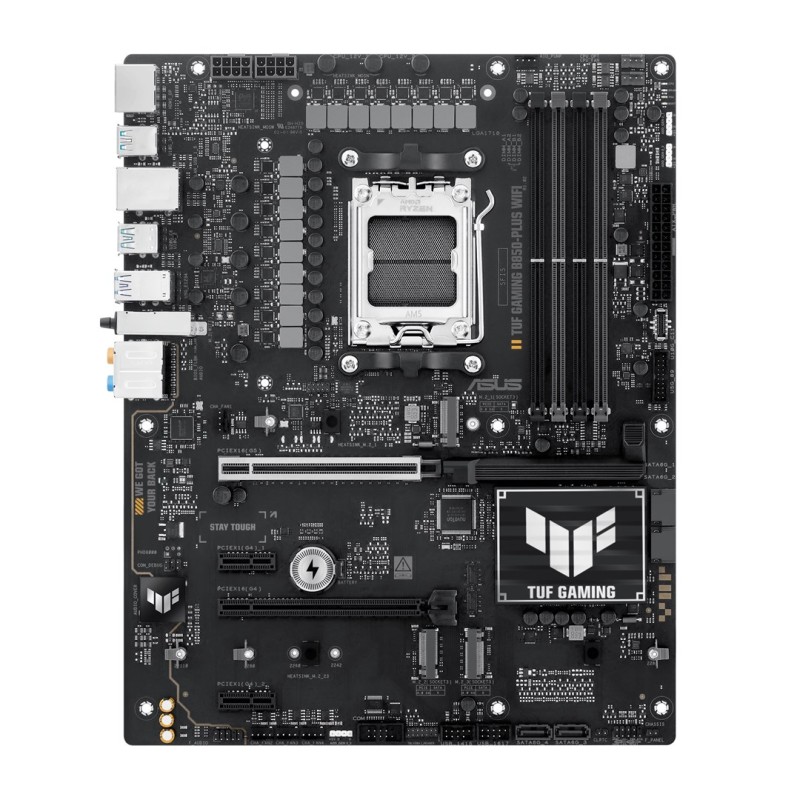

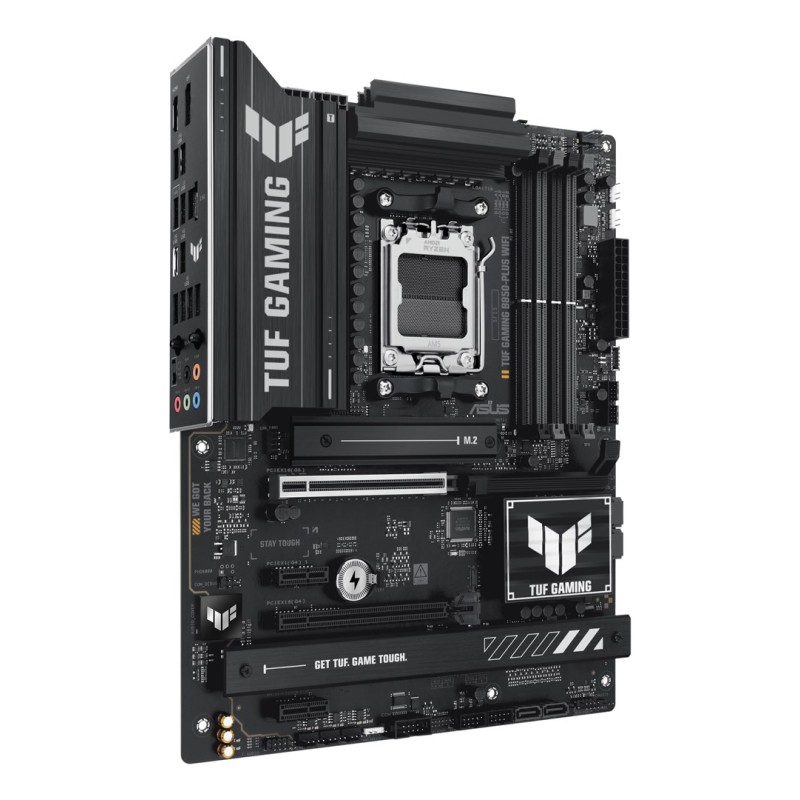

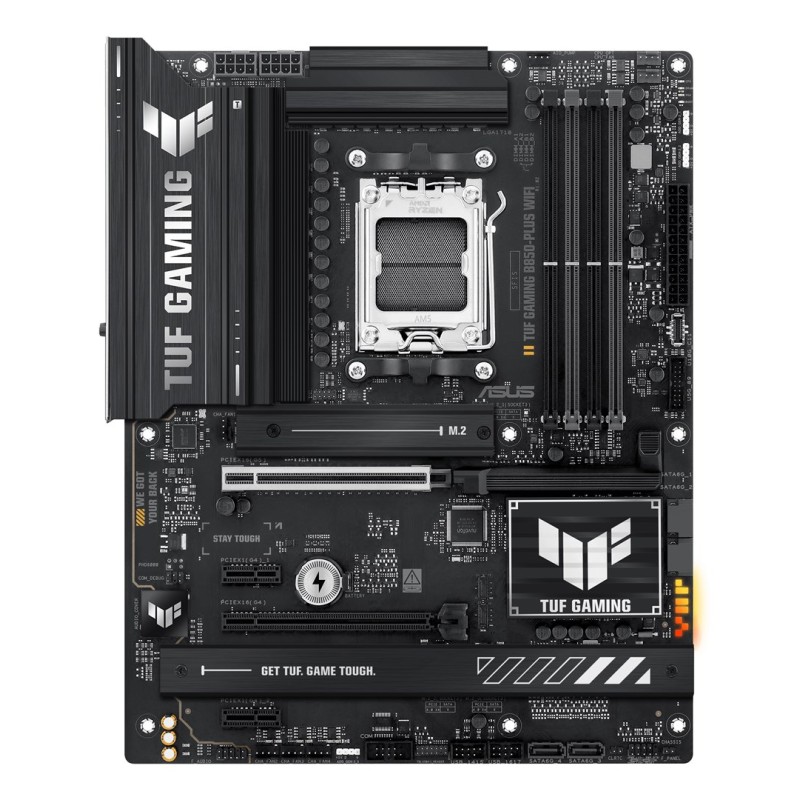

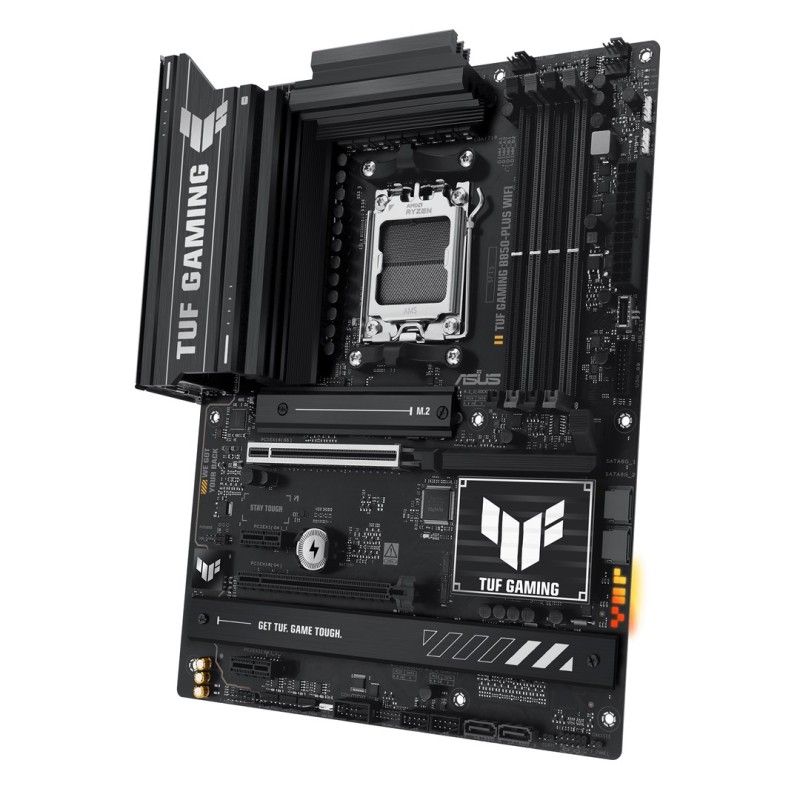

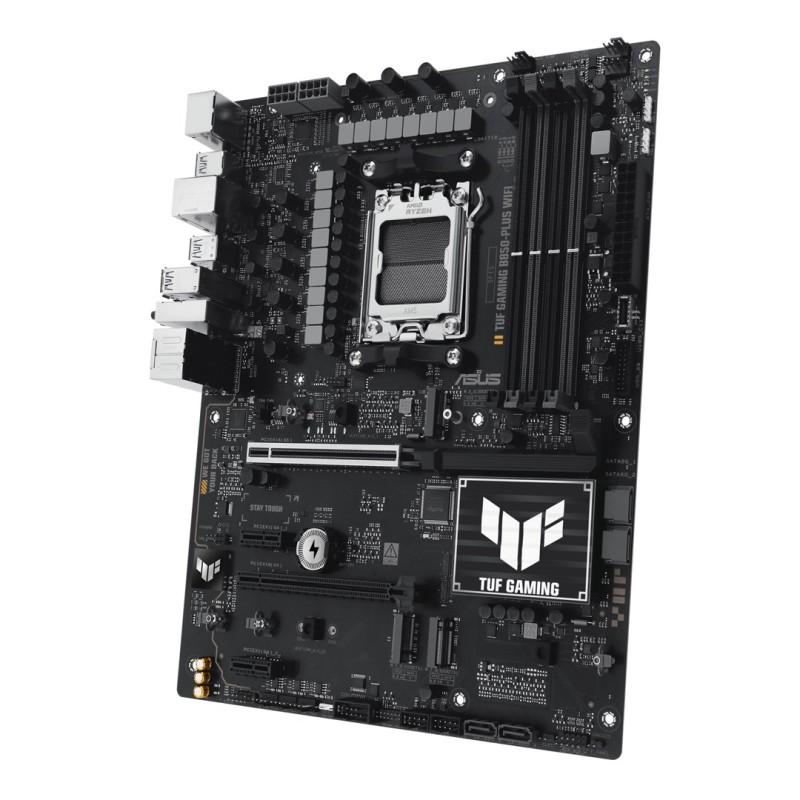

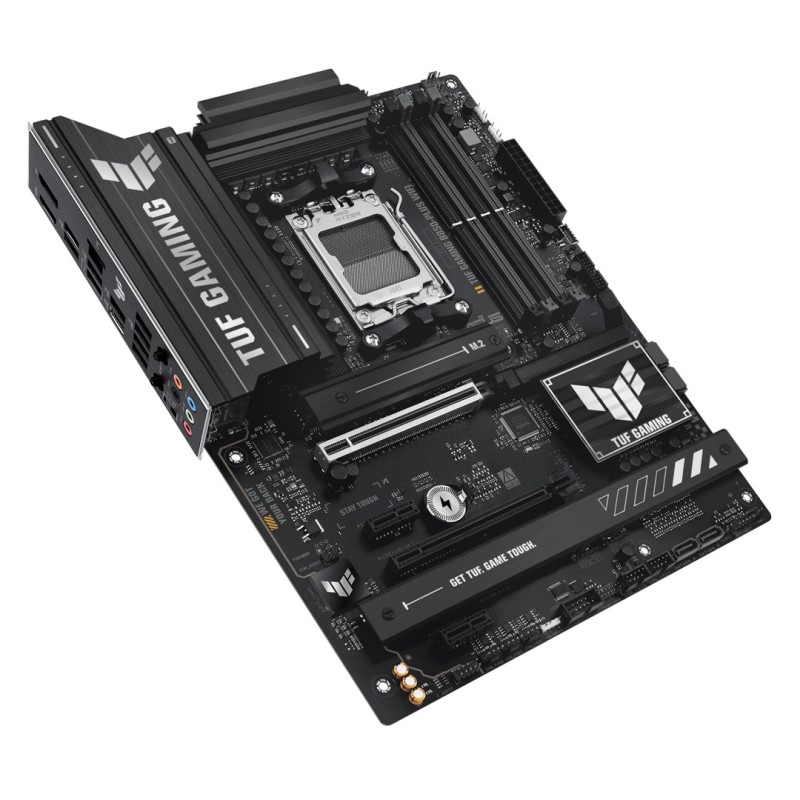

ASUS TUF GAMING B850-PLUS WIFI AMD B850 Socket AM5 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Maximum resolution: 7680 x 4320 pixels

Features

Windows operating systems supported: Windows 11

Motherboard chipset: AMD B850

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Product colour: Black

Audio chip: Realtek ALC1220

Power source type: ATX

Motherboard chipset family: AMD

Memory

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Supported memory clock speed (max): 8000 MHz

Maximum internal memory: 192 GB

Unbuffered memory: Yes

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth: Yes

Internal I/O

EPS power connector (8-pin): Yes

Number of COM connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Chassis intrusion connector: Yes

RGB LED pin header: Yes

Number of chassis fan connectors: 4

Front panel connector: Yes

Number of EPS power connectors (8-pin): 2

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 3

Number of water pump connectors: 1

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Thunderbolt headers: 1

CPU fan connector: Yes

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Packaging data

Package depth: 273 mm

Package width: 353 mm

Package height: 68 mm

Package weight: 1.81 kg

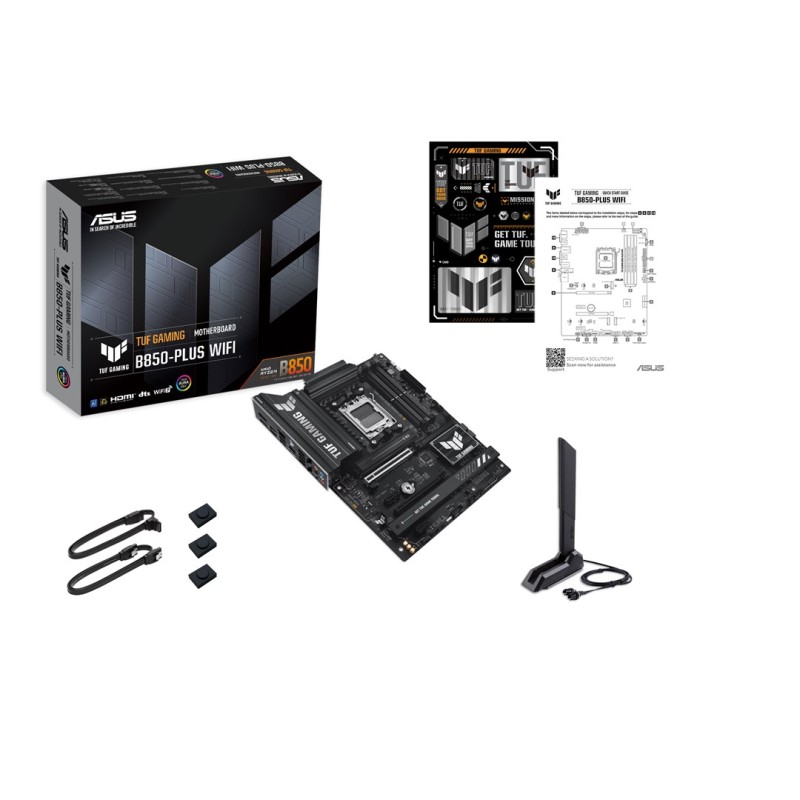

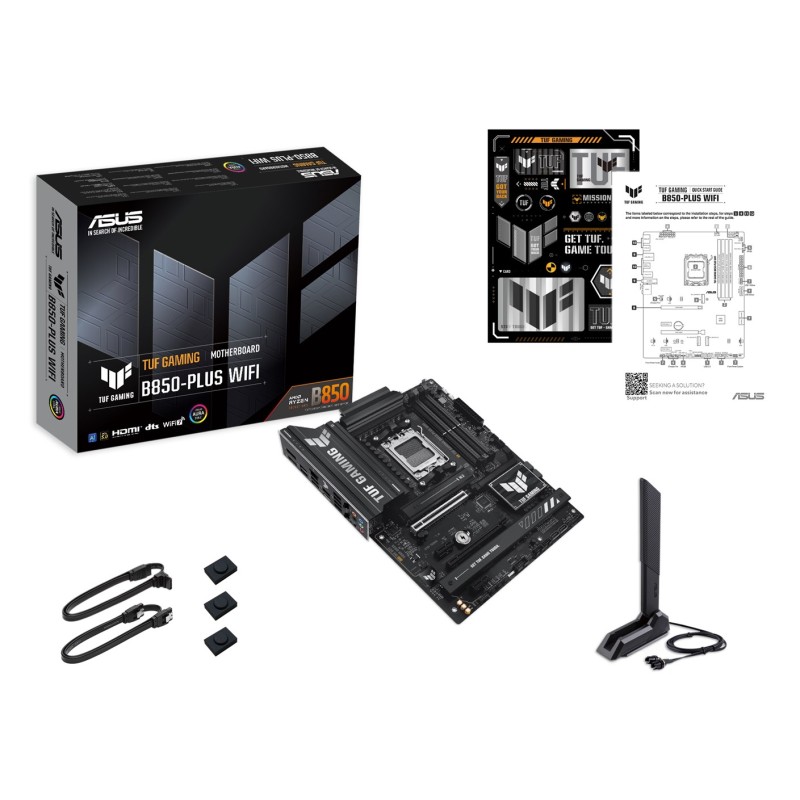

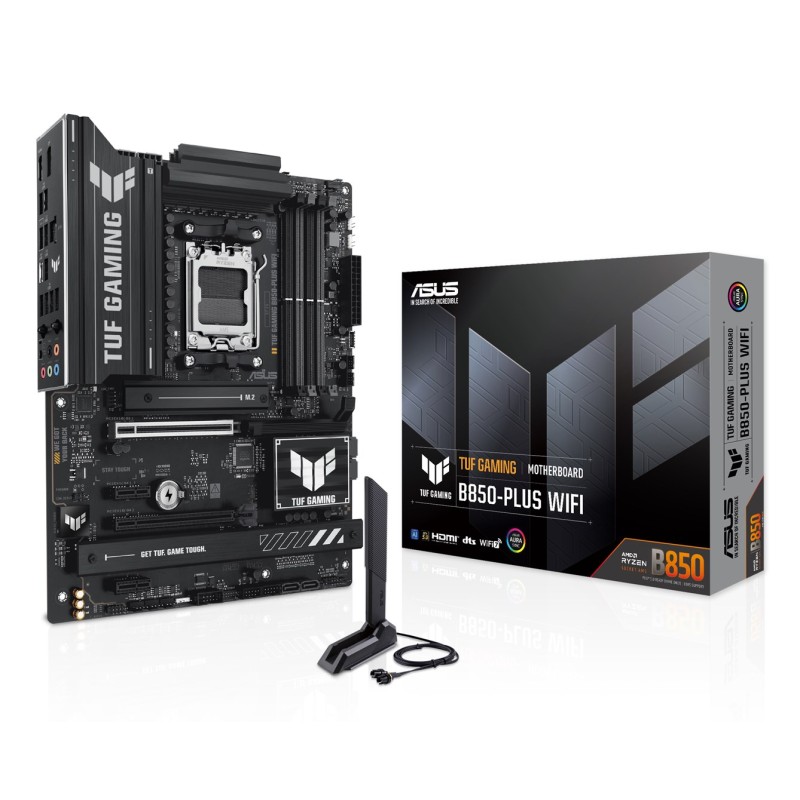

Packaging content

Cables included: SATA

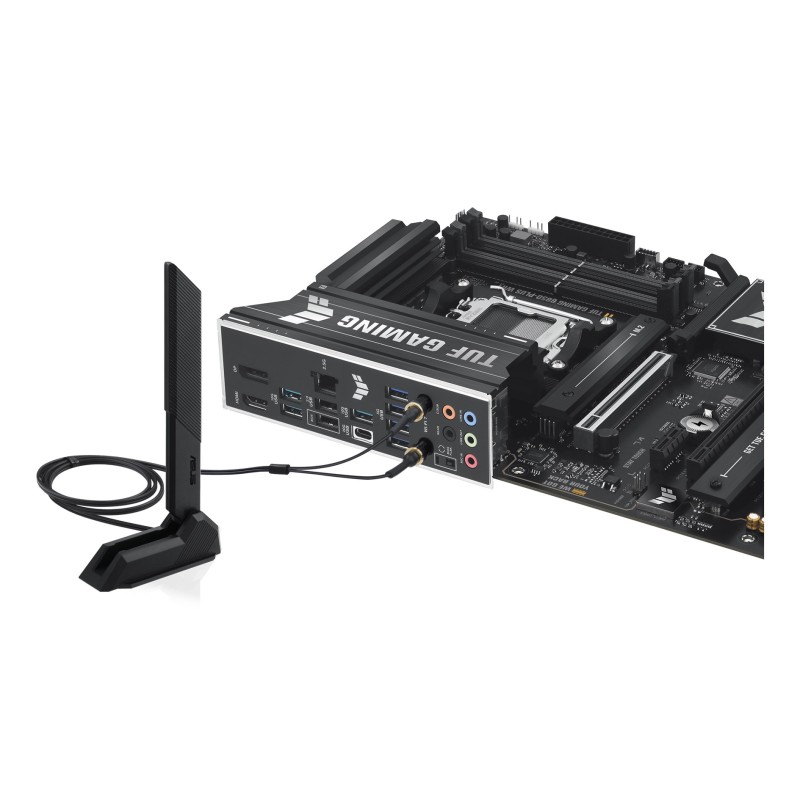

Antenna included: Yes

Storage controllers

Number of HDDs supported: 4

Number of storage drives supported: 7

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 5, 10, 1

RAID support: Yes

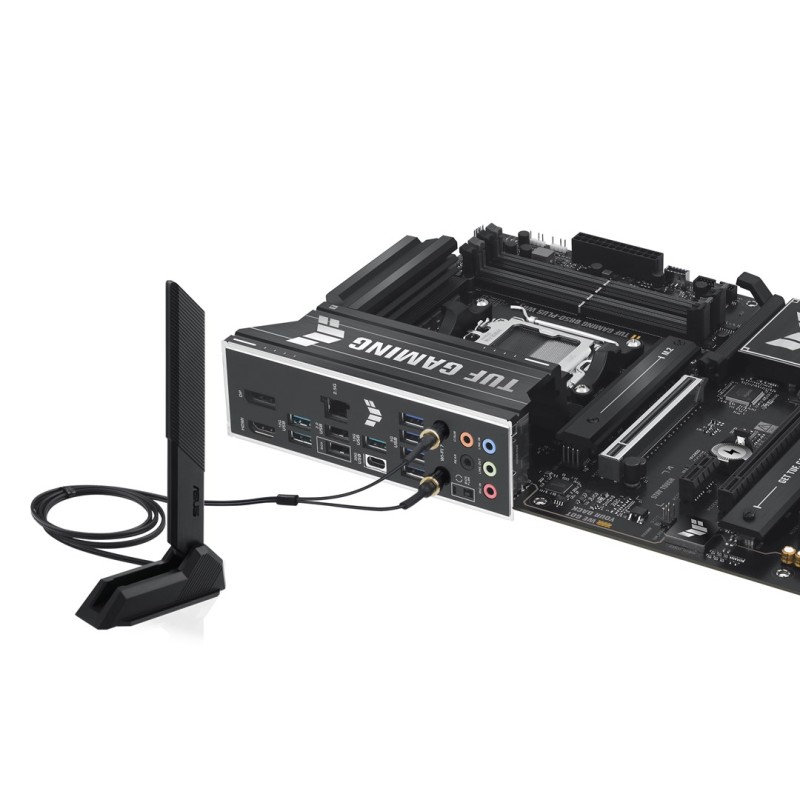

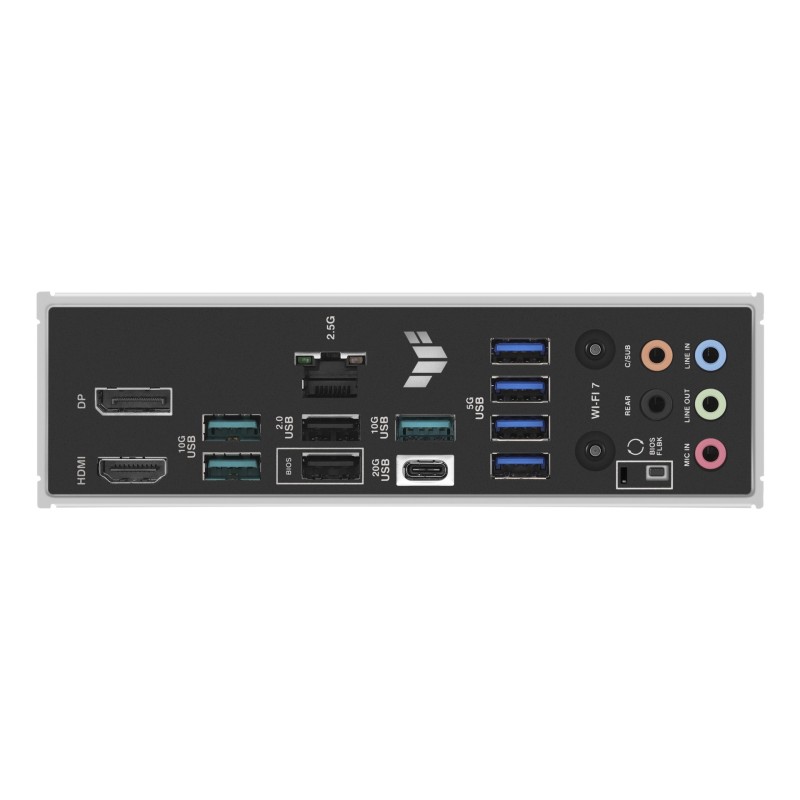

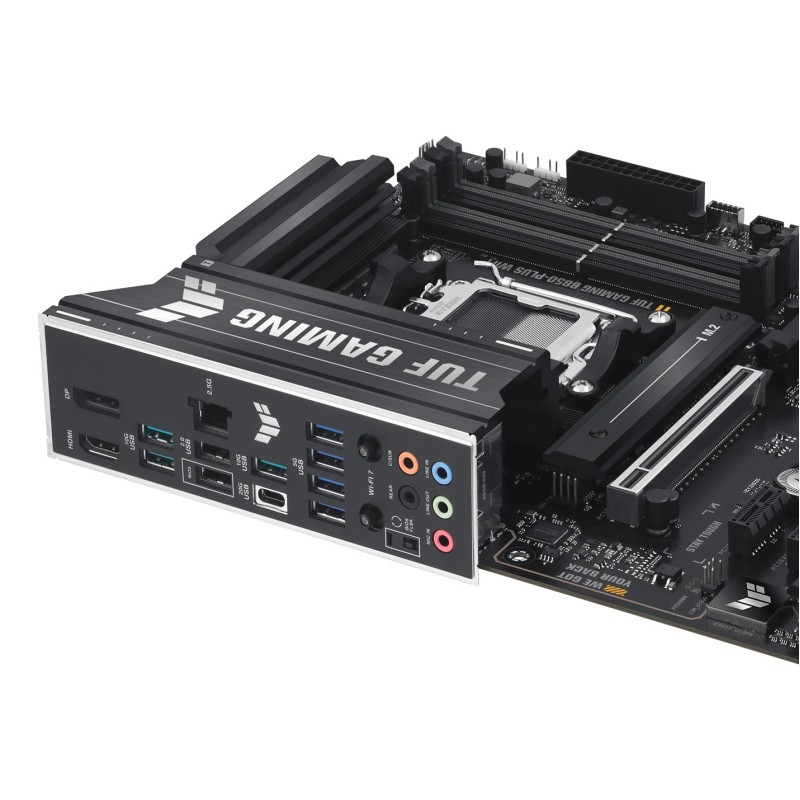

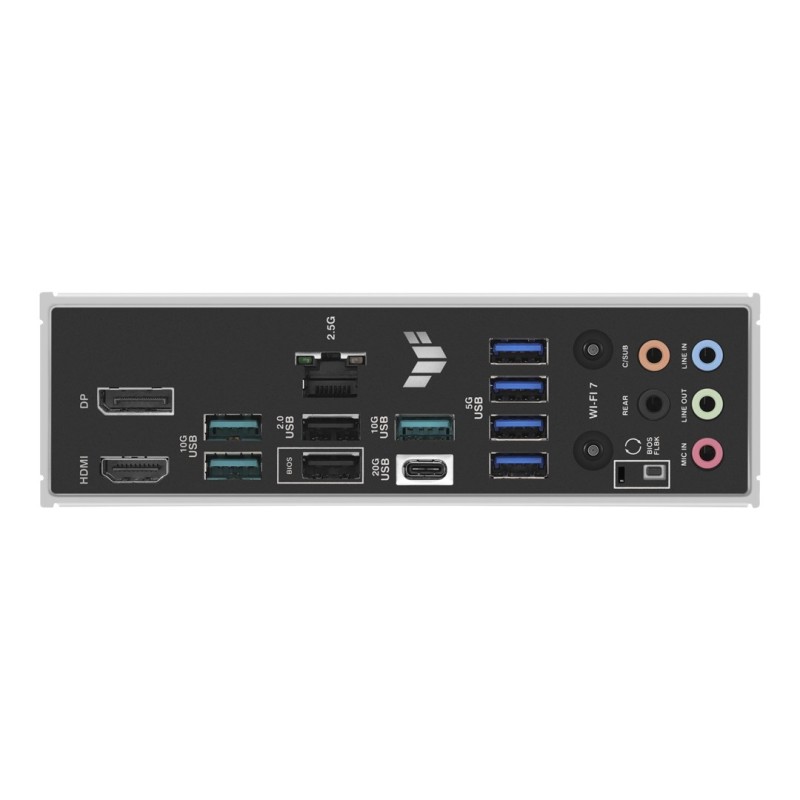

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI version: 2.1

WiFi-AP antenna jack: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

USB 3.2 Gen 2x2 Type-C ports quantity: 1

HDMI ports quantity: 1

Line-in: Yes

Microphone in: Yes

Headphone outputs: 1

DisplayPorts quantity: 1

USB 2.0 ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.4

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 4.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

2nd M.2 largest key size: 22110

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 2280

3rd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 3

Other features

Quick installation guide: Yes

Weight: 1.32 kg

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.
