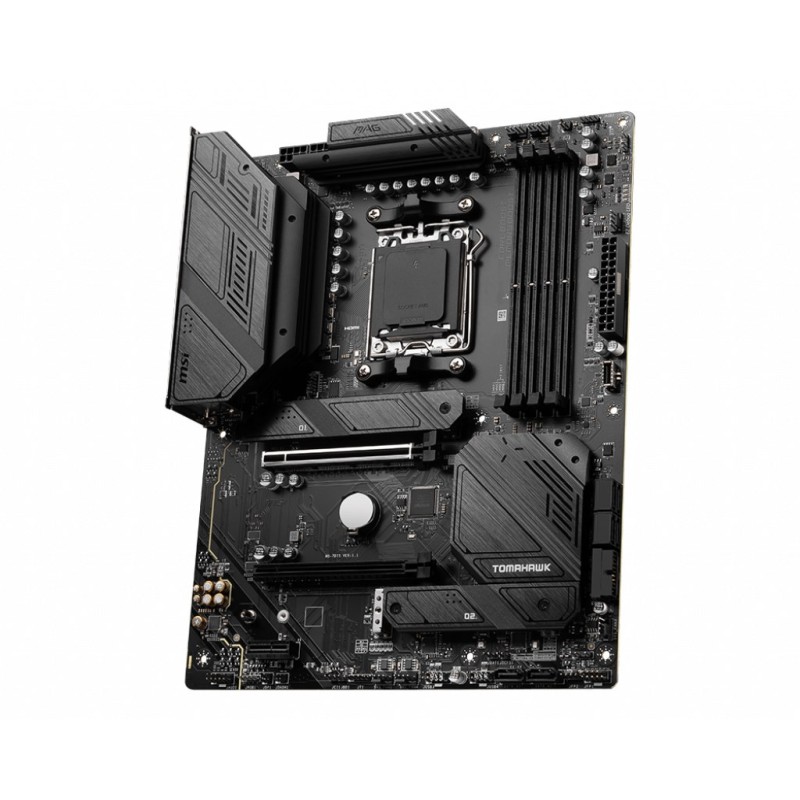

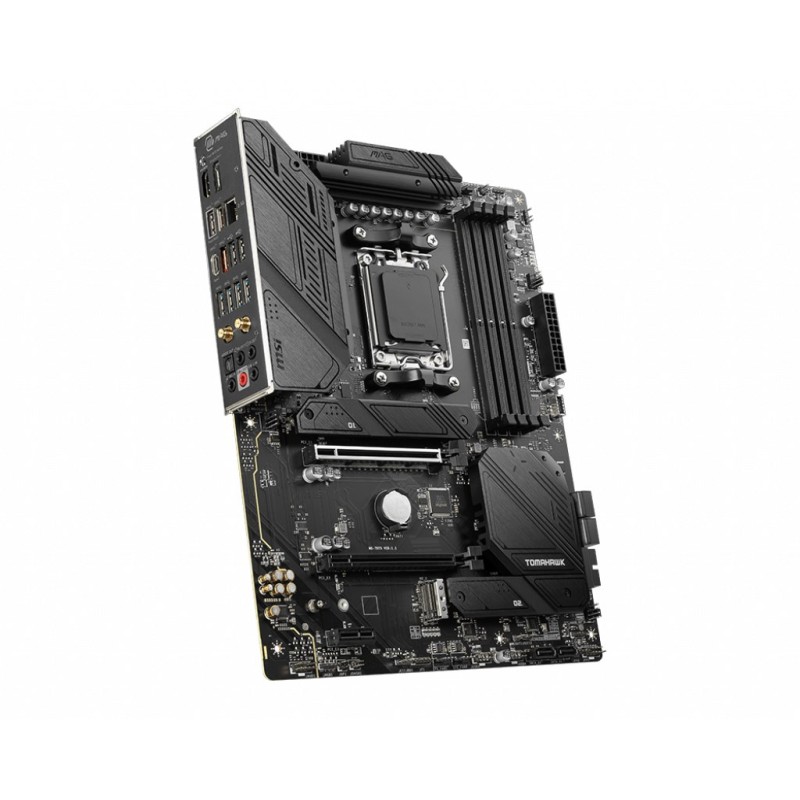

MSI MAG B650 Tomahawk WIFI AMD B650 Socket AM5 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series

Processor socket: Socket AM5

Features

PC health monitoring: Fan

Motherboard form factor: ATX

Motherboard chipset family: AMD

Product colour: Black

Audio chip: Realtek ALC4080

Motherboard chipset: AMD B650

Windows operating systems supported: Windows 11 x64

Audio output channels: 7.1 channels

Memory

Supported memory clock speeds: 6200, 5000, 6400, 6000, 5600, 6600, 5200, 5800, 5400, 4800

Maximum internal memory: 128 GB

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 304.8 mm

Depth: 243.8 mm

Network

Bluetooth: Yes

LAN controller: Realtek RTL8125B

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.2

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi standards: 802.11a, Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of SATA III connectors: 6

Chassis intrusion connector: Yes

Front panel connector: Yes

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

USB 2.0 connectors: 4

Storage controllers

Supported storage drive interfaces: M.2, SATA

RAID levels: 10, 0, 1

RAID support: Yes

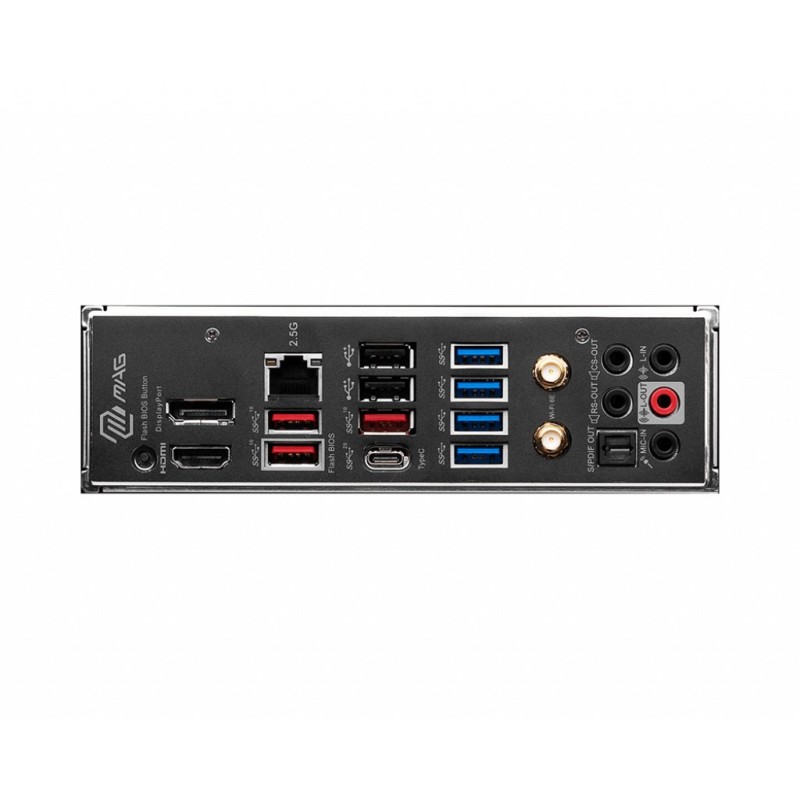

Rear panel I/O ports

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

S/PDIF out port: Yes

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Ethernet LAN (RJ-45) ports: 1

Headphone outputs: 1

Microphone in: Yes

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 3
