GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Maximum internal memory supported by processor: 256 GB

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

Graphics

DirectX version: 12.0

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard chipset family: AMD

Motherboard chipset: AMD X870

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64

PC health monitoring: Temperature, Voltage, Fan

Product colour: Black

Audio chip: Realtek ALC897

Memory

Supported memory clock speeds: 4400, 6400, 8000, 5200, 6600, 5600 MHz, 7200, 6200, 6666, 6000, 7000, 8200, 6800, 7600, 7800, 4800

Supported memory module capacities: 32GB, 8GB, 16GB, 48GB, 1GB, 40GB, 2GB, 4GB, 24GB, 64GB

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Memory slots type: DIMM

Memory channels: Dual-channel

Number of memory slots: 4

Supported memory clock speed (max): 8200 MHz

Maximum internal memory per slot: 64 GB

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 305 mm

Height: 35 mm

Depth: 244 mm

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Bluetooth: Yes

Ethernet LAN: Yes

WLAN controller model: MediaTek MT7925

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Internal I/O

Number of EPS power connectors (8-pin): 1

Number of water pump connectors: 1

Number of RGB LED pin headers: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Peripheral (Molex) power connectors (4-pin): 1

Front panel audio connector: Yes

Number of chassis fan connectors: 4

USB 2.0 connectors: 2

EPS power connector (8-pin): Yes

12V power connector: Yes

ATX Power connector (24-pin): Yes

RGB LED pin header: Yes

TPM connector: Yes

Number of SATA III connectors: 4

CPU fan connector: Yes

Number of CPU fan connectors: 2

Front panel connector: Yes

USB 3.2 Gen 2x2 connectors: 1

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Packaging data

Package weight: 1.94 kg

Package width: 335 mm

Package height: 80 mm

Package depth: 270 mm

Packaging content

Screws included: Yes

Antenna included: Yes

Batteries included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 10, 1, 0

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Number of storage drives supported: 7

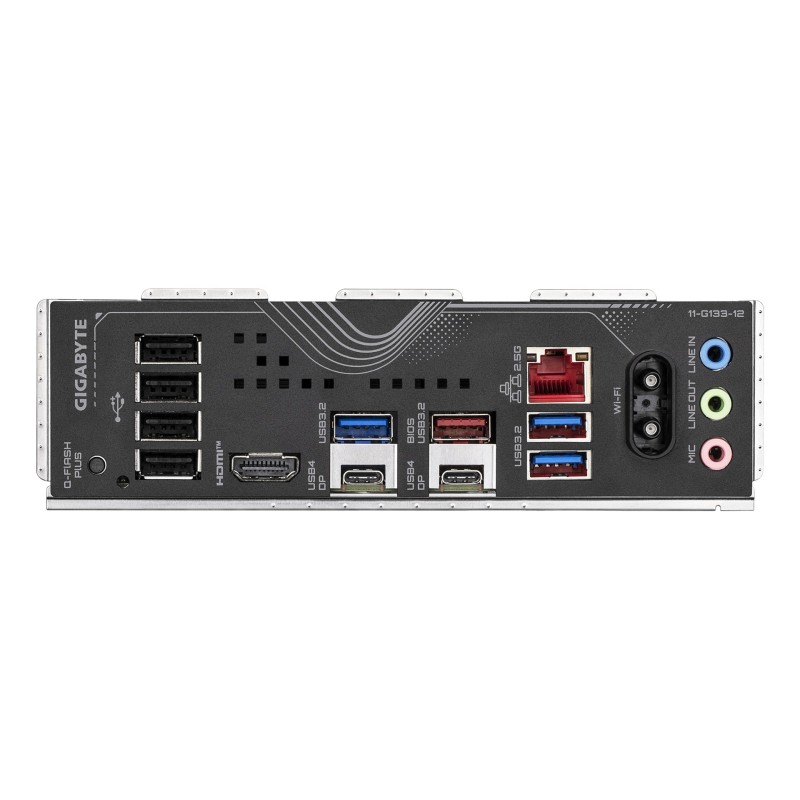

Rear panel I/O ports

DisplayPort version: 1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

Headphone outputs: 1

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

WiFi-AP antenna jack: 2

USB4 Gen 2x2 ports quantity: 2

Expansion slots

3rd M.2 largest key size: 25110

2nd M.2 largest key size: 25110

2nd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 25110

3rd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Battery

Lithium weight per battery: 0.07 g

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery weight: 3 g

Battery type: CR2032

Number of battery cells: 1

Other features

Weight: 1.74 kg

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
