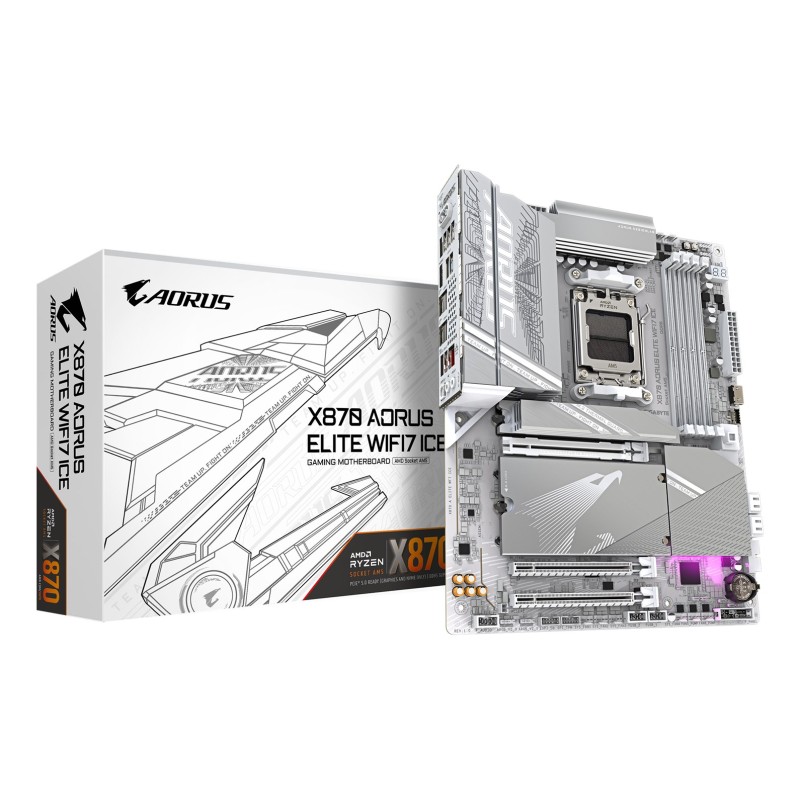

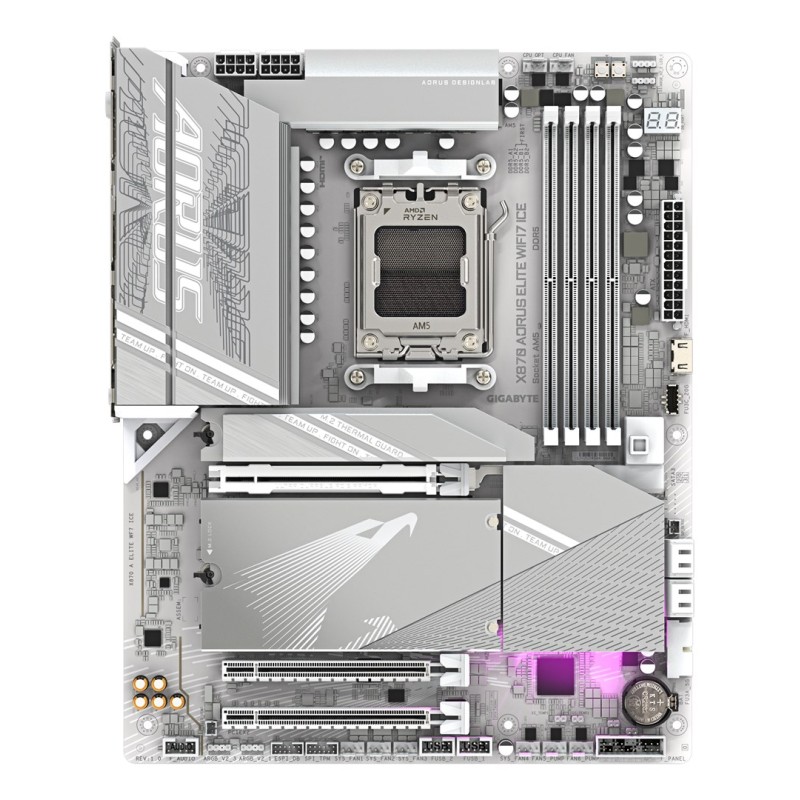

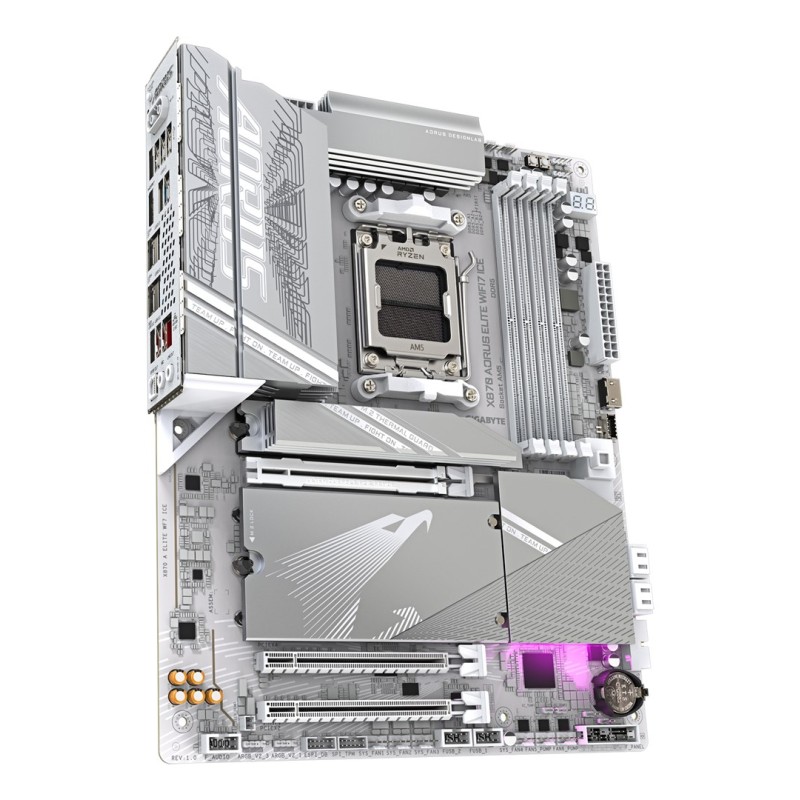

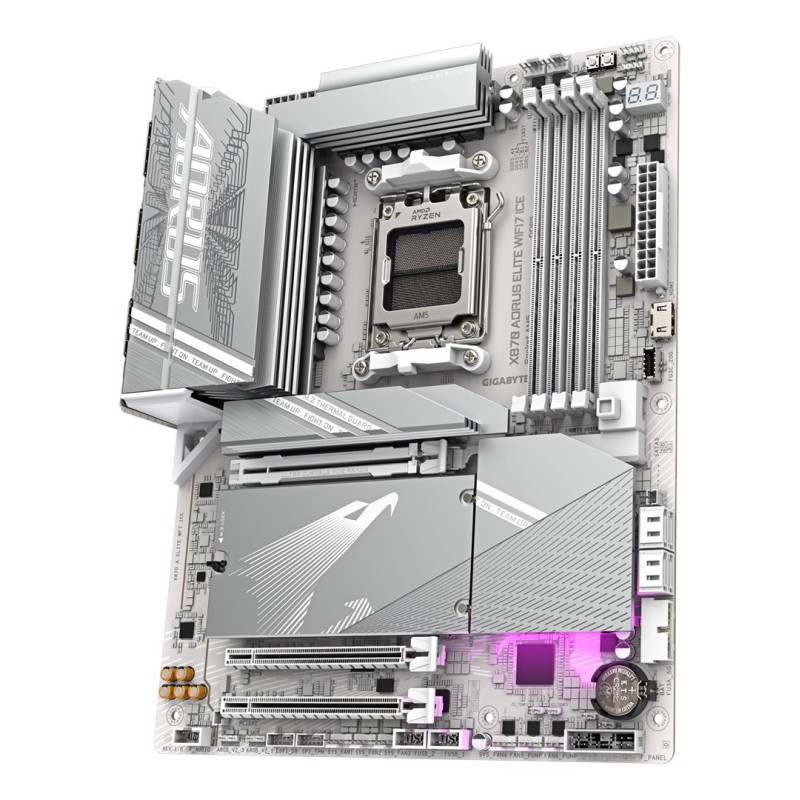

GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Maximum internal memory supported by processor: 256 GB

Graphics

On-board graphics card model: AMD Radeon Graphics

HDCP: Yes

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

DirectX version: 12.0

On-board graphics card: Yes

Number of displays supported: 4

Features

PC health monitoring: Water cooling, Voltage, Fan, Temperature, Noise

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64

Motherboard chipset: AMD X870

Audio chip: Realtek ALC1220

Product colour: White

Motherboard chipset family: AMD

Motherboard form factor: ATX

Memory

Supported memory clock speeds: 6800, 4800, 4400, 5200, 5600, 7200, 8000, 7600, 7800, 6000, 6400, 6200, 6666, 6600, 7000, 8200 MHz

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Supported memory clock speed (max): 8200 MHz

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

ECC сompatibility: Non-ECC

Maximum internal memory per slot: 64 GB

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Height: 35 mm

Network

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

LAN controller: Realtek RTL8125

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)

Wi-Fi: Yes

WLAN controller model: MediaTek MT7925

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.4

Internal I/O

Front panel audio connector: Yes

TPM connector: Yes

Number of chassis fan connectors: 6

Number of SATA III connectors: 4

Front panel connector: Yes

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Total number of SATA connectors: 4

12V power connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 2x2 connectors: 1

Number of EPS power connectors (8-pin): 2

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 4

Number of water pump connectors: 3

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

Packaging data

Package height: 80 mm

Package depth: 270 mm

Package width: 335 mm

Package weight: 2.74 kg

Packaging content

Batteries included: Yes

Screws included: Yes

Antenna included: Yes

Storage controllers

RAID levels: 1, 0, 10

Supported storage drive interfaces: M.2

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of storage drives supported: 8

Number of HDDs supported: 4

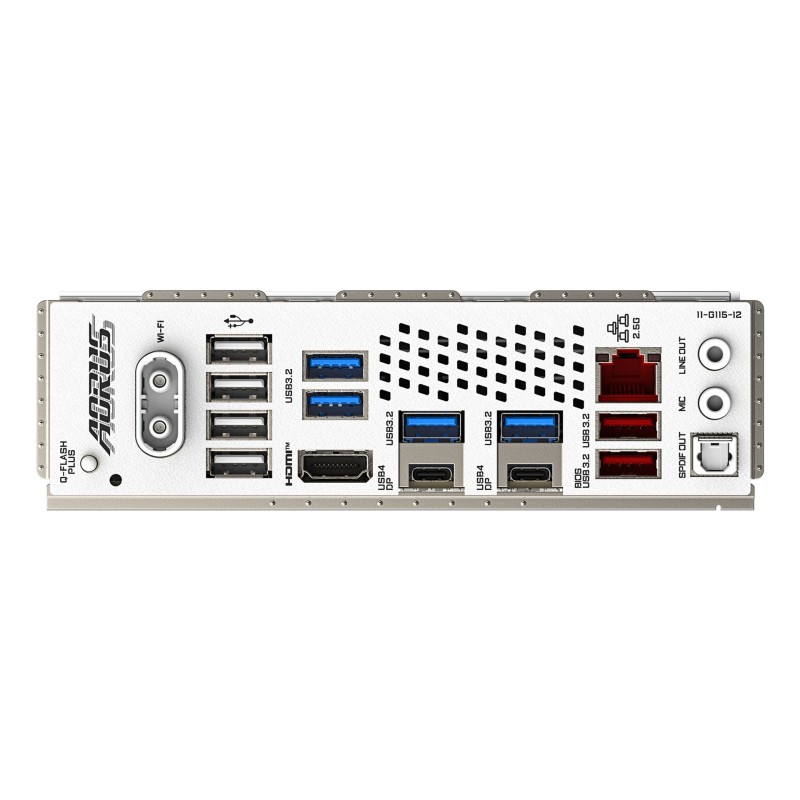

Rear panel I/O ports

DisplayPort version: 1.4

S/PDIF out port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 ports quantity: 4

USB4 Gen 3x2 ports quantity: 2

HDMI ports quantity: 1

Microphone in: Yes

HDMI version: 2.1

WiFi-AP antenna jack: 2

Headphone outputs: 1

Expansion slots

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 largest key size: 25110

4th M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 5.0

1st M.2 highest PCI Express generation: 5.0

4th M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 22110

3rd M.2 largest key size: 22110

Battery

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Number of battery cells: 1

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Other features

Weight: 2.4 kg

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
