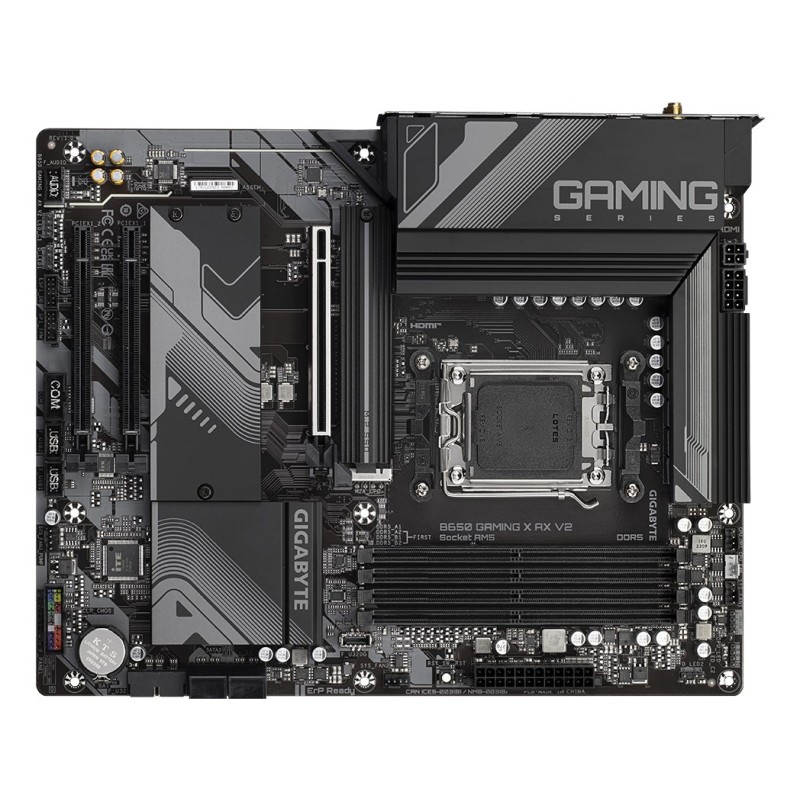

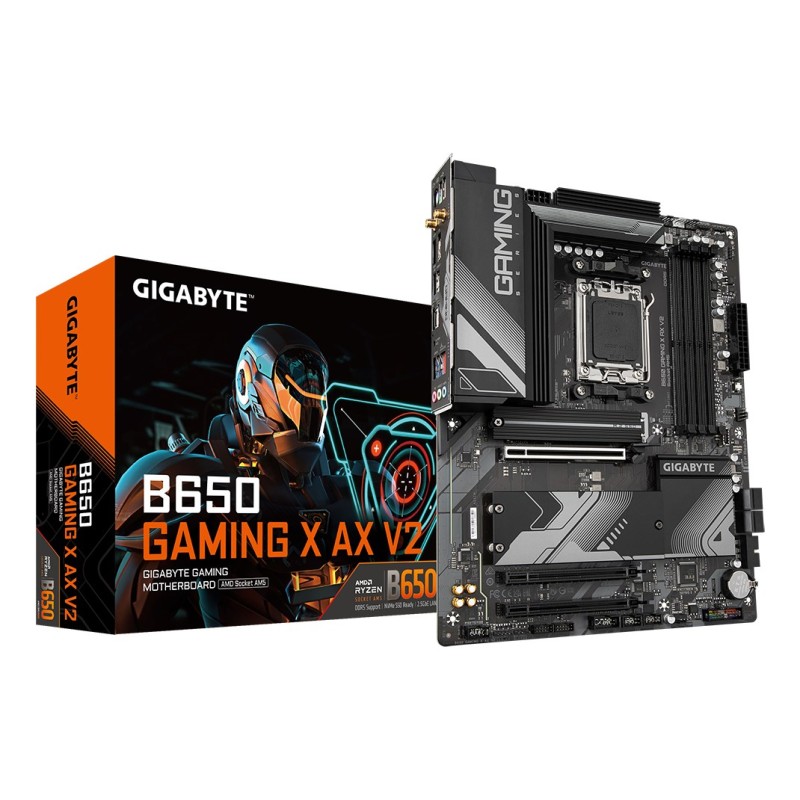

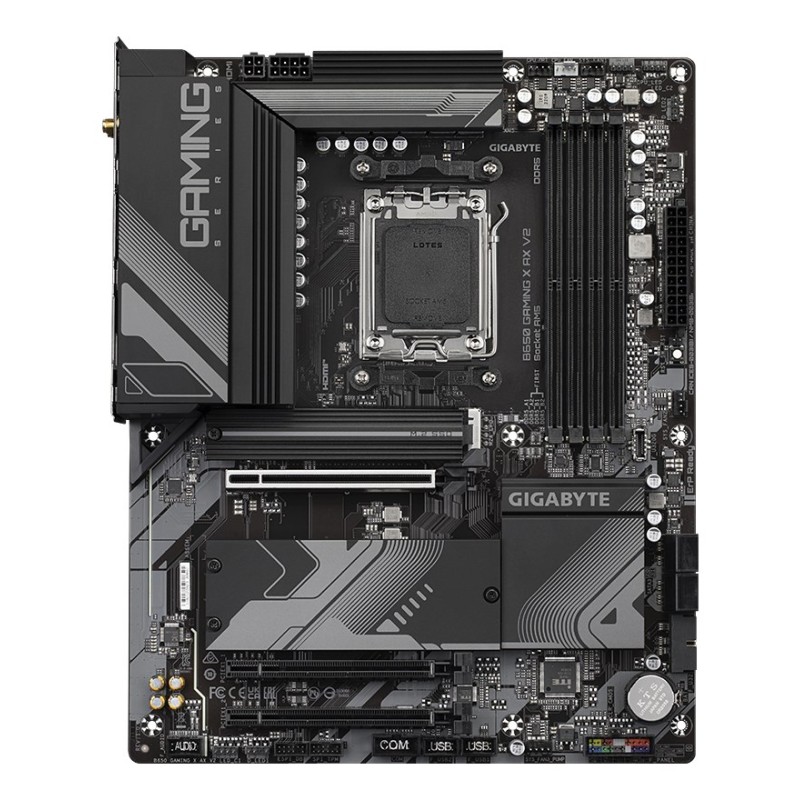

GIGABYTE B650 GAMING X AX V2 Motherboard - Supports AMD Ryzen 8000 CPUs, 8+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E 802.11ax, 2.5GbE LAN, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Graphics

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

DirectX version: 12.0

Parallel processing technology support: Not supported

Features

PC health monitoring: Voltage, Fan, Water cooling, Temperature

Motherboard form factor: ATX

Motherboard chipset: AMD B650

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Power source type: ATX

Motherboard chipset family: AMD

Product colour: Bronze

Audio chip: Realtek ALC897

Memory

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory clock speeds: 7800, 8000, 6000, 4400, 6200, 7600, 5600 MHz, 7200, 4800, 6600, 6400, 7000, 6800, 5200

Maximum internal memory: 256 GB

Number of memory slots: 4

Maximum internal memory per slot: 64 GB

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 8000 MHz

Weight & dimensions

Height: 35 mm

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax)

Ethernet interface type: 2.5 Gigabit Ethernet

WLAN controller model: Realtek RTL8852CE

Ethernet LAN: Yes

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

Bluetooth: Yes

LAN controller: Realtek RTL8125

Internal I/O

Front panel audio connector: Yes

Number of EPS power connectors (8-pin): 1

Serial port headers: 1

Number of CPU fan connectors: 2

USB 3.2 Gen 2x2 connectors: 1

RGB LED pin header: Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 2

12V power connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of RGB LED pin headers: 5

Number of chassis fan connectors: 3

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

Number of water pump connectors: 2

CPU fan connector: Yes

TPM connector: Yes

Front panel connector: Yes

BIOS

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Packaging data

Package weight: 2.16 kg

Package width: 335 mm

Package height: 80 mm

Package depth: 270 mm

Packaging content

Batteries included: Yes

Antenna included: Yes

Screws included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 10, 0

Supported storage drive types: HDD & SSD

Number of storage drives supported: 7

Number of HDDs supported: 4

RAID support: Yes

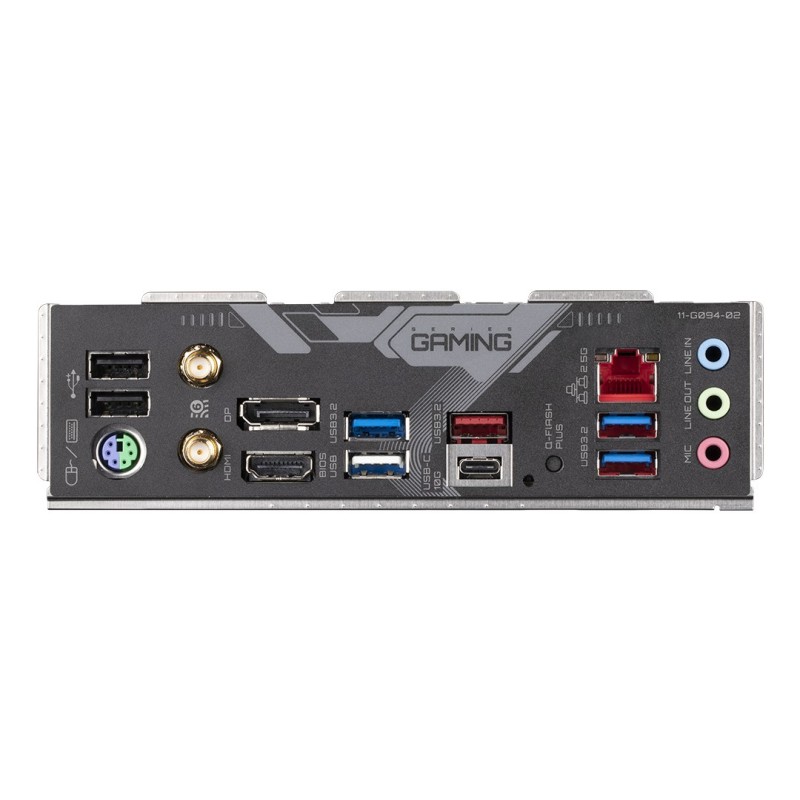

Rear panel I/O ports

USB 2.0 ports quantity: 3

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

WiFi-AP antenna jack: 2

HDMI version: 2.1

Headphone outputs: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

DisplayPort version: 1.4

HDMI ports quantity: 1

Line-in: Yes

Microphone in: Yes

Expansion slots

2nd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 3.x) slots: 2

1st M.2 largest key size: 25110

Number of M.2 (M) slots: 3

2nd M.2 largest key size: 25110

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 highest PCI Express generation: 5.0

3rd M.2 largest key size: 25110

3rd M.2 highest PCI Express generation: 4.0

Battery

Battery type: CR2032

Battery weight: 3 g

Number of battery cells: 1

Lithium weight per battery: 0.07 g

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.
