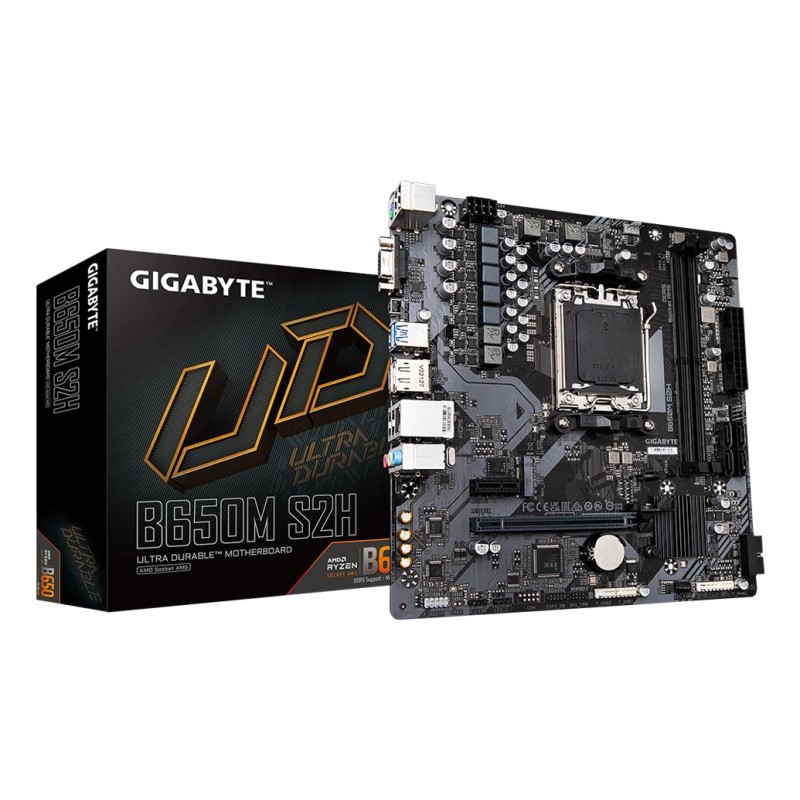

GIGABYTE B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

DirectX version: 12.0

Parallel processing technology support: Not supported

Features

PC health monitoring: Fan, Voltage, Temperature

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Audio chip: Realtek ALC897

Motherboard chipset: AMD B650

Motherboard form factor: micro ATX

Product colour: Bronze

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Cooling type: Passive

Power source type: ATX

Memory

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Maximum internal memory per slot: 64 GB

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 6400 MHz

Supported memory clock speeds: 6400, 4400, 6000, 5200, 6200, 5600 MHz, 4800

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Weight & dimensions

Height: 35 mm

Depth: 225 mm

Width: 230 mm

Network

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Wi-Fi: No

Internal I/O

Number of CPU fan connectors: 1

12V power connector: Yes

RGB LED pin header: Yes

Number of EPS power connectors (8-pin): 1

Number of SATA III connectors: 4

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of chassis fan connectors: 2

Front panel audio connector: Yes

Front panel connector: Yes

Number of RGB LED pin headers: 2

TPM connector: Yes

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

CPU fan connector: Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Packaging data

Package weight: 917 g

Package width: 265 mm

Package depth: 265 mm

Package height: 54 mm

Packaging content

Screws included: Yes

Batteries included: Yes

Storage controllers

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 0, 10

Number of storage drives supported: 5

RAID support: Yes

Rear panel I/O ports

Headphone outputs: 1

VGA (D-Sub) ports quantity: 1

Line-in: Yes

DisplayPorts quantity: 1

DisplayPort version: 1.4

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

HDMI version: 2.1

HDMI ports quantity: 1

Microphone in: Yes

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

1st M.2 largest key size: 2580

Number of M.2 (M) slots: 1

1st M.2 highest PCI Express generation: 4.0

Battery

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Battery weight: 3 g

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
