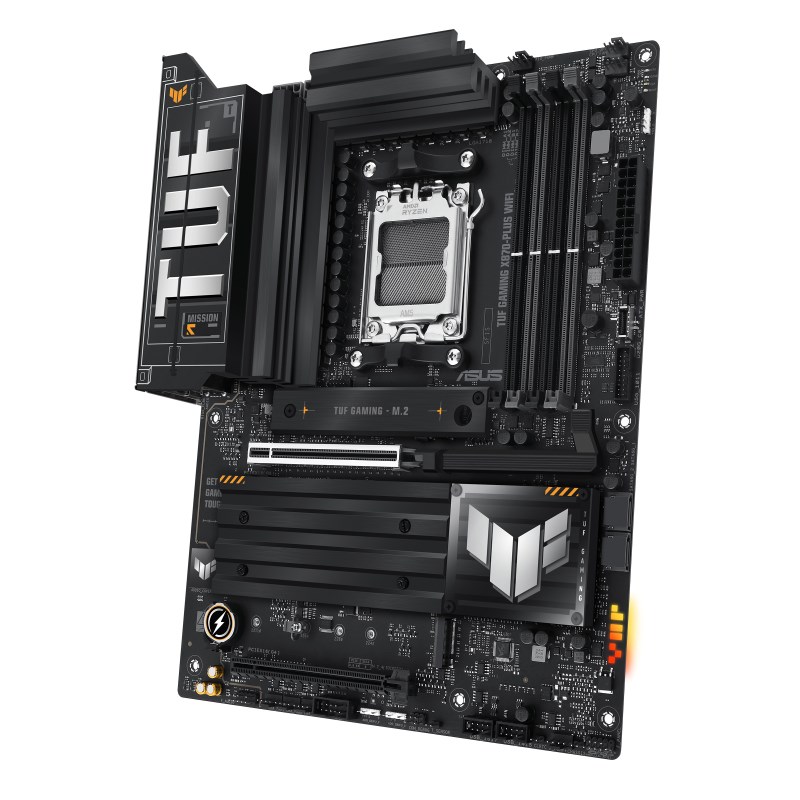

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard chipset family: AMD

Motherboard form factor: ATX

Product colour: Black

Motherboard chipset: AMD X870

Windows operating systems supported: Windows 11

Audio chip: Realtek ALC1220P

Audio output channels: 7.1 channels

Memory

Memory slots type: DIMM

Maximum internal memory: 192 GB

Number of memory slots: 4

Supported memory clock speed (max): 8000 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Memory channels: Dual-channel

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet

Bluetooth version: 5.4

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Internal I/O

12V power connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of COM connectors: 1

Number of chassis fan connectors: 4

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Number of SATA III connectors: 2

USB 3.2 Gen 2x2 connectors: 1

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 10, 5

Number of storage drives supported: 6

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 2

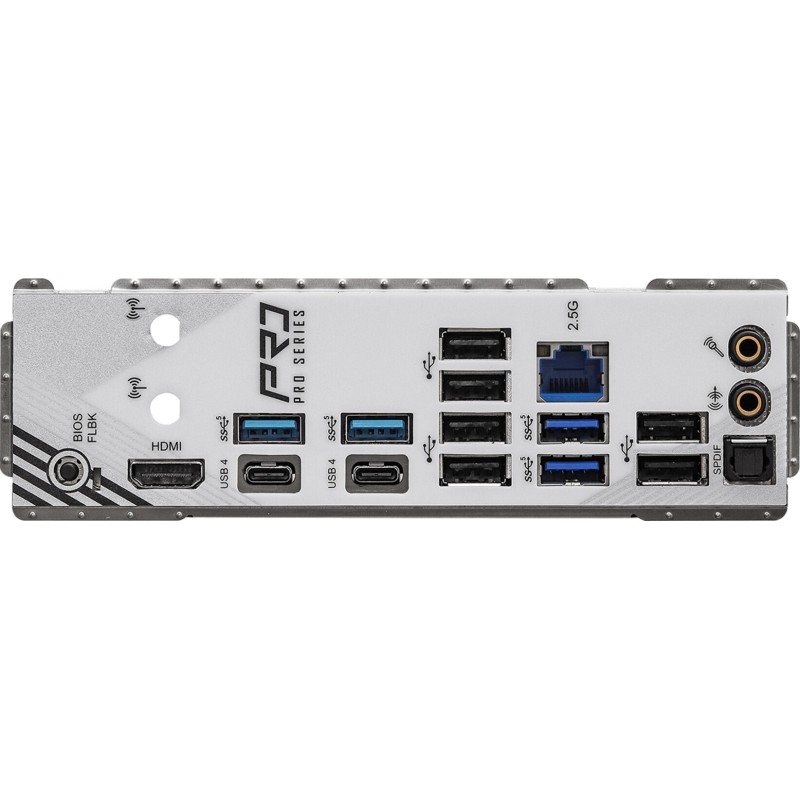

Rear panel I/O ports

USB4 Gen 3x2 ports quantity: 2

USB 2.0 ports quantity: 1

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

USB connector type: USB Type-C, USB Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 4

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
