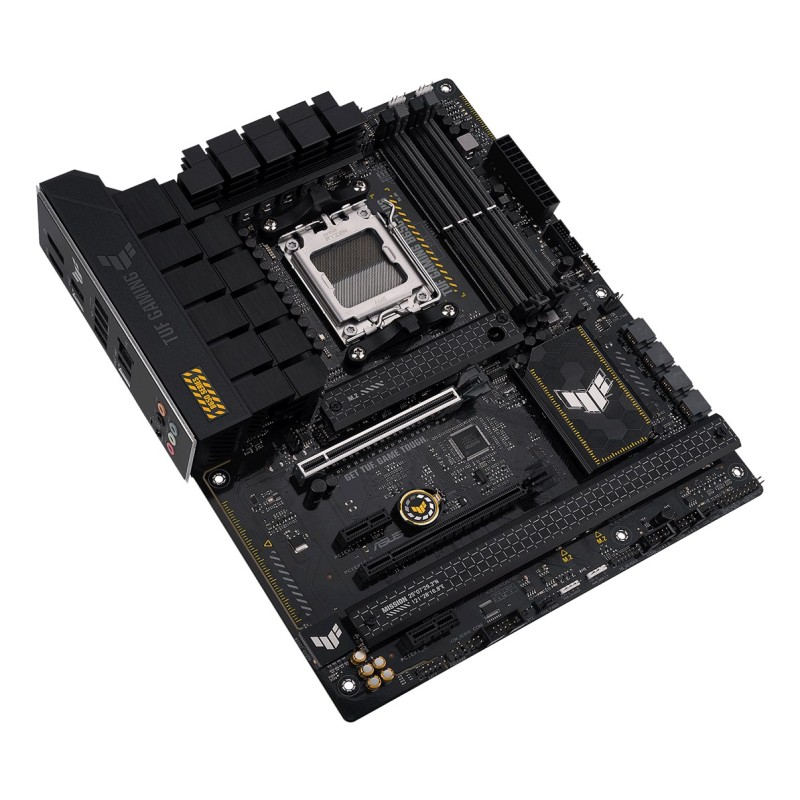

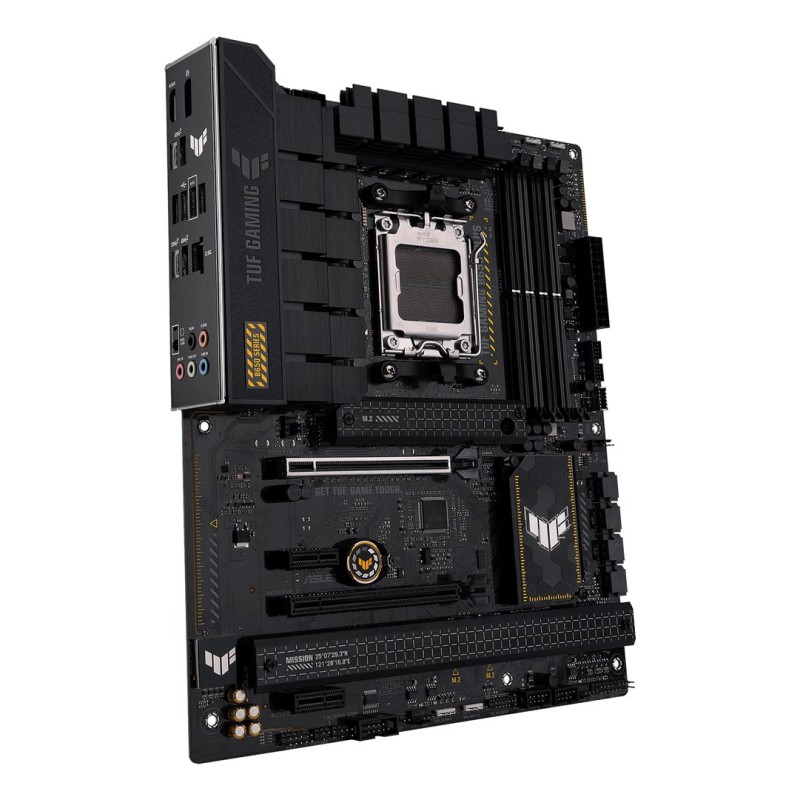

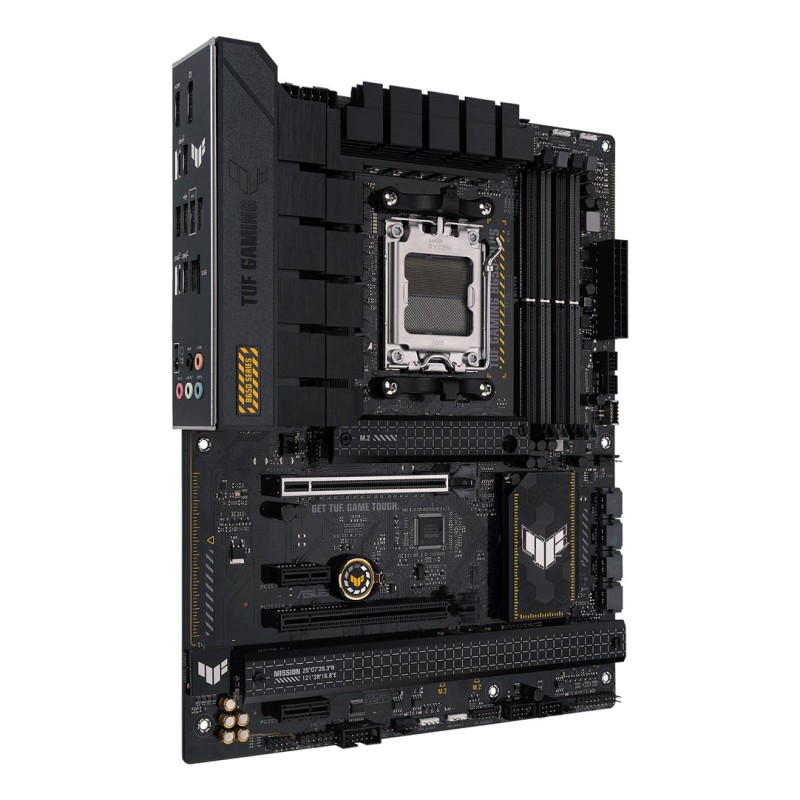

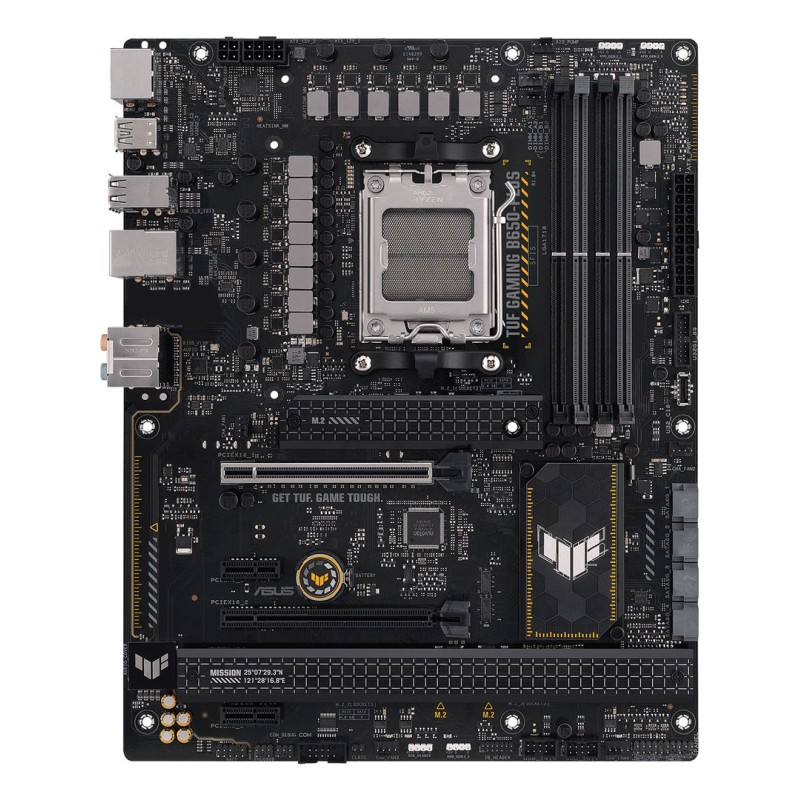

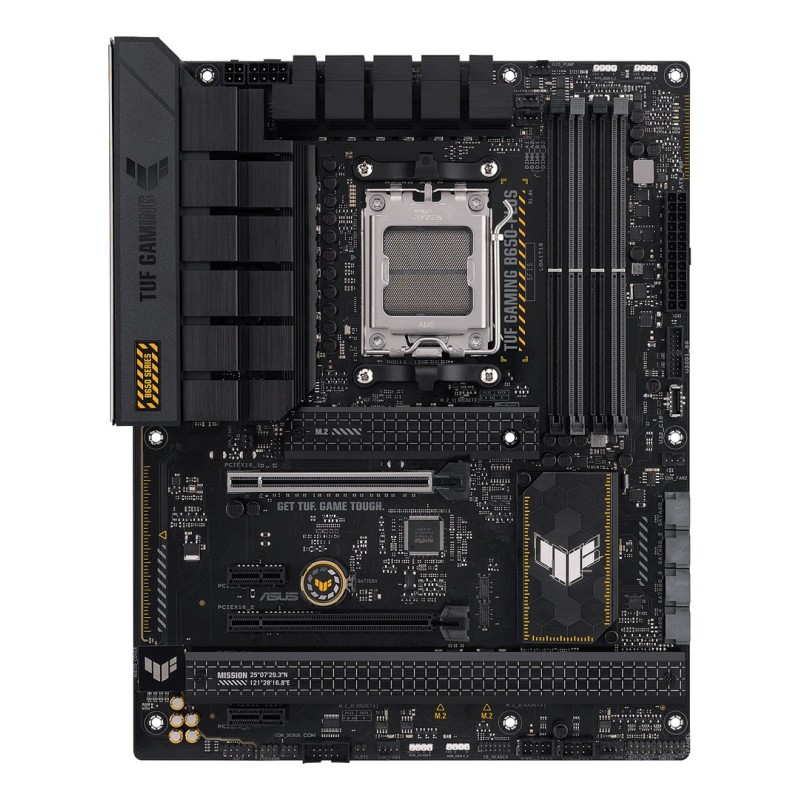

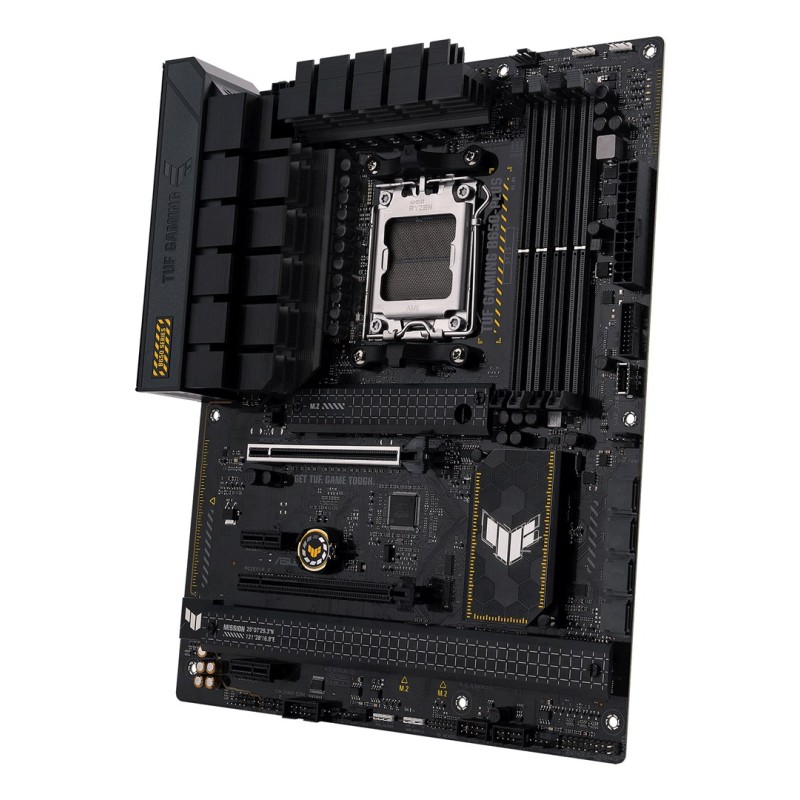

ASUS TUF GAMING B650-PLUS AMD B650 Socket AM5 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 7000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 10, Windows 11 x64

Motherboard chipset family: AMD

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Motherboard chipset: AMD B650

Power source type: ATX

Memory

Supported memory clock speeds: 5200, 6000, 6200, 4800, 6400 MHz, 5800, 5400, 5000, 5600

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Memory channels: Dual-channel

Number of memory slots: 4

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Supported memory clock speed (max): 6400 MHz

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Thunderbolt headers: 1

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

Front panel audio connector: Yes

RGB LED pin header: Yes

CPU fan connector: Yes

Number of COM connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 2

12V power connector: Yes

Number of chassis fan connectors: 4

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package width: 338 mm

Package depth: 273 mm

Package height: 68 mm

Package weight: 1.36 kg

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 0, 10, 1

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

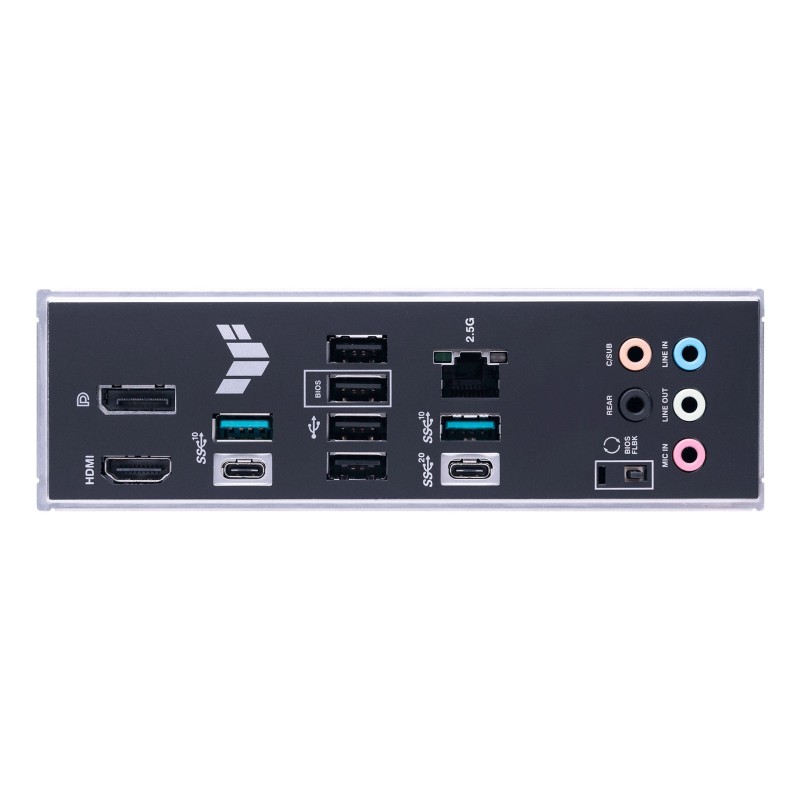

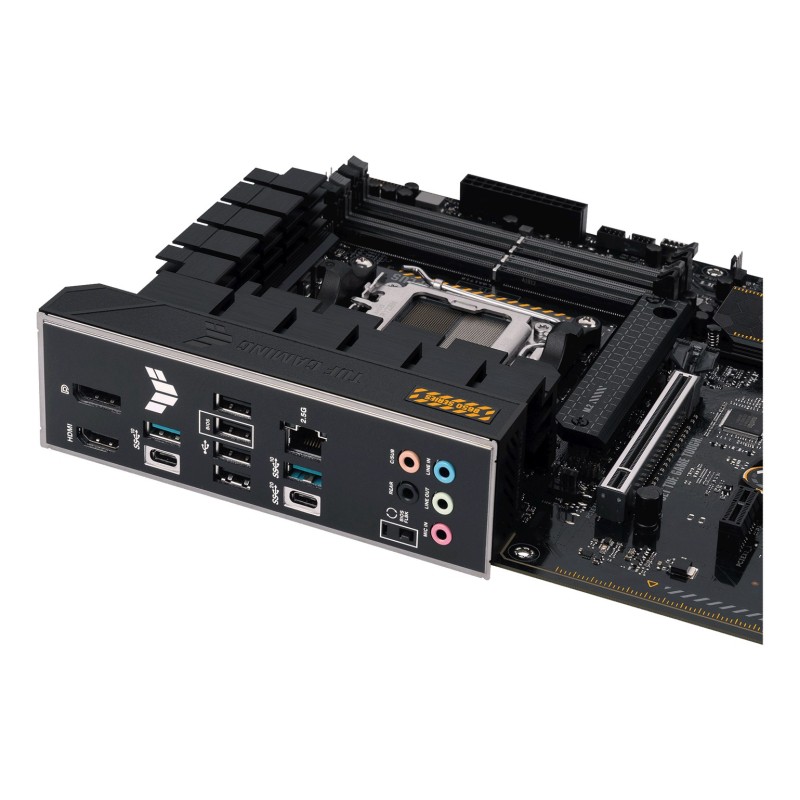

Rear panel I/O ports

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Line-in: Yes

USB 2.0 ports quantity: 4

Microphone in: Yes

HDMI version: 2.1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

DisplayPort version: 1.4

Headphone outputs: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x4 (Gen 1.x) slots: 2

Number of M.2 (M) slots: 3

Other features

Back-to-BIOS button: Yes

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.
