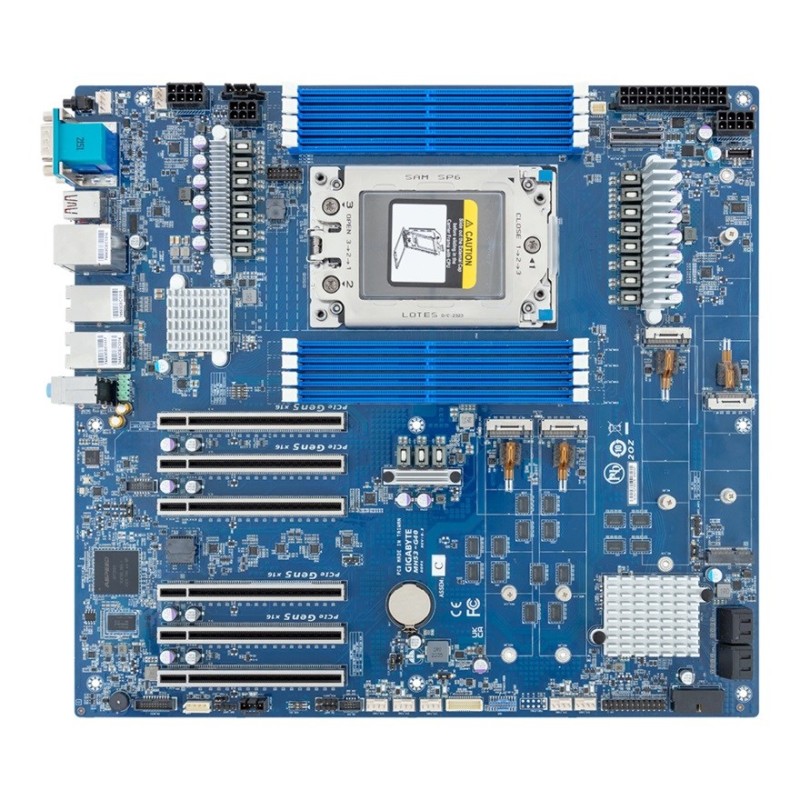

Płyta główna Gigabyte MH53-G40 1x sTR5 AMD ryzen Threadripper PRO 7000 WRX90 (8X DIMM, 4x SATA, 1x MCIO 8i, 4xM.2, 2x 10Gbe, E-ATX)

Περιγραφή

Processor

Processor socket: Socket sTR5

Supported processor sockets: Socket sTR5

Processor manufacturer: AMD

Maximum number of SMP processors: 1

Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset family: AMD

Component for: Server/workstation

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset: AMD WRX90

Product colour: Blue

Motherboard form factor: EATX

Memory

Supported memory types: DDR5 ECC RDIMM

Memory slots type: DIMM

Supported memory clock speeds: 5200

Number of memory slots: 8

Memory channels: Octa-channel

ECC сompatibility: ECC

Weight & dimensions

Depth: 330.2 mm

Width: 304.8 mm

Network

Ethernet LAN: Yes

Ethernet interface type: 10 Gigabit Ethernet

Wi-Fi: No

Internal I/O

ATX Power connector (24-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 1

CPU fan connector: Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 6

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

12V power connector: Yes

Number of MCIO connectors: 1

Packaging data

Package width: 409 mm

Package depth: 355 mm

Package height: 78 mm

Packaging content

DFU / User manual: Y

Storage controllers

RAID support: Yes

RAID levels: 0, 1, 5, 10

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Ethernet LAN (RJ-45) ports: 2

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

COM ports quantity: 1

Number of audio jack connectors: 3

Port Management LAN: Yes, 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 6

Safety warning

Warnings: Do not open or disassemble the motherboard., Do not disassemble to avoid damage to internal components and loss of warranty., The motherboard may contain electronic components hazardous to health - avoid direct contact.
