ASRock Z890M Riptide WiFi Motherboard

Περιγραφή

Processor

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2)

Features

Motherboard chipset: Intel Z890

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Motherboard chipset family: Intel

Audio chip: Realtek ALC1220

Memory

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Intel Extreme Memory Profile (XMP) version: 3.0

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Wi-Fi: Yes

Wi-Fi standards: IEEE 802.11be, IEEE 802.11a, IEEE 802.11b, IEEE 802.11n, 802.11 axe, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11g

Wireless statistics: Yes

LAN controller: Killer E3100G

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi frequency: 2,4 Ghz / 5 GHz / 6 GHz

Internal I/O

USB 2.0 connectors: 2

Front panel audio connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

ATX Power connector (24-pin): Yes

Pump connector: 1

RGB LED pin header: Yes

Number of SATA III connectors: 4

Thunderbolt headers: 1

TPM connector: Yes

CPU fan connector: 2

Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports : 1

Chassis fan connector (4-pin): 4

8-pin power connector 12 V: 2

AIO pump fan connector: 1

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA III 2 pcs., ARGB Splitter Cable x 1, Thermistor Cable x 1

Motherboard: Yes

Wi-Fi antenna: Yes

Storage controllers

RAID levels: 10, 1, 5, 0

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

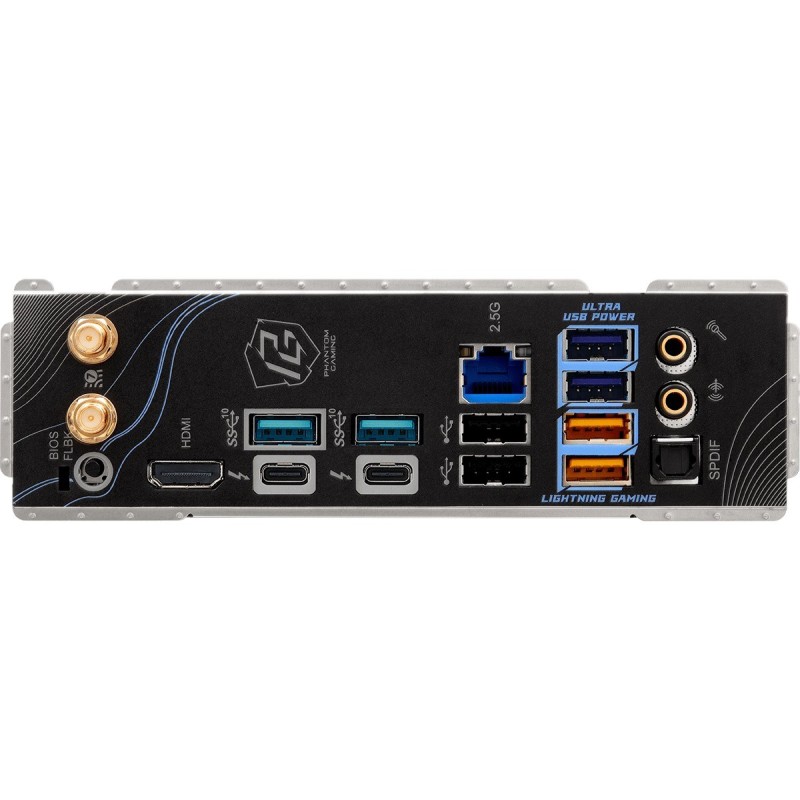

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

Headphone outputs: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Number of Thunderbolt 4 USB-C ports: 2

SPDIF optical output: Y

Number of antenna connectors: 2

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Certificates

Certificates: CE, FCC, ErP/EuP ready
