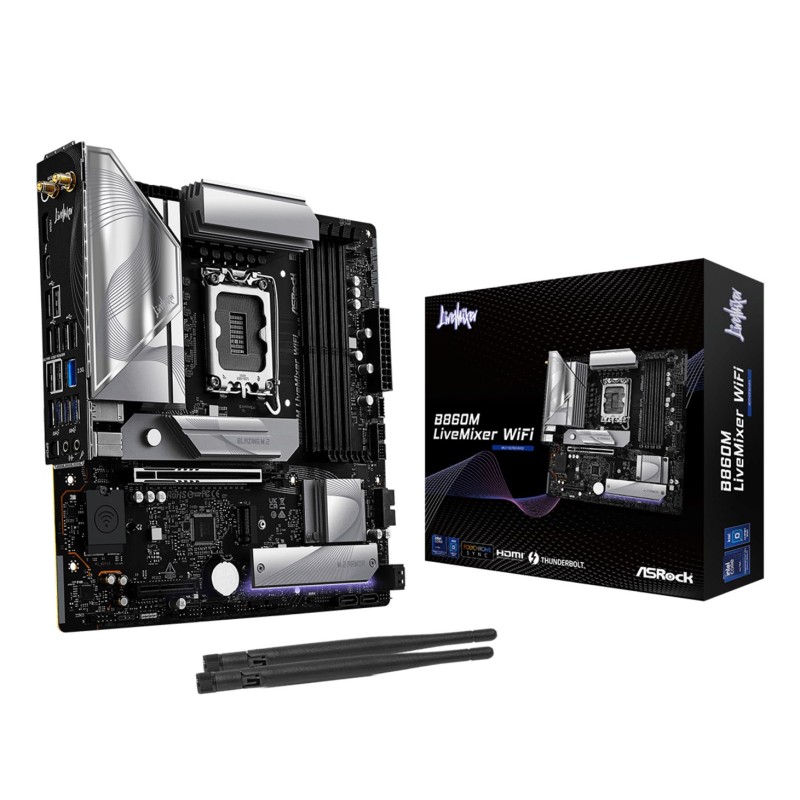

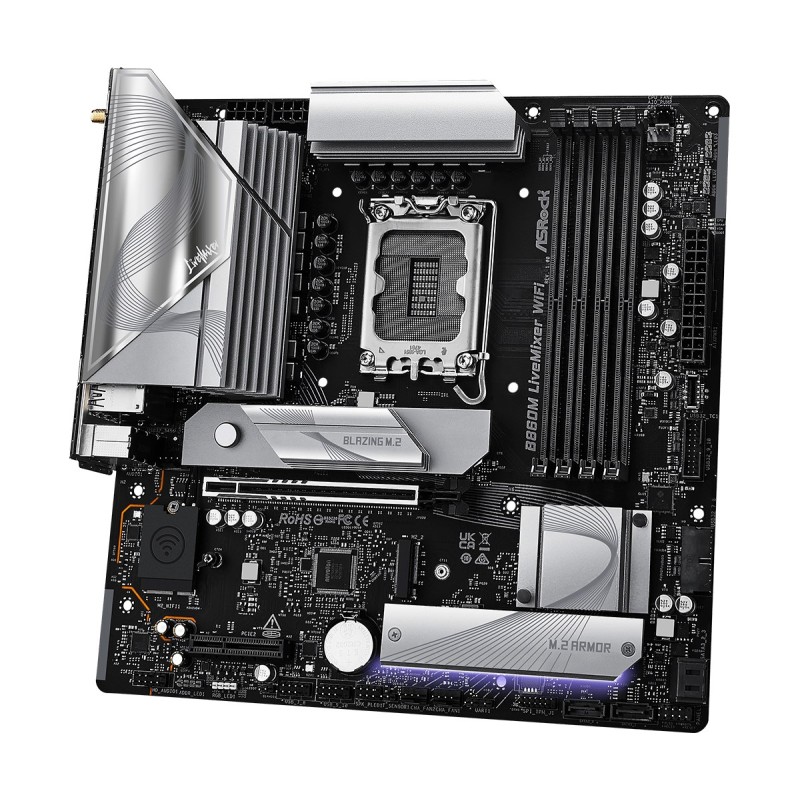

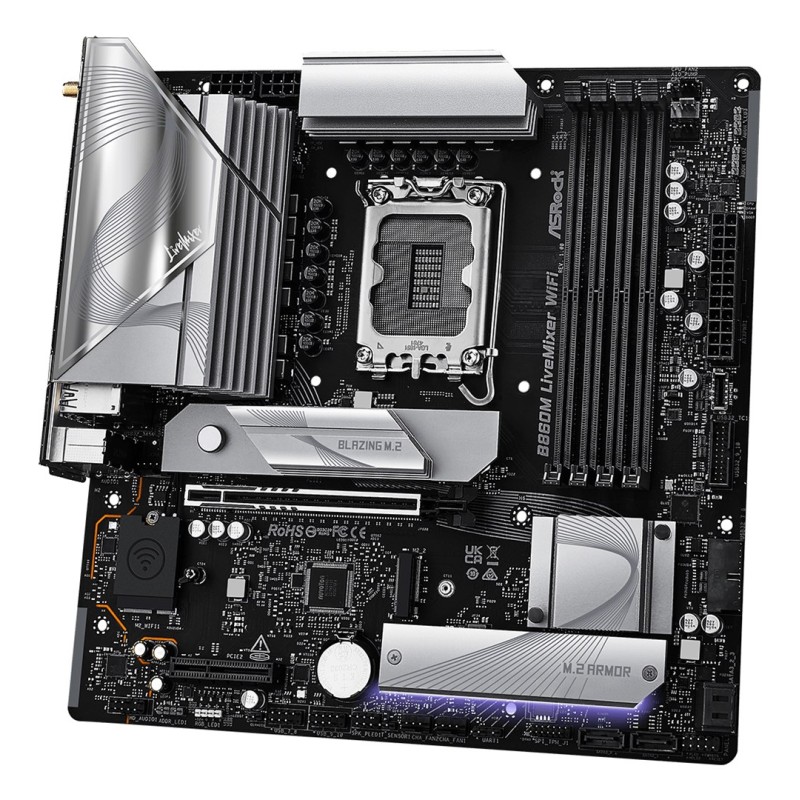

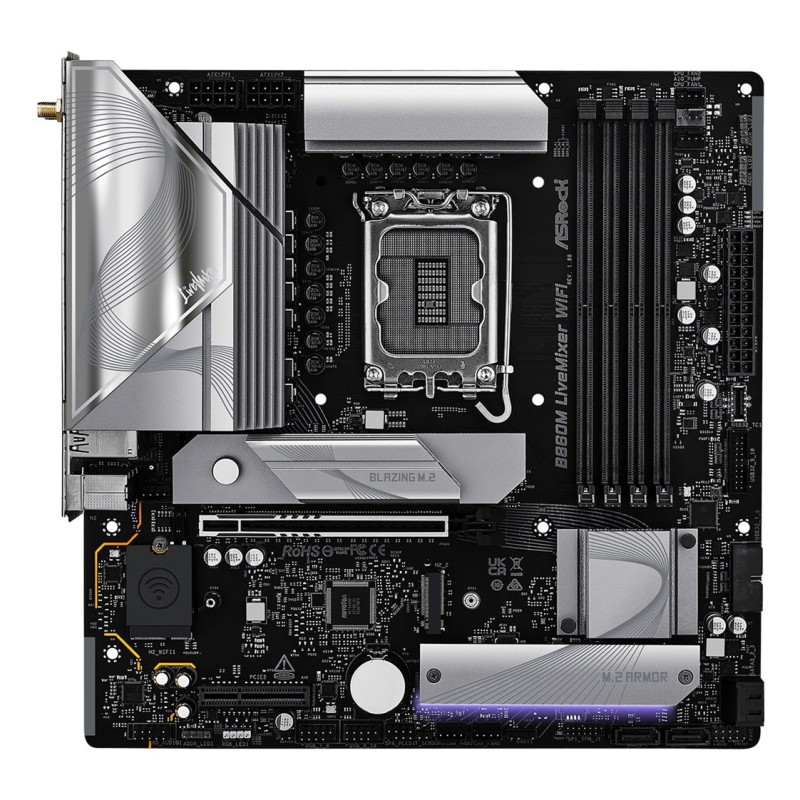

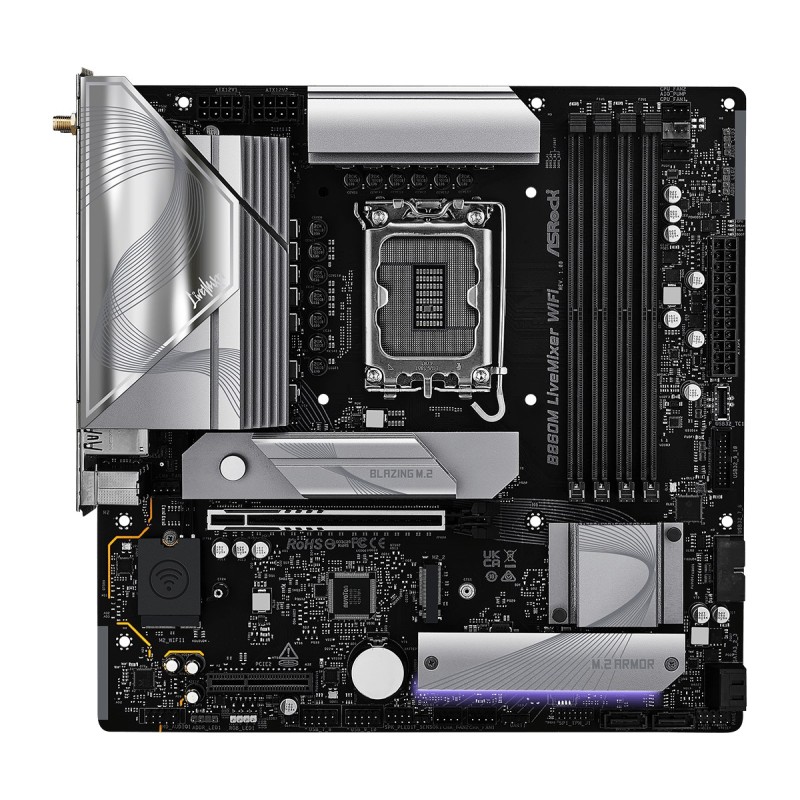

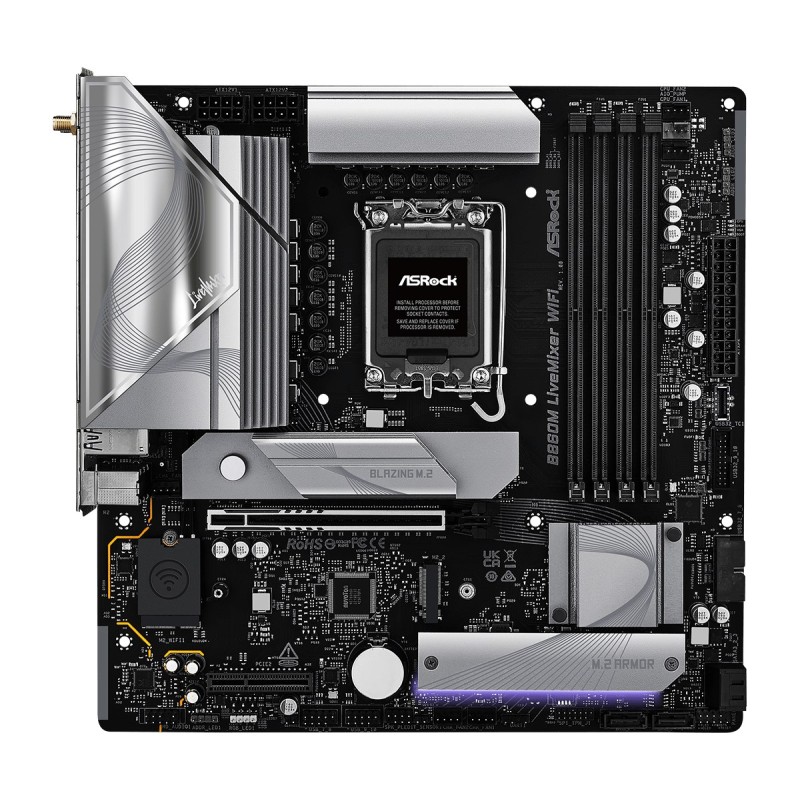

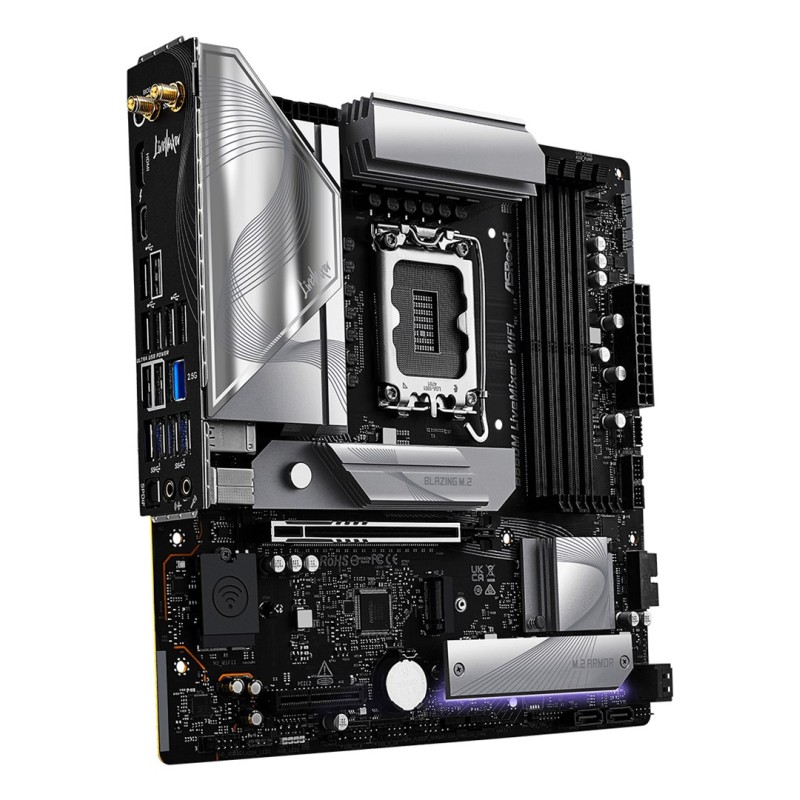

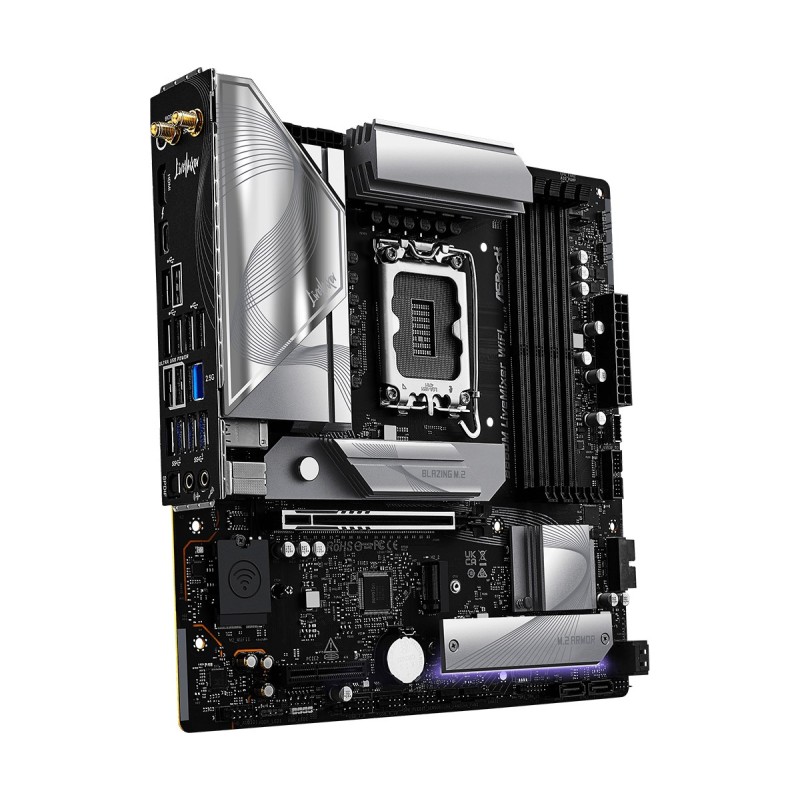

Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) micro ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Graphics

On-board graphics card: Yes

Graphics card family: Intel

Features

Audio chip: Realtek ALC1220

Motherboard chipset: Intel B860

Windows operating systems supported: Windows 11 x64

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Memory

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Bluetooth version: 5.3

Wi-Fi: Yes

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Number of EPS power connectors (8-pin): 2

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

EPS power connector (8-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 3

TPM connector: Yes

CPU fan connector: Yes

USB 2.0 connectors: 2

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Storage controllers

RAID support: Yes

RAID levels: 10, 1, 5, 0

Supported storage drive interfaces: M.2, SATA III

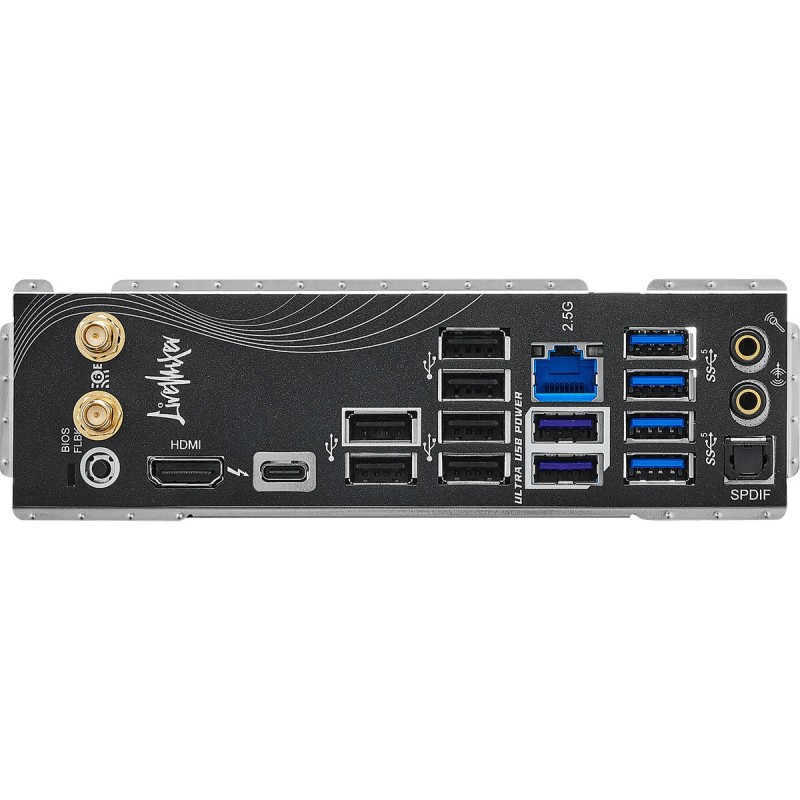

Rear panel I/O ports

Thunderbolt ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

USB 2.0 ports quantity: 6

HDMI ports quantity: 1

S/PDIF out port: Yes

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 1

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage.
