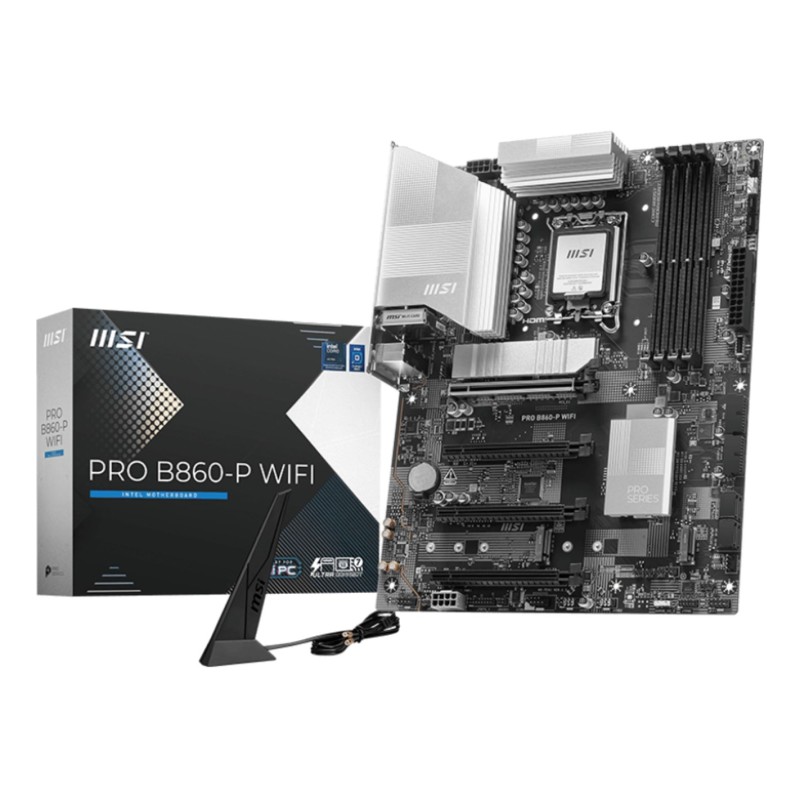

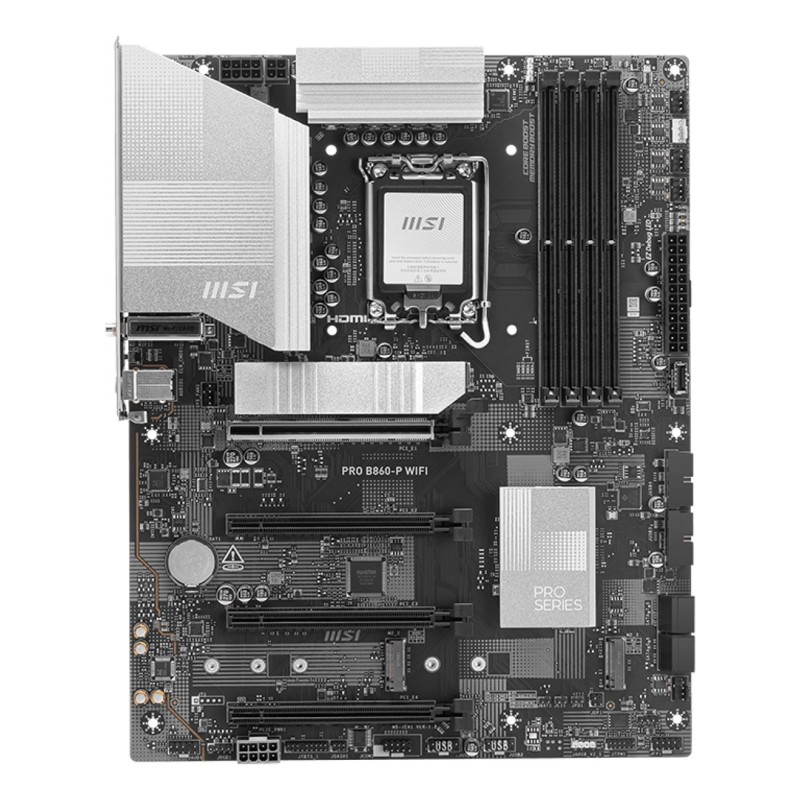

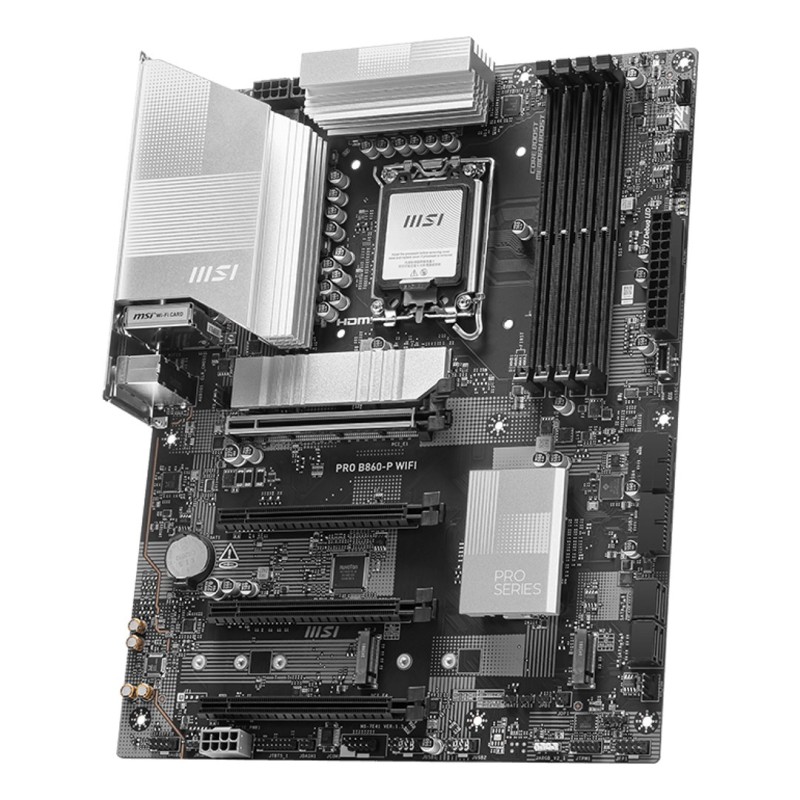

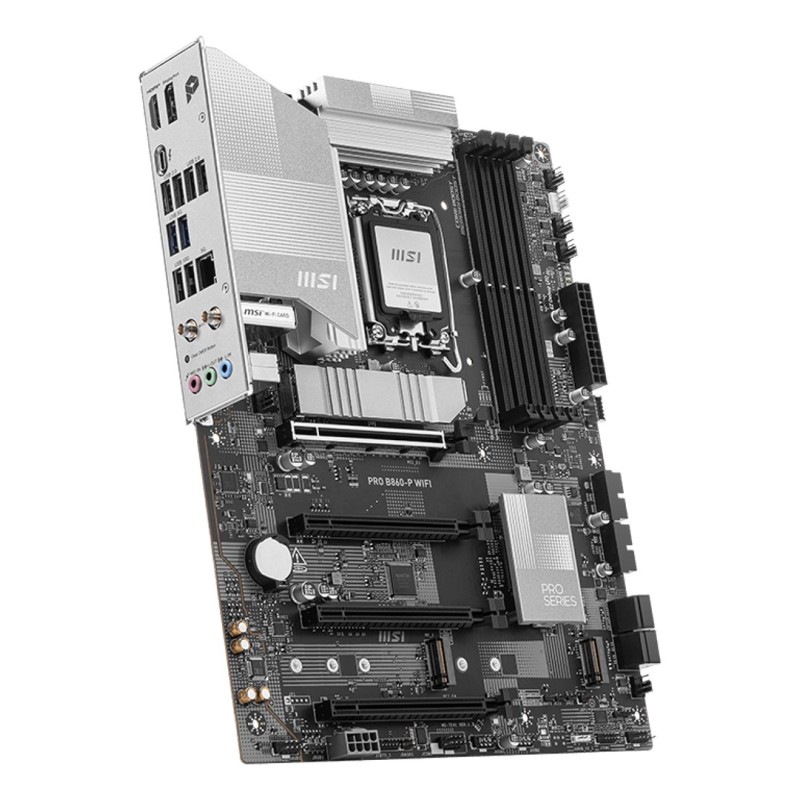

MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX

Περιγραφή

Processor

Compatible processor series: Intel Core Ultra (Series 2)

Maximum internal memory supported by processor: 256 GB

Processor socket: LGA 1851 (Socket V1)

Processor manufacturer: Intel

Supported processor sockets: LGA 1851

Features

Audio output channels: 7.1 channels

Product colour: Black

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11 x64

Motherboard form factor: ATX

Motherboard chipset: Intel B860

Audio chip: Realtek ALC897

Memory

Memory slots type: DIMM

Number of memory slots: 4

Maximum internal memory: 256 GB

Supported memory clock speeds: 4800, 8800 MHz, 6400 MHz

Supported memory clock speed (max): 8800 MHz

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 243.8 mm

Depth: 304.8 mm

Network

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Bluetooth version: 5.4

Ethernet LAN: Yes

Ethernet interface type: 5 Gigabit Ethernet

Bluetooth: Yes

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of SATA III connectors: 4

Total number of SATA connectors: 4

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

USB 2.0 connectors: 4

CPU fan connector: Yes

Number of RGB LED pin headers: 3

Number of water pump connectors: 1

Number of CPU fan connectors: 1

BIOS

BIOS type: UEFI AMI

Storage controllers

Number of HDDs supported: 4

RAID levels: 10, 0, 1, 5

Number of storage drives supported: 7

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, Micro SATA III

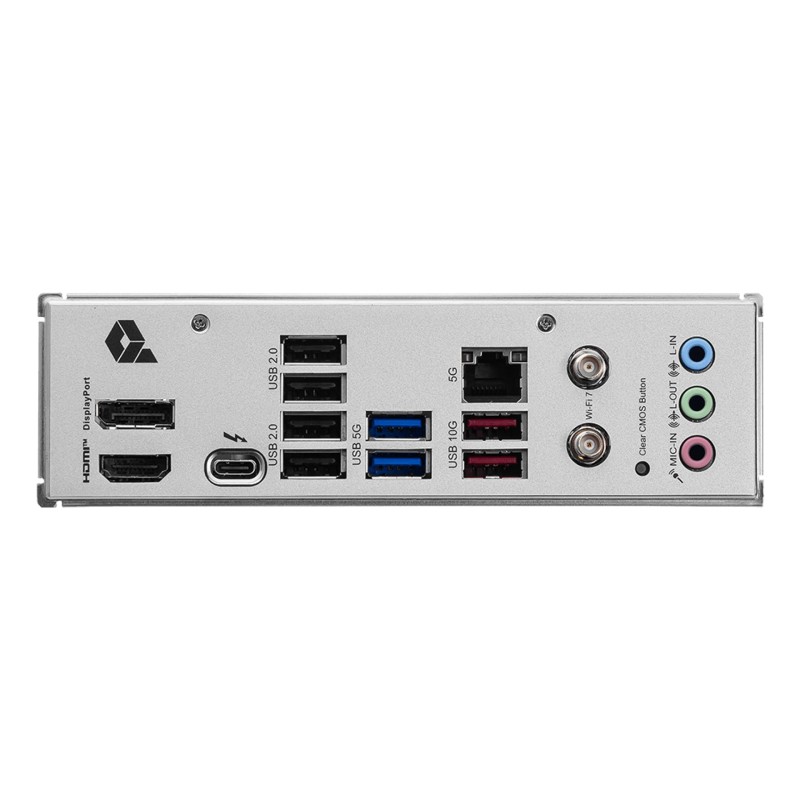

Rear panel I/O ports

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 3

Number of M.2 (M) slots: 3

1st M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

Safety warning

Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.
