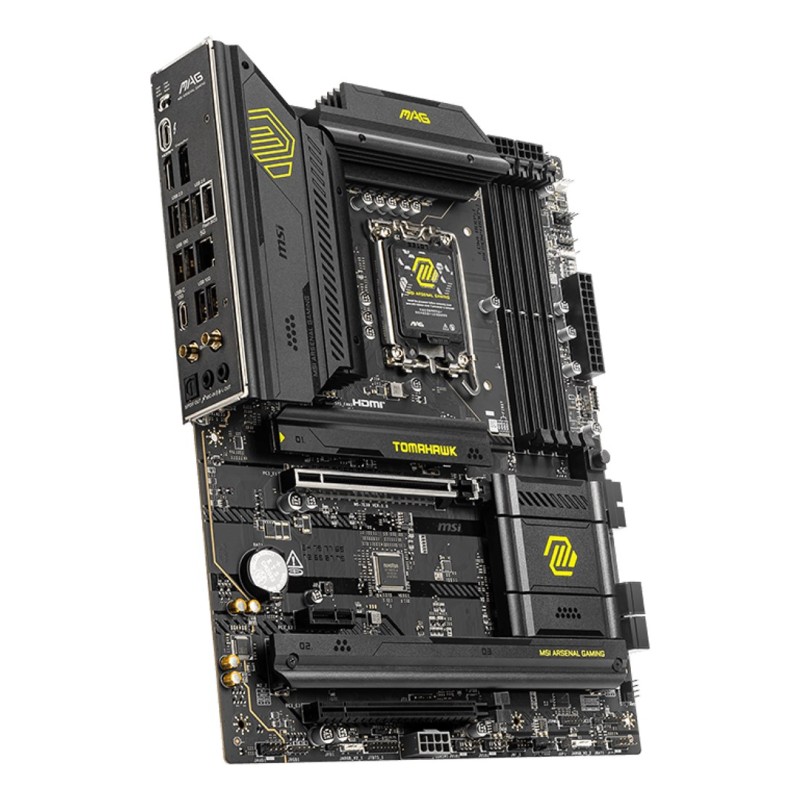

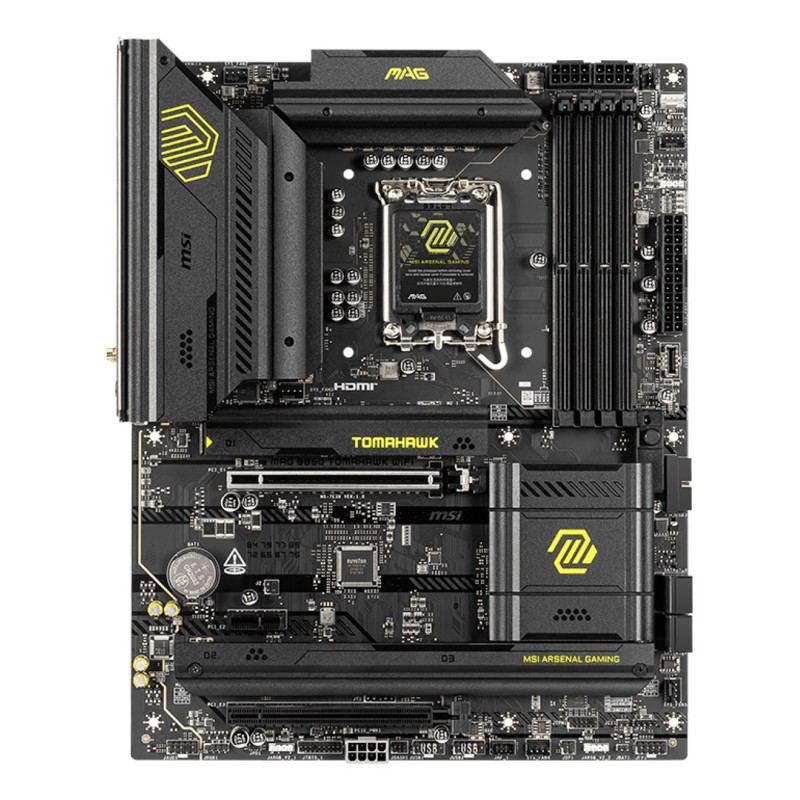

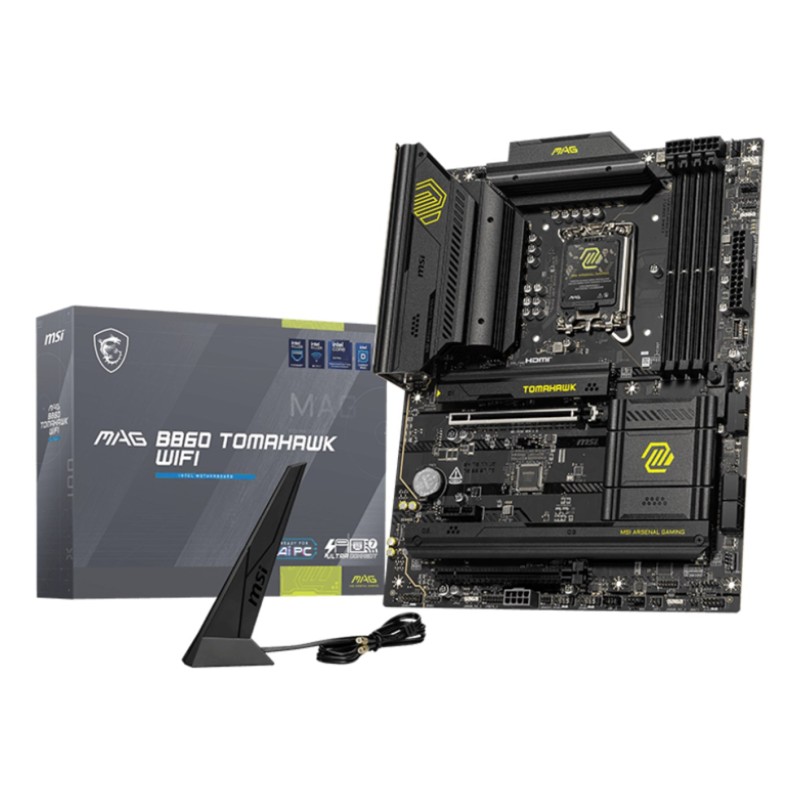

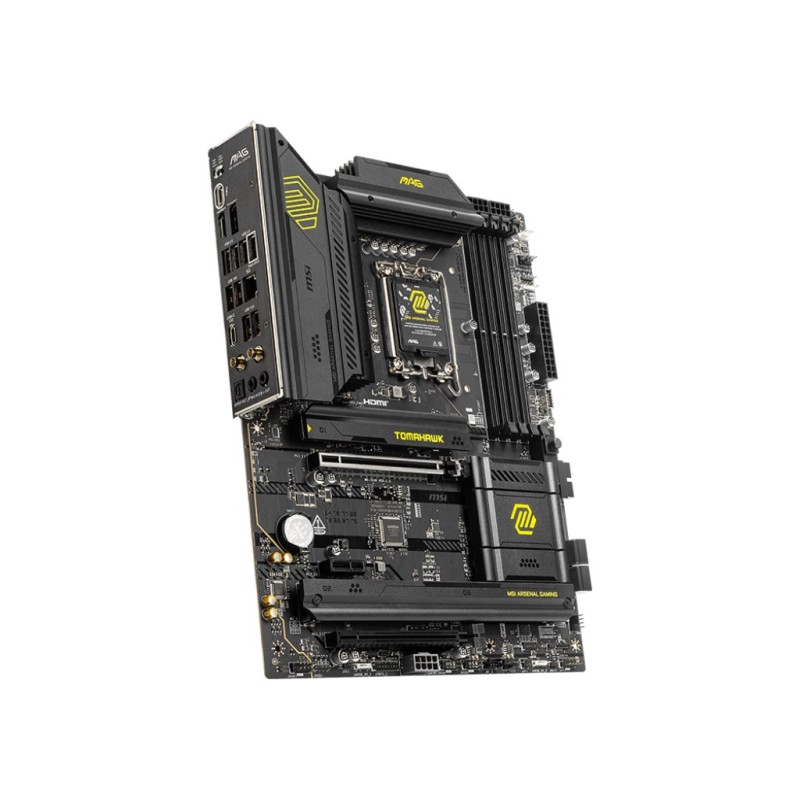

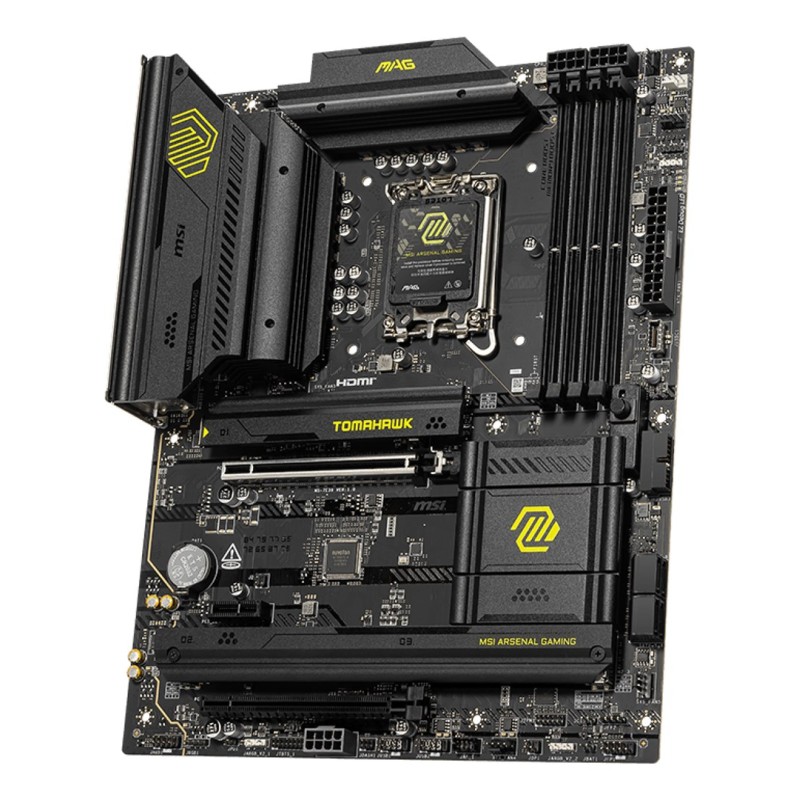

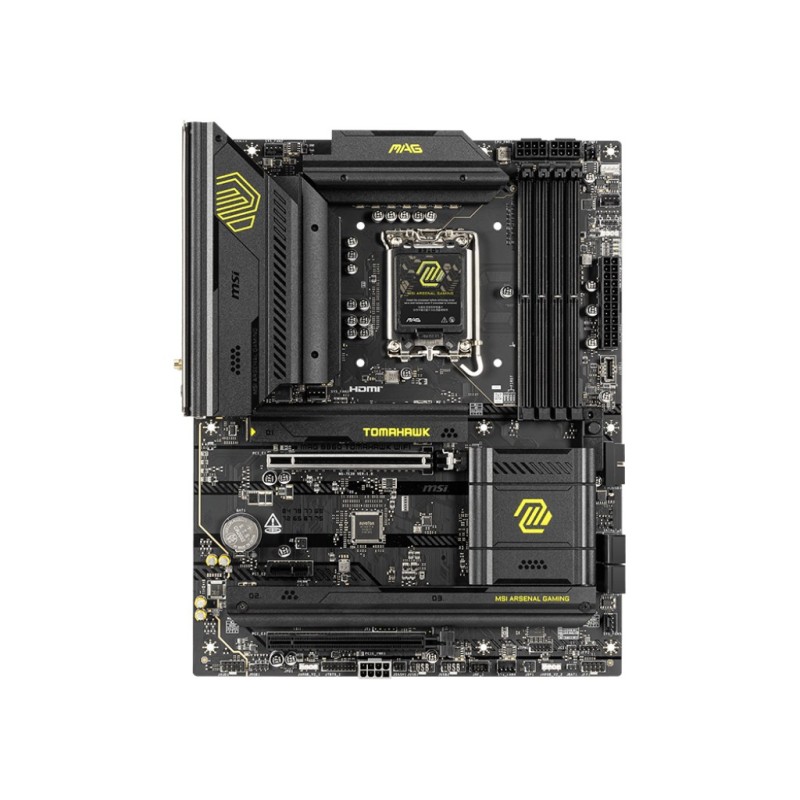

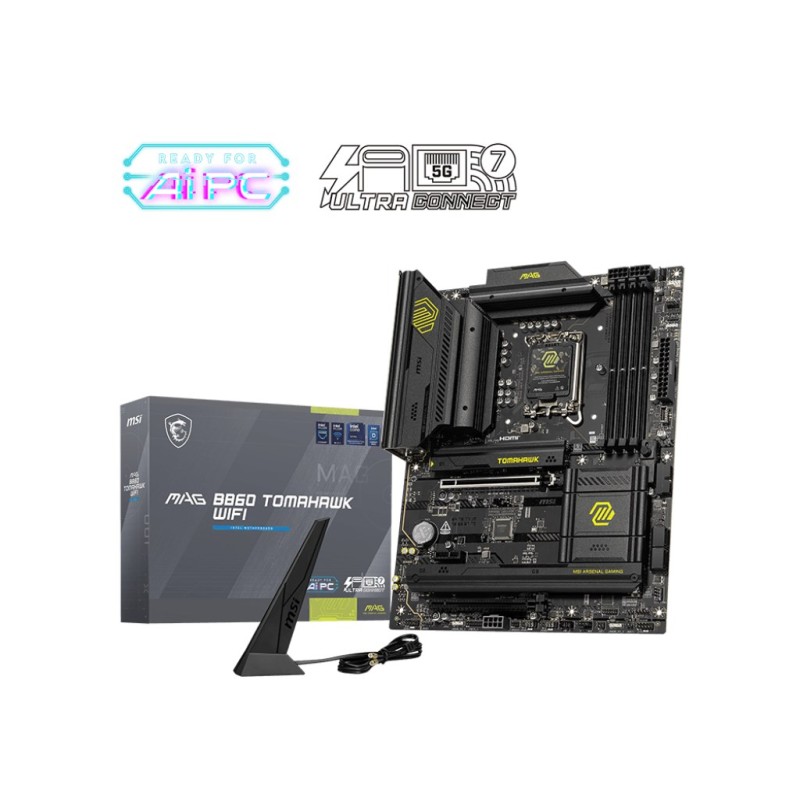

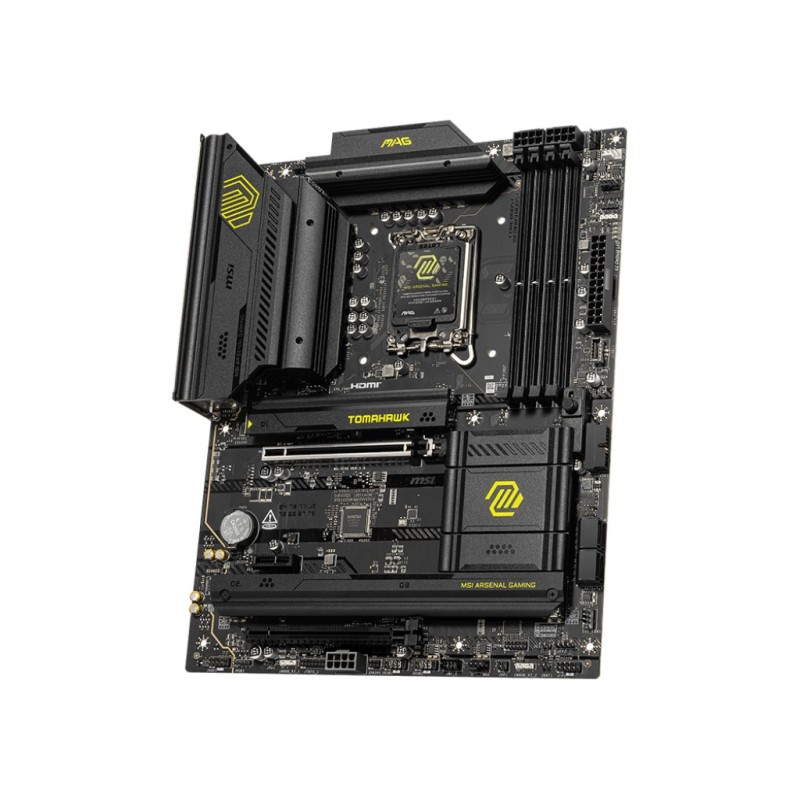

MSI MAG B860 TOMAHAWK WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX

Περιγραφή

Processor

Maximum internal memory supported by processor: 256 GB

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Processor manufacturer: Intel

Graphics

On-board graphics card: No

Features

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Motherboard chipset: Intel B860

Product colour: Black

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11 x64

Audio chip: Realtek ALC897

Memory

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 9200 MHz

ECC сompatibility: Non-ECC

Supported memory clock speeds: 9200, 5600, 7200, 6400

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Weight & dimensions

Depth: 304.8 mm

Width: 243.8 mm

Network

Bluetooth version: 5.4

Ethernet interface type: 5 Gigabit Ethernet

Wi-Fi: Yes

Ethernet LAN: Yes

WLAN controller model: Killer Wi-Fi 7 1750x

Bluetooth: Yes

Wi-Fi standards: 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

Number of CPU fan connectors: 1

Number of RGB LED pin headers: 3

Number of water pump connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of SATA III connectors: 4

USB 2.0 connectors: 4

Total number of SATA connectors: 4

CPU fan connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

Number of storage drives supported: 7

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, Micro SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 1, 10, 0, 5

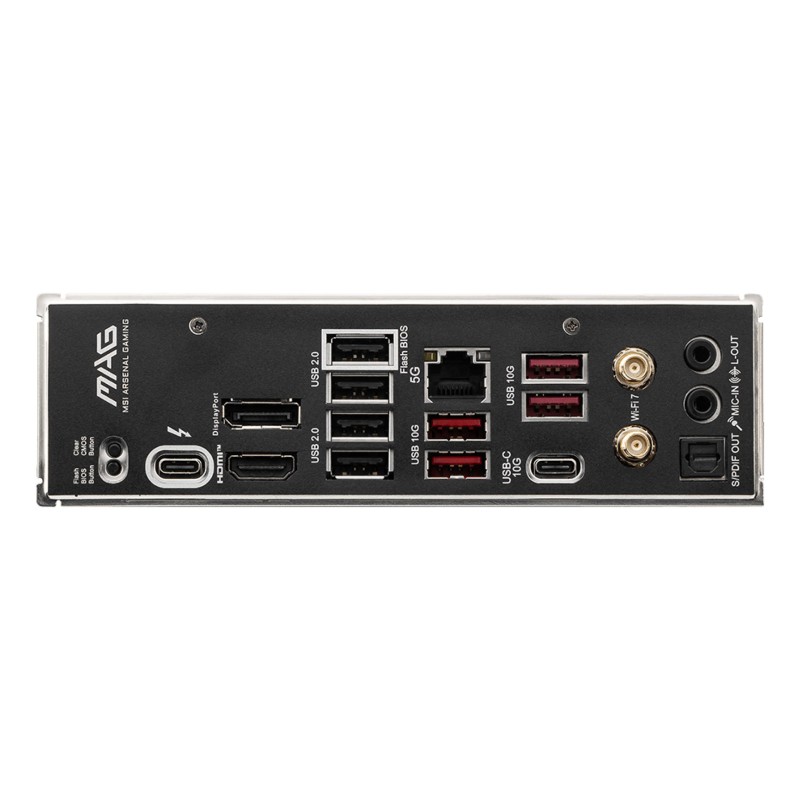

Rear panel I/O ports

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI version: 2.1

HDMI ports quantity: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 slots: 1

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 22110

3rd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 2280

Number of M.2 (M) slots: 3
