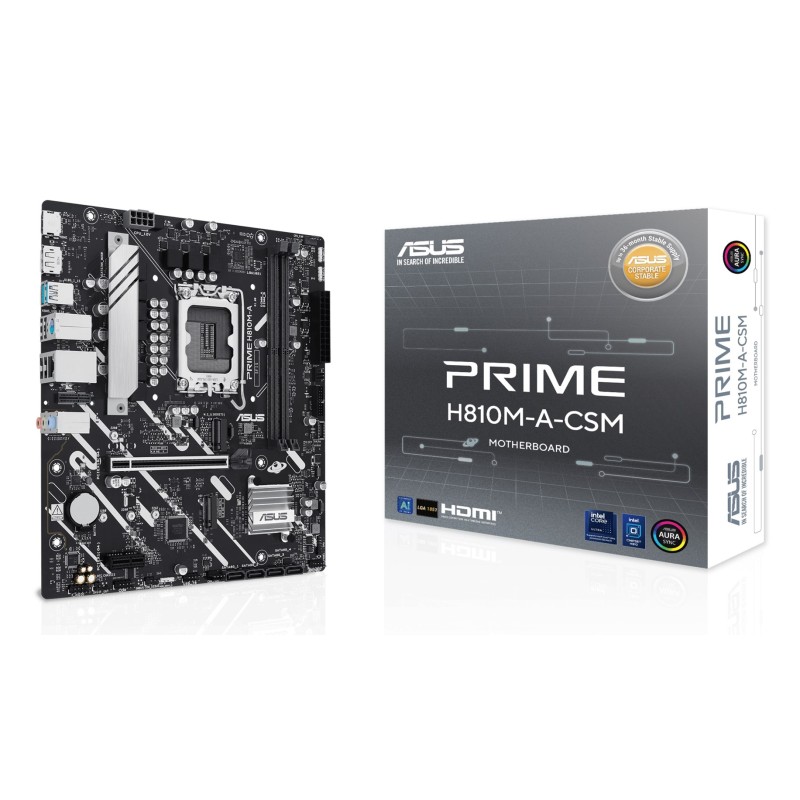

ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Περιγραφή

Processor

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Graphics

Parallel processing technology support: Not supported

Features

Power source type: ATX

Motherboard chipset: Intel H810

Motherboard chipset family: Intel

Product colour: Black

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 10 x64, Windows 11

Memory

ECC сompatibility: Non-ECC

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Supported memory clock speed (max): 6400 MHz

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Memory channels: Dual-channel

Number of memory slots: 2

Weight & dimensions

Width: 244 mm

Height: 37 mm

Depth: 222 mm

Network

LAN controller: Intel I219V

Wake-on-LAN ready: Yes

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

Number of CPU fan connectors: 1

S/PDIF out connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Front panel audio connector: Yes

USB 2.0 connectors: 1

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Number of COM connectors: 1

CPU fan connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

RGB LED pin header: Yes

Front panel connector: Yes

Number of chassis fan connectors: 2

Number of RGB LED pin headers: 3

Number of EPS power connectors (8-pin): 1

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 782 g

Package depth: 263 mm

Package width: 270 mm

Package height: 51.5 mm

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Number of HDDs supported: 4

Number of storage drives supported: 6

Rear panel I/O ports

DisplayPorts quantity: 1

DisplayPort version: 1.4

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

PS/2 ports quantity: 1

Line-in: Yes

Microphone in: Yes

HDMI version: 2.1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

Other features

Weight: 534 g

Number of M.2 (E) slots: 1
