ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 (Socket V1) ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Motherboard form factor: ATX

Product colour: Black

Audio output channels: 7.1 channels

Power source type: ATX

Motherboard chipset: Intel Z890

Motherboard chipset family: Intel

Cooling type: Passive

Windows operating systems supported: Windows 11, Windows 10

Memory

Maximum internal memory: 192 GB

Number of memory slots: 4

Unbuffered memory: Yes

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Supported memory clock speed (max): 7600 MHz

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Bluetooth: Yes

Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Bluetooth version: 5.4

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

Number of SATA III connectors: 4

Thunderbolt headers: 1

ATX Power connector (24-pin): Yes

S/PDIF out connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Front panel audio connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

12V power connector: Yes

Number of COM connectors: 1

CPU fan connector: Yes

Number of chassis fan connectors: 4

EPS power connector (8-pin): Yes

TPM connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package width: 353 mm

Package depth: 273 mm

Package height: 68 mm

Package weight: 1.89 kg

Packaging content

Cables included: SATA

Storage controllers

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

Number of storage drives supported: 8

RAID levels: 1, 0, 5, 10

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

DisplayPorts quantity: 1

HDMI version: 2.1

HDMI ports quantity: 1

Line-in: Yes

Headphone outputs: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 3

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 4

Other features

Back-to-BIOS button: Yes

Quick installation guide: Yes

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorCompatible processor series: Intel Core Ultra (Series 2)Processor manufacturer: IntelSupported processor sockets: LGA 1851Processor socket: L..

189,73€

Χωρίς ΦΠΑ:153,01€

Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX

ProcessorProcessor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelGraphicsGraphics card: Intel® UHD GraphicsOn-board graphics card: YesGraph..

121,83€

Χωρίς ΦΠΑ:98,25€

Asrock B860 Steel Legend WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorSupported processor sockets: LGA 1851Processor manufacturer: IntelCompatible processor series: Intel Core Ultra (Series 2)Processor socket: L..

199,69€

Χωρίς ΦΠΑ:161,04€

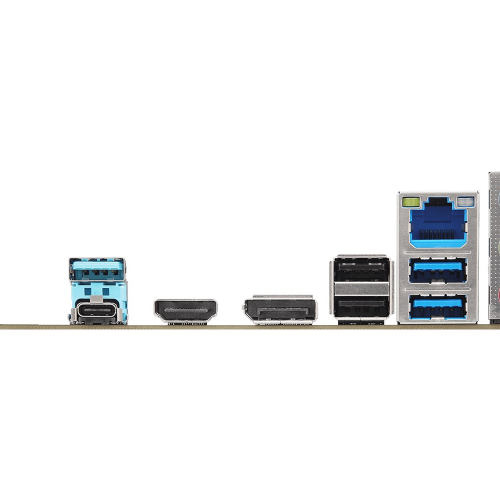

ASRock B860M Pro-A motherboard
