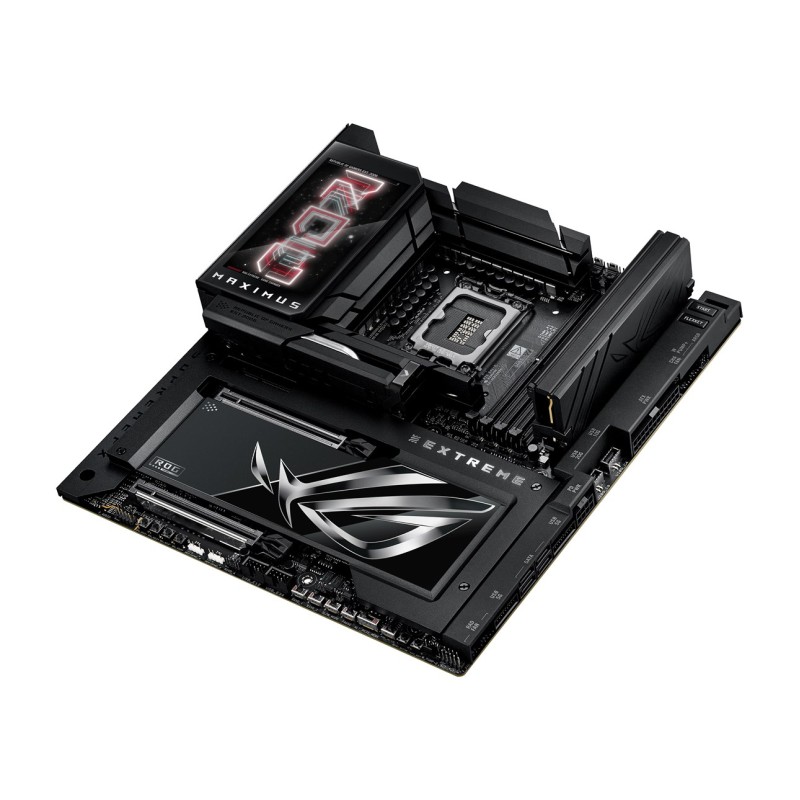

ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Motherboard form factor: Extended ATX

Motherboard chipset: Intel Z890

Windows operating systems supported: Windows 11

Audio output channels: 7.1 channels

Product colour: Black

Audio chip: Realtek ALC4082

Motherboard chipset family: Intel

Memory

Supported memory clock speed (max): 8800 MHz

ECC сompatibility: Non-ECC

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Unbuffered memory: Yes

Number of memory slots: 4

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Weight & dimensions

Width: 305 mm

Depth: 277 mm

Network

Bluetooth version: 5.4

Ethernet interface type: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet

Bluetooth: Yes

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Internal I/O

12V power connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 2x2 connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 2

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

CPU fan connector: Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package height: 125 mm

Package weight: 5.73 kg

Package depth: 320 mm

Package width: 380 mm

Storage controllers

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

RAID levels: 1, 0, 5

Number of storage drives supported: 10

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Rear panel I/O ports

Thunderbolt ports quantity: 2

USB 3.2 Gen 2x2 Type-C ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5

Ethernet LAN (RJ-45) ports: 2

S/PDIF out port: Yes

Microphone in: Yes

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 2

Number of M.2 (M) slots: 6
