ASRock Z890 Riptide WiFi Motherboard

Περιγραφή

Processor

Maximum number of SMP processors: 1

Processor socket: LGA1851

Processor manufacturer: Intel

Compatible processor series: Intel Core Ultra (Series 2)

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Motherboard chipset family: Intel

Audio chip: Realtek ALC1220

Motherboard chipset: Intel Z890

Memory

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Intel Extreme Memory Profile (XMP) version: 3.0

Memory slots type: DIMM

Number of memory slots: 4

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Wireless statistics: Yes

Wi-Fi standards: IEEE 802.11b, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11a, IEEE 802.11n, 802.11 axe, IEEE 802.11ax, IEEE 802.11g

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: Yes

Wi-Fi frequency: 2,4 Ghz / 5 GHz / 6 GHz

LAN controller: Killer E3100G

Internal I/O

Front panel audio connector: Yes

CPU fan connector: 2

Pump connector: 1

RGB LED pin header: Yes

Number of SATA III connectors: 4

Thunderbolt headers: 1

TPM connector: Yes

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Chassis fan connector (4-pin): 4

Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports : 1

8-pin power connector 12 V: 2

AIO pump fan connector: 1

BIOS

BIOS type: UEFI AMI

Packaging content

Wi-Fi antenna: Yes

Cables included: SATA III 2 pcs., ARGB Splitter Cable x 1, Thermistor Cable x 1

Motherboard: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 10, 1, 0, 5

Supported storage drive types: HDD & SSD

RAID support: Yes

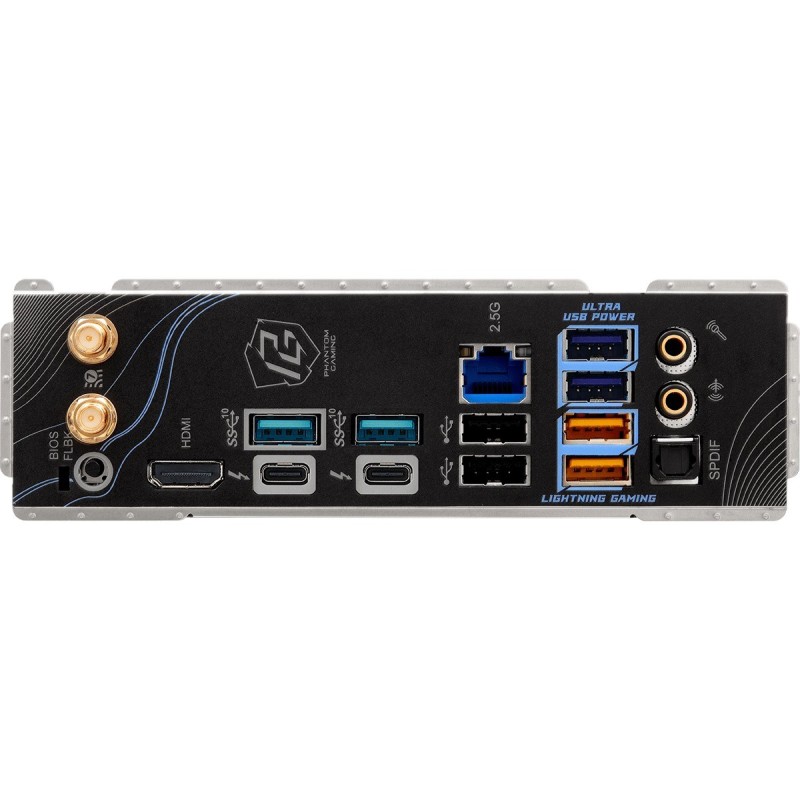

Rear panel I/O ports

USB 2.0 Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Microphone in: Yes

HDMI ports quantity: 1

Number of antenna connectors: 2

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Number of Thunderbolt 4 USB-C ports: 2

SPDIF optical output: Y

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Certificates

Certificates: FCC, CE, ErP/EuP ready
