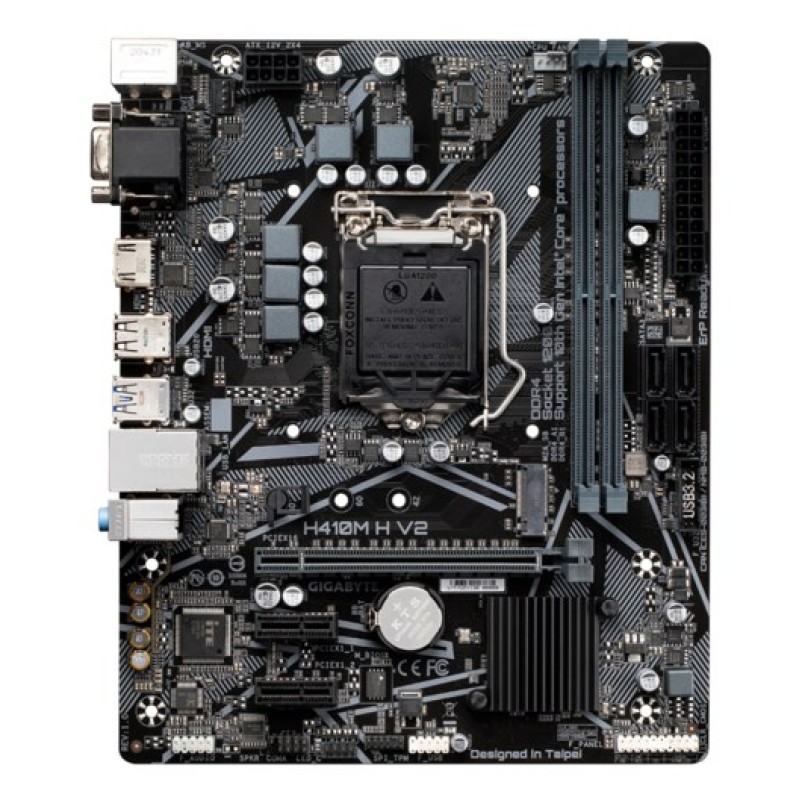

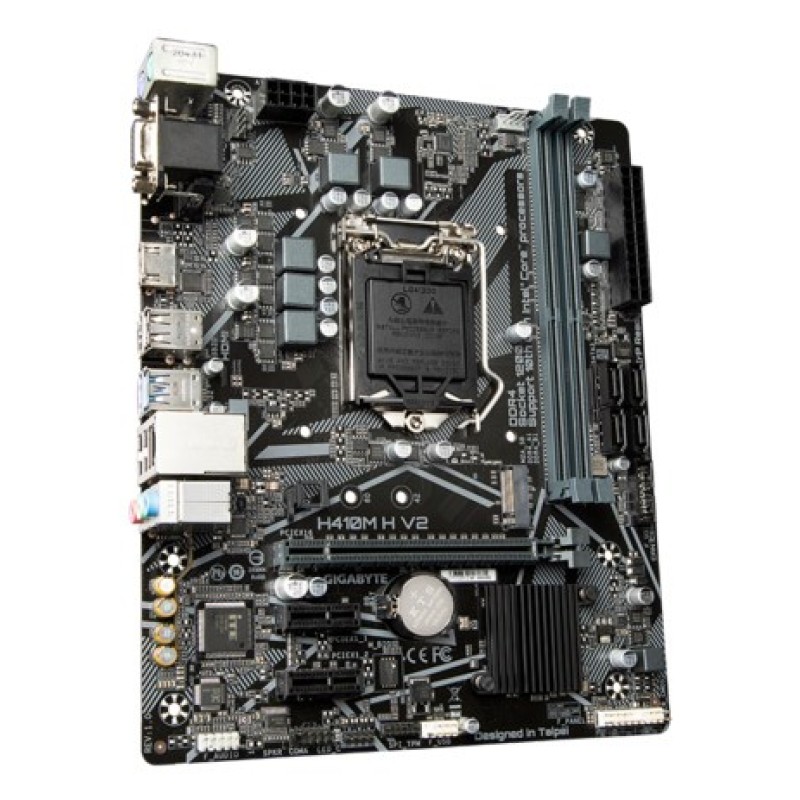

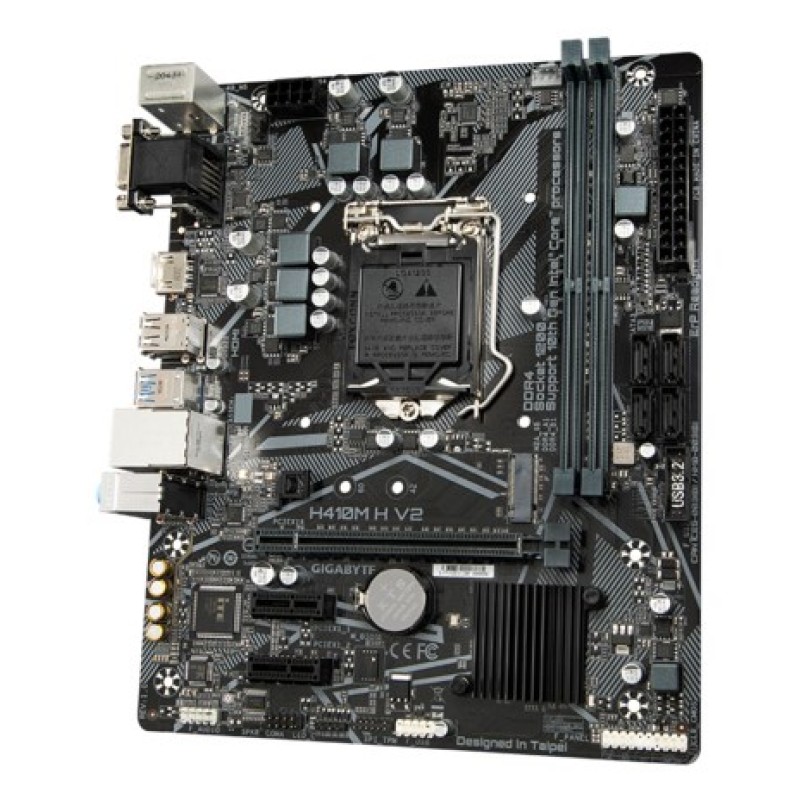

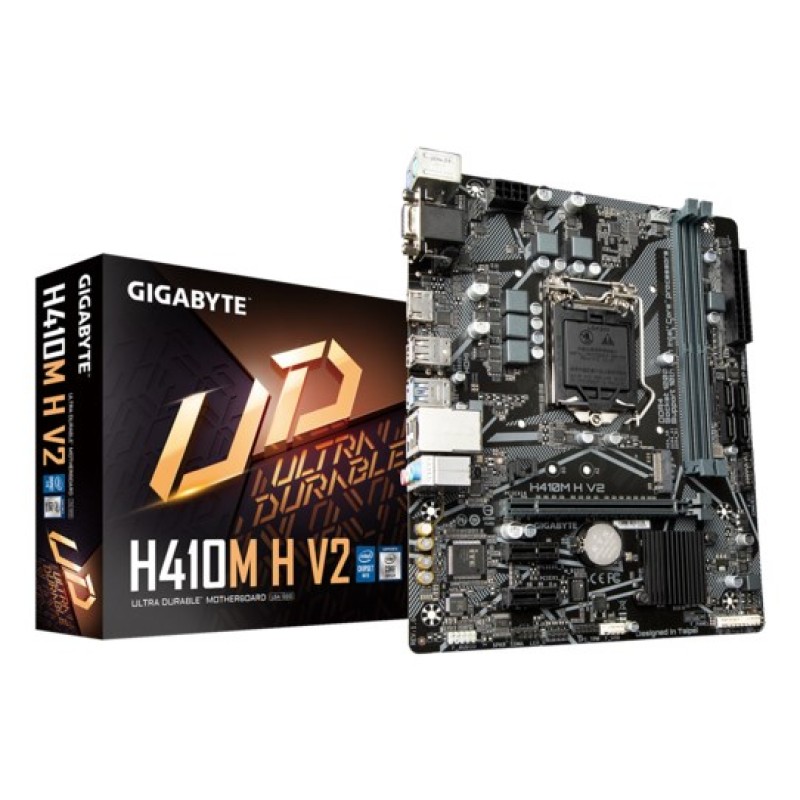

GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Maximum internal memory supported by processor: 64 GB

Processor manufacturer: Intel

Processor socket: LGA 1200 (Socket H5)

Compatible processor series: Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9

Supported processor sockets: LGA 1200 (Socket H5)

Graphics

DirectX version: 12.0

Features

Windows operating systems supported: Windows 11 x64, Windows 10

Audio output channels: 7.1 channels

Power source type: ATX

PC health monitoring: Voltage, CPU, Fan, Temperature

Motherboard form factor: micro ATX

Motherboard chipset: Intel H410

Product colour: Bronze

Motherboard chipset family: Intel

Memory

Supported memory types: DDR4-SDRAM

Memory slots type: DIMM

Number of memory slots: 2

Memory channels: Dual-channel

Supported memory clock speed (max): 2933 MHz

Maximum internal memory: 64 GB

Supported memory clock speeds: 2400, 2666, 2933, 2133

Unbuffered memory: Yes

Supported memory module capacities: 16GB, 12GB, 1GB, 2GB, 4GB, 8GB, 32GB

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Height: 35 mm

Depth: 185 mm

Width: 226 mm

Network

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-Fi: No

Internal I/O

12V power connector: Yes

Front panel connector: Yes

Total number of SATA connectors: 4

Audio connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Power fan connector: Yes

CPU fan connector: Yes

BIOS

Clear CMOS button: Yes

BIOS type: UEFI

Packaging data

Package height: 52 mm

Package width: 265 mm

Package depth: 235 mm

Package weight: 728 g

Packaging content

Batteries included: Yes

Storage controllers

Number of HDDs supported: 4

Number of storage drives supported: 5

RAID levels: 5, 10, 1, 0

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III

RAID support: Yes

Rear panel I/O ports

HDMI ports quantity: 1

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

Expansion slots

PCI Express x1 slots: 2

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

Battery

Battery type: CR2032

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Harmonized System (HS) code: 84733020

Country of origin: China

Safety warning

Warnings: Avoid contact with liquids to prevent damage to electronic components., Do not make changes or modifications to the appliance, which may void the warranty or cause damage., Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge.
