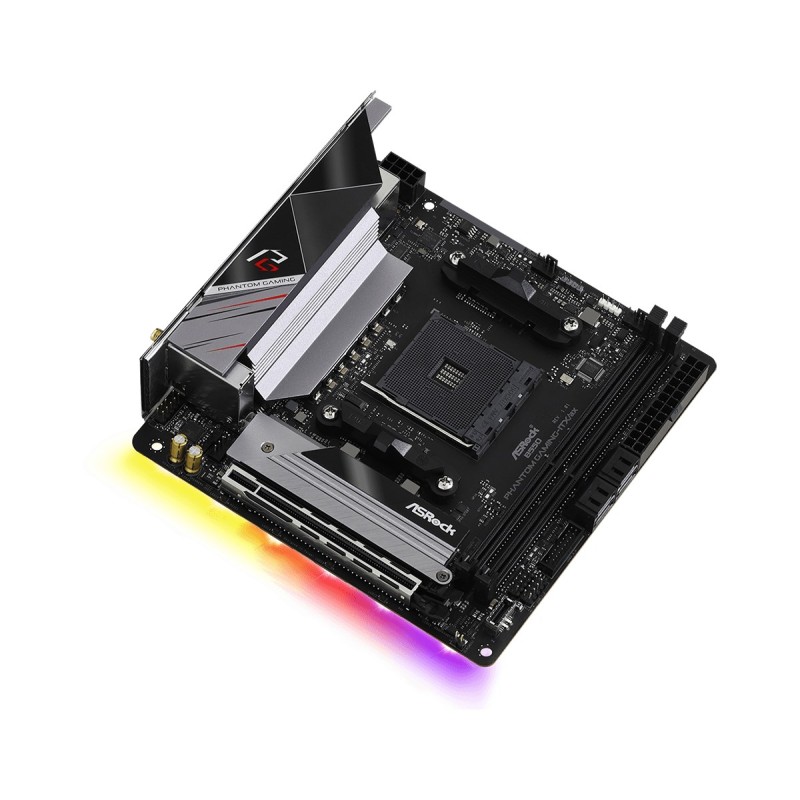

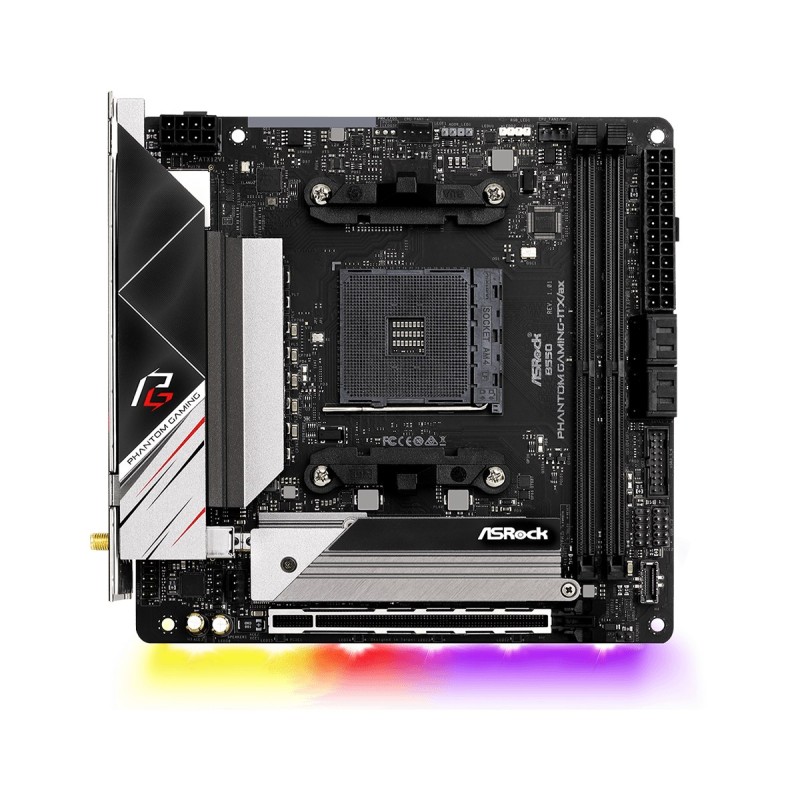

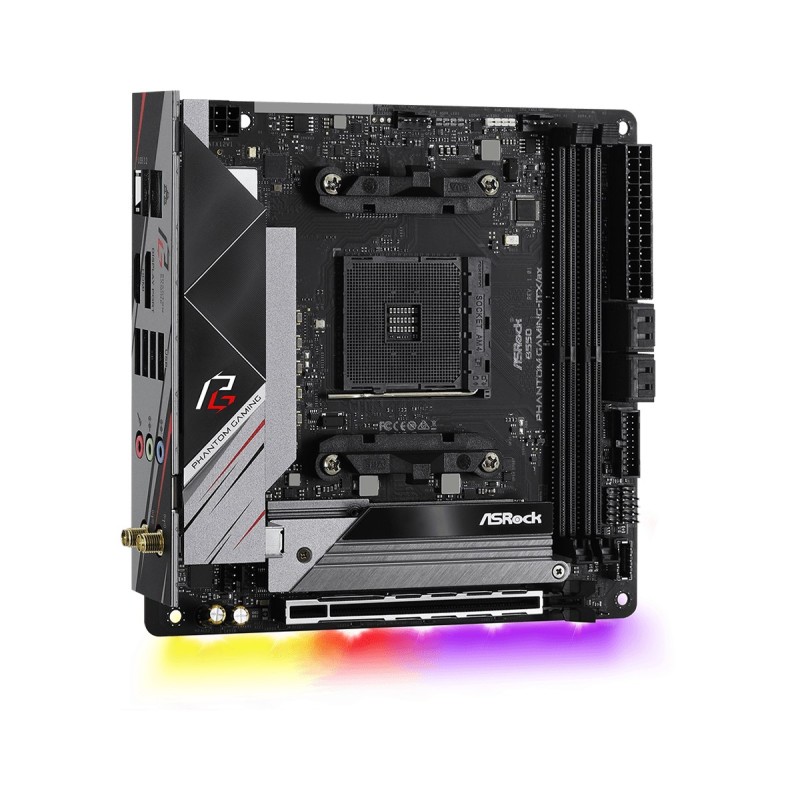

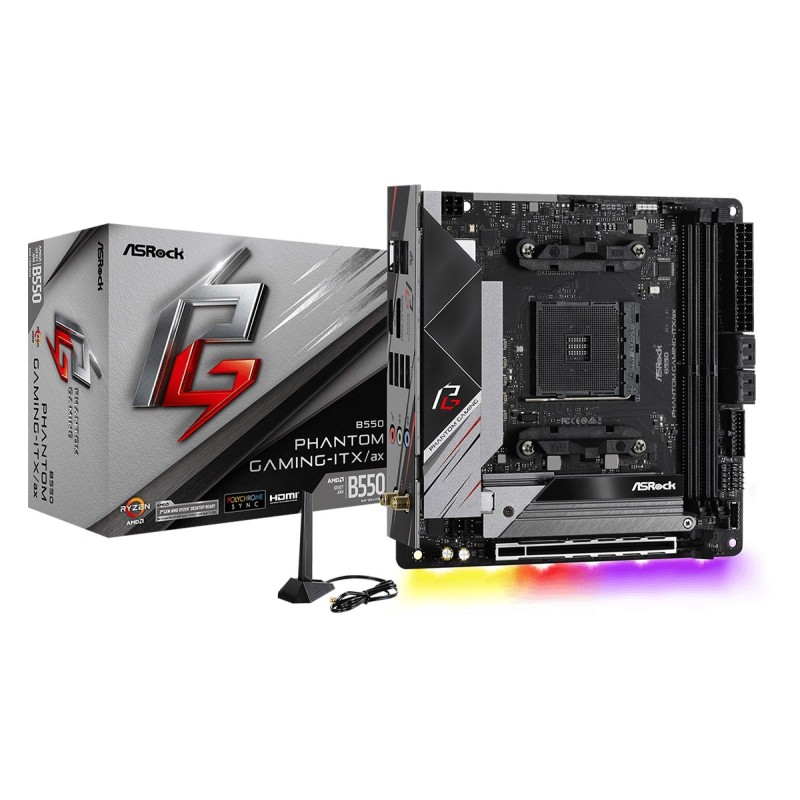

Asrock B550 Phantom Gaming-ITX/a Socket AM4 mini ITX AMD B550

Περιγραφή

Processor

Processor socket: Socket AM4

Compatible processor series: 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3

Maximum number of SMP processors: 1

Processor manufacturer: AMD

Graphics

On-board graphics card: Yes

Graphics card: Radeon Vega

Graphics card family: AMD

DirectX version: 12.0

HDCP: Yes

Features

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Audio chip: Realtek ALC1220

Motherboard form factor: mini ITX

Motherboard chipset: AMD B550

Memory

Supported memory clock speeds: 3866, 3800, 4466, 3200 MHz, 4266, 4533, 3466, 2933, 3600, 4733, 4866, 2133, 4200, 2667, 3733, 4400, 4666, 5000, 4333, 4600, 2400, 4133, 4000, 4800, 4933 MHz

Memory slots type: DIMM

Number of memory slots: 2

Maximum internal memory: 64 GB

Supported memory types: DDR4-SDRAM

Weight & dimensions

Width: 170 mm

Depth: 170 mm

Network

Ethernet LAN: Yes

Wake-on-LAN ready: Yes

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Wi-Fi: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.1

Bluetooth: Yes

Internal I/O

USB 2.0 connectors: 1

RGB LED pin header: Yes

CPU fan connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Drivers included: Yes

Storage controllers

Supported storage drive interfaces: M.2, Serial ATA III

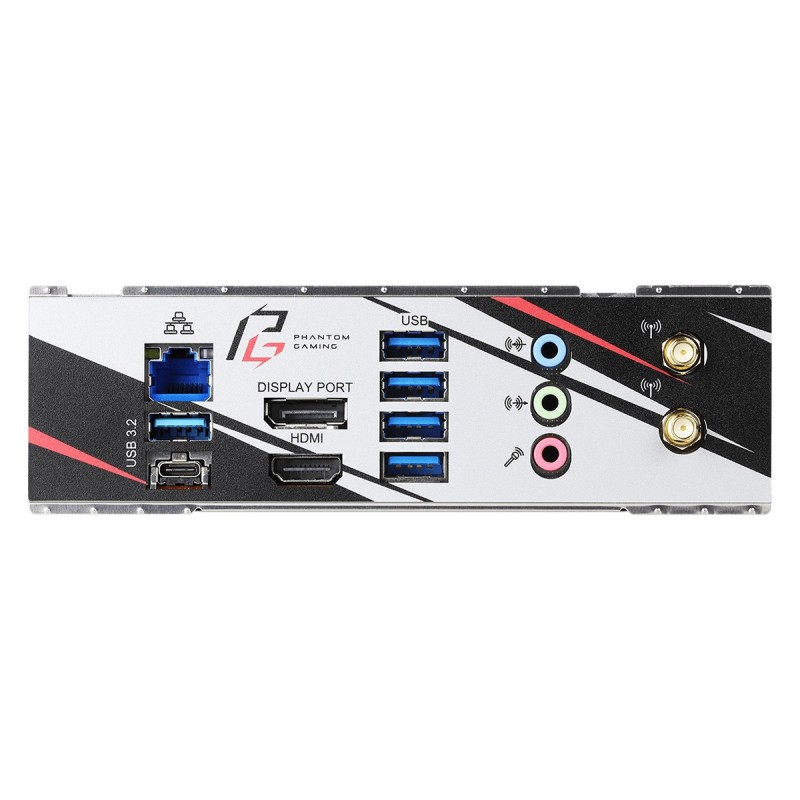

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPorts quantity: 1

HDMI ports quantity: 1

DVI-I ports quantity: 1

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Ethernet LAN (RJ-45) ports: 1
