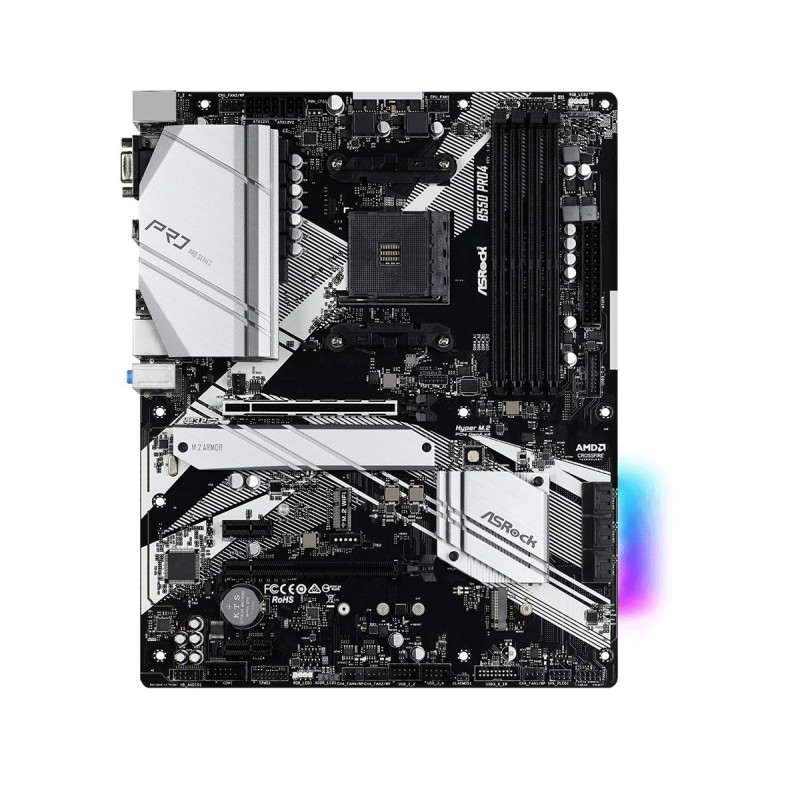

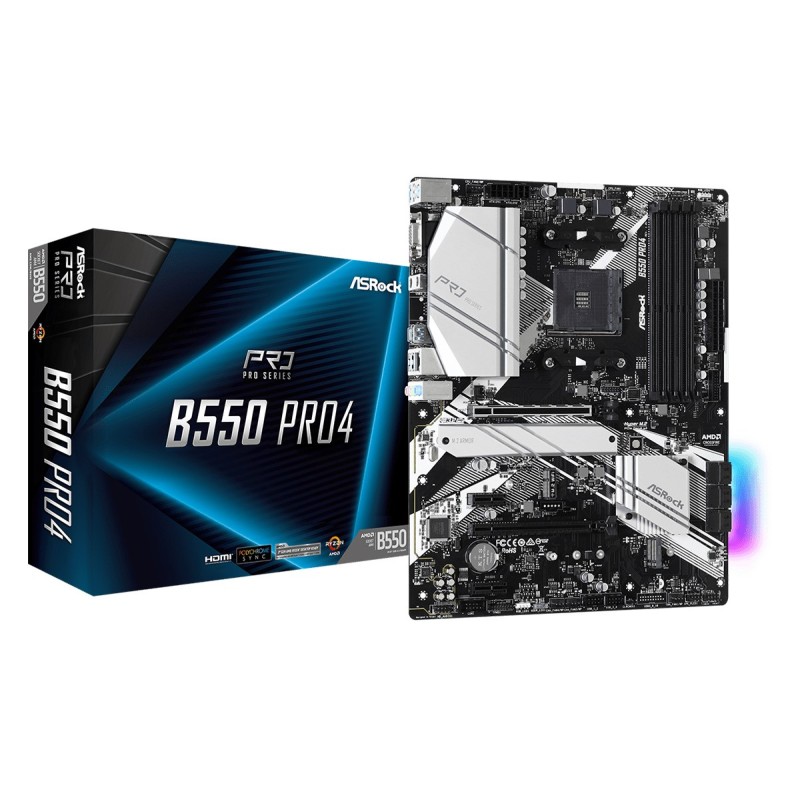

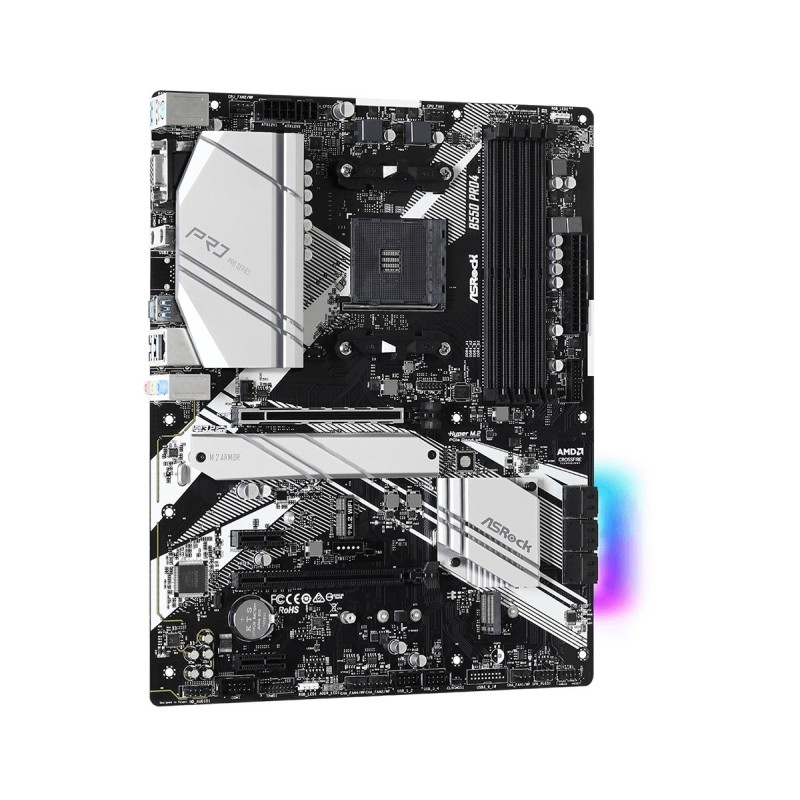

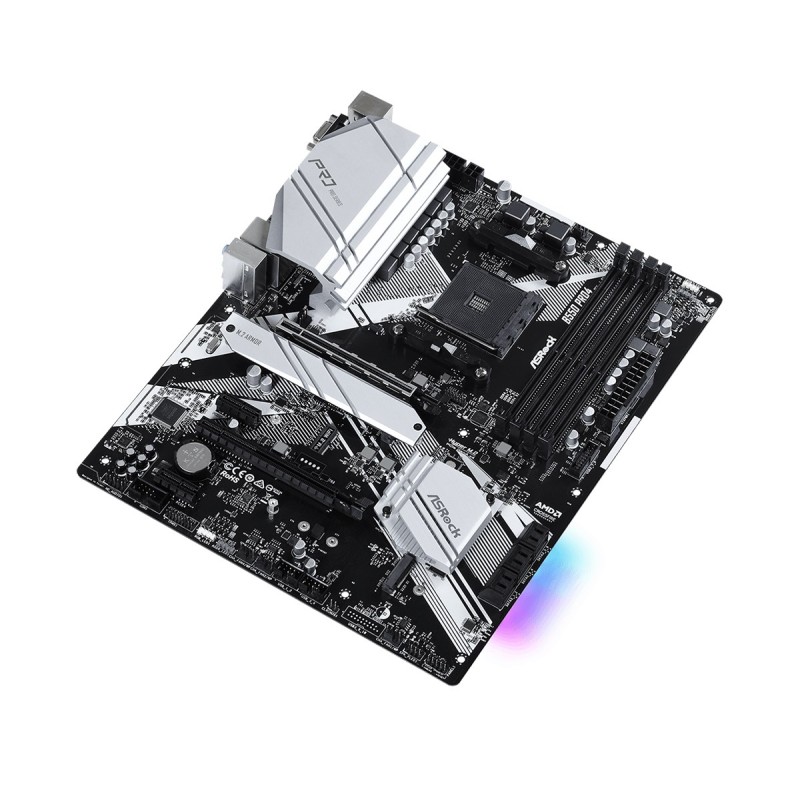

Asrock B550 Pro4 Socket AM4 ATX AMD B550

Περιγραφή

Processor

Processor socket: Socket AM4

Compatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3

Processor manufacturer: AMD

Maximum number of SMP processors: 1

Graphics

On-board graphics card: Yes

Graphics card: Radeon Vega

HDCP: Yes

DirectX version: 12.0

Graphics card family: AMD

Features

Audio output channels: 7.1 channels

Audio chip: Realtek ALC1200

Motherboard chipset family: AMD

Motherboard form factor: ATX

Motherboard chipset: AMD B550

Memory

Supported memory clock speeds: 3800, 4466, 3200 MHz, 4266, 2667, 3733, 4400, 3866, 2400, 3466, 2133, 4200, 4533, 4333, 2933, 3600, 4133, 4000

Unbuffered memory: Yes

Memory slots type: DIMM

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

Number of memory slots: 4

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Wake-on-LAN ready: Yes

LAN controller: Realtek RTL8111H

Ethernet interface type: Gigabit Ethernet

Wi-Fi: No

Ethernet LAN: Yes

Internal I/O

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of SATA III connectors: 6

Front panel audio connector: Yes

EPS power connector (8-pin): Yes

12V power connector: Yes

CPU fan connector: Yes

Number of COM connectors: 1

RGB LED pin header: Yes

ATX Power connector (24-pin): Yes

Peripheral (Molex) power connectors (4-pin): 1

BIOS

BIOS type: UEFI AMI

Packaging content

Drivers included: Yes

Storage controllers

Supported storage drive interfaces: M.2, Serial ATA III

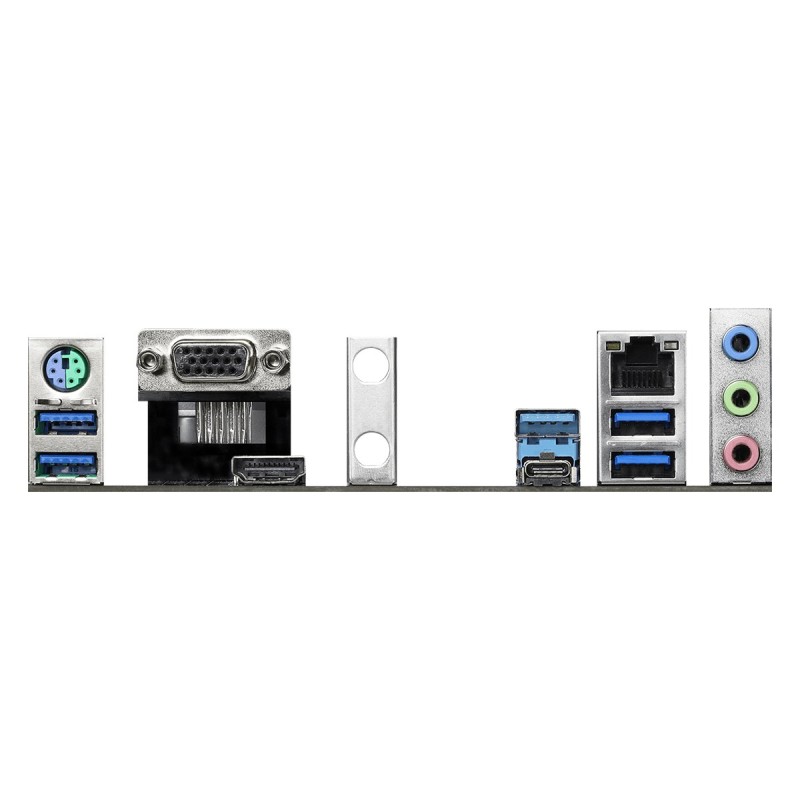

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Microphone in: Yes

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

VGA (D-Sub) ports quantity: 1
