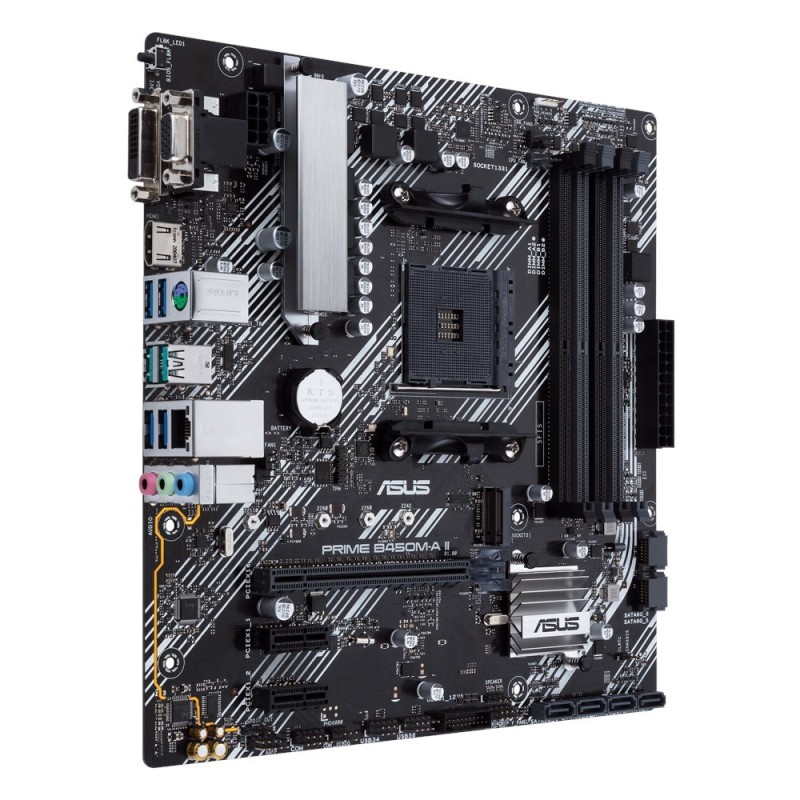

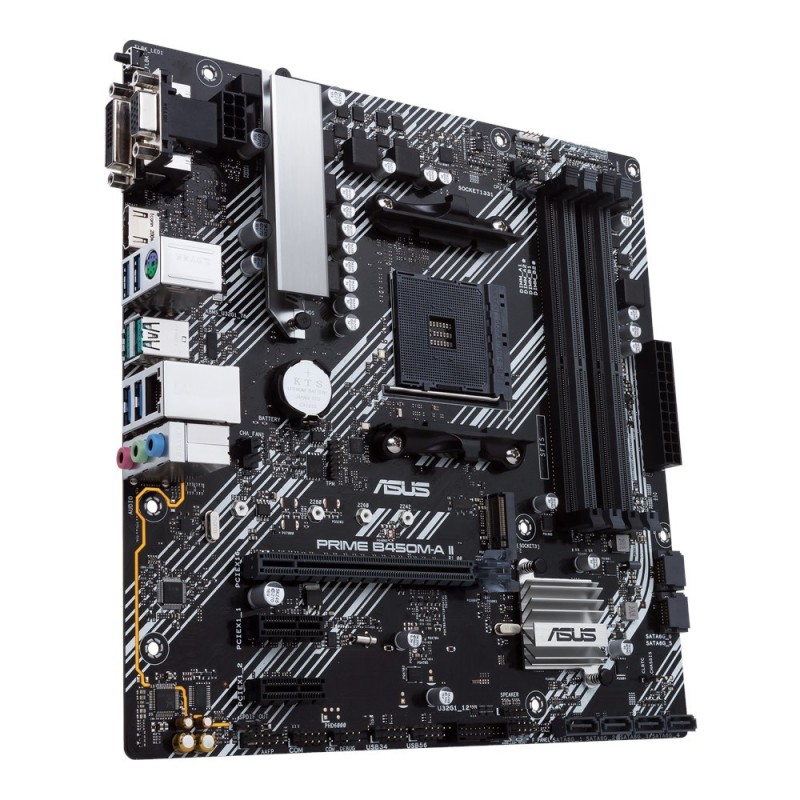

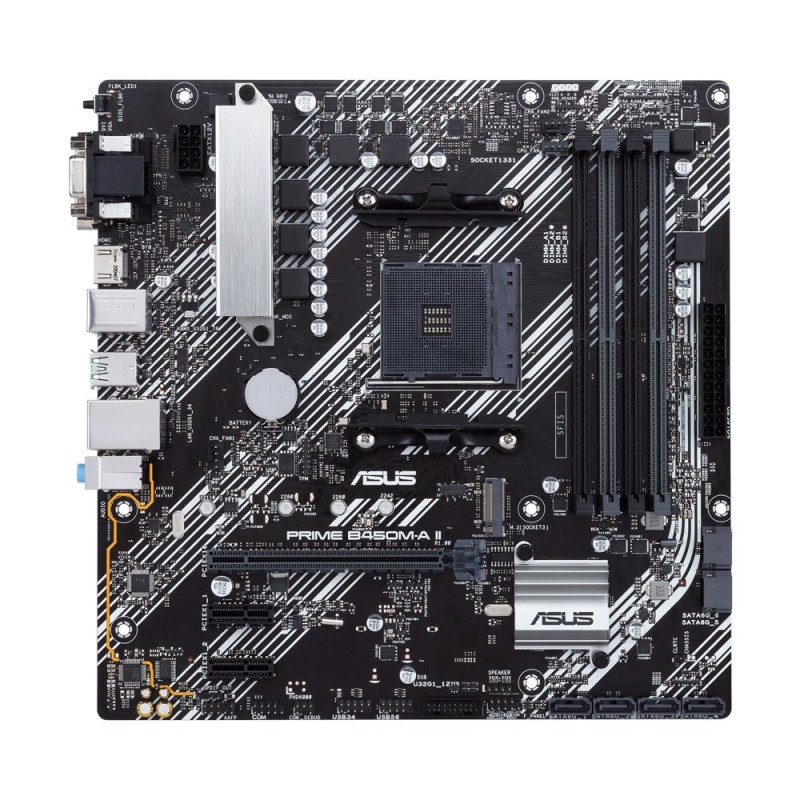

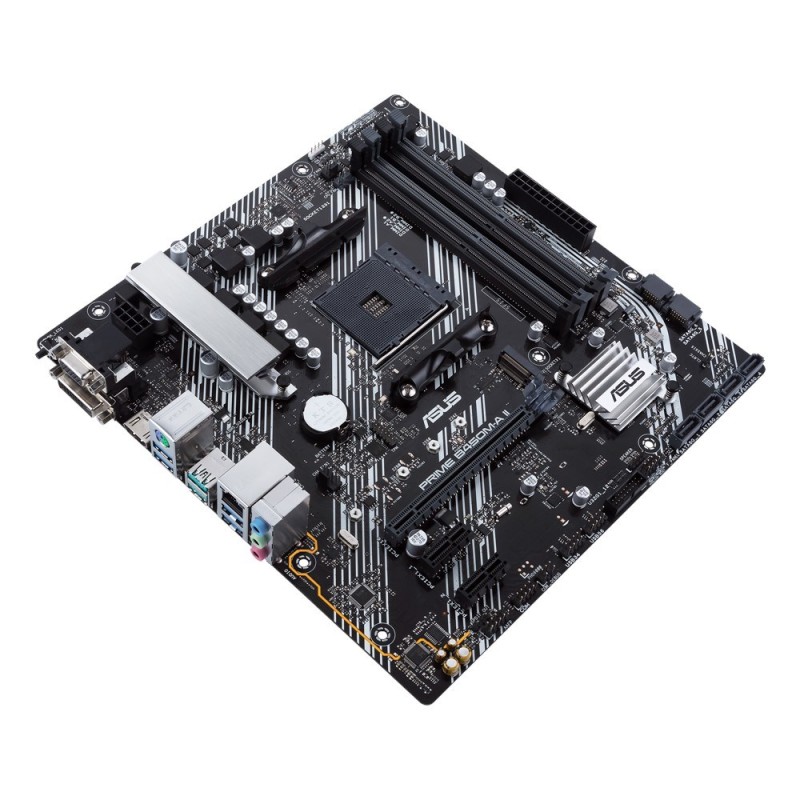

ASUS PRIME B450M-A II Socket AM4 micro ATX AMD B450

Περιγραφή

Processor

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen™ 5, 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 7, AMD Ryzen™ 3

Maximum number of SMP processors: 1

Processor manufacturer: AMD

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: AMD B450

Motherboard chipset family: AMD

Windows operating systems supported: Windows 10 x64, Windows 7 x64

Motherboard form factor: micro ATX

Audio output channels: 7.1+2 channels

Memory

Supported memory clock speeds: 4000, 3733, 4400, 2133, 3400, 3866, 3466, 3000, 3200 MHz, 2666, 2400, 2800, 3600, 3300

Maximum internal memory: 128 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR4-SDRAM

Weight & dimensions

Depth: 240 mm

Width: 244 mm

Network

LAN controller: Realtek RTL8111H

Wake-on-LAN ready: Yes

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Internal I/O

Number of chassis fan connectors: 2

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 6

S/PDIF out connector: Yes

CPU fan connector: Yes

TPM connector: Yes

Number of COM connectors: 1

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

12V power connector: Yes

Audio connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

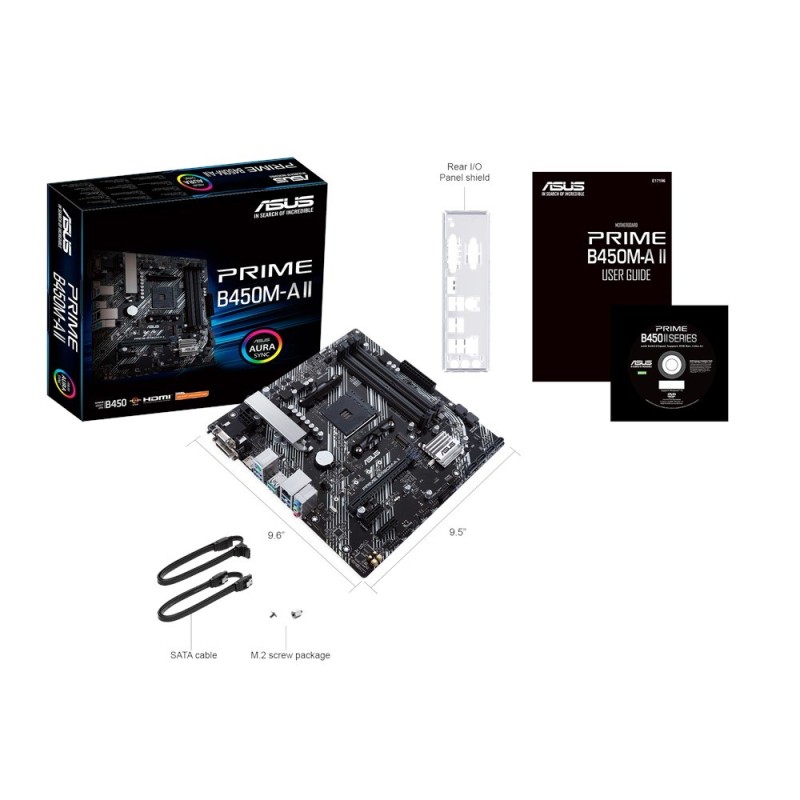

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: Serial ATA III

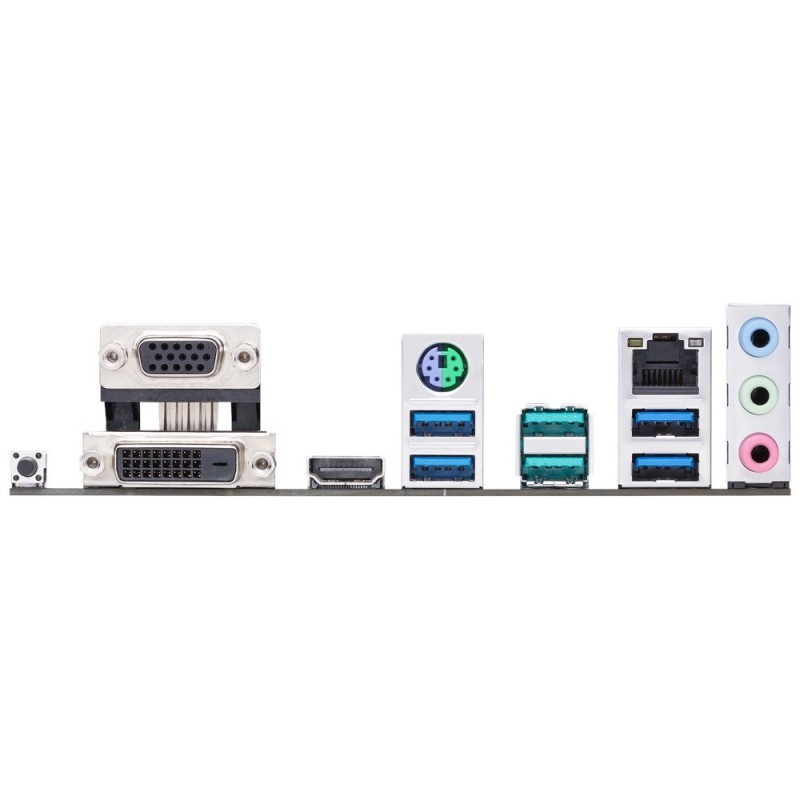

Rear panel I/O ports

VGA (D-Sub) ports quantity: 1

DVI-D ports quantity: 1

HDMI version: 2.0b

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 2.x) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

Safety warning

Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
