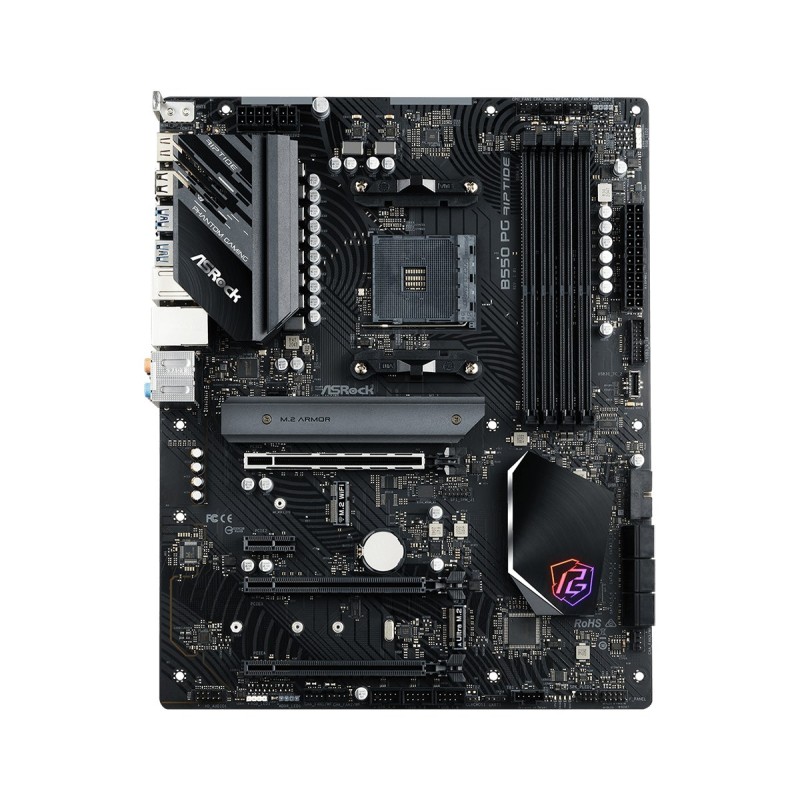

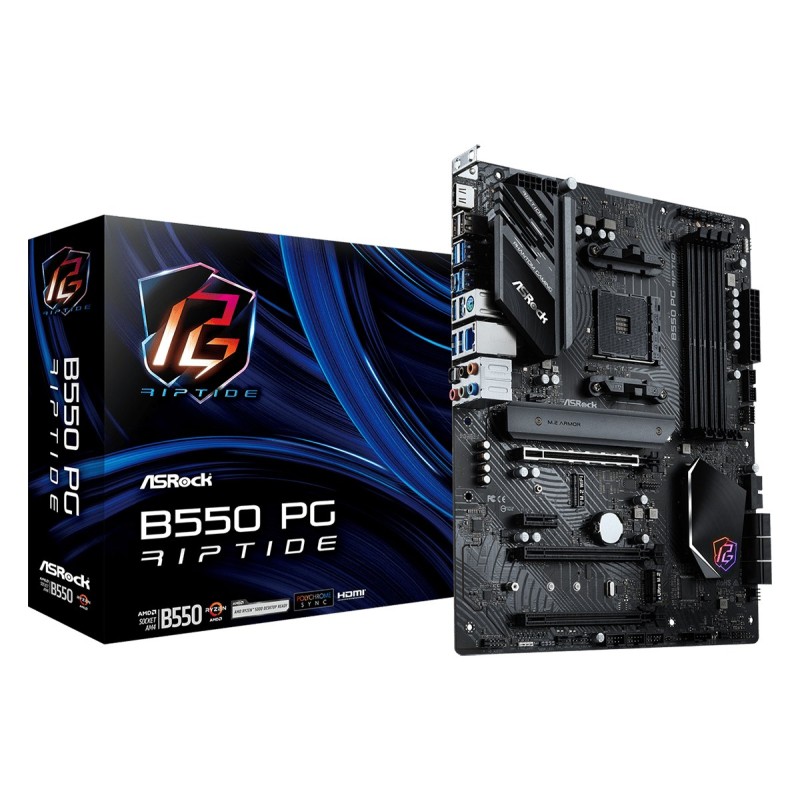

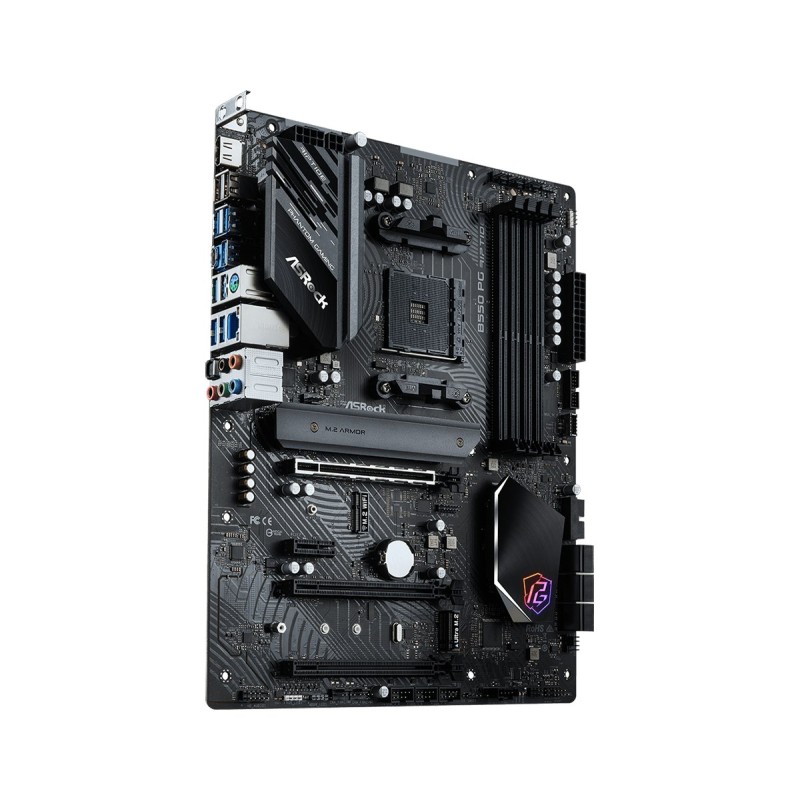

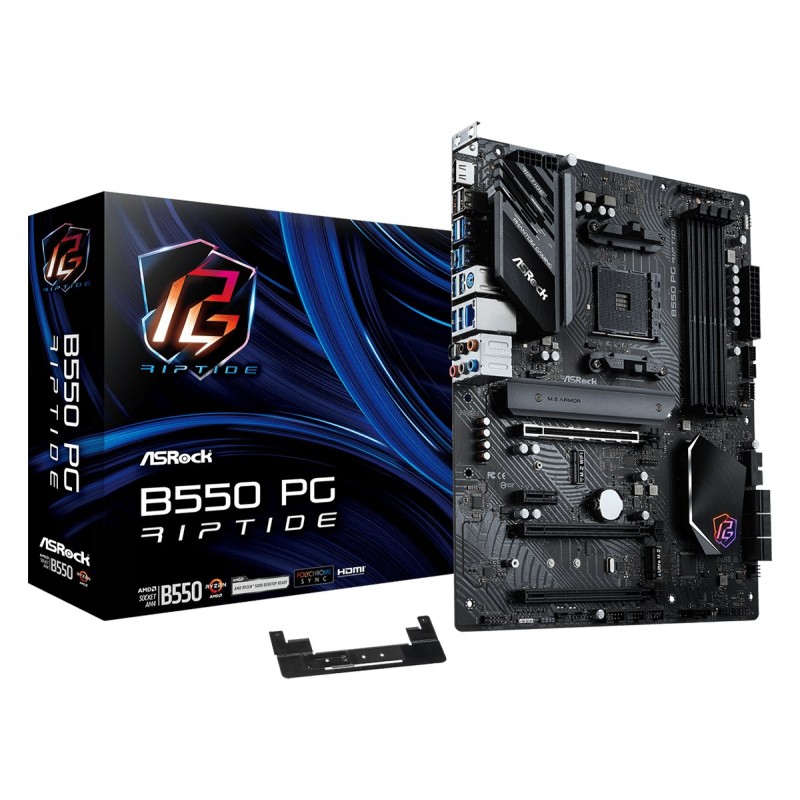

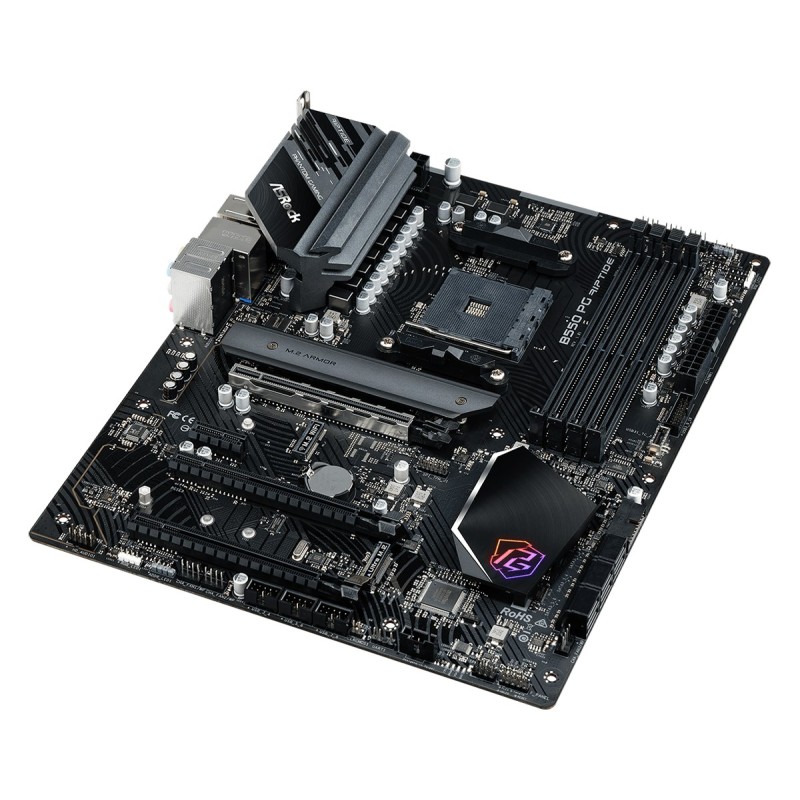

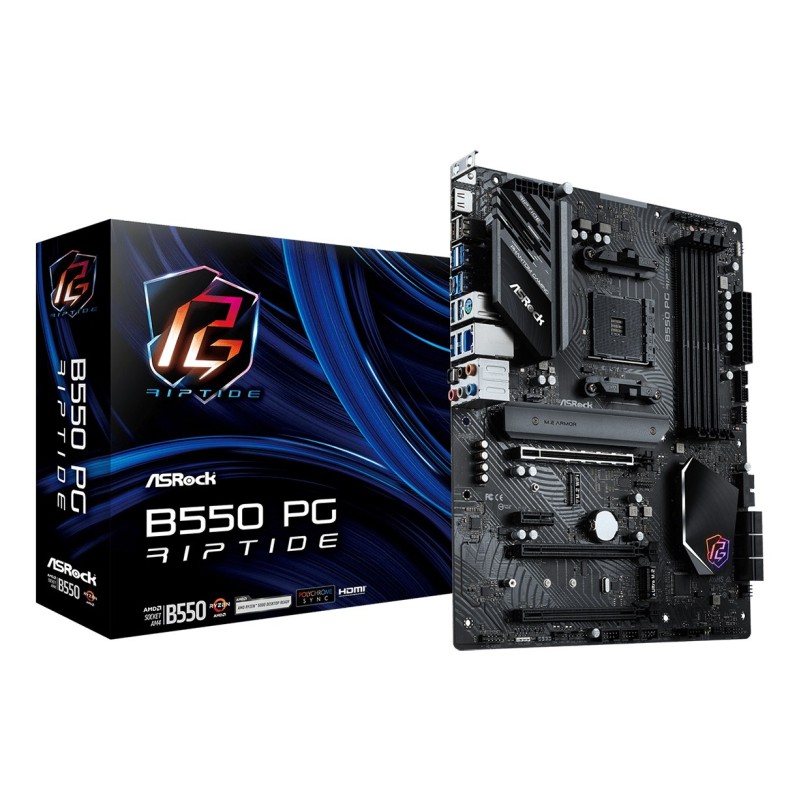

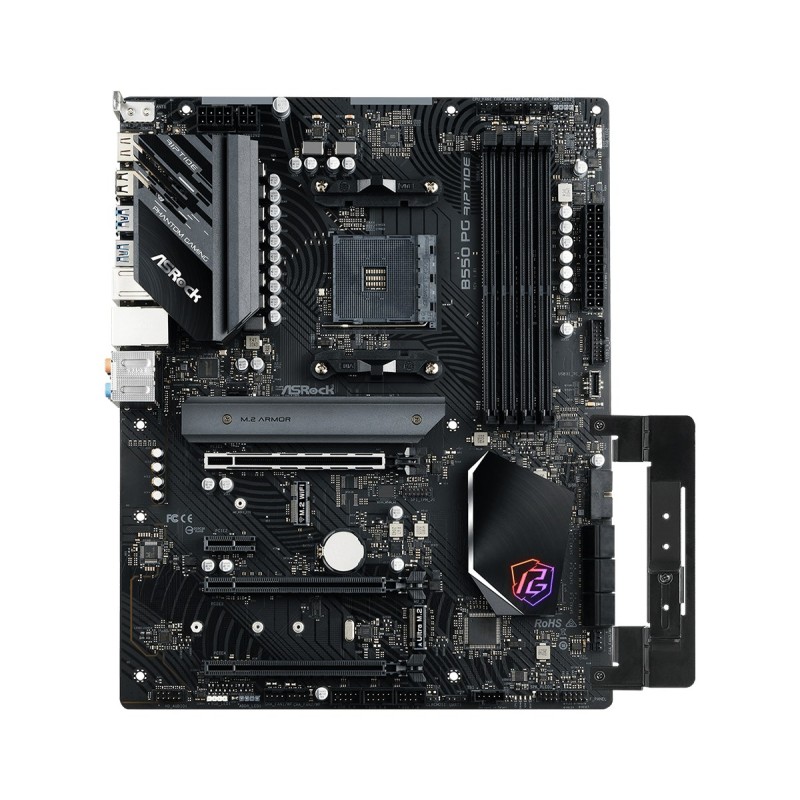

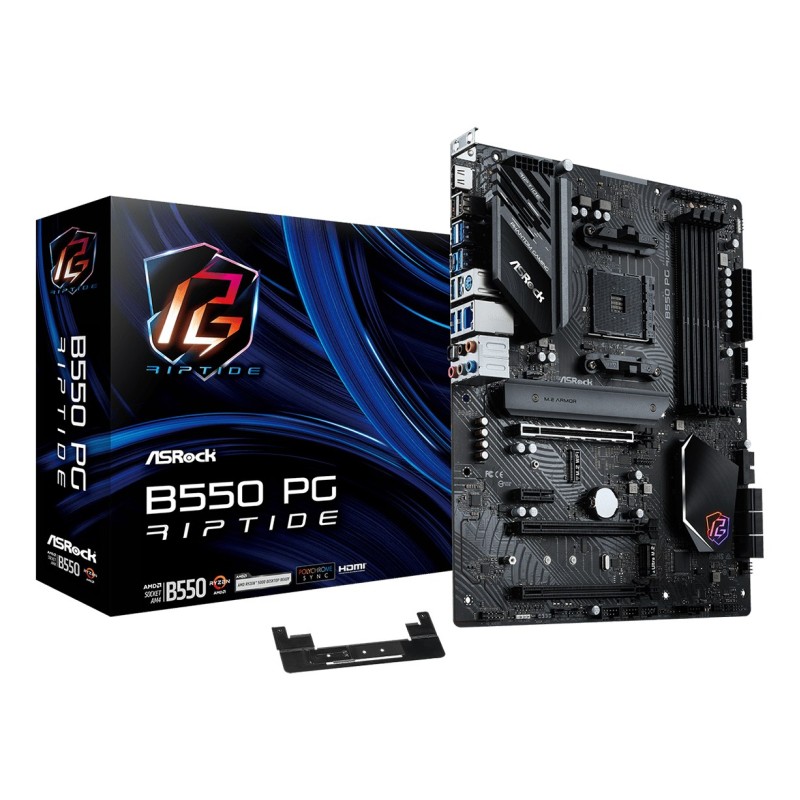

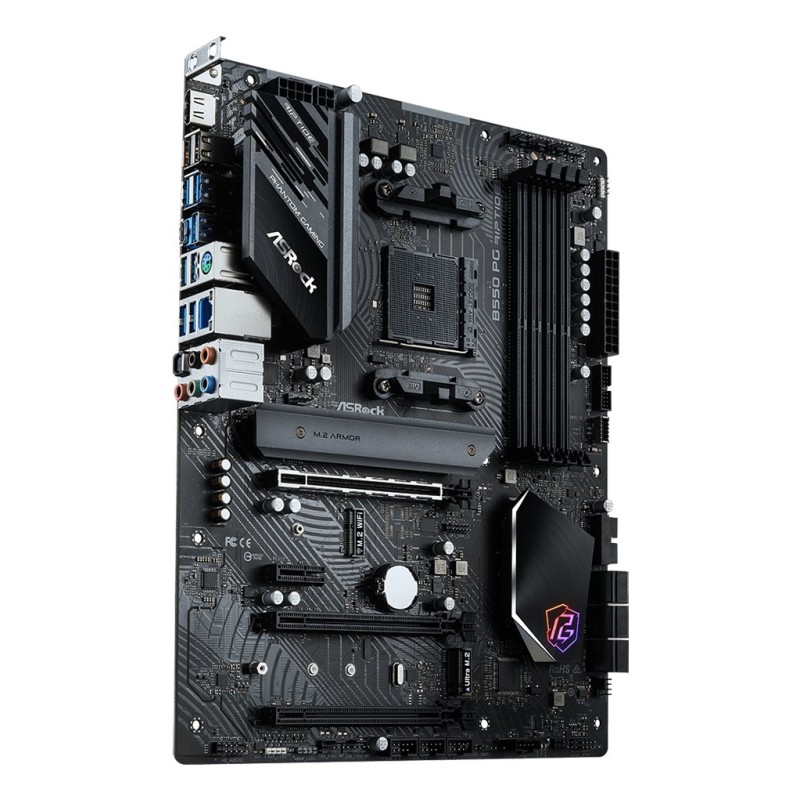

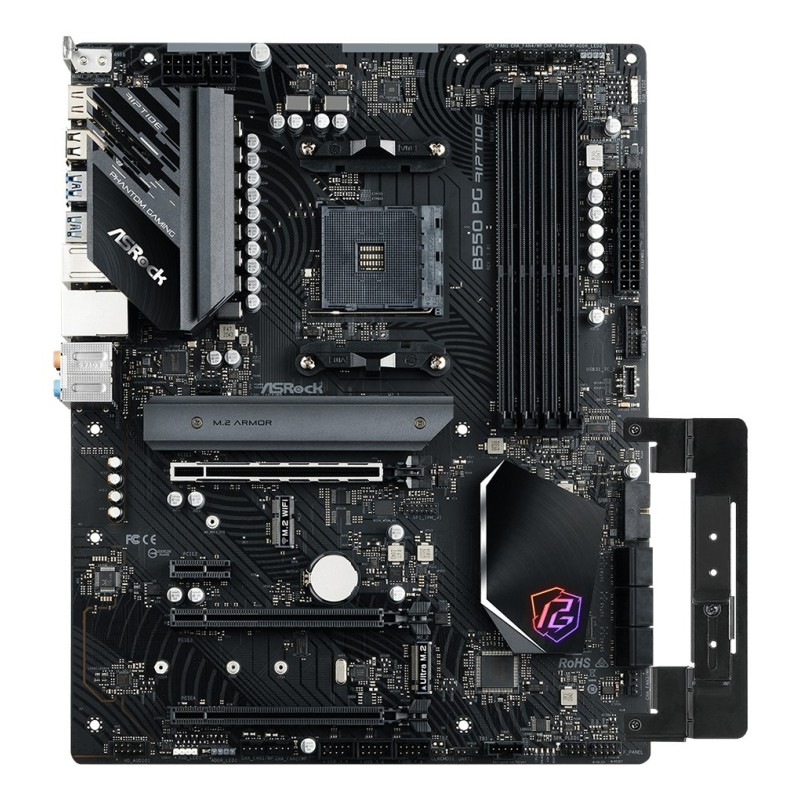

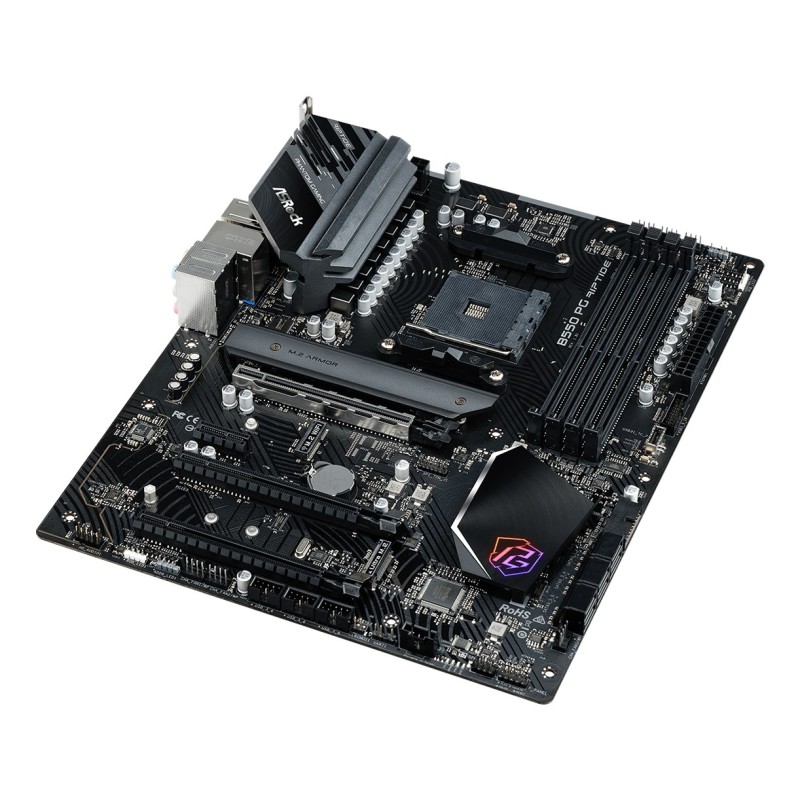

Asrock B550 PG Riptide AMD B550 Socket AM4 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series

Processor manufacturer: AMD

Maximum number of SMP processors: 1

Processor socket: Socket AM4

Graphics

DirectX version: 12.0

HDCP: Yes

Parallel processing technology support: Quad-GPU CrossFireX, CrossFireX

Maximum resolution: 4096 x 2160 pixels

Features

Audio chip: Realtek ALC897

PC health monitoring: CPU, Temperature, Fan, Voltage

Audio output channels: 7.1 channels

Motherboard chipset: AMD B550

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard form factor: ATX

Memory

Supported memory clock speeds: 4333, 4600, 2400, 4133, 4000, 4933 MHz, 4533, 2133, 4200, 3800, 4466, 3466, 3200 MHz, 4266, 3866, 2933, 3600, 4733, 2667, 3733, 4400, 4666

Unbuffered memory: Yes

Maximum internal memory: 128 GB

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Number of memory slots: 4

Memory channels: Dual-channel

Weight & dimensions

Height: 330 mm

Width: 305 mm

Depth: 244 mm

Network

LAN controller: Killer E3100G

Wake-on-LAN ready: Yes

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: No

Internal I/O

Thunderbolt headers: 1

RGB LED pin header: Yes

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Front panel audio connector: Yes

12V power connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

TPM connector: Yes

Number of chassis fan connectors: 5

USB 2.0 connectors: 3

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 6

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 10, 0, 1

RAID support: Yes

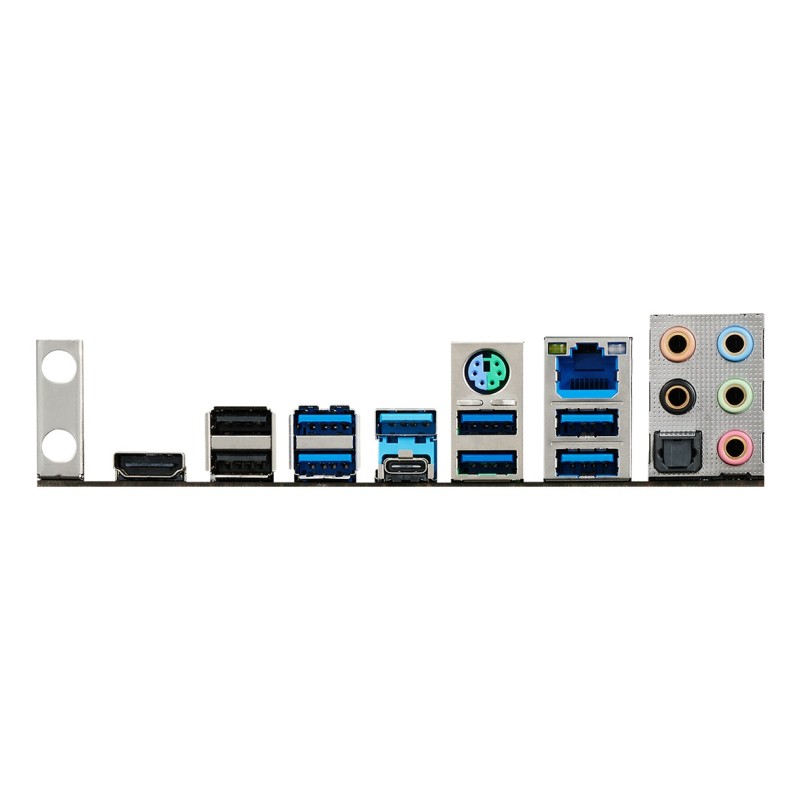

Rear panel I/O ports

S/PDIF out port: Yes

USB 2.0 ports quantity: 2

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6

PS/2 ports quantity: 1

Digital audio optical out: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 slots: 3

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 1

Other features

Weight: 465 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Dispose of according to local electro-waste regulations., Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components.
