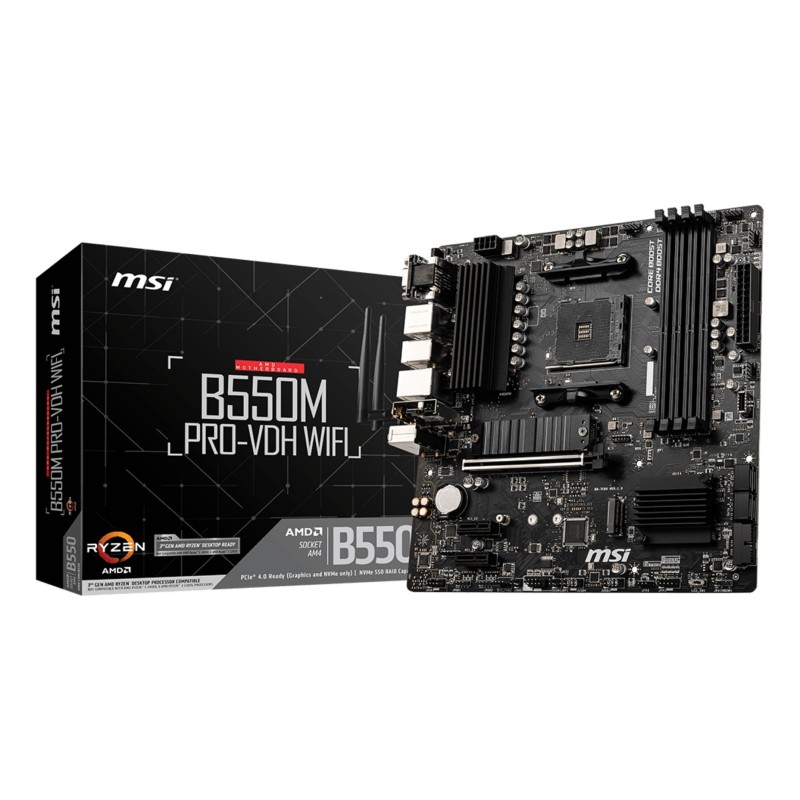

MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX

Περιγραφή

Processor

Processor manufacturer: AMD

Maximum number of SMP processors: 1

Supported processor sockets: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series

Processor socket: Socket AM4

Graphics

Maximum resolution: 4096 x 2160 pixels

Maximum graphics card memory: 16000 MB

Parallel processing technology support: Not supported

Features

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Motherboard form factor: micro ATX

Number of mounting holes: 8

Motherboard chipset: AMD B550

Audio chip: Realtek ALC892

Product colour: Black

Memory

Number of memory slots: 4

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory clock speeds: 4133, 4000, 3200 MHz, 4266, 2400, 2800, 1866, 2933, 3600, 2667, 3733, 4400, 3066, 3866, 3466, 3000, 2133

Maximum internal memory: 128 GB

ECC сompatibility: ECC & Non-ECC

Unbuffered memory: Yes

Weight & dimensions

Height: 65 mm

Width: 244 mm

Depth: 244 mm

Network

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 5 (802.11ac), 802.11b

Bluetooth version: 4.2

Ethernet LAN: Yes

Wi-Fi: Yes

Ethernet interface type: Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

LAN controller: Realtek 8111HN

Bluetooth: Yes

Internal I/O

ATX Power connector (24-pin): Yes

12V power connector: Yes

Number of SATA III connectors: 4

RGB LED pin header: Yes

CPU fan connector: Yes

Serial port headers: 1

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of chassis fan connectors: 3

BIOS

Clear CMOS jumper: Yes

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

RAID support: Yes

RAID levels: 1, 10, 0

Supported storage drive interfaces: SATA III

Supported storage drive types: HDD & SSD

Rear panel I/O ports

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

VGA (D-Sub) ports quantity: 1

HDMI ports quantity: 1

WiFi-AP antenna jack: 2

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Other features

Weight: 1 kg

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Dispose of according to local electro-waste regulations., Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components.
