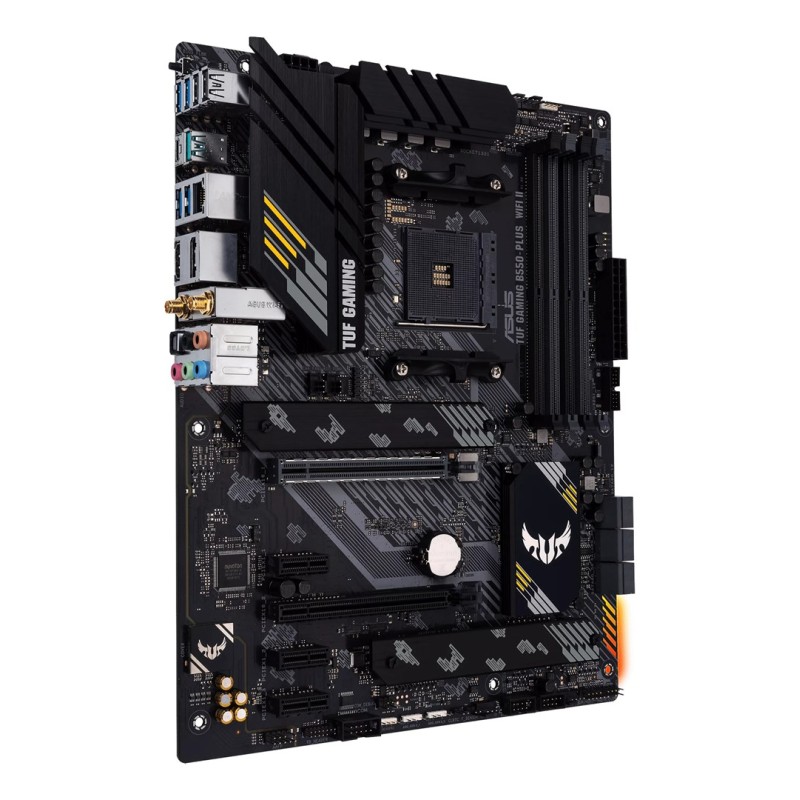

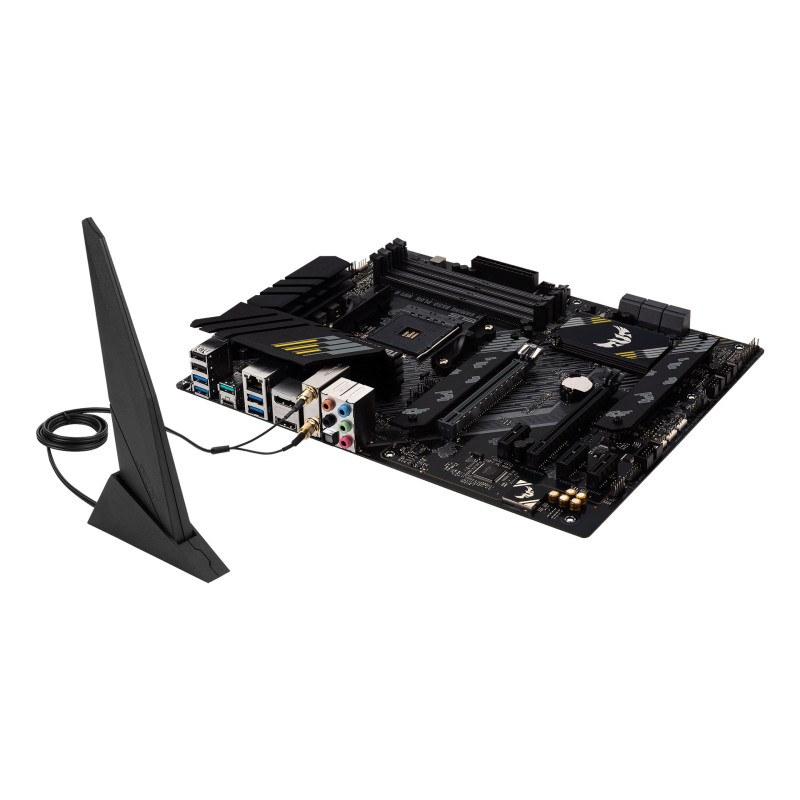

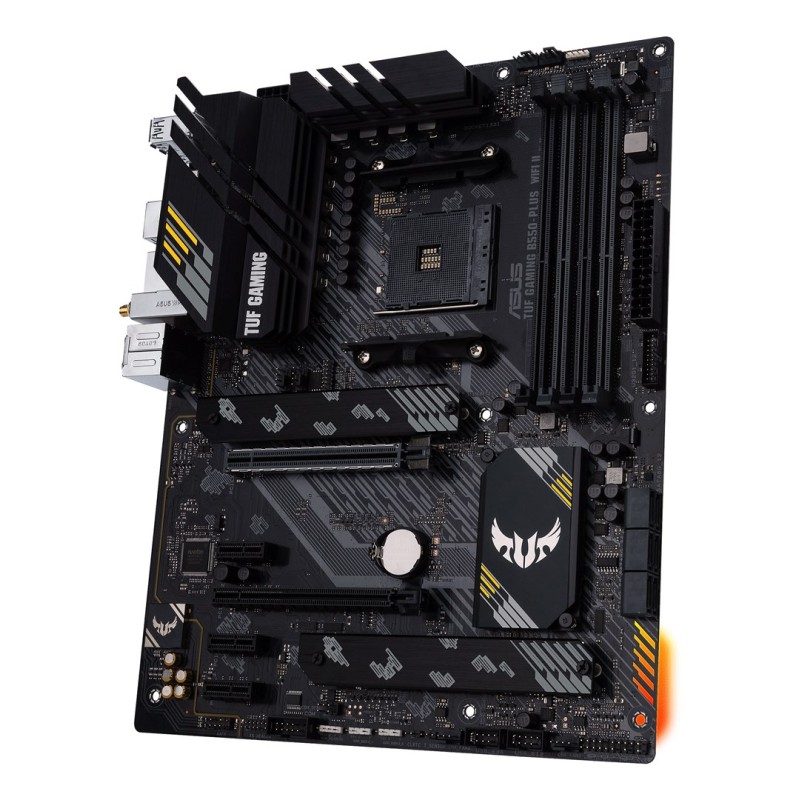

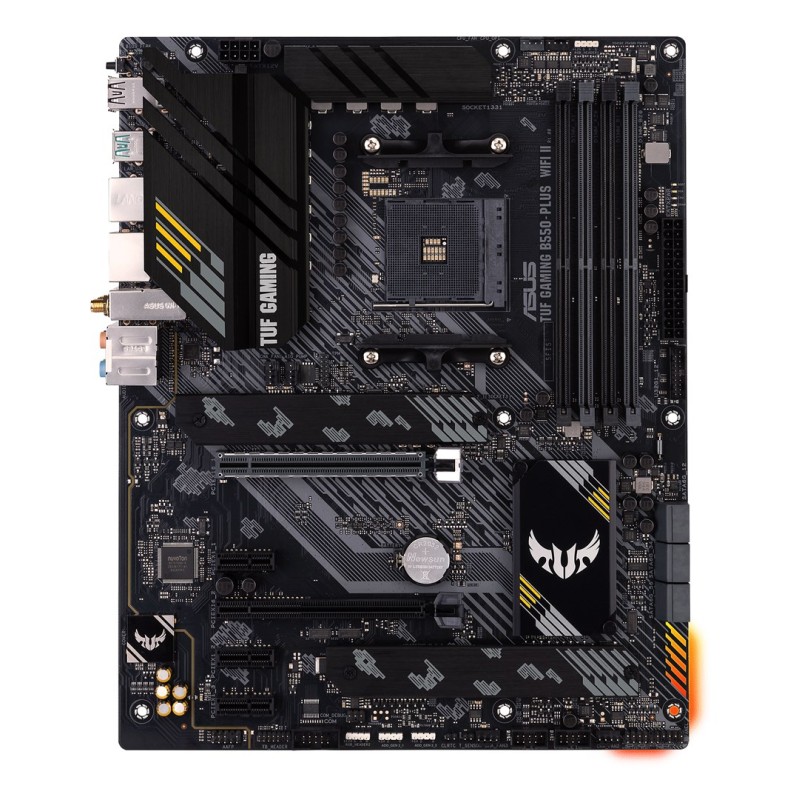

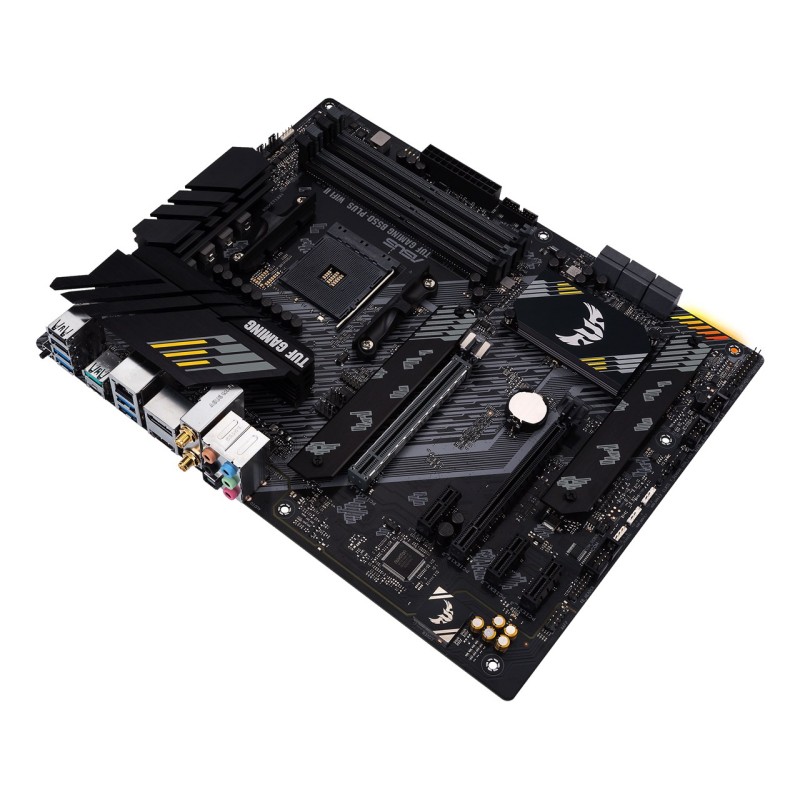

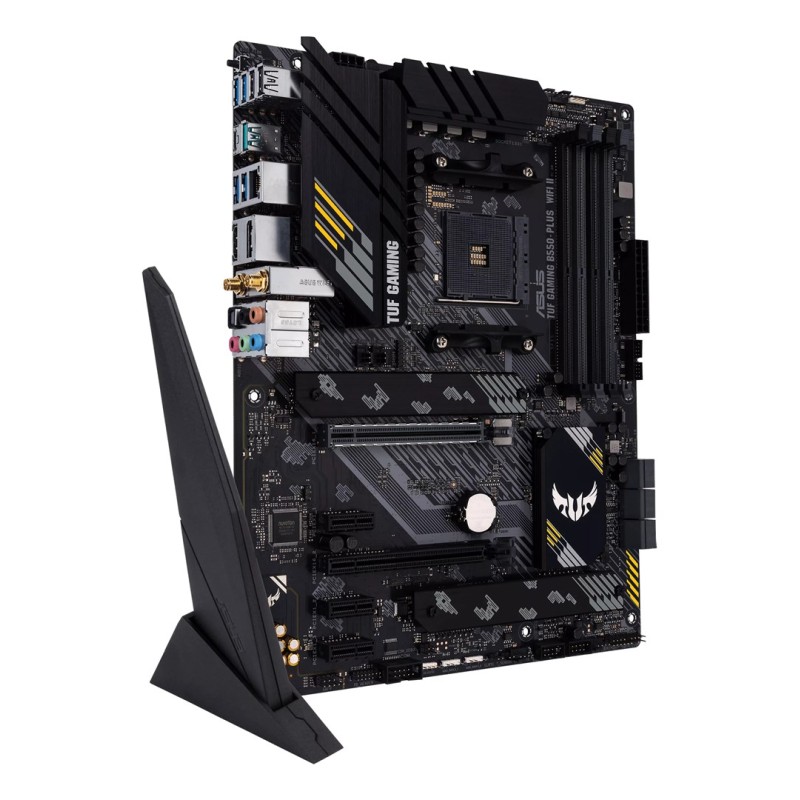

ASUS TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM4

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 3000 Series

Processor socket: Socket AM4

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Number of displays supported: 2

Features

Motherboard chipset family: AMD

Product colour: Black

Motherboard form factor: ATX

Motherboard chipset: AMD B550

Windows operating systems supported: Windows 10, Windows 11

Audio output channels: 7.1 channels

Memory

Supported memory clock speeds: 2133 MHz, 4200, 3466, 3400, 3866, 4133, 4000, 4333, 4600, 2933, 3600, 4866, 4800, 3733, 4400, 3000, 2400, 2800, 3200, 2666, 4266, 3333, 4466

ECC сompatibility: ECC

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

Weight & dimensions

Width: 305 mm

Height: 75 mm

Depth: 244 mm

Network

Bluetooth: Yes

Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)

Bluetooth version: 5.2

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-Fi: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

TPM connector: Yes

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 3

Number of COM connectors: 1

USB 2.0 connectors: 2

EPS power connector (8-pin): Yes

Thunderbolt headers: 1

Number of SATA III connectors: 6

Front panel audio connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA

RAID levels: 0, 1, 10

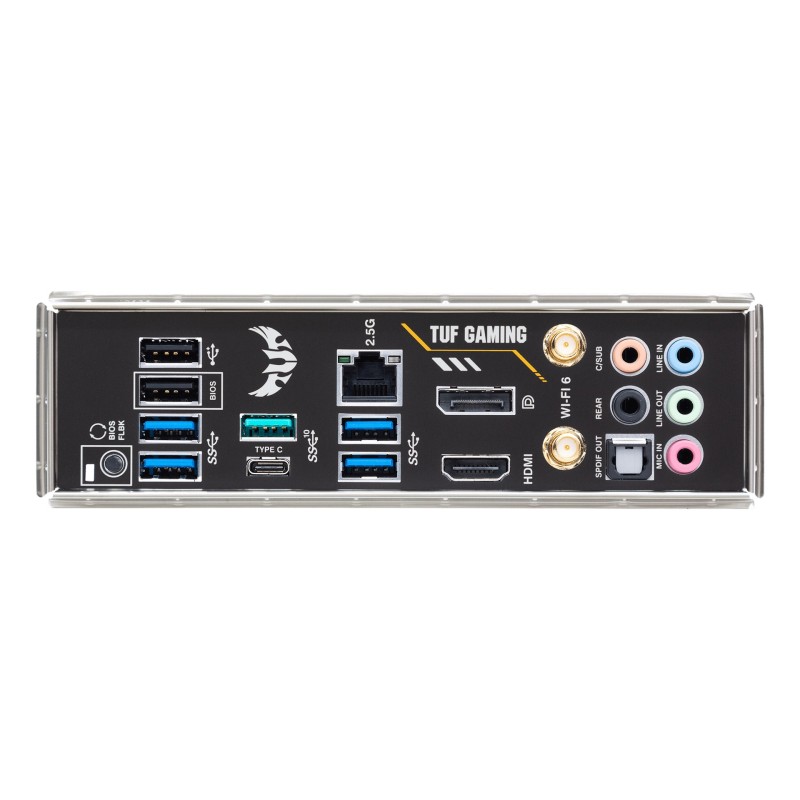

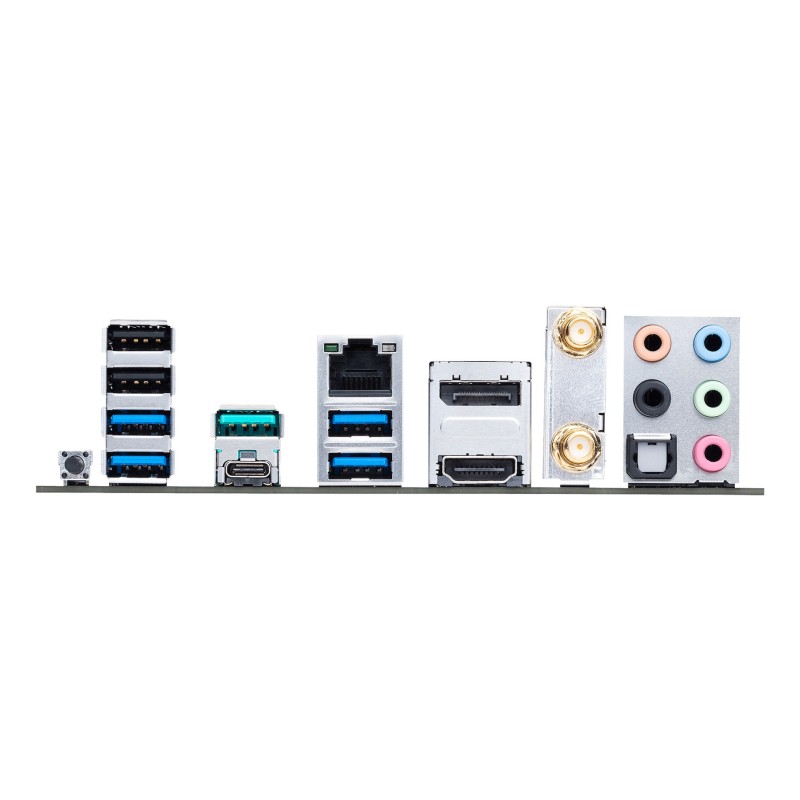

Rear panel I/O ports

DisplayPorts quantity: 1

USB connector type: USB Type-A, USB Type-C

USB 2.0 ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Line-in: Yes

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Headphone outputs: 1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 3

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Other features

Weight: 945 g

Logistics data

Harmonized System (HS) code: 84733020
