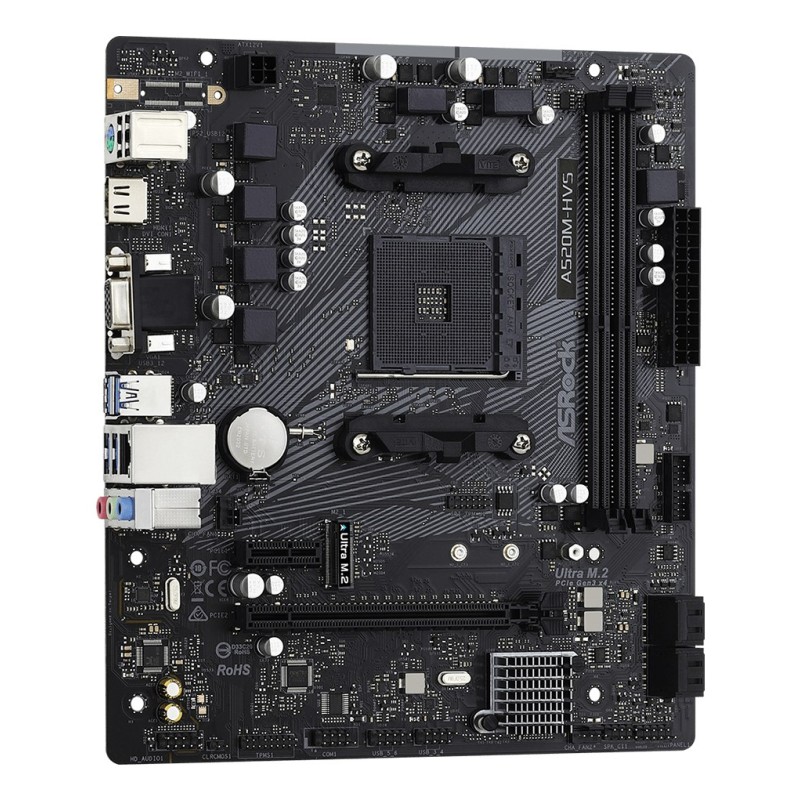

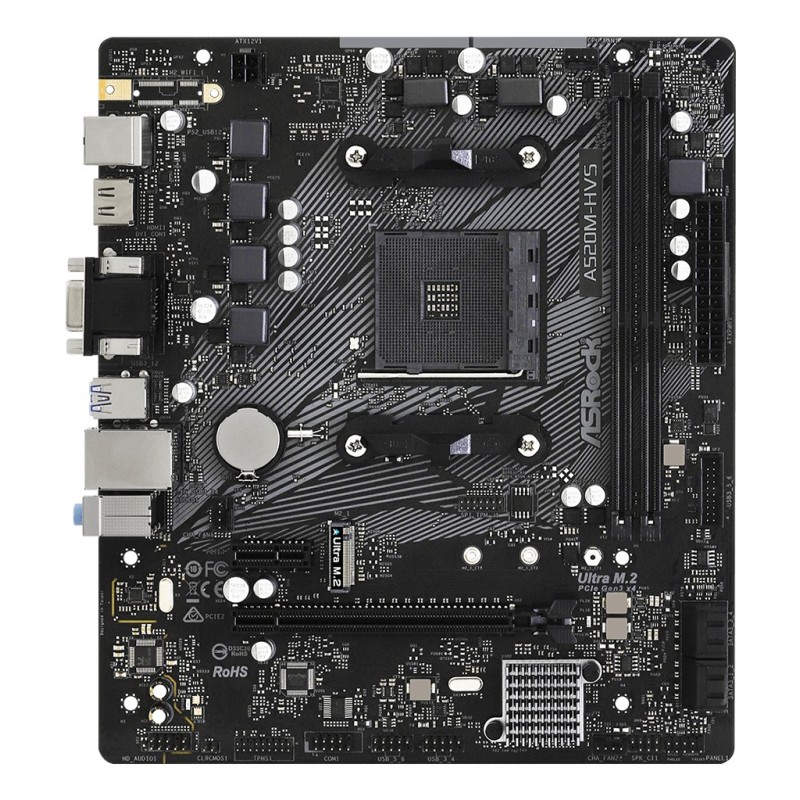

Asrock A520M-HVS AMD A520 Socket AM4 micro ATX

Περιγραφή

Processor

Processor socket: Socket AM4

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 3000 Series

Graphics

Graphics card family: AMD

Graphics card: Radeon Vega

Features

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset: AMD A520

Motherboard chipset family: AMD

Memory

Supported memory clock speeds: 4533, 4133, 4000 MHz, 4333, 3866, 3466, 3733, 4400, 4500, 2400, 2933, 3600, 3800, 4466, 2133, 4200, 3200 MHz, 2666, 4266

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 64 GB

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Number of memory slots: 2

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 201 mm

Width: 230 mm

Network

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

LAN controller: Realtek RTL8111H

Wake-on-LAN ready: Yes

Wi-Fi: No

Internal I/O

ATX Power connector (24-pin): Yes

Number of COM connectors: 1

Front panel audio connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of chassis fan connectors: 2

CPU fan connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 5

Supported storage drive interfaces: M.2, SATA III

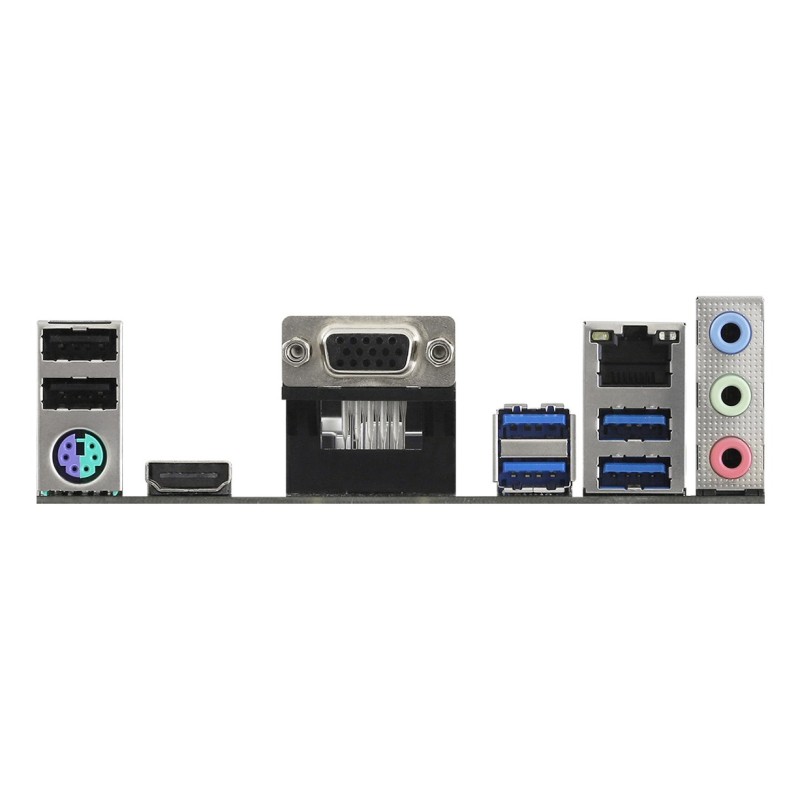

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 ports quantity: 2

HDMI ports quantity: 1

PS/2 ports quantity: 1

Microphone in: Yes

VGA (D-Sub) ports quantity: 1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Logistics data

Harmonized System (HS) code: 84733020
