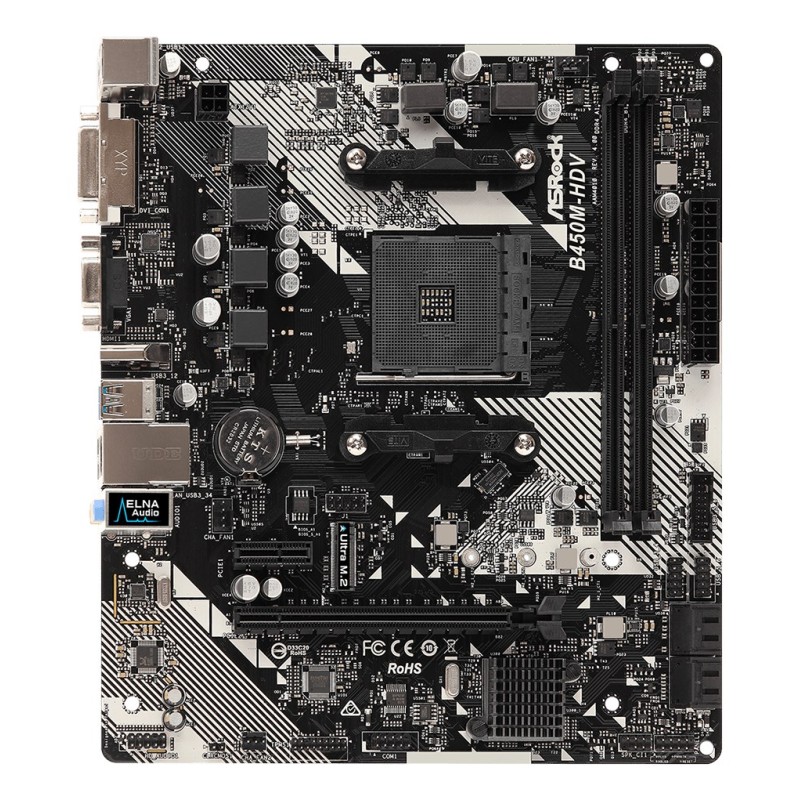

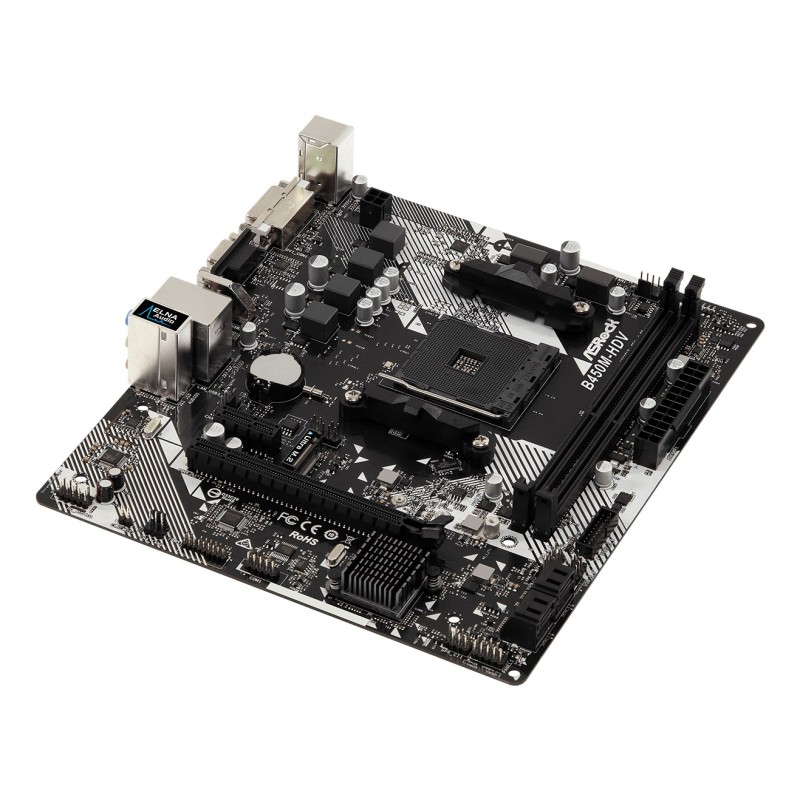

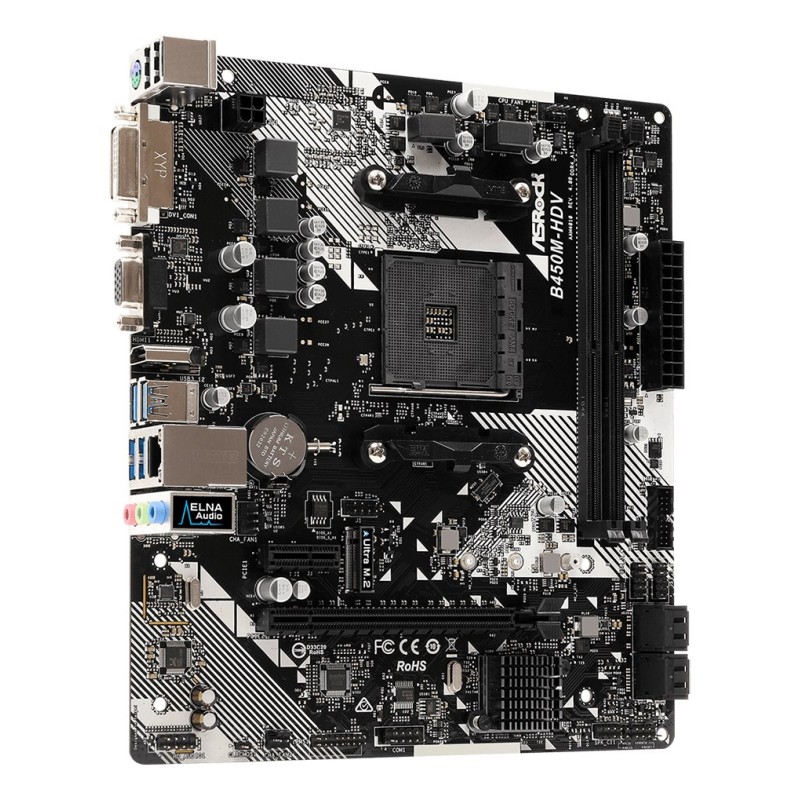

Asrock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX

Περιγραφή

Processor

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Athlon

Processor manufacturer: AMD

Graphics

Parallel processing technology support: Not supported

Graphics card family: AMD

Maximum resolution: 4096 x 2160 pixels

On-board graphics card: Yes

HDCP: Yes

DirectX version: 12.0

Features

Windows operating systems supported: Windows 10 Education x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 Enterprise x64, Windows 10 x64

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Motherboard form factor: micro ATX

Motherboard chipset: AMD B450

Audio chip: Realtek ALC887

Memory

ECC сompatibility: ECC & Non-ECC

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 32 GB

Number of memory slots: 2

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Supported memory clock speeds: 2933, 2400, 3200 MHz, 2133, 2667

Weight & dimensions

Width: 230 mm

Height: 70 mm

Depth: 201 mm

Network

Wake-on-LAN ready: Yes

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

LAN controller: Realtek RTL8111H

Internal I/O

Number of SATA III connectors: 4

Number of chassis fan connectors: 2

Front panel audio connector: Yes

TPM connector: Yes

USB 2.0 connectors: 2

12V power connector: Yes

Number of COM connectors: 1

CPU fan connector: Yes

Chassis intrusion connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

RAID levels: 10, 1, 0

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III

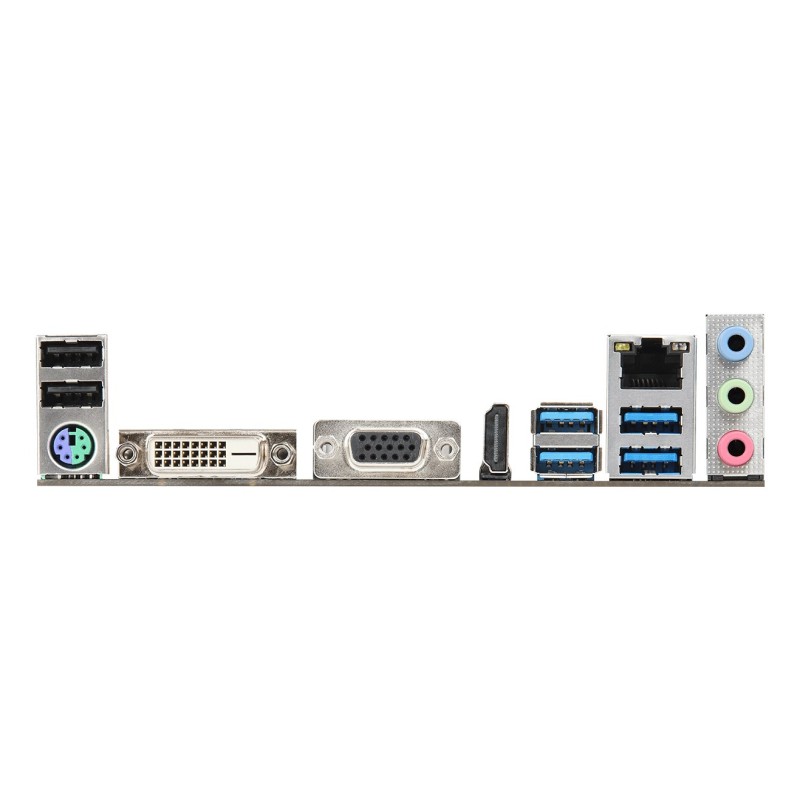

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Headphone outputs: 1

DVI-D ports quantity: 1

VGA (D-Sub) ports quantity: 1

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

PS/2 ports quantity: 1

USB 2.0 ports quantity: 2

Expansion slots

PCI Express x1 (Gen 2.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 3

Other features

Quick installation guide: Yes

Utilities included: Yes

Weight: 465 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Store away from water and sources of moisture., Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components.
