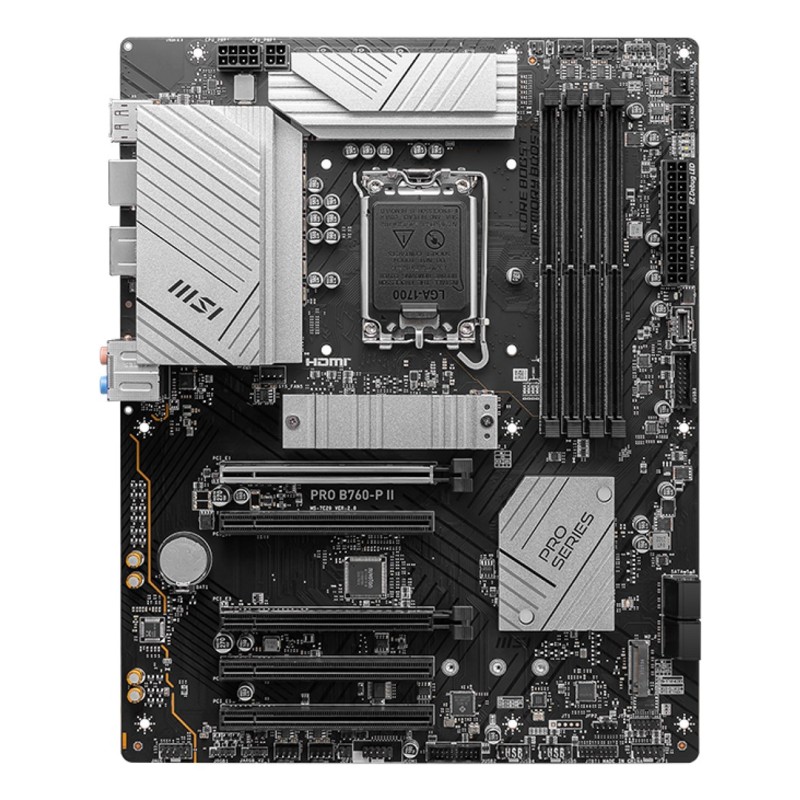

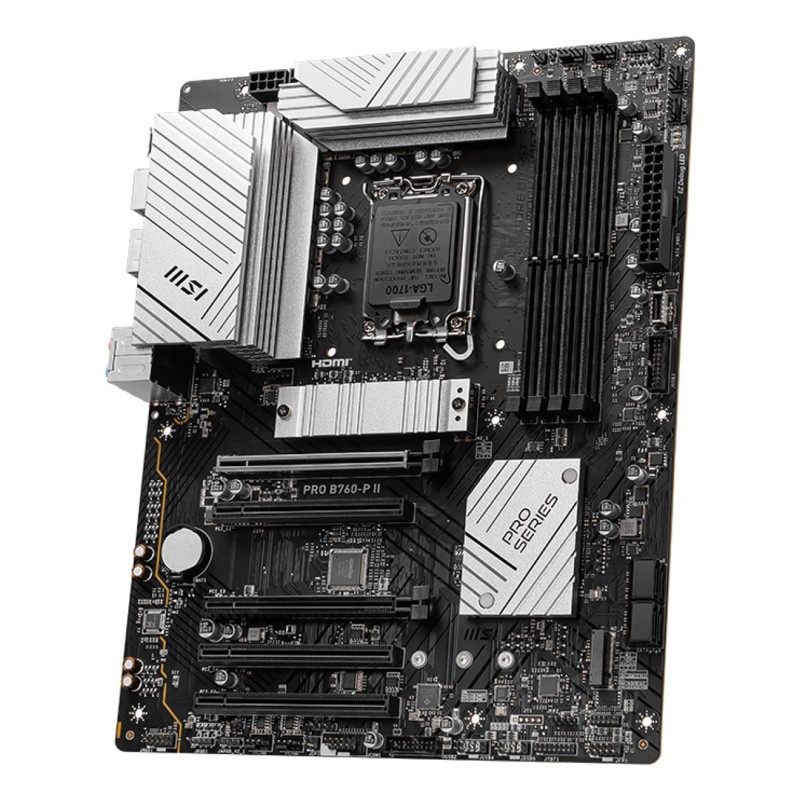

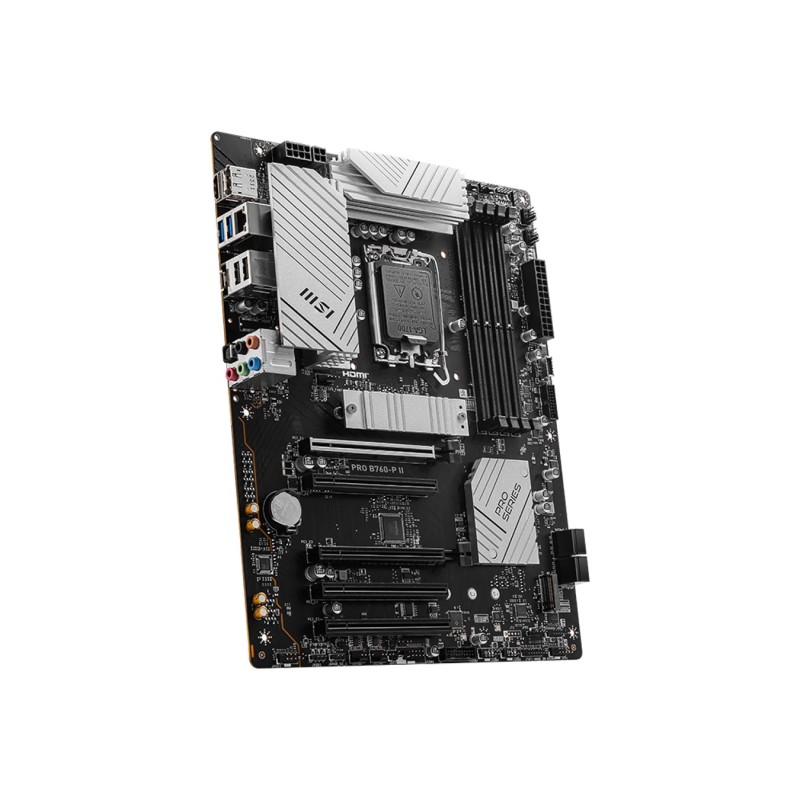

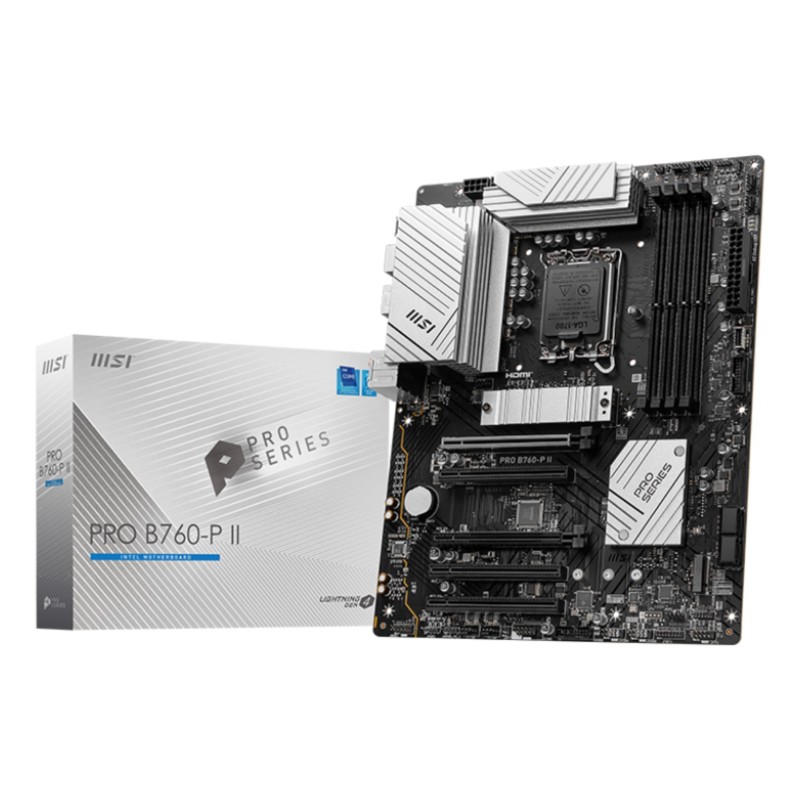

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Processor socket: LGA 1700

Maximum internal memory supported by processor: 256 GB

Compatible processor series: Intel® Core™ i7, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3

Features

Motherboard chipset: Intel B760

Audio chip: Realtek ALC897

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Memory

Supported memory clock speeds: 4800, 5000, 6000, 6400, 6800, 5600, 6600, 6200, 5200, 5800, 5400, 7000

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Supported memory clock speed (max): 7000 MHz

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Weight & dimensions

Depth: 304.8 mm

Width: 243.8 mm

Network

LAN controller: Realtek RTL8125-BG

Wi-Fi: No

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

S/PDIF out connector: Yes

USB 2.0 connectors: 4

12V power connector: Yes

Number of SATA III connectors: 4

Power fan connector: Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

Chassis intrusion connector: Yes

Front panel audio connector: Yes

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Clear CMOS button: Yes

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

RAID support: Yes

RAID levels: 5, 10, 1, 0

Number of storage drives supported: 6

Supported storage drive interfaces: PCI Express 4.0, SATA III

Number of HDDs supported: 4

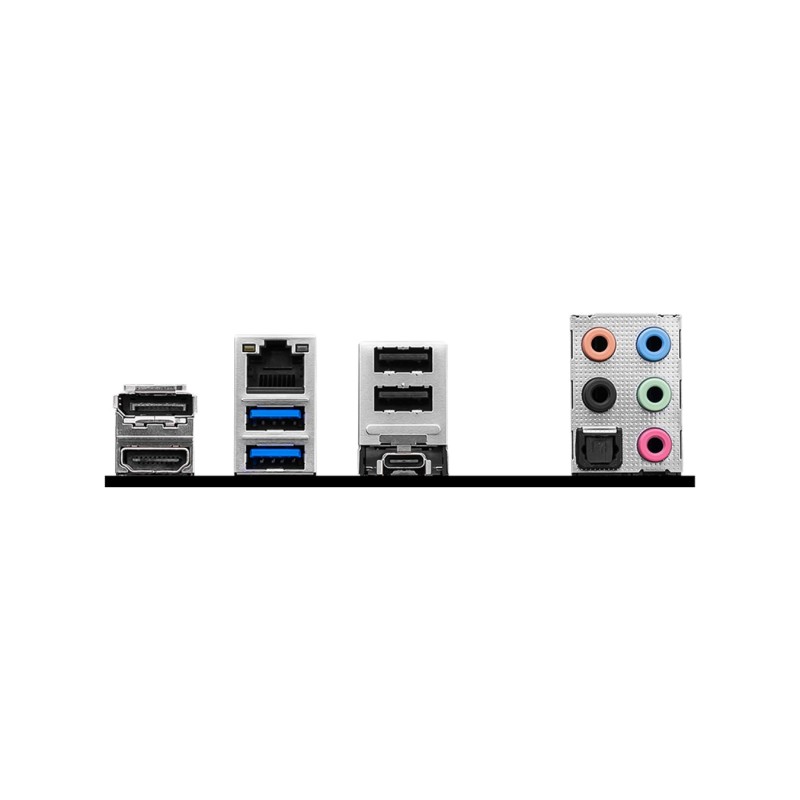

Rear panel I/O ports

HDMI version: 2.1

DisplayPort version: 1.4

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

DisplayPorts quantity: 1

Expansion slots

PCI Express x1 (Gen 4.x) slots: 2

PCI Express x4 (Gen 4.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 2

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply.
