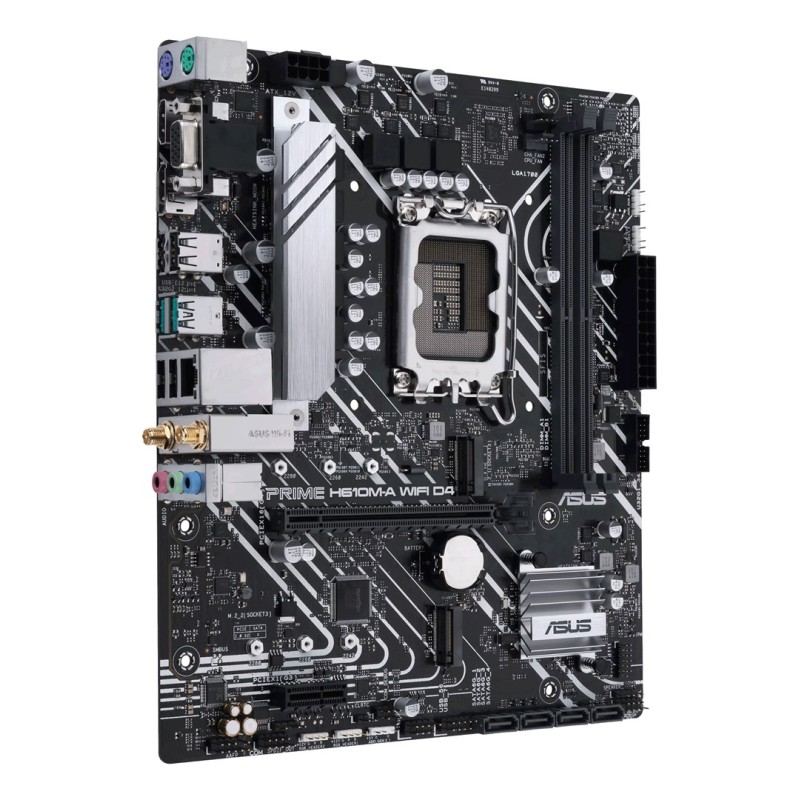

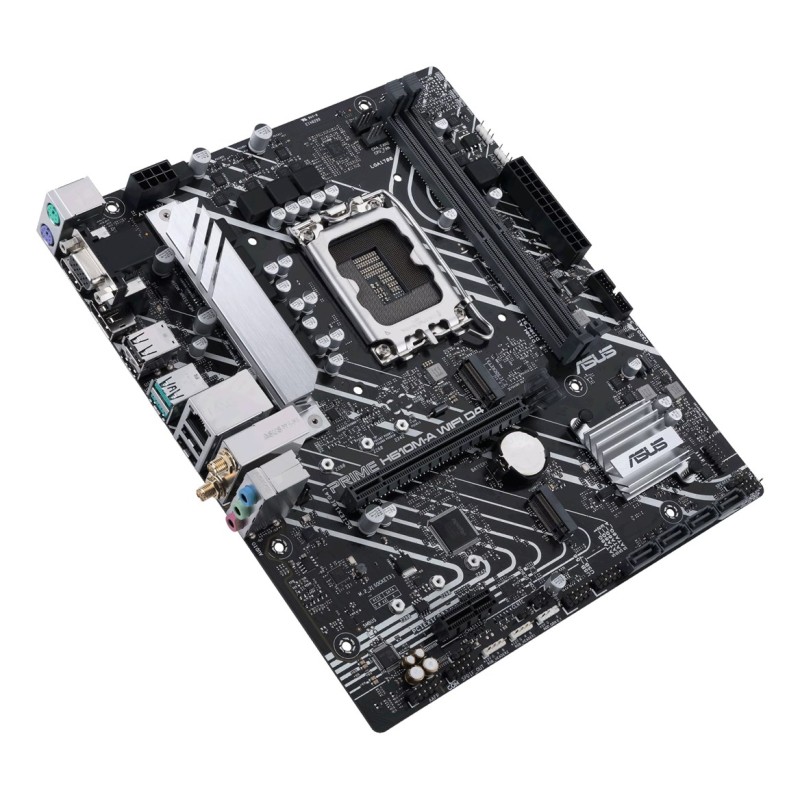

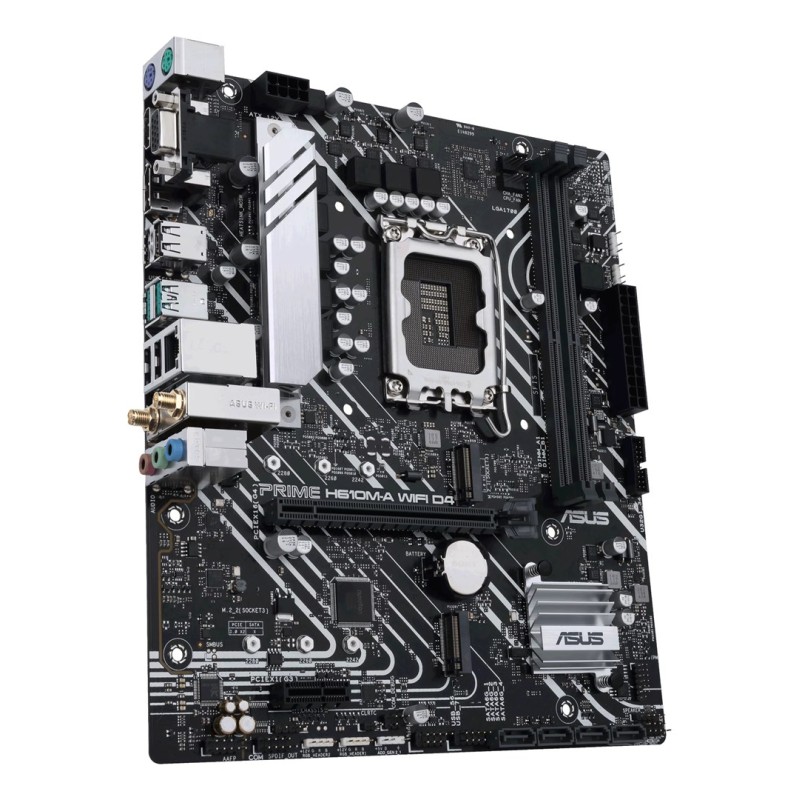

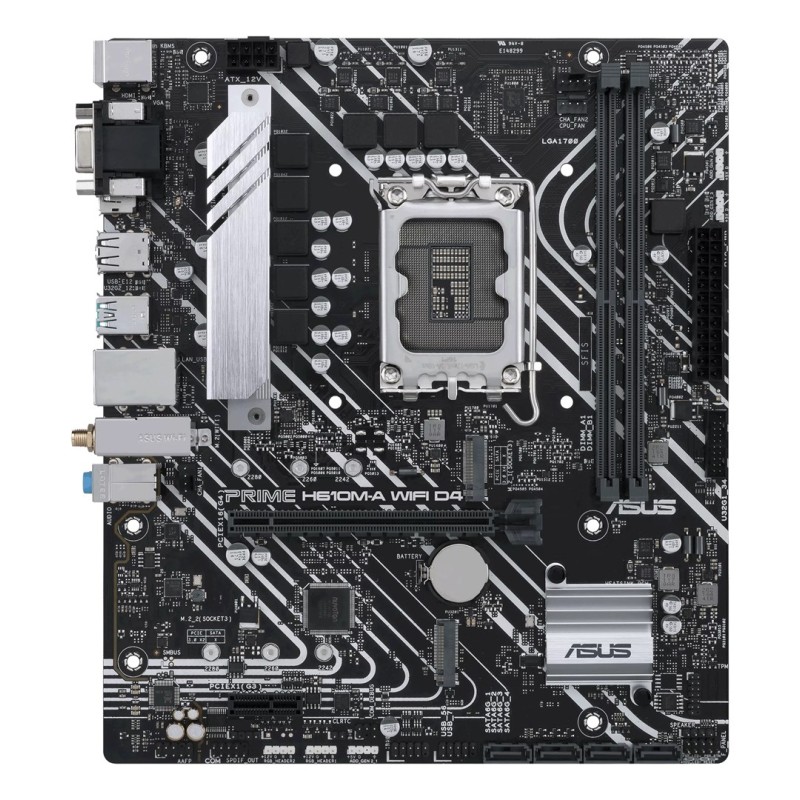

ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Compatible processor series: Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Graphics

Number of displays supported: 3

Features

Motherboard chipset: Intel H610

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Memory

Unbuffered memory: Yes

Supported memory clock speeds: 3000, 3200 MHz, 2666, 2133, 2933, 2400, 2800

Maximum internal memory: 64 GB

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Weight & dimensions

Width: 244 mm

Depth: 211 mm

Height: 58 mm

Network

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a, Wi-Fi 5 (802.11ac)

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Ethernet interface type: Gigabit Ethernet

Wi-Fi: Yes

Ethernet LAN: Yes

Bluetooth version: 5.0

Internal I/O

12V power connector: Yes

S/PDIF out connector: Yes

Front panel audio connector: Yes

USB 2.0 connectors: 2

Number of SATA III connectors: 4

Number of chassis fan connectors: 2

Number of COM connectors: 1

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

TPM connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

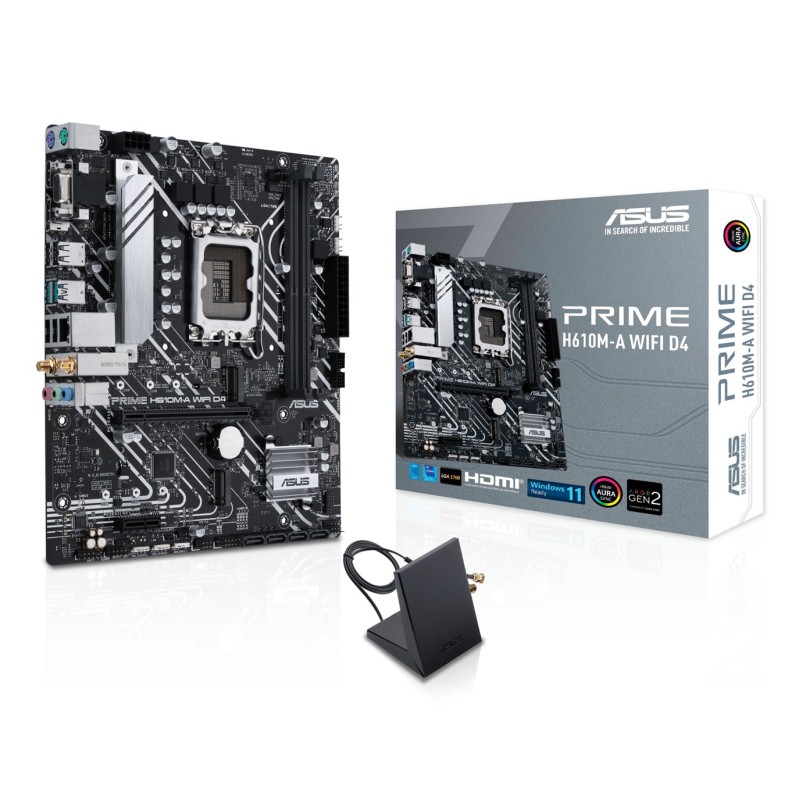

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA

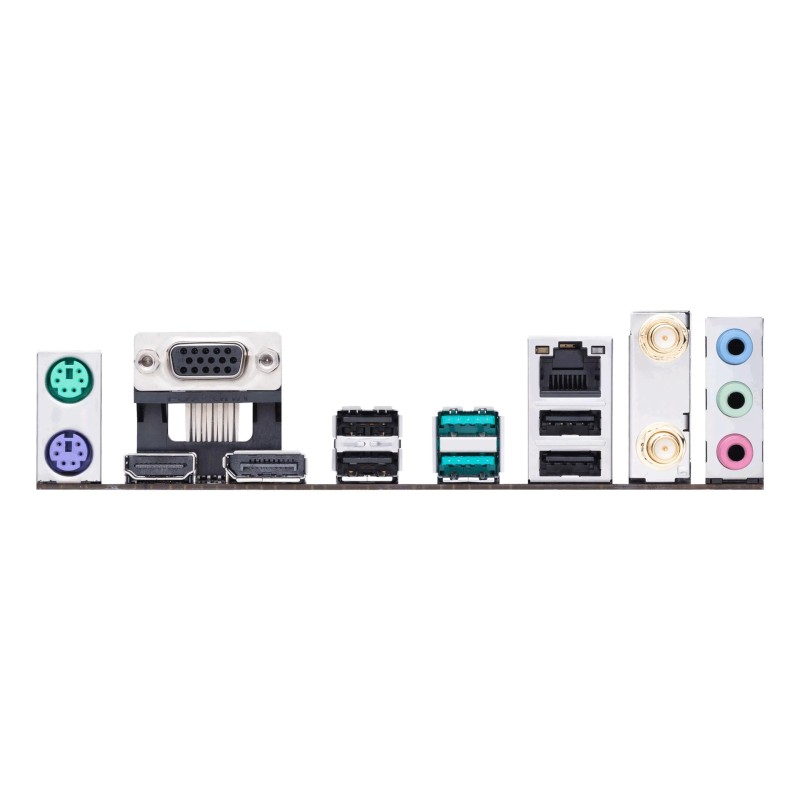

Rear panel I/O ports

PS/2 ports quantity: 2

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI version: 2.1

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

VGA (D-Sub) ports quantity: 1

Headphone outputs: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 2

Other features

Weight: 815 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
