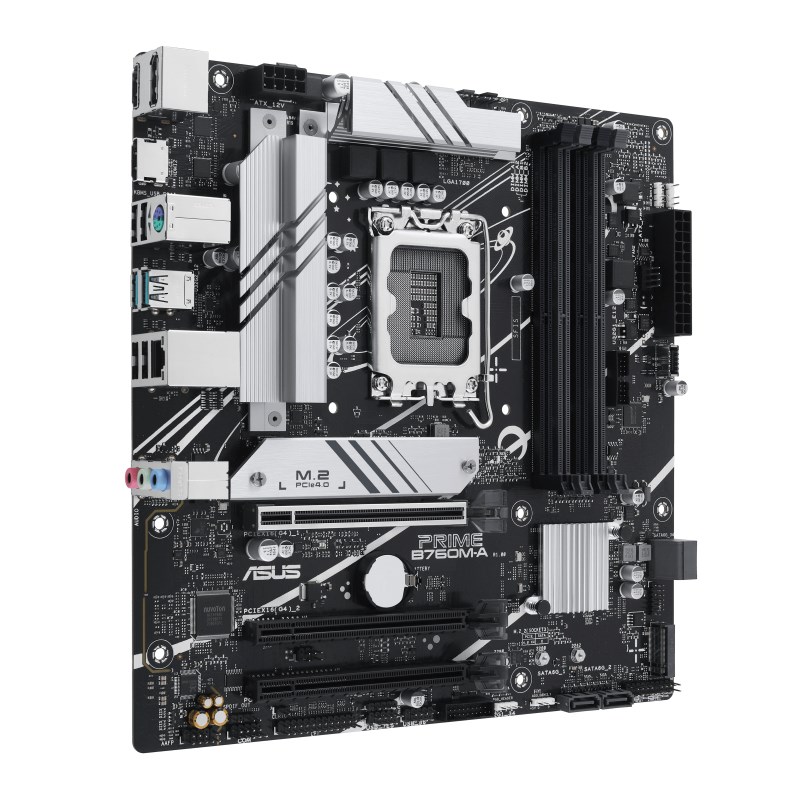

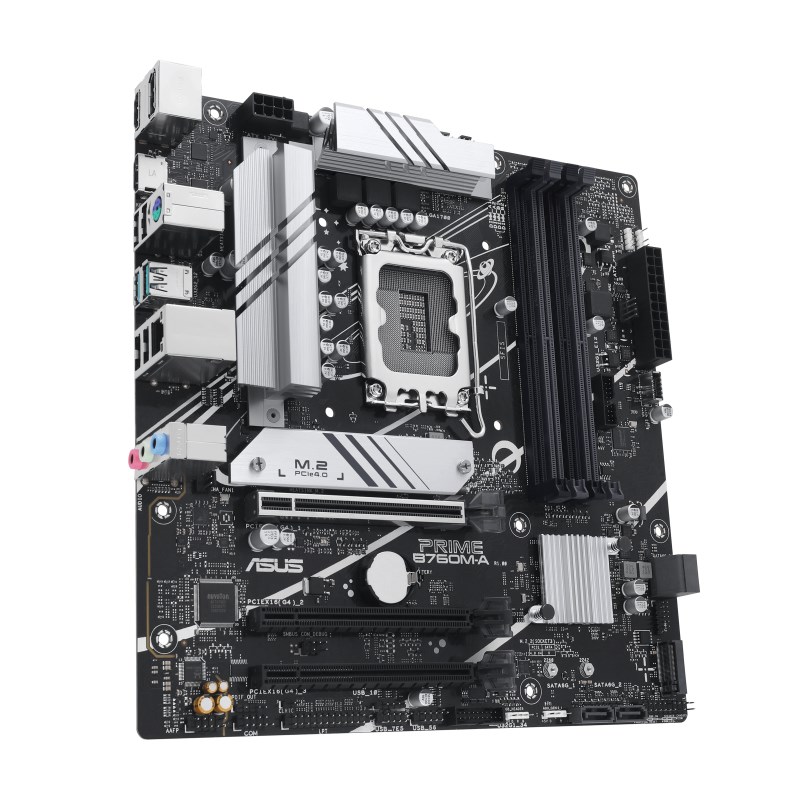

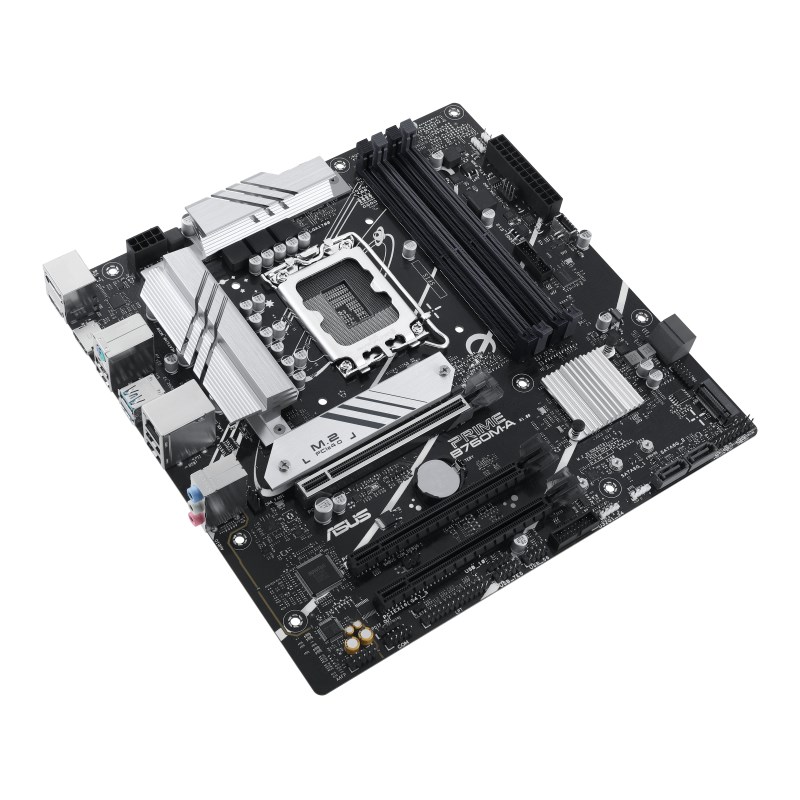

ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Graphics

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 10 x64, Windows 11

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Motherboard chipset family: Intel

Motherboard chipset: Intel B760

Memory

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Supported memory clock speed (max): 7200 MHz

Number of memory slots: 4

Unbuffered memory: Yes

Supported memory clock speeds: 5000, 6200, 6400 MHz, 6800, 5200, 6600, 6000, 5600, 7200, 7000, 5800, 5400, 4800

Maximum internal memory: 128 GB

Weight & dimensions

Height: 40 mm

Width: 244 mm

Depth: 244 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

TPM connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 3

Number of COM connectors: 1

RGB LED pin header: Yes

Number of chassis fan connectors: 2

12V power connector: Yes

S/PDIF out connector: Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package width: 270 mm

Package weight: 1.14 kg

Package depth: 263 mm

Package height: 52 mm

Packaging content

Cables included: SATA

Storage controllers

Number of storage drives supported: 6

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

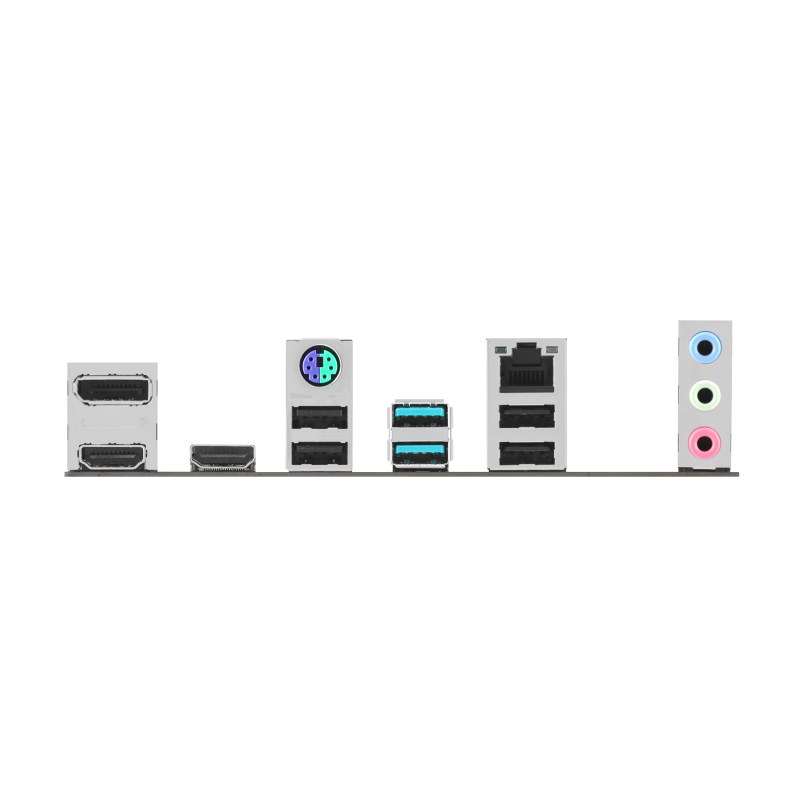

Rear panel I/O ports

DisplayPorts quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI ports quantity: 2

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

WiFi-AP antenna jack: 1

Line-in: Yes

PS/2 ports quantity: 1

Microphone in: Yes

Expansion slots

PCI Express x16 (Gen 4.x) slots: 3

Number of M.2 (M) slots: 2
