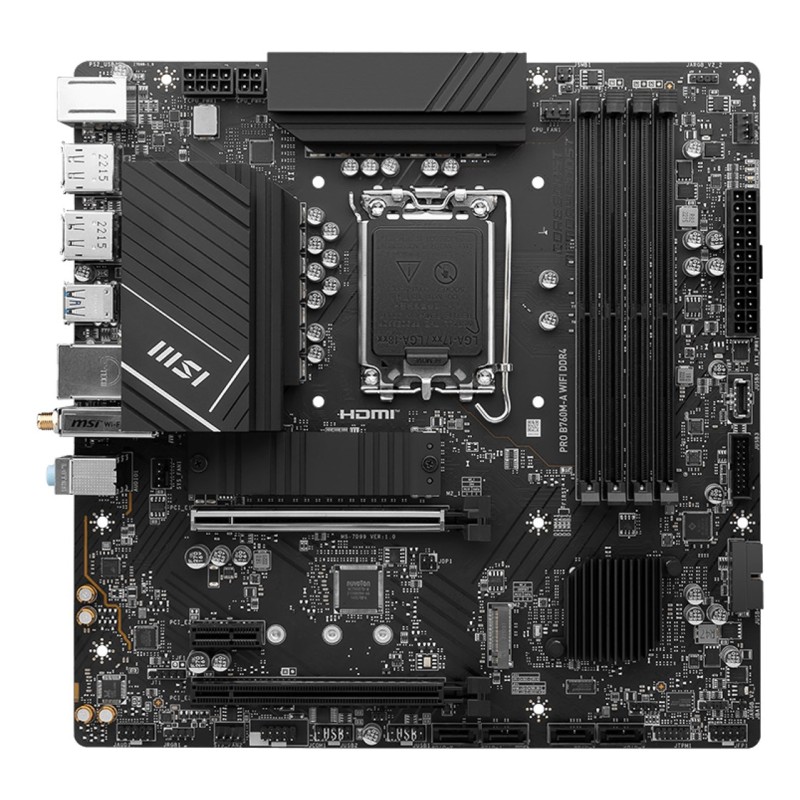

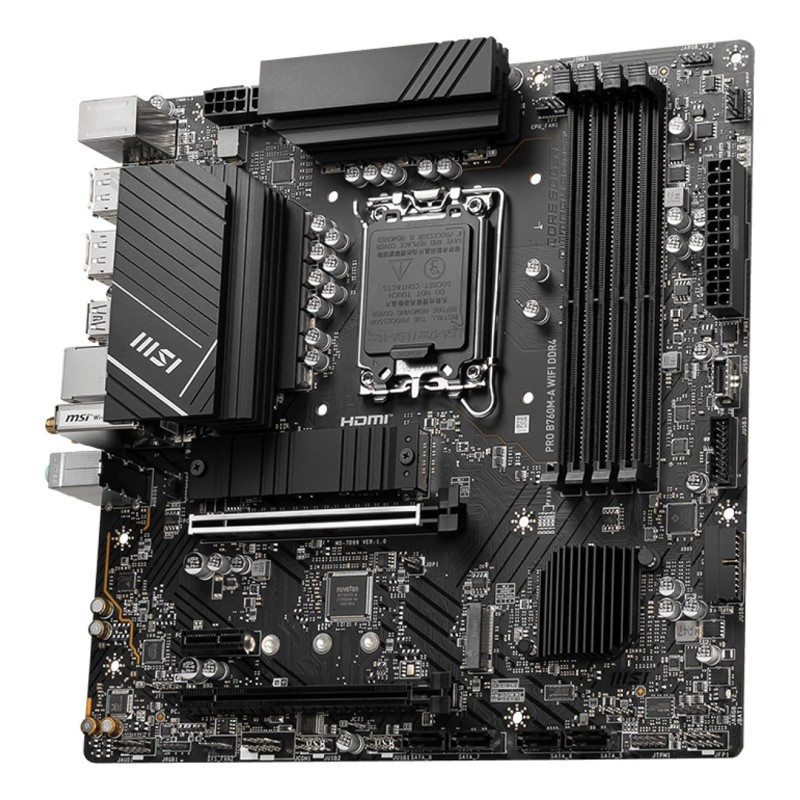

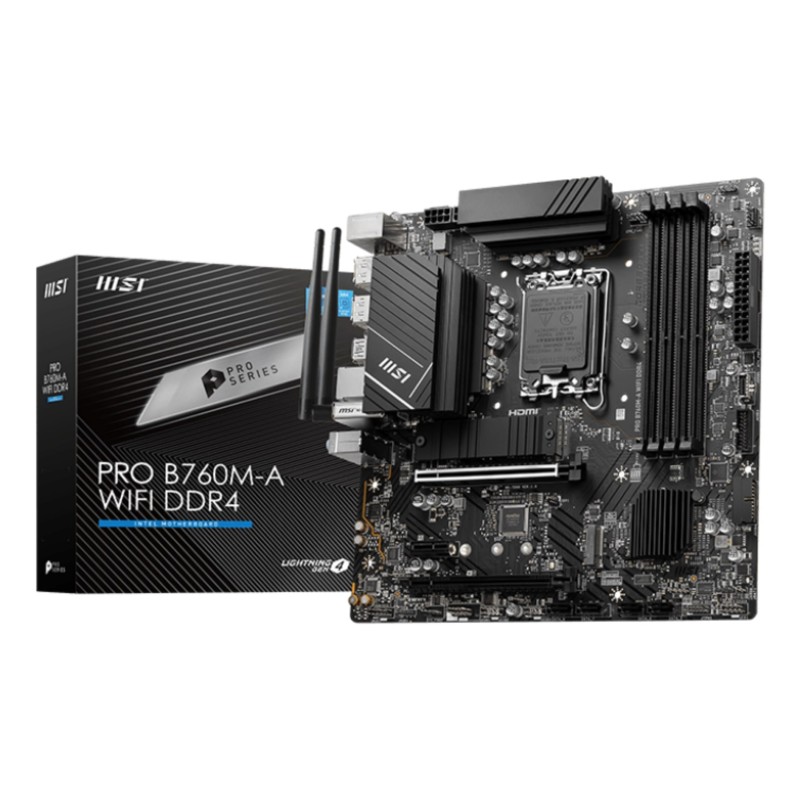

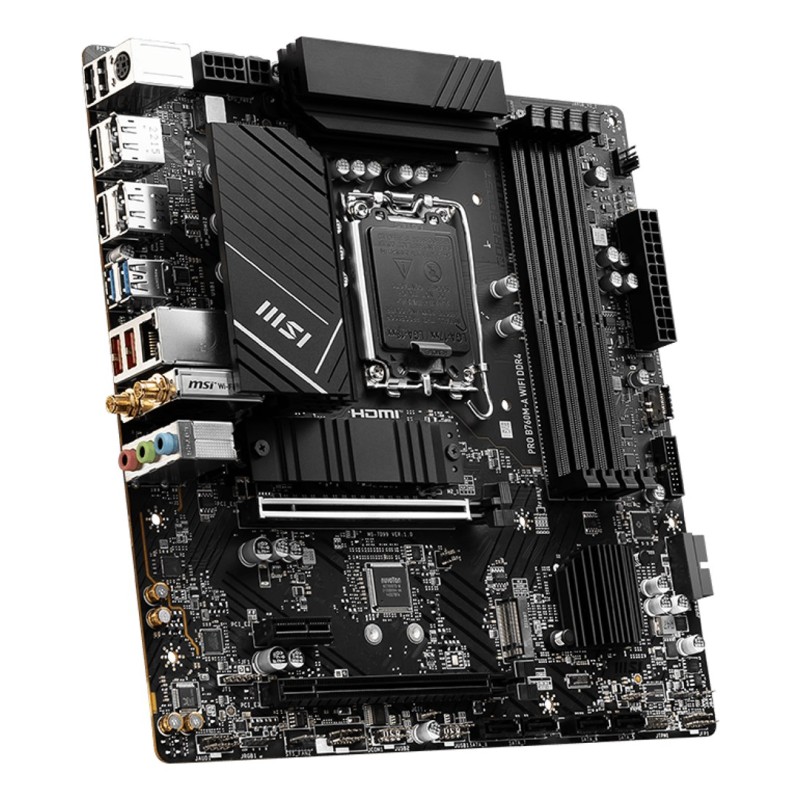

MSI PRO B760M-A WIFI DDR4 motherboard Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold

Supported processor sockets: LGA 1700

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Processor manufacturer: Intel

Graphics

Parallel processing technology support: Not supported

Features

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Power source type: ATX

Motherboard chipset: Intel B760

Product colour: Black

Windows operating systems supported: Windows 11, Windows 10

Memory

Supported memory clock speeds: 5200, 4600, 3400, 2133, 4200, 2933, 3600, 3200 MHz, 2666, 4266, 4000, 4800, 5333 MHz, 3466, 2400, 5066, 3733, 4400, 5000, 3800, 3333

Maximum internal memory: 128 GB

ECC сompatibility: Non-ECC

Supported memory types: DDR4-SDRAM

Memory slots type: DIMM

Supported memory clock speed (max): 5333 MHz

Memory channels: Dual-channel

Number of memory slots: 4

Weight & dimensions

Depth: 243.8 mm

Width: 243.8 mm

Network

Bluetooth: Yes

Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11ad, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

Number of SATA III connectors: 4

USB 2.0 connectors: 4

CPU fan connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

RAID levels: 1, 0, 5, 10

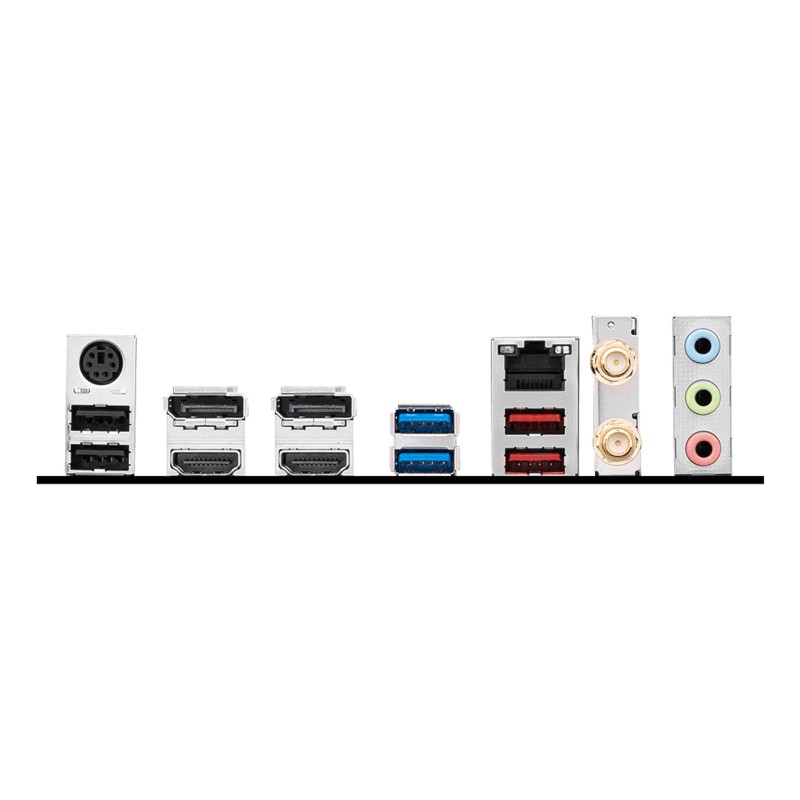

Rear panel I/O ports

DisplayPorts quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI ports quantity: 2

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 2

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
