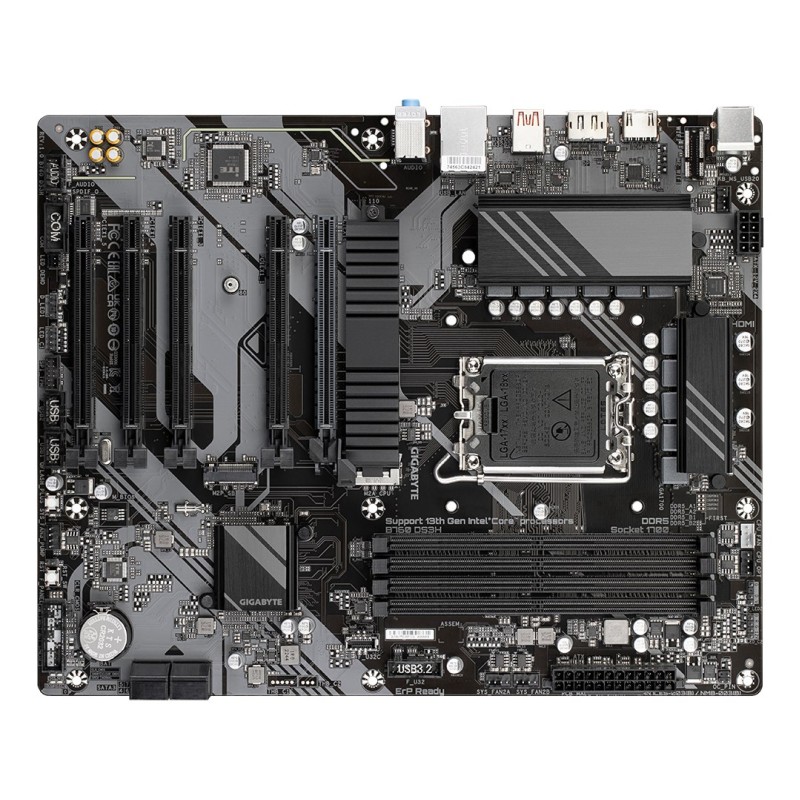

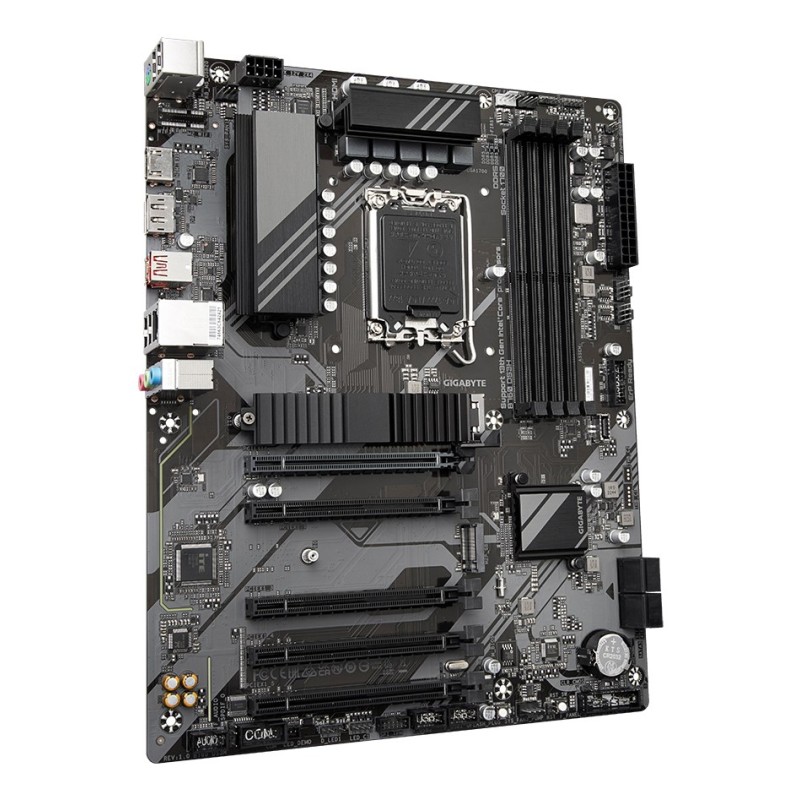

GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Supported processor sockets: LGA 1700

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3

Processor socket: LGA 1700

Processor manufacturer: Intel

Graphics

Parallel processing technology support: Not supported

HDCP: Yes

Maximum resolution: 4096 x 2304 pixels

DirectX version: 12.0

Features

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard form factor: ATX

PC health monitoring: Voltage, Fan, Water cooling, Temperature

Audio output channels: 7.1 channels

Motherboard chipset: Intel B760 Express

Motherboard chipset family: Intel

Product colour: Bronze

Memory

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory clock speed (max): 7600 MHz

Supported memory clock speeds: 7600, 6600, 5200, 6200, 6800, 7400, 6000, 7000, 4000, 4800, 6400, 5600 MHz, 7200, 5800, 5400

Unbuffered memory: Yes

Maximum internal memory: 256 GB

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Height: 35 mm

Network

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

Internal I/O

EPS power connector (8-pin): Yes

TPM connector: Yes

CPU fan connector: Yes

12V power connector: Yes

Front panel connector: Yes

RGB LED pin header: Yes

Total number of SATA connectors: 4

Serial port headers: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

S/PDIF out connector: Yes

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

Number of SATA III connectors: 4

Front panel audio connector: Yes

BIOS

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Packaging data

Package depth: 270 mm

Package width: 335 mm

Package height: 80 mm

Package weight: 1.51 kg

Packaging content

Batteries included: Yes

Cables included: SATA

Storage controllers

RAID levels: 0, 5, 1, 10

Number of HDDs supported: 4

Number of storage drives supported: 6

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Rear panel I/O ports

Headphone outputs: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI version: 2.0

Microphone in: Yes

PS/2 ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB connector type: USB Type-A, USB Type-C

DisplayPorts quantity: 1

DisplayPort version: 1.2

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 slots: 5

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 2280

1st M.2 largest key size: 22110

Battery

Battery weight: 3 g

Battery type: CR2032

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
