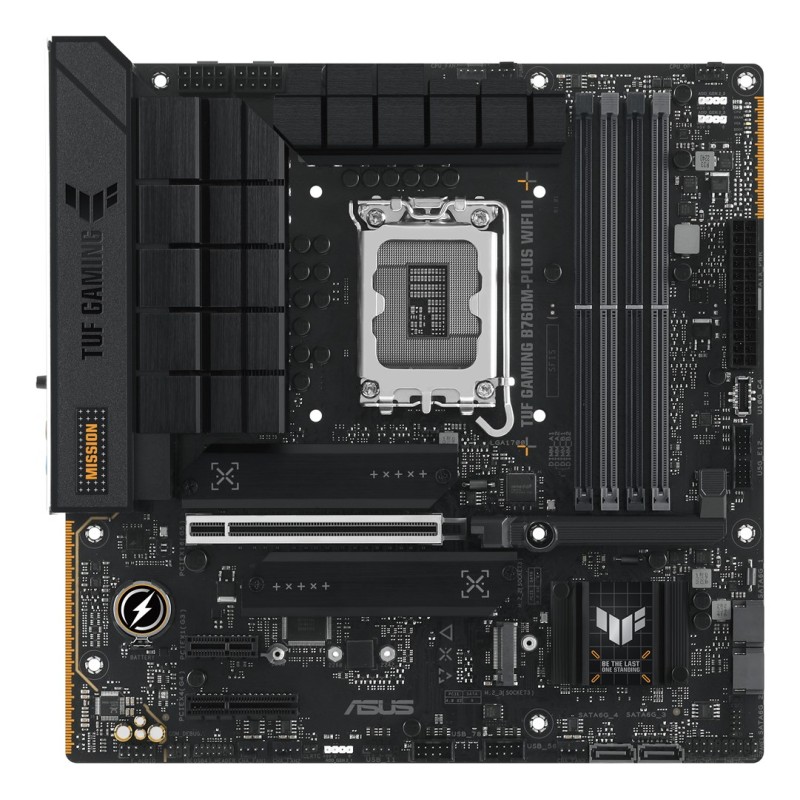

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Processor manufacturer: Intel

Graphics

Parallel processing technology support: Not supported

Features

Power source type: ATX

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10, Windows 11

Product colour: Black

Motherboard chipset: Intel B760

Cooling type: Passive

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Memory

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory slots type: DIMM

Supported memory clock speed (max): 7800 MHz

ECC сompatibility: Non-ECC

Supported memory clock speeds: 6200, 6800, 4800, 7800, 5000, 6400, 6000, 5200, 7000, 5800, 5400, 5600 MHz, 6600

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Bluetooth version: 5.3

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Internal I/O

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

12V power connector: Yes

EPS power connector (8-pin): Yes

Thunderbolt headers: 1

Number of SATA III connectors: 4

CPU fan connector: Yes

Chassis intrusion connector: Yes

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

USB 2.0 connectors: 3

Number of chassis fan connectors: 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 1.65 kg

Package height: 67.5 mm

Package width: 275 mm

Package depth: 275 mm

Packaging content

User guide: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 5, 10, 1, 0

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Rear panel I/O ports

Microphone in: Yes

Line-in: Yes

Headphone outputs: 1

WiFi-AP antenna jack: 2

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

S/PDIF out port: Yes

DisplayPorts quantity: 1

DisplayPort version: 1.4

HDMI version: 2.1

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 3

PCI Express x1 (Gen 3.x) slots: 1

Other features

Weight: 982 g

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.
