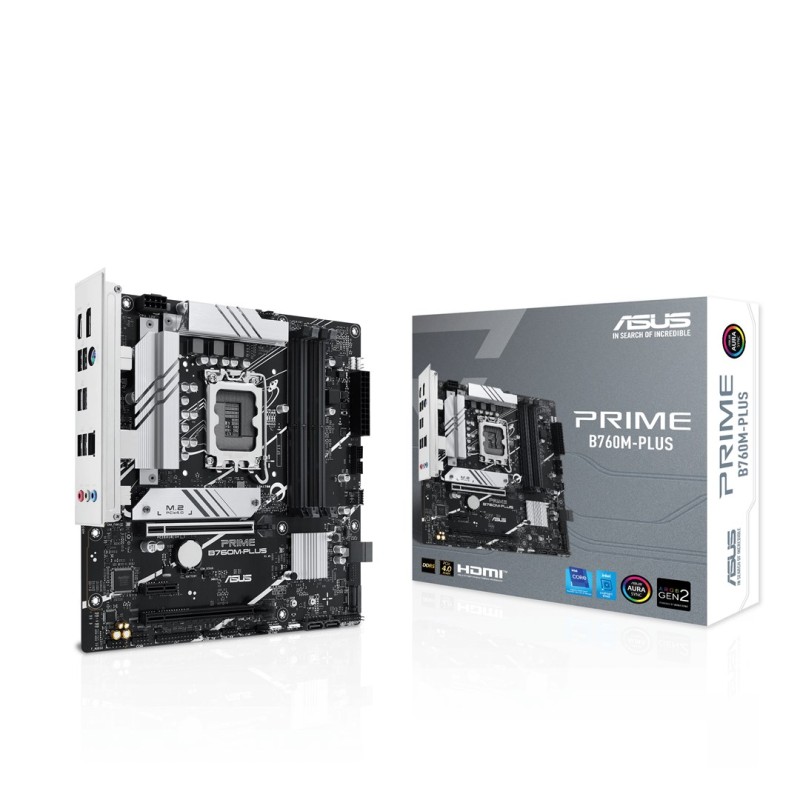

ASUS PRIME B760M-PLUS Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Supported processor sockets: LGA 1700

Processor manufacturer: Intel

Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i9, Intel® Pentium® Gold

Processor socket: LGA 1700

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: Intel B760

Windows operating systems supported: Windows 11, Windows 10 x64

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Motherboard chipset family: Intel

Memory

Supported memory clock speeds: 6600, 4800, 5600, 7200, 5000, 6400, 6800, 5200, 7000, 5800, 5400, 6000, 6200

ECC сompatibility: Non-ECC

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Supported memory clock speed (max): 7200 MHz

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

S/PDIF out connector: Yes

Number of SATA III connectors: 4

Number of COM connectors: 1

USB 2.0 connectors: 3

Number of chassis fan connectors: 2

CPU fan connector: Yes

Front panel audio connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

12V power connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Screws included: Yes

Storage controllers

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 10, 1, 0, 5

Number of storage drives supported: 6

Rear panel I/O ports

HDMI ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

PS/2 ports quantity: 1

Microphone in: Yes

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x1 (Gen 4.x) slots: 1

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply.
