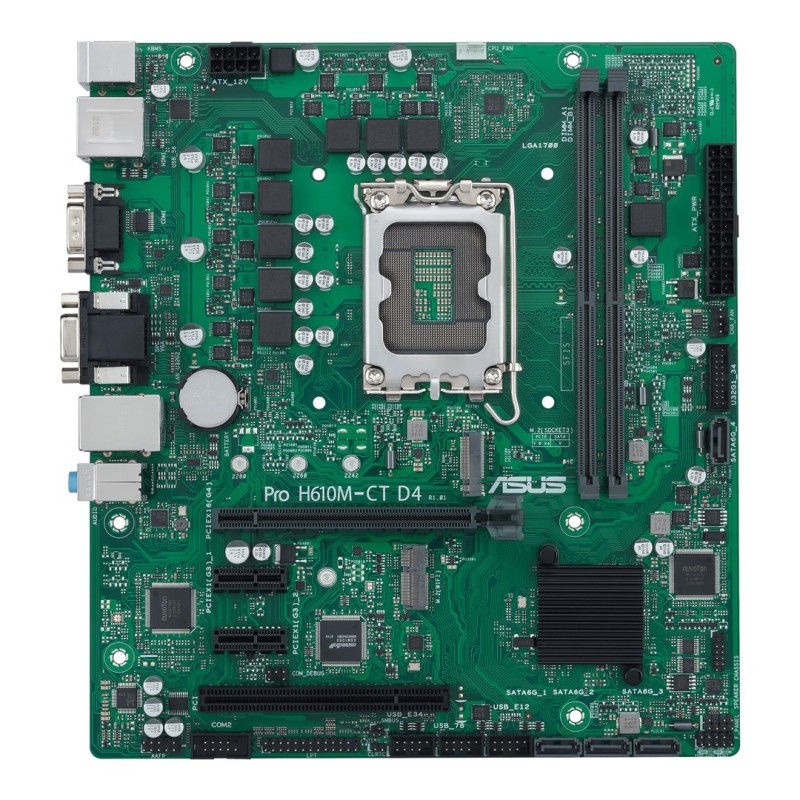

ASUS PRO H610M-C D4-CSM Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Graphics

Parallel processing technology support: Not supported

Number of displays supported: 3

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset: Intel H610

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Memory

Supported memory clock speeds: 2933, 3200 MHz, 2666, 2400, 2800, 3000, 2133

Maximum internal memory: 64 GB

Unbuffered memory: Yes

Memory slots type: DIMM

ECC сompatibility: Non-ECC

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Weight & dimensions

Width: 244 mm

Depth: 220 mm

Height: 221 mm

Network

Ethernet LAN: Yes

Wake-on-LAN ready: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Internal I/O

Number of SATA III connectors: 4

TPM connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 1

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Chassis intrusion connector: Yes

Front panel audio connector: Yes

Number of COM connectors: 1

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports

PS/2 ports quantity: 2

HDMI version: 2.1

DisplayPorts quantity: 1

DisplayPort version: 1.4

VGA (D-Sub) ports quantity: 1

USB 2.0 ports quantity: 2

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

COM ports quantity: 1

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Other features

Weight: 382 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
