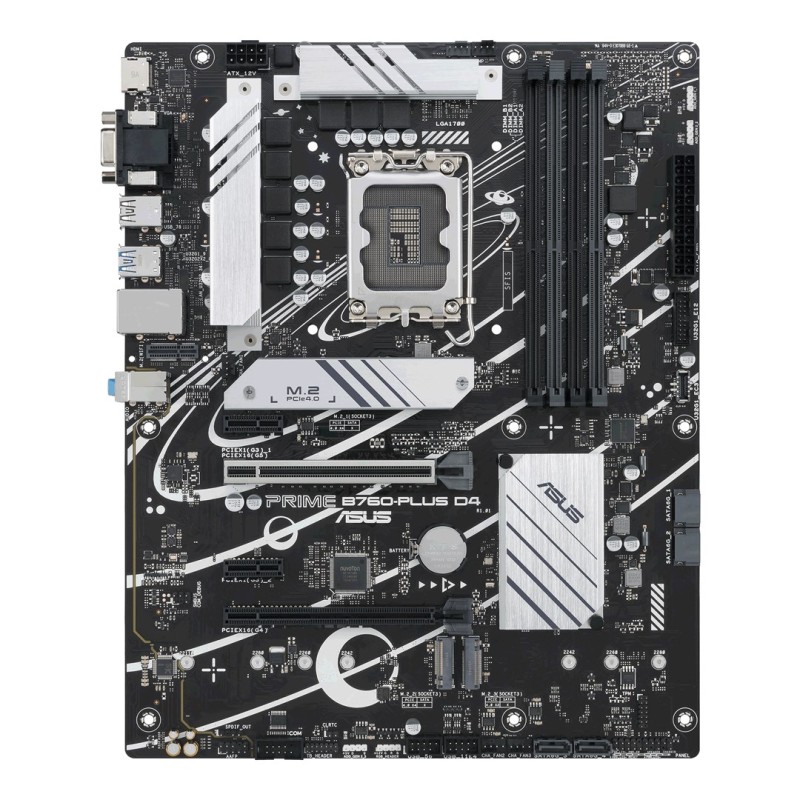

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

Περιγραφή

Processor

Supported processor sockets: LGA 1700

Processor manufacturer: Intel

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Graphics

Parallel processing technology support: Not supported

Features

Cooling type: Passive

Windows operating systems supported: Windows 10, Windows 11

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Power source type: ATX

Motherboard chipset family: Intel

Motherboard chipset: Intel B760

Memory

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speeds: 4000 MHz, 4800, 2933, 3600, 3200 MHz, 2666, 4266, 2400, 2800, 5066, 3000, 3400, 3733, 4400, 5000, 2133, 3333, 3466, 4600

Maximum internal memory: 128 GB

Unbuffered memory: Yes

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 5066 MHz

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Wi-Fi: No

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

Thunderbolt headers: 1

CPU fan connector: Yes

Number of SATA III connectors: 4

Peripheral (Molex) power connectors (4-pin): 1

USB 2.0 connectors: 2

Front panel audio connector: Yes

Front panel connector: Yes

Number of COM connectors: 1

TPM connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

RGB LED pin header: Yes

12V power connector: Yes

Number of chassis fan connectors: 3

ATX Power connector (24-pin): Yes

S/PDIF out connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package width: 328 mm

Package weight: 1.16 kg

Package height: 53 mm

Package depth: 266 mm

Packaging content

Cables included: SATA

User guide: Yes

Storage controllers

RAID levels: 0, 5, 10, 1

Number of storage drives supported: 7

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

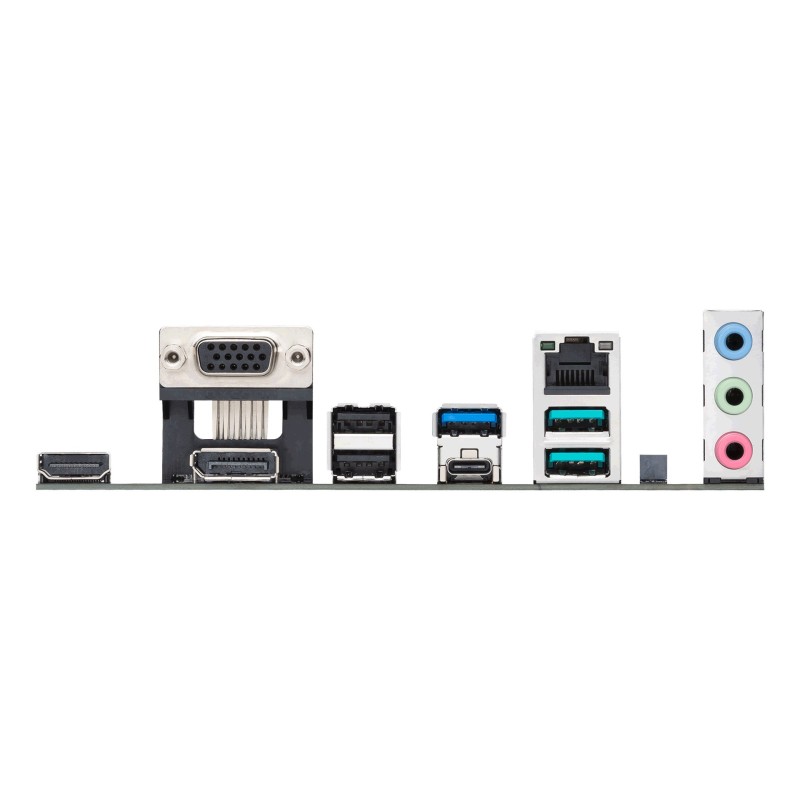

Rear panel I/O ports

DisplayPorts quantity: 1

HDMI ports quantity: 1

HDMI version: 2.1

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

Headphone outputs: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Line-in: Yes

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 3

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Other features

Number of M.2 (E) slots: 1

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.
