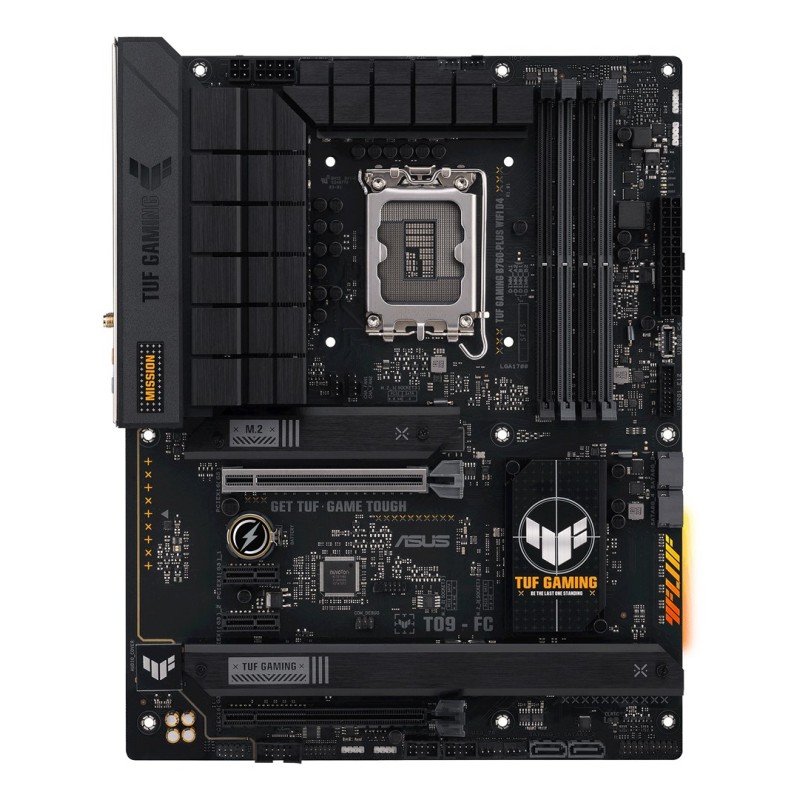

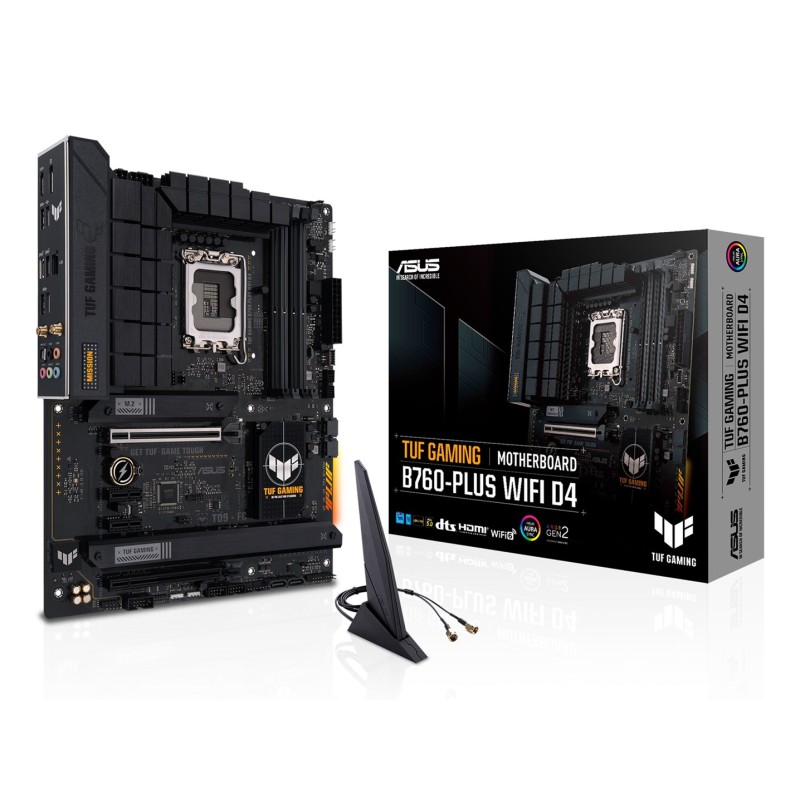

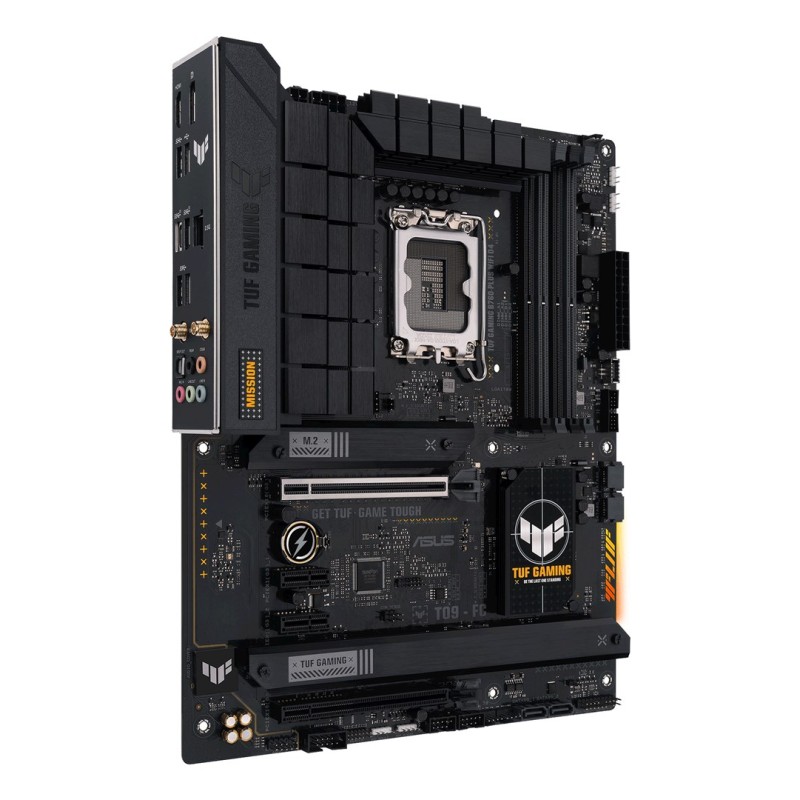

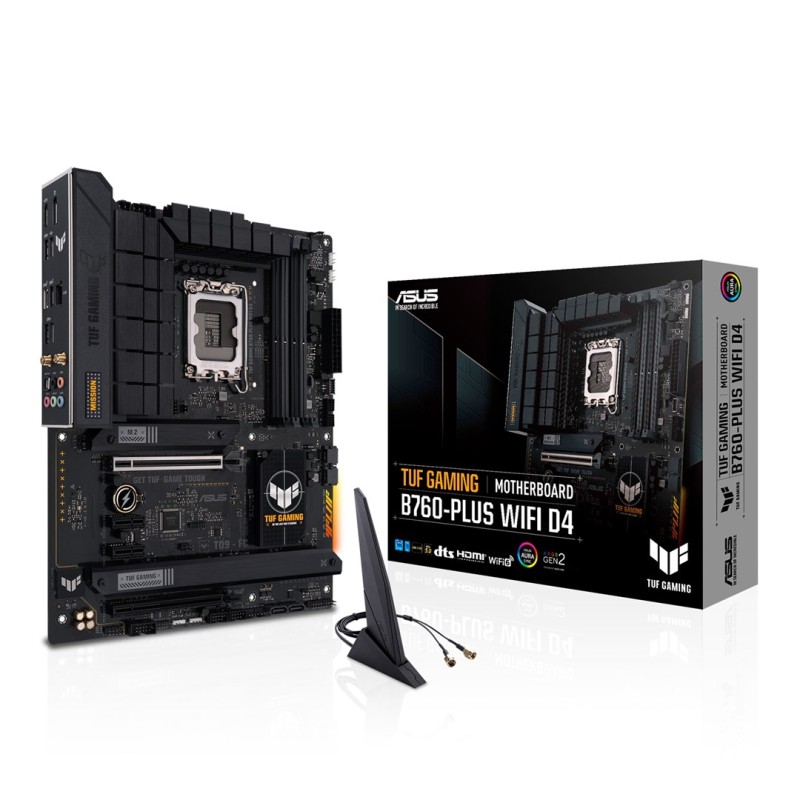

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3

Maximum number of SMP processors: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard form factor: ATX

Cooling type: Passive

Windows operating systems supported: Windows 11, Windows 10

Motherboard chipset family: Intel

Power source type: ATX

Audio output channels: 7.1 channels

Product colour: Black

Motherboard chipset: Intel B760

Memory

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Number of memory slots: 4

Maximum internal memory: 192 GB

Unbuffered memory: Yes

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)

Bluetooth version: 5.2

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Bluetooth: Yes

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Front panel audio connector: Yes

Number of COM connectors: 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

Front panel connector: Yes

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Peripheral (Molex) power connectors (4-pin): 1

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 2.0 connectors: 2

Thunderbolt headers: 1

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 1.98 kg

Package depth: 76 mm

Package width: 331 mm

Package height: 266 mm

Packaging content

User guide: Yes

Cables included: SATA

Storage controllers

RAID support: Yes

RAID levels: 1, 5, 0, 10

Number of HDDs supported: 4

Number of storage drives supported: 7

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

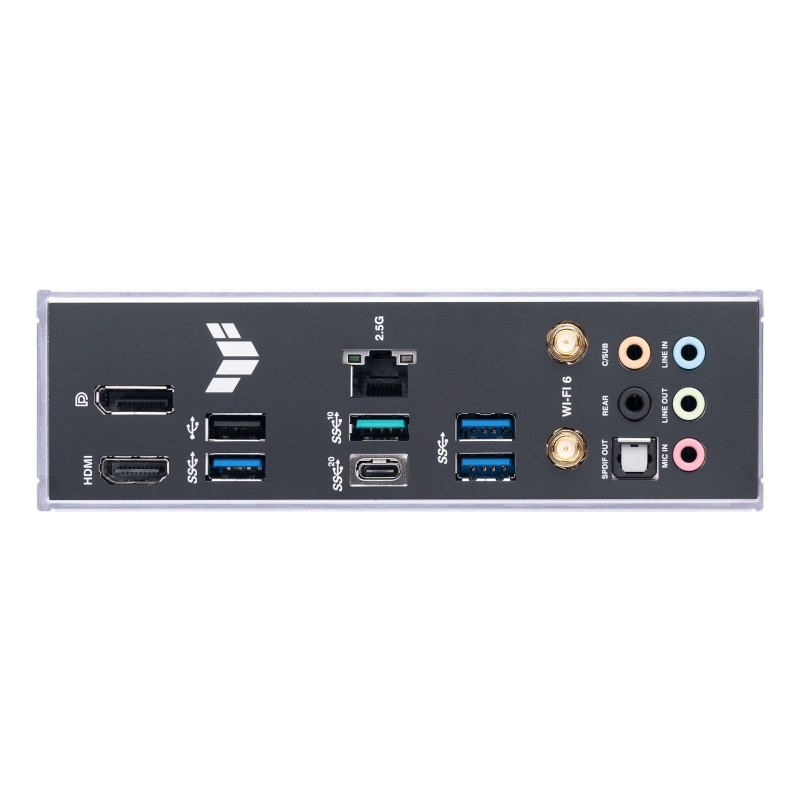

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 1

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Line-in: Yes

USB 3.2 Gen 2x2 Type-C ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

HDMI ports quantity: 1

WiFi-AP antenna jack: 2

S/PDIF out port: Yes

DisplayPorts quantity: 1

Expansion slots

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply.
