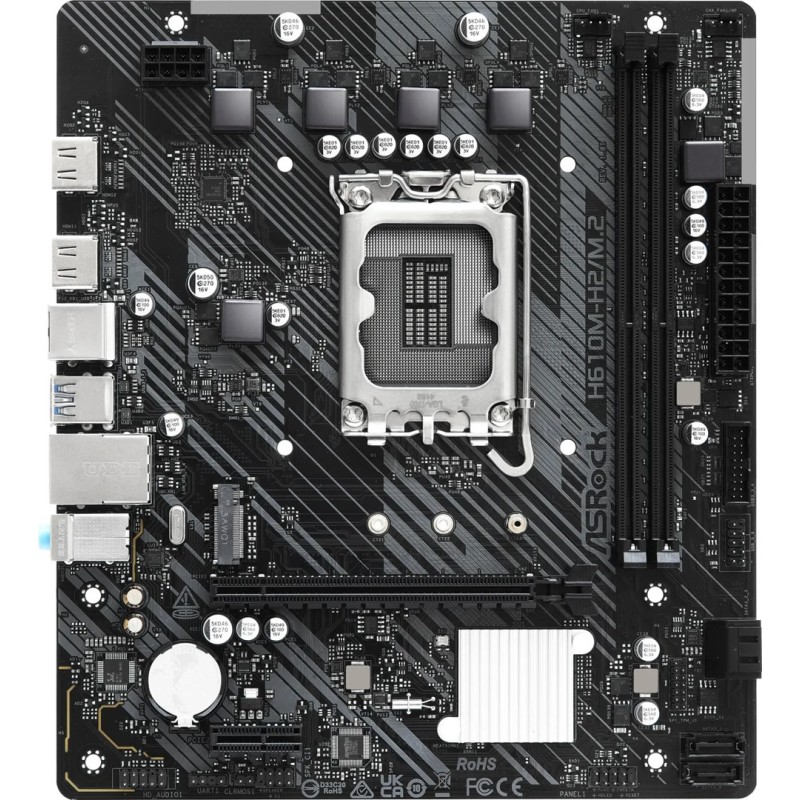

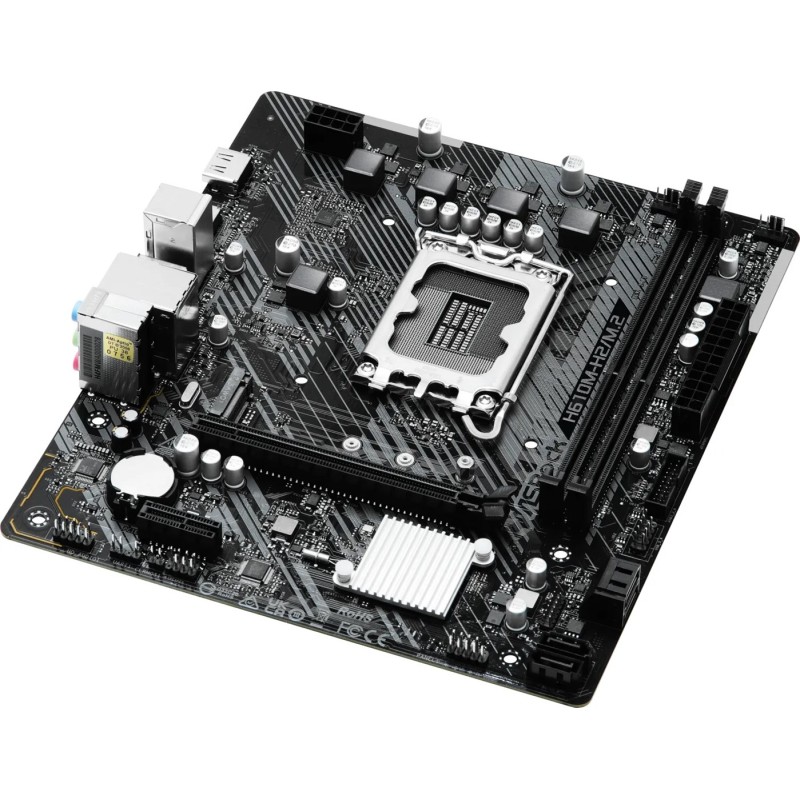

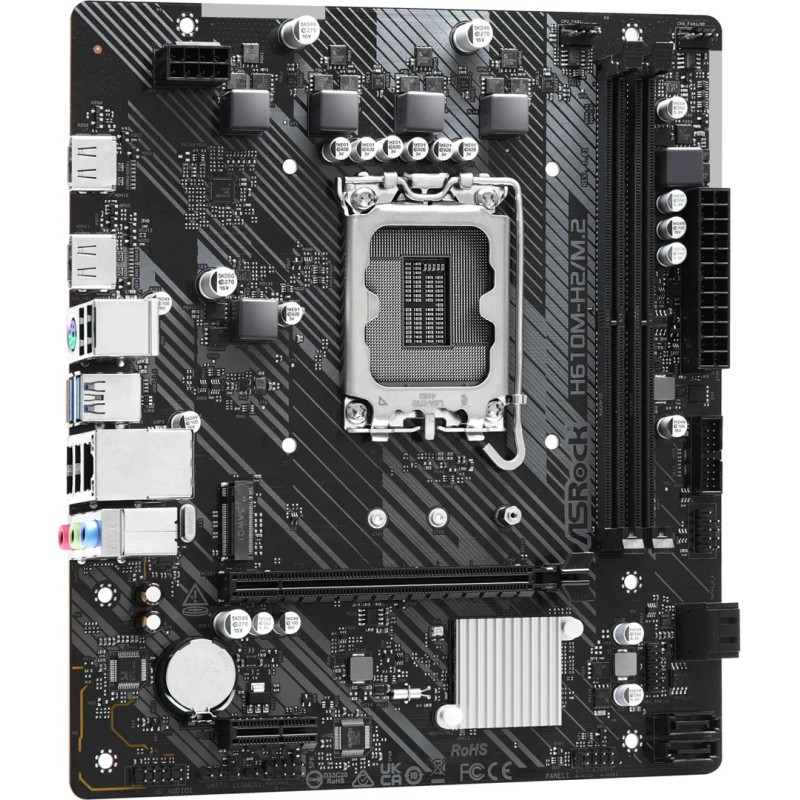

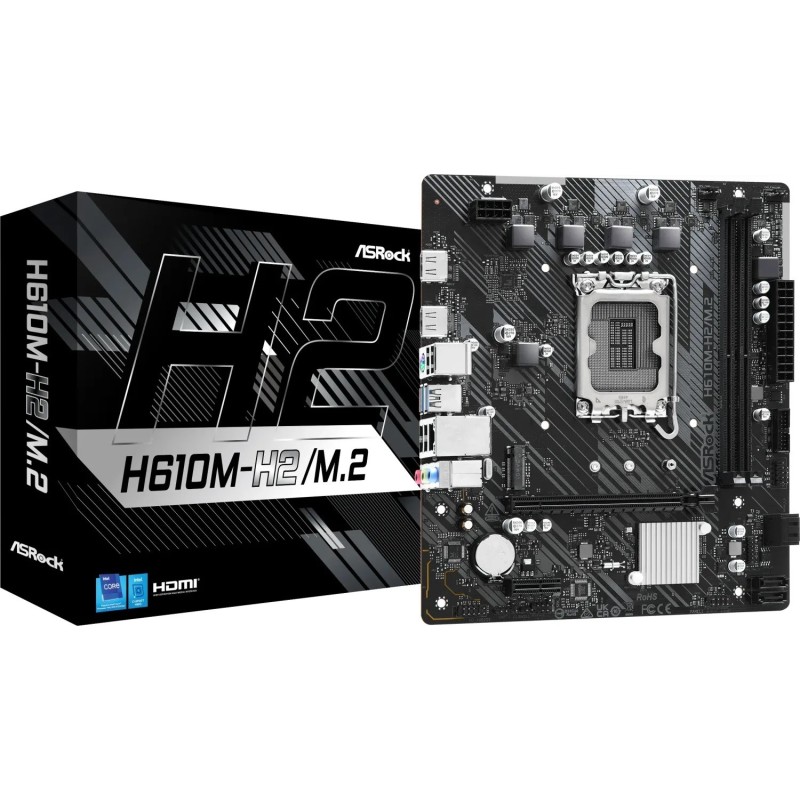

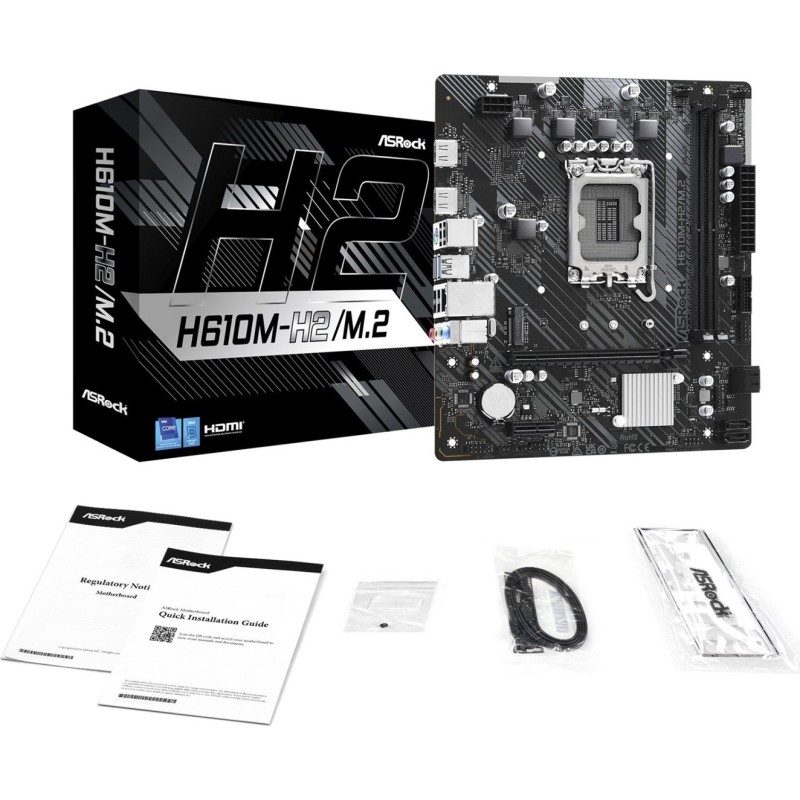

ASRock H610M-H2/M.2 motherboard

Περιγραφή

Processor

Maximum number of SMP processors: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

Maximum resolution: 7680 x 4320 pixels

Parallel processing technology support: Not supported

HDCP: Yes

Features

PC health monitoring: Temperature, CPU, Voltage, Fan

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard chipset: Intel H610

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Memory

Memory channels: Dual-channel

Unbuffered memory: Yes

Memory slots type: DIMM

Number of memory slots: 2

Maximum internal memory: 64 GB

Supported memory clock speed (max): 3200 MHz

Supported memory types: DDR4-SDRAM

Weight & dimensions

Depth: 193 mm

Width: 220 mm

Network

LAN controller: Realtek 8111H

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

Internal I/O

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

TPM connector: Yes

Number of SATA III connectors: 4

CPU fan connector: Yes

Chassis intrusion connector: Yes

Front panel audio connector: Yes

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

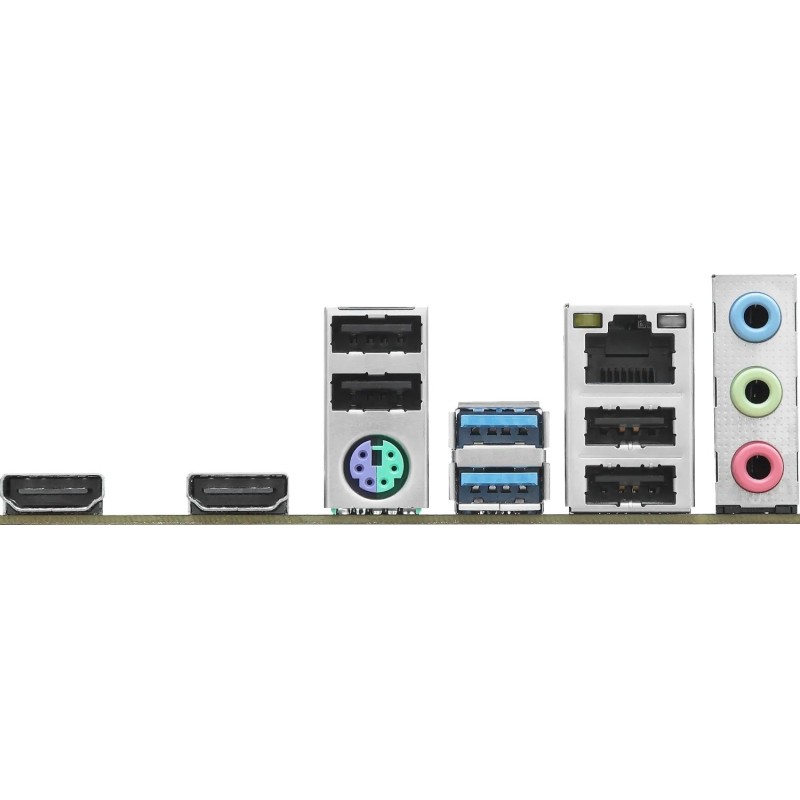

Rear panel I/O ports

HDMI ports quantity: 2

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1
