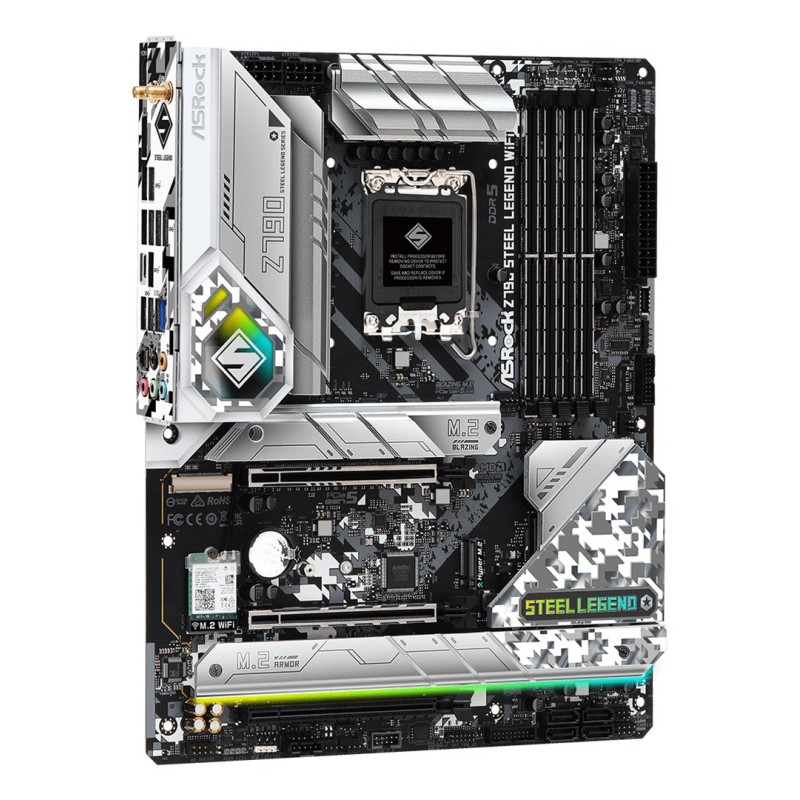

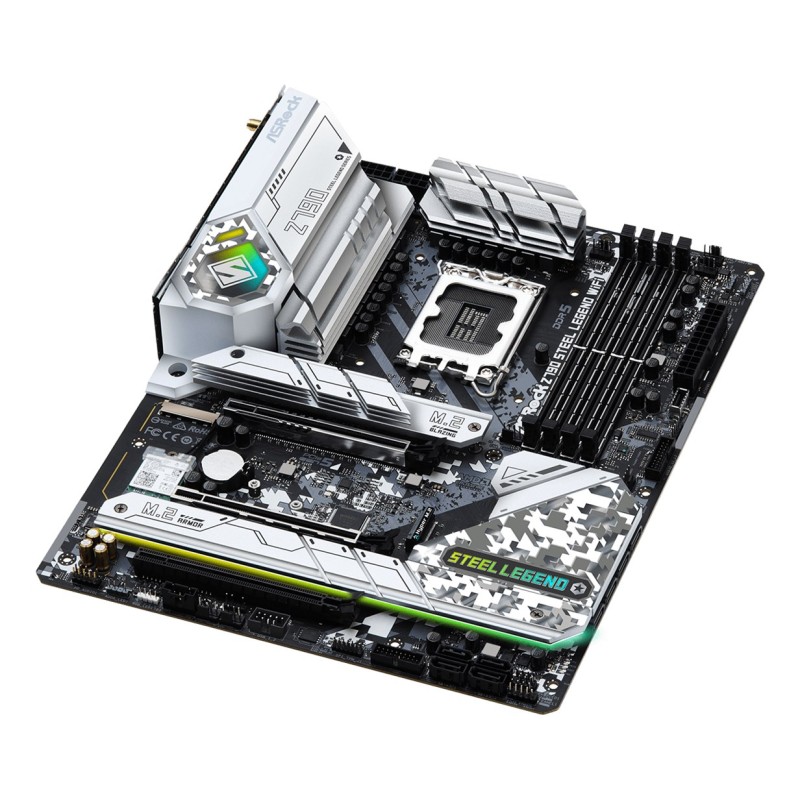

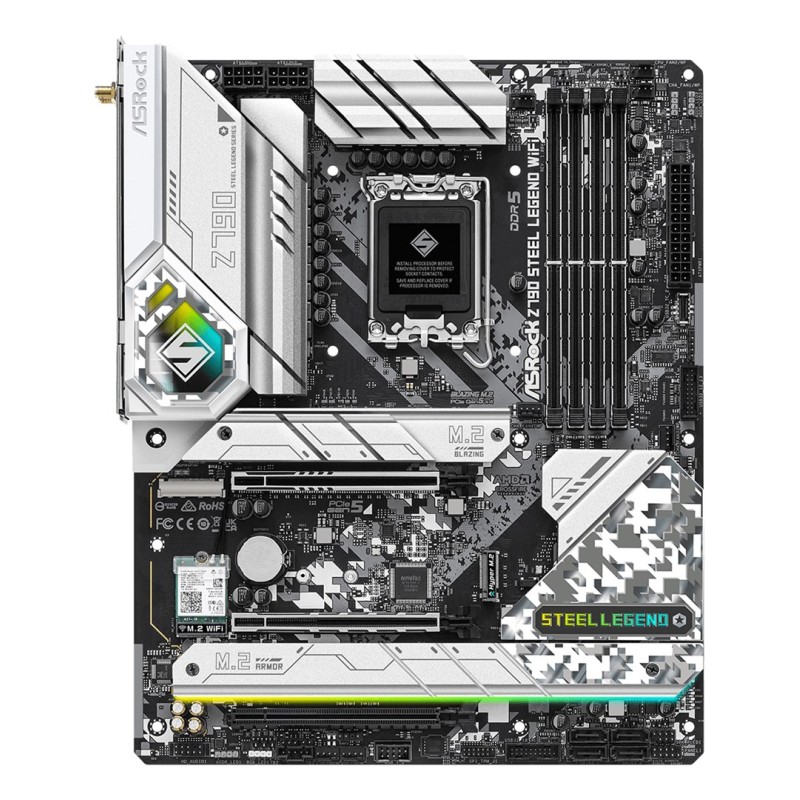

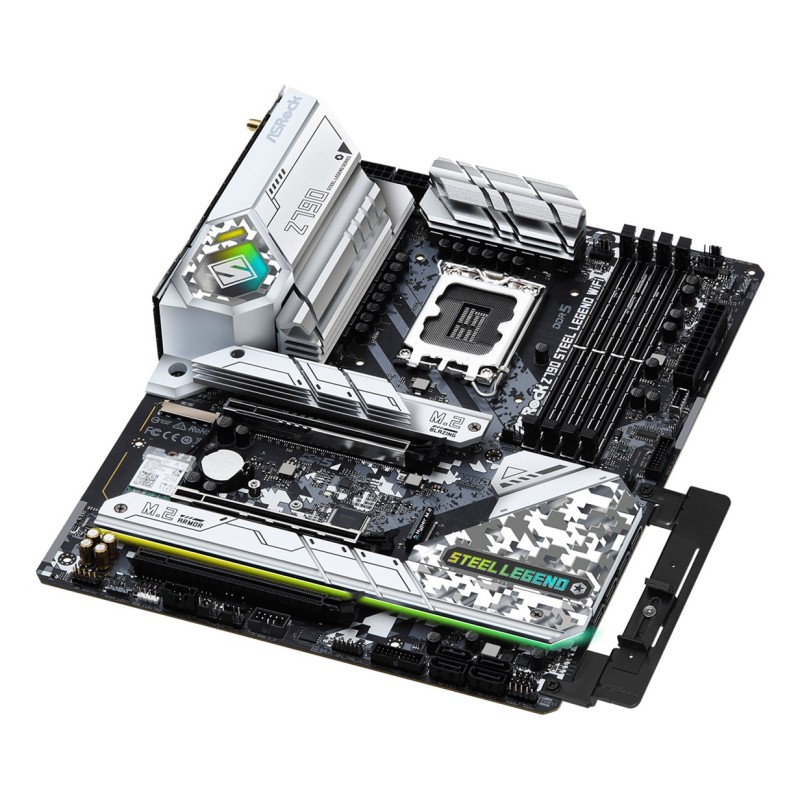

Asrock Z790 Steel Legend WiFi Intel Z790 LGA 1700 ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Features

Motherboard chipset: Intel Z790

Audio chip: Realtek ALC897

Motherboard form factor: ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Memory

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory slots type: DIMM

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n)

Bluetooth: Yes

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Number of SATA III connectors: 8

ATX Power connector (24-pin): Yes

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 2

Front panel audio connector: Yes

CPU fan connector: Yes

Thunderbolt headers: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID levels: 10, 5, 0, 1

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

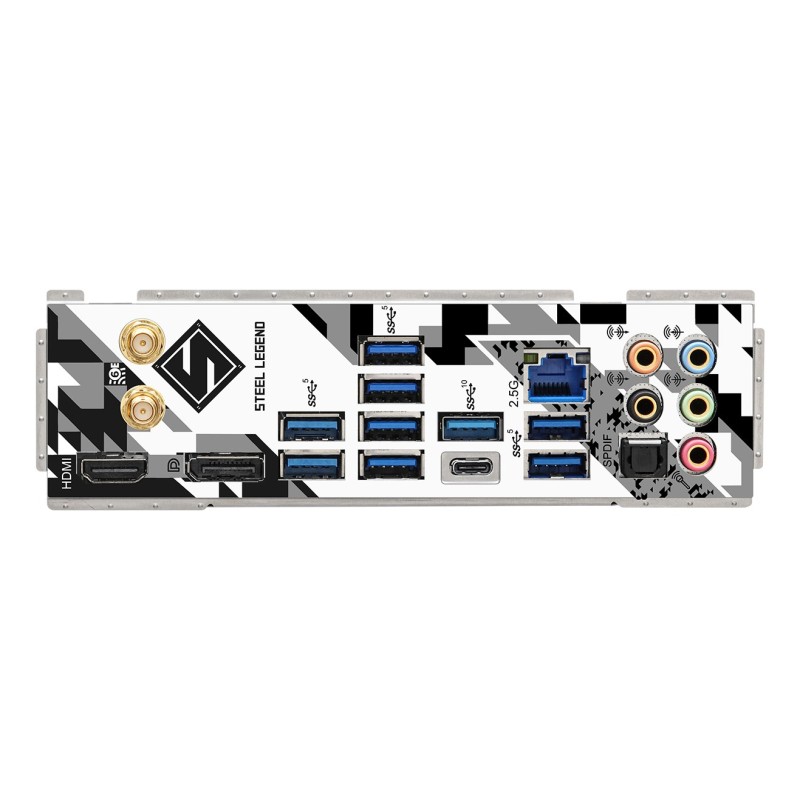

Rear panel I/O ports

DisplayPort version: 1.4

S/PDIF out port: Yes

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 8

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Headphone outputs: 1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.
