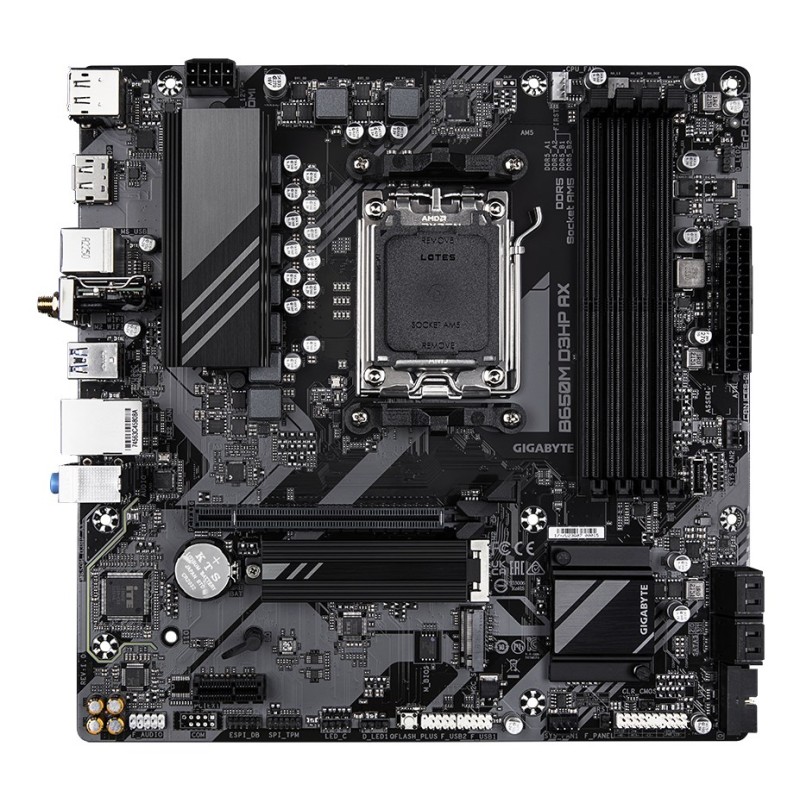

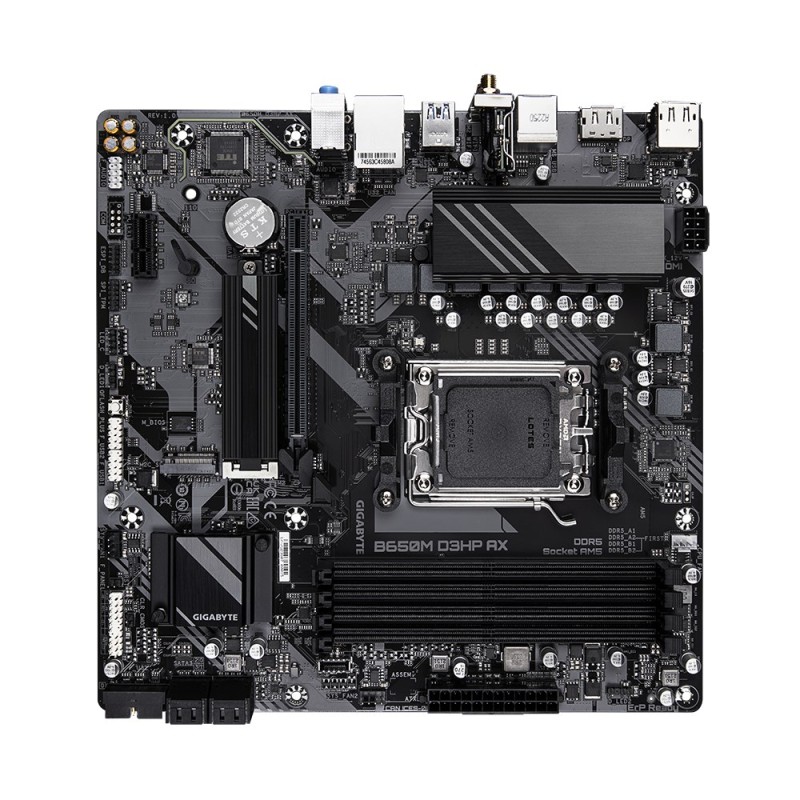

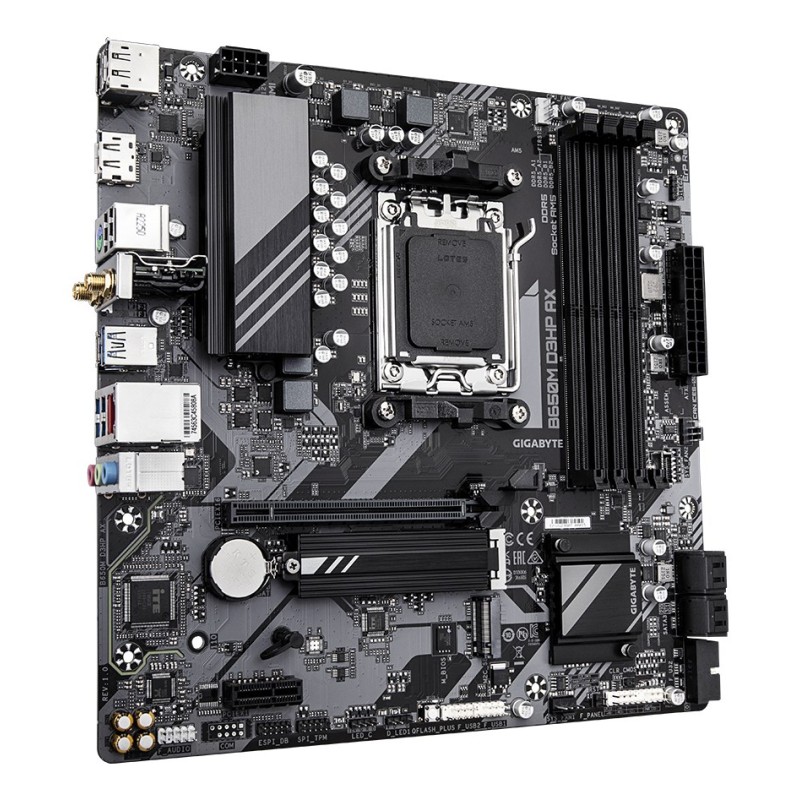

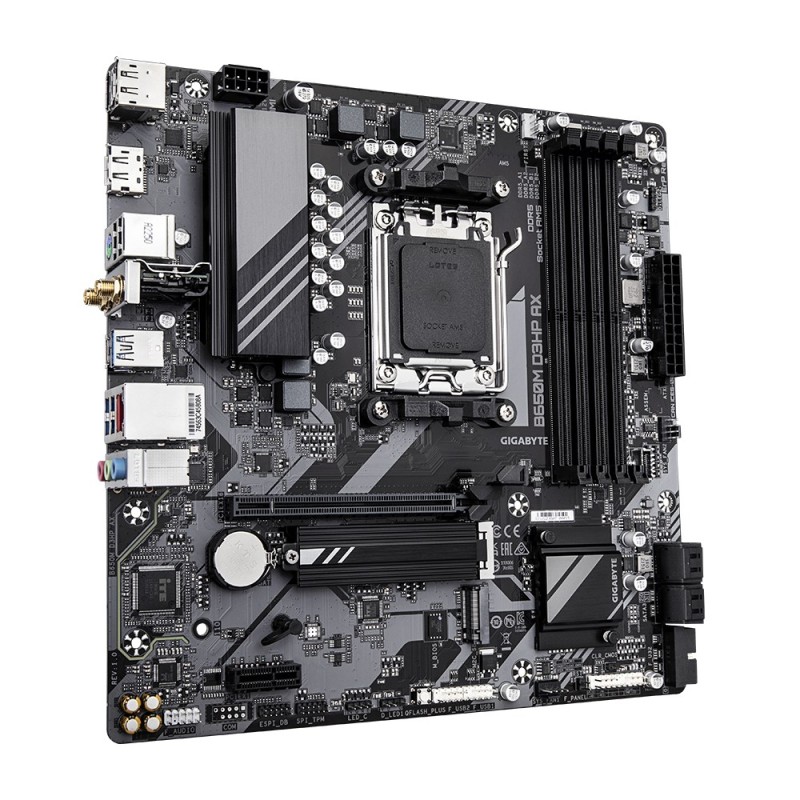

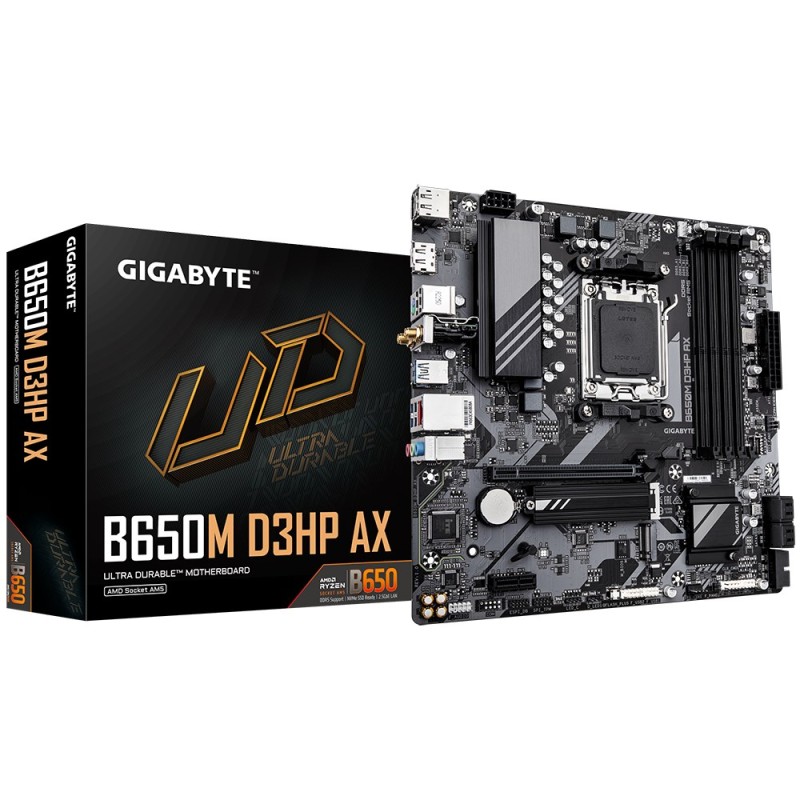

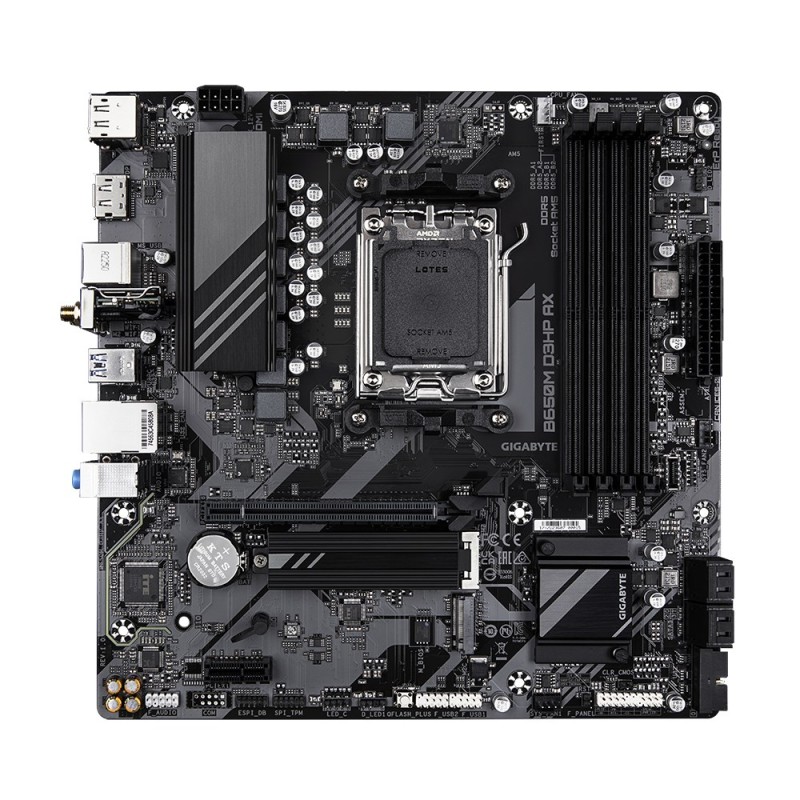

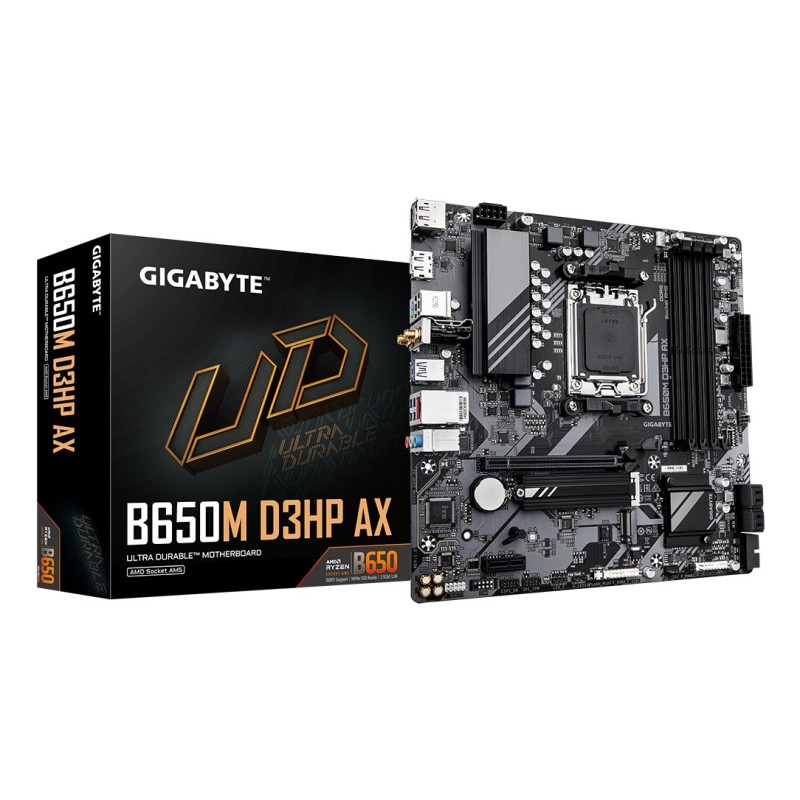

Płyta główna Gigabyte B650M D3HP AX

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Graphics

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

DirectX version: 12.0

Features

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Power source type: ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Cooling type: Passive

Motherboard chipset: AMD B650

Audio output channels: 7.1 channels

PC health monitoring: Voltage, Fan, Temperature

Product colour: Bronze

Audio chip: Realtek ALC897

Memory

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 8000 MHz

Maximum internal memory per slot: 64 GB

Supported memory clock speeds: 7000, 8000 MHz, 5600, 7200, 6800, 6000, 6200, 5200, 6400, 6600, 7600, 7800 MHz, 4800 MHz

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Weight & dimensions

Depth: 244 mm

Height: 35 mm

Width: 244 mm

Network

WLAN controller model: Realtek RTL8852CE

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)

Bluetooth version: 5.3

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

LAN controller: Realtek RTL8125

Bluetooth: Yes

Internal I/O

USB 2.0 connectors: 2

RGB LED pin header: Yes

Front panel audio connector: Yes

12V power connector: Yes

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Front panel connector: Yes

TPM connector: Yes

Number of RGB LED pin headers: 3

CPU fan connector: Yes

Number of CPU fan connectors: 1

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

Number of EPS power connectors (8-pin): 1

Number of chassis fan connectors: 2

BIOS

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging data

Package depth: 268 mm

Package weight: 1.2 kg

Package width: 270 mm

Package height: 68 mm

Packaging content

Antenna included: Yes

Screws included: Yes

Batteries included: Yes

Storage controllers

RAID support: Yes

Number of storage drives supported: 6

RAID levels: 0, 1, 10

Number of HDDs supported: 4

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

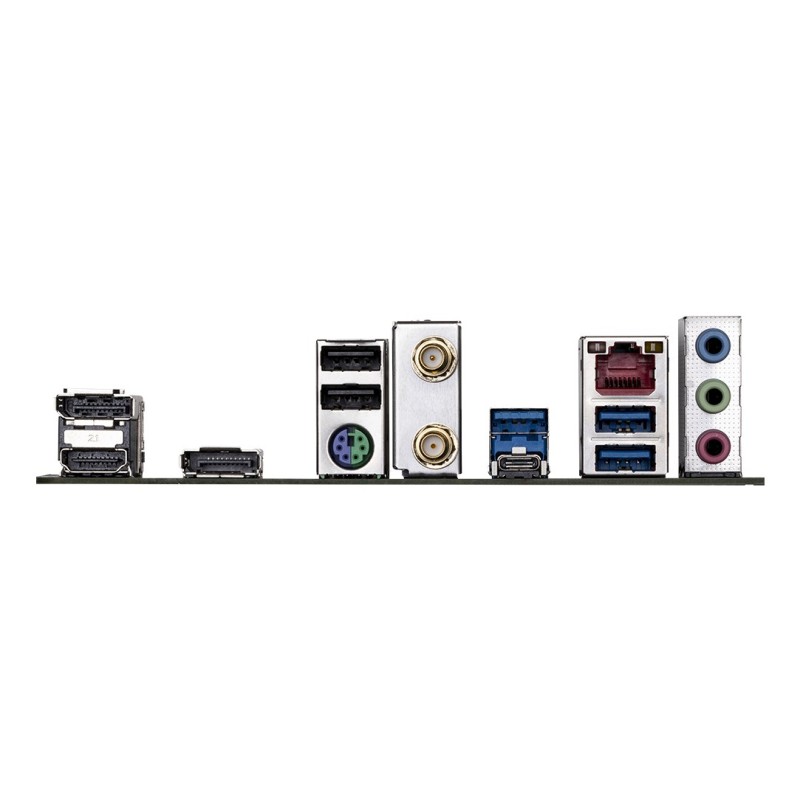

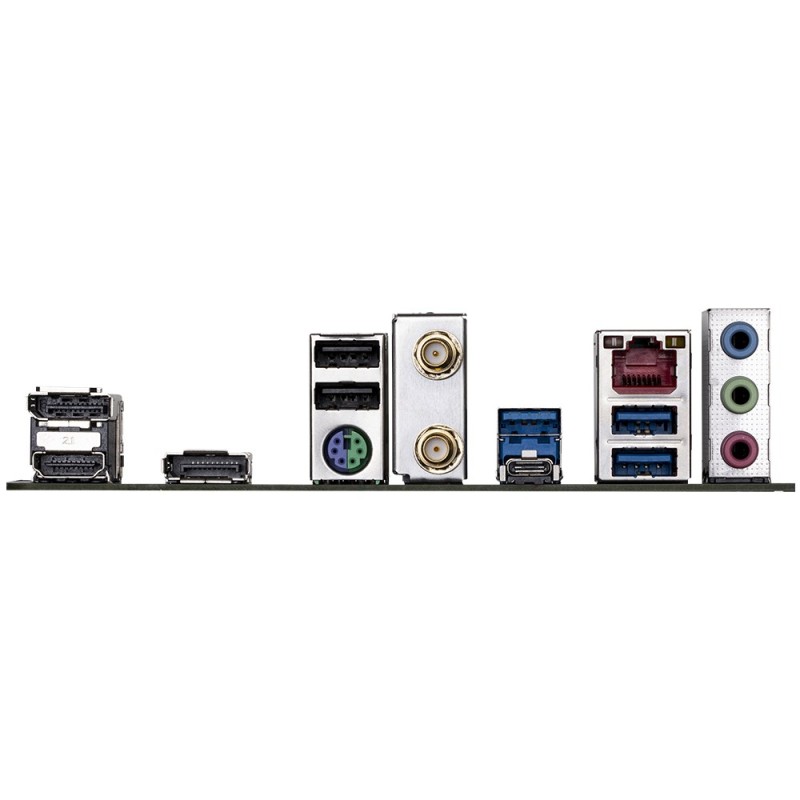

Rear panel I/O ports

DisplayPorts quantity: 2

DisplayPort version: 1.4

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

PS/2 ports quantity: 1

Microphone in: Yes

Line-in: Yes

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Headphone outputs: 1

HDMI ports quantity: 1

USB 2.0 ports quantity: 2

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

2nd M.2 largest key size: 22110

Number of M.2 (M) slots: 2

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2580

Battery

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Battery type: CR2032

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China
