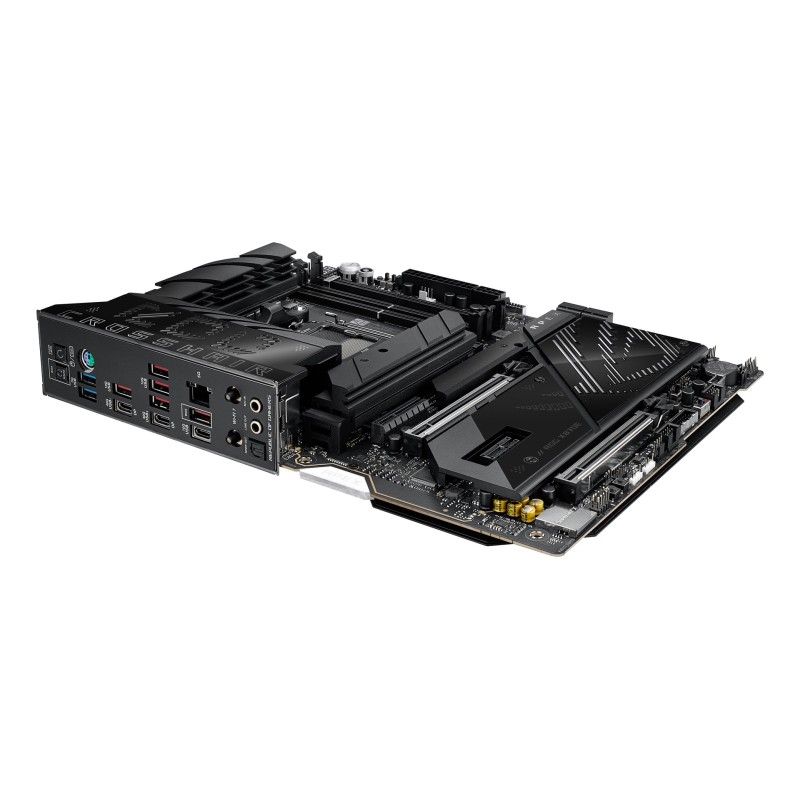

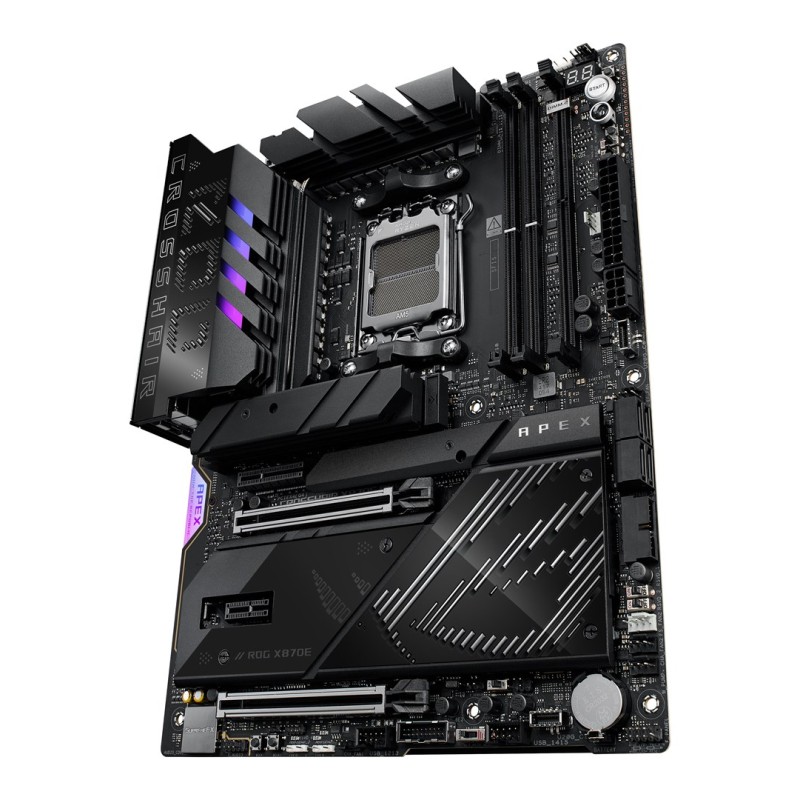

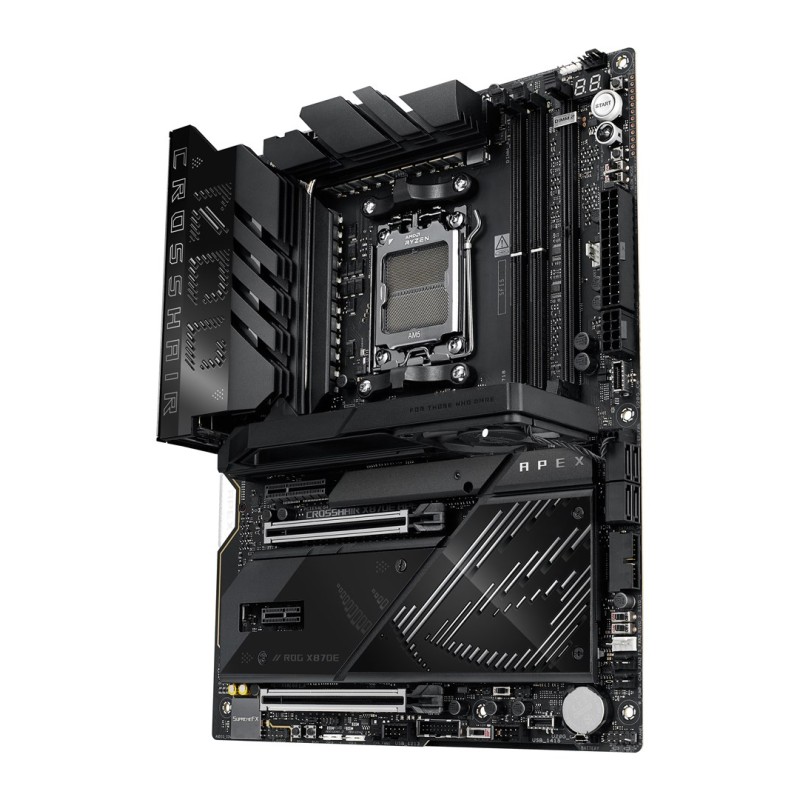

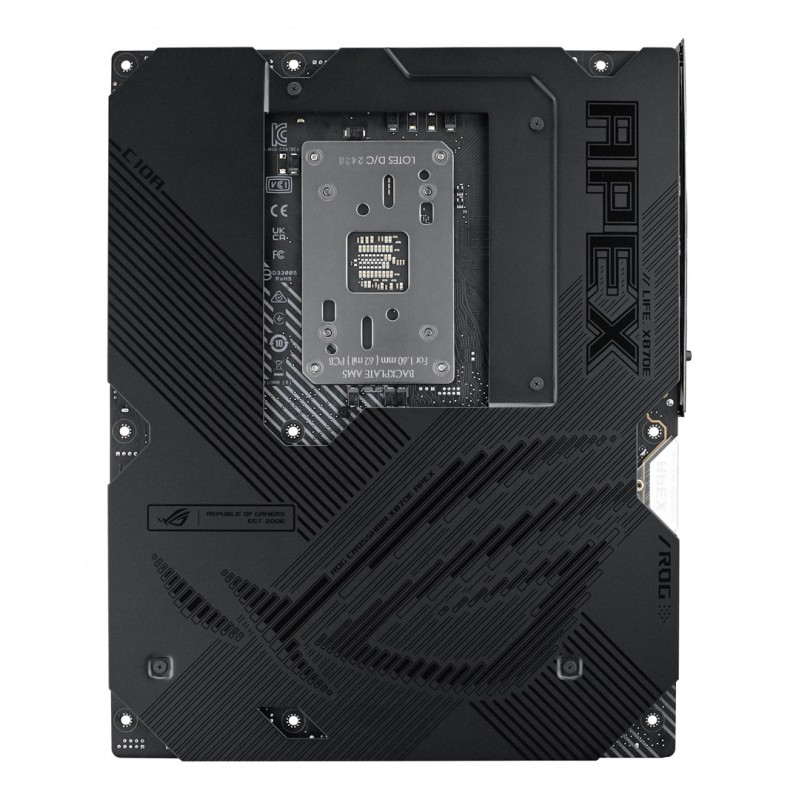

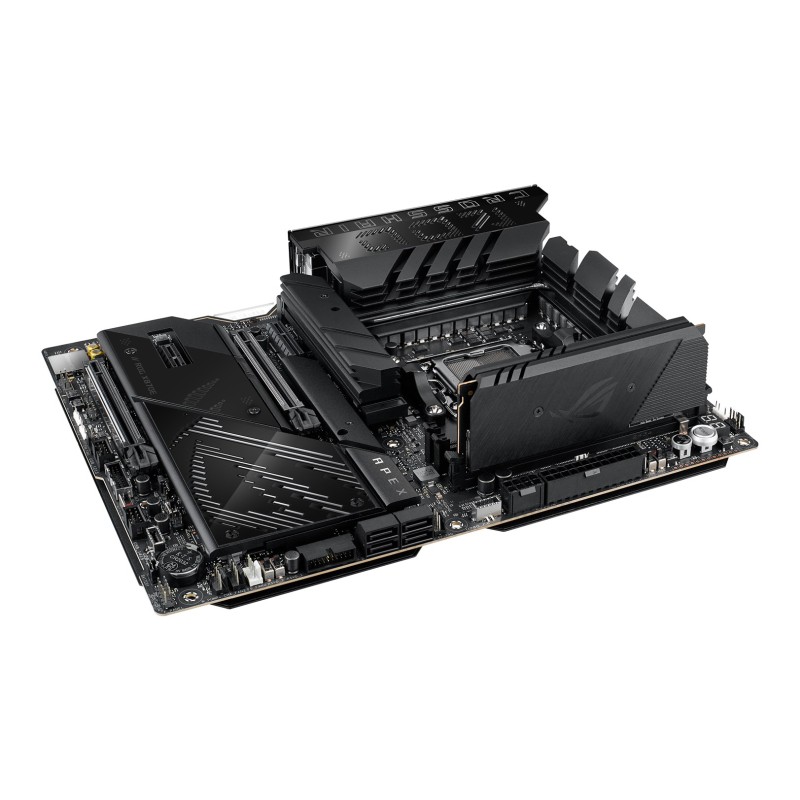

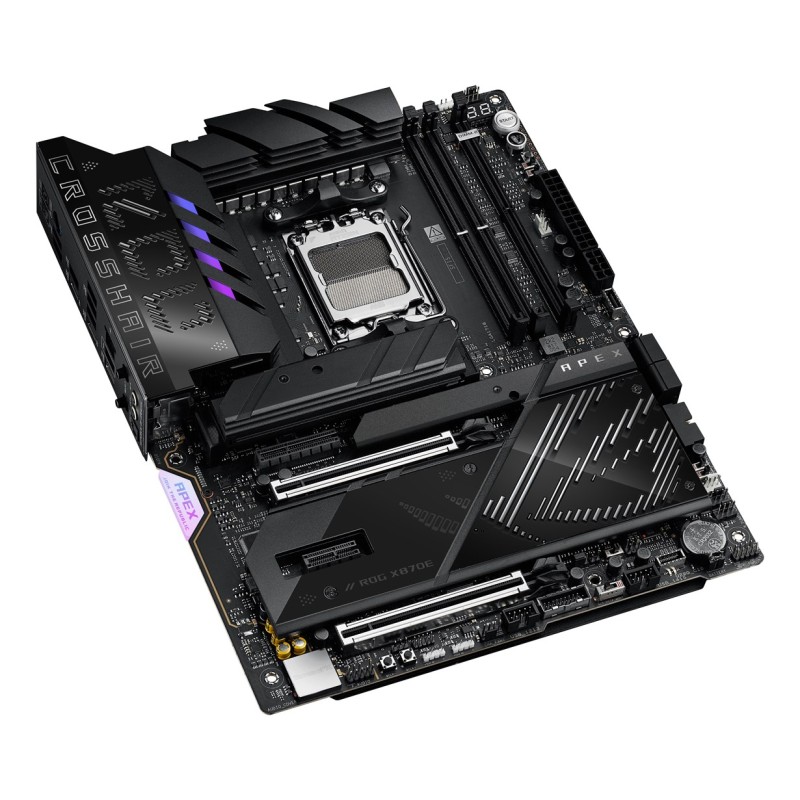

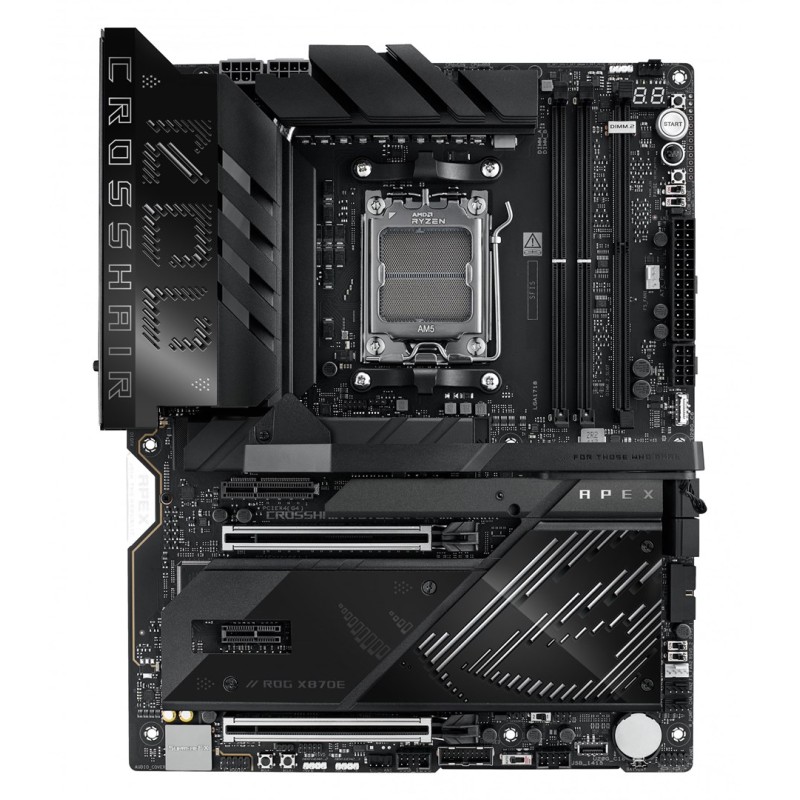

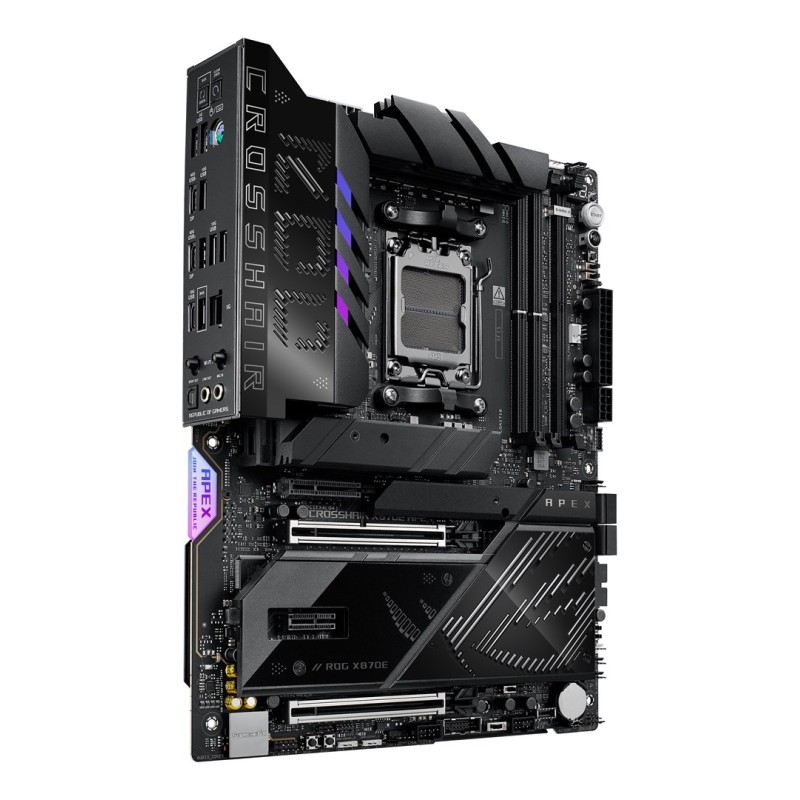

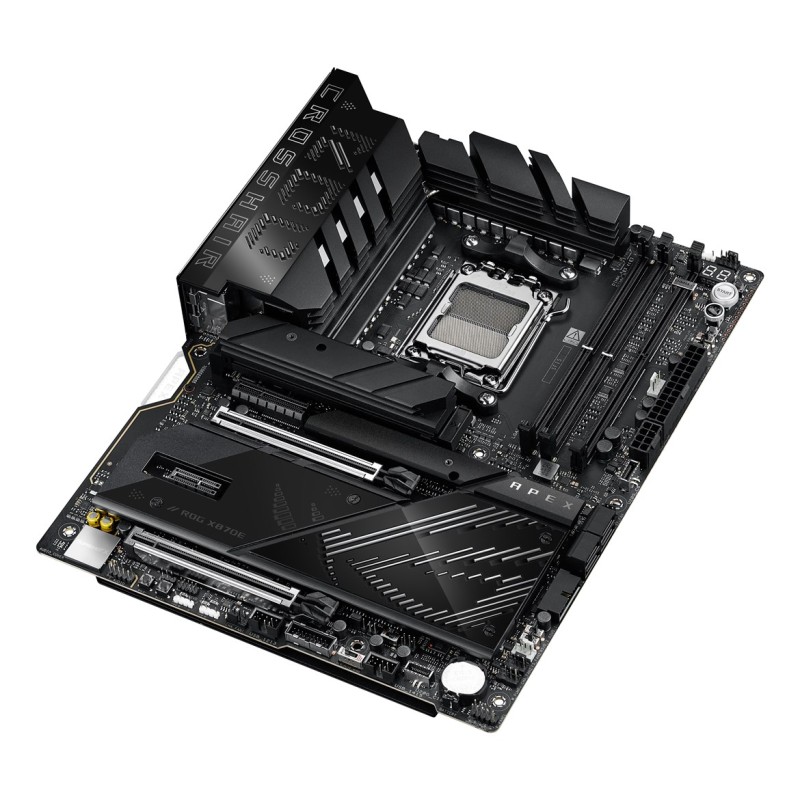

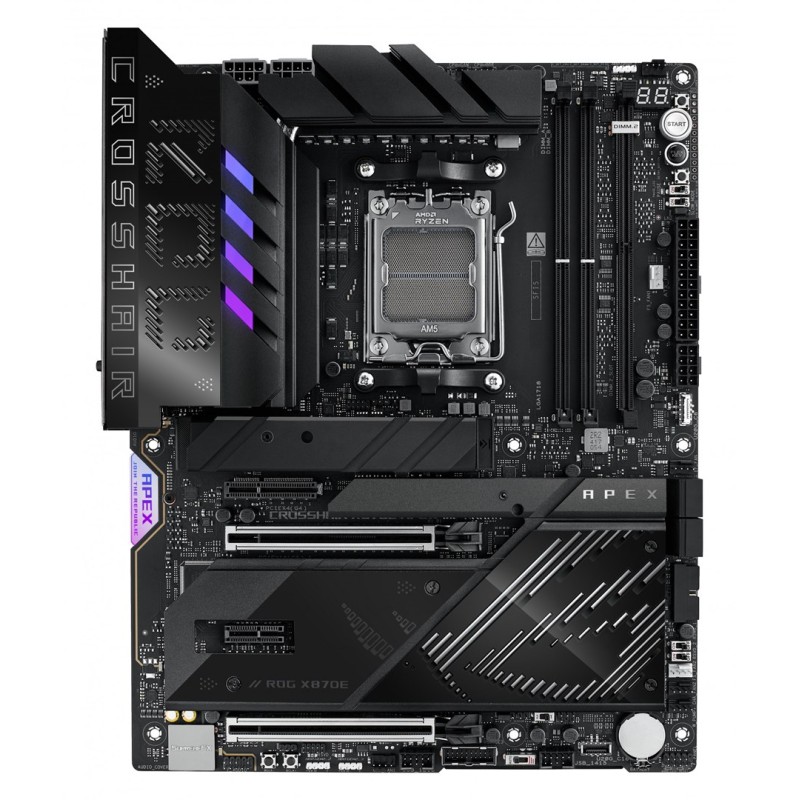

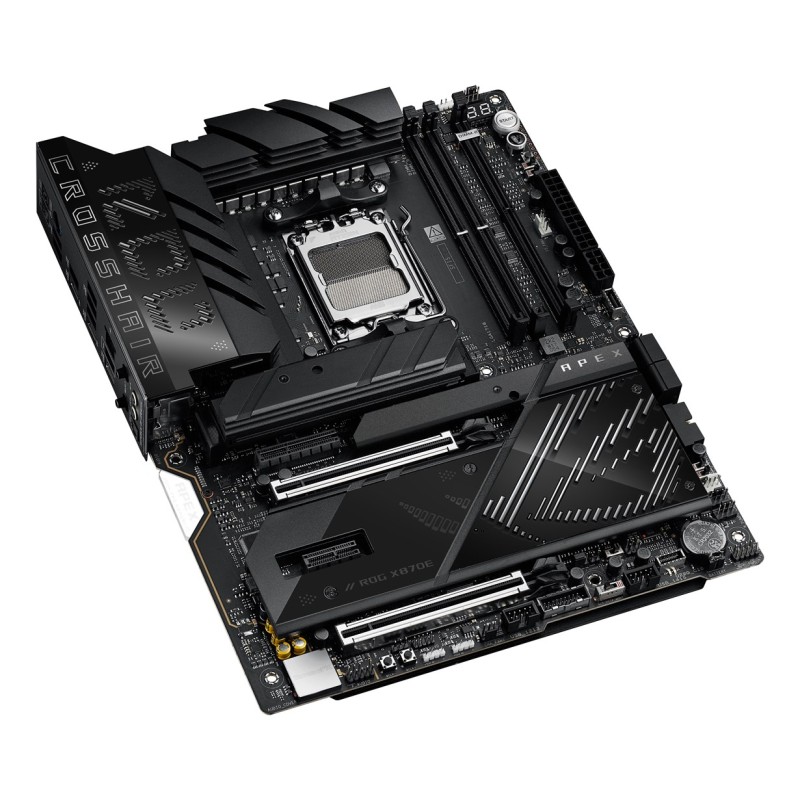

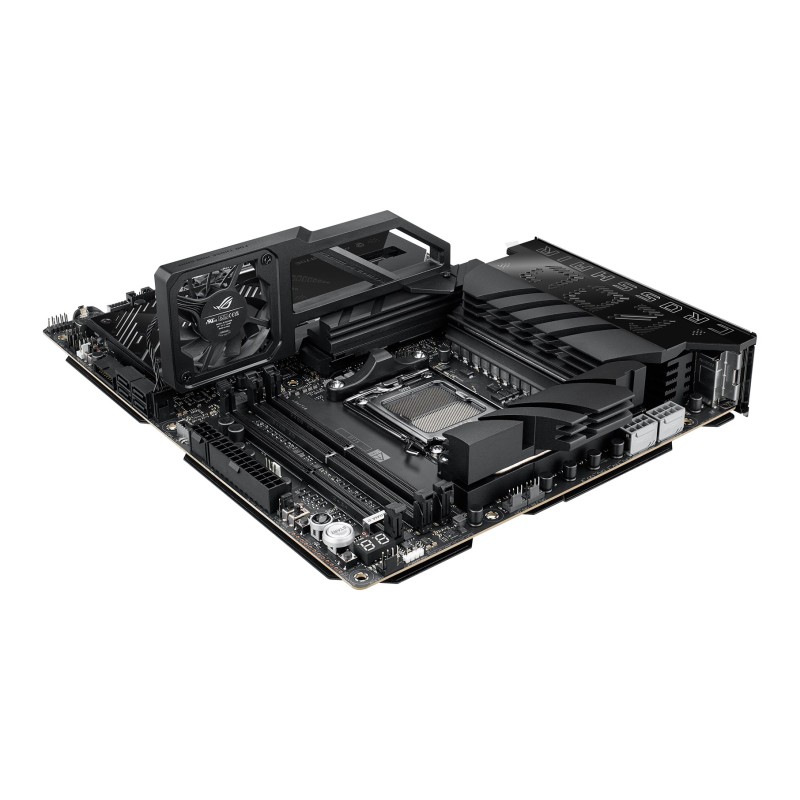

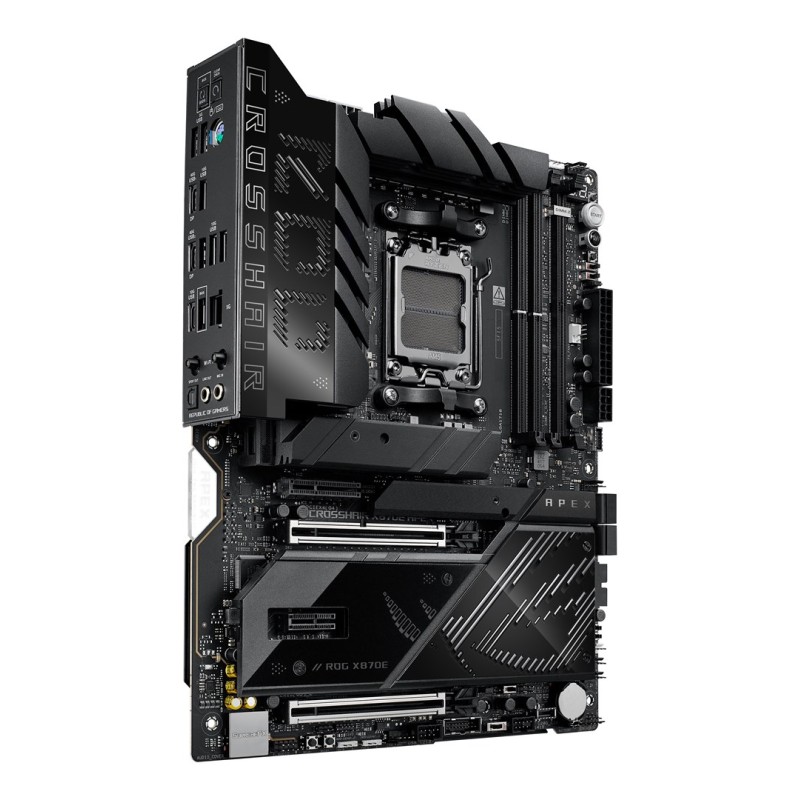

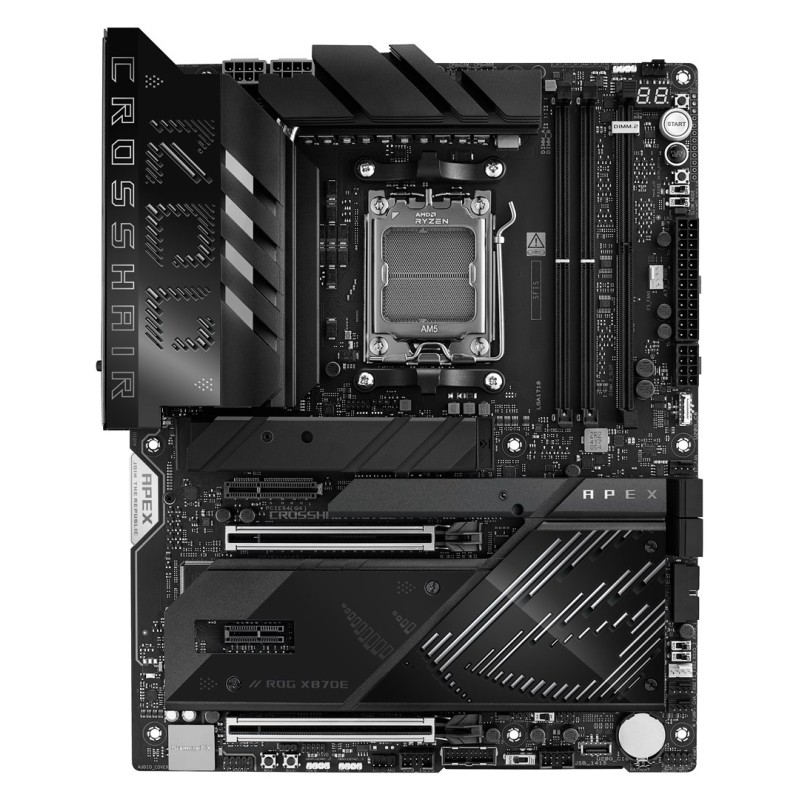

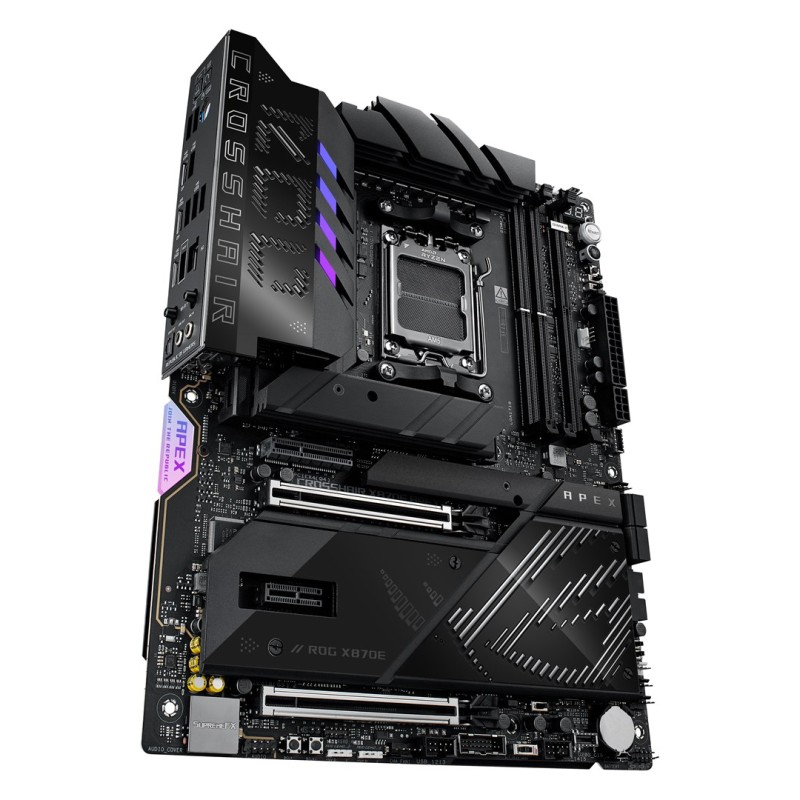

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Product colour: Black

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11

Motherboard chipset family: AMD

Motherboard chipset: AMD X870E

Memory

Maximum internal memory: 128 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Number of memory slots: 2

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Wi-Fi: Yes

Ethernet interface type: 5 Gigabit Ethernet

Bluetooth: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of SATA III connectors: 4

Number of chassis fan connectors: 2

USB 2.0 connectors: 2

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Front panel connector: Yes

CPU fan connector: Yes

12V power connector: Yes

Number of RGB LED pin headers: 3

RGB LED pin header: Yes

USB 3.2 Gen 2x2 connectors: 2

BIOS

BIOS type: UEFI AMI

Packaging data

Package height: 108 mm

Package weight: 4.16 kg

Package width: 370 mm

Package depth: 312 mm

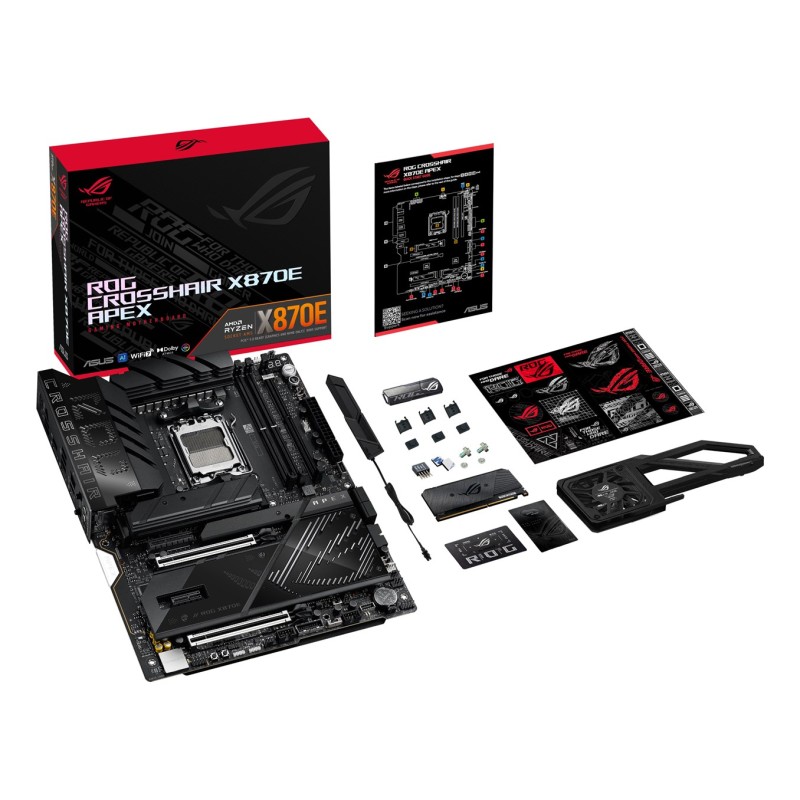

Packaging content

Screws included: Yes

Cables included: SATA

Drivers included: Yes

Antenna included: Yes

Storage controllers

Number of storage drives supported: 9

RAID levels: 5, 10, 1, 0

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Number of HDDs supported: 4

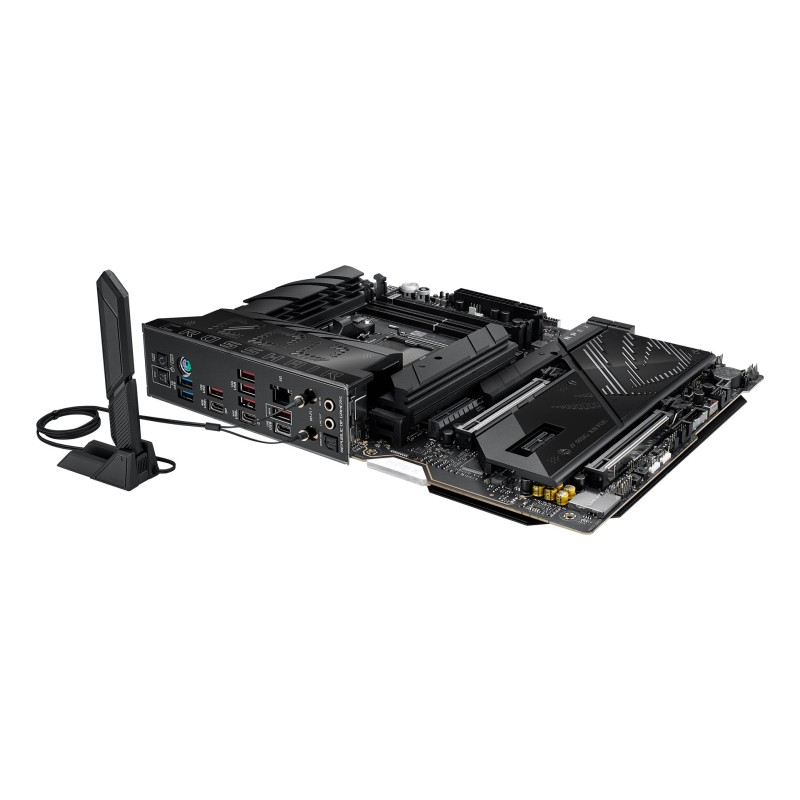

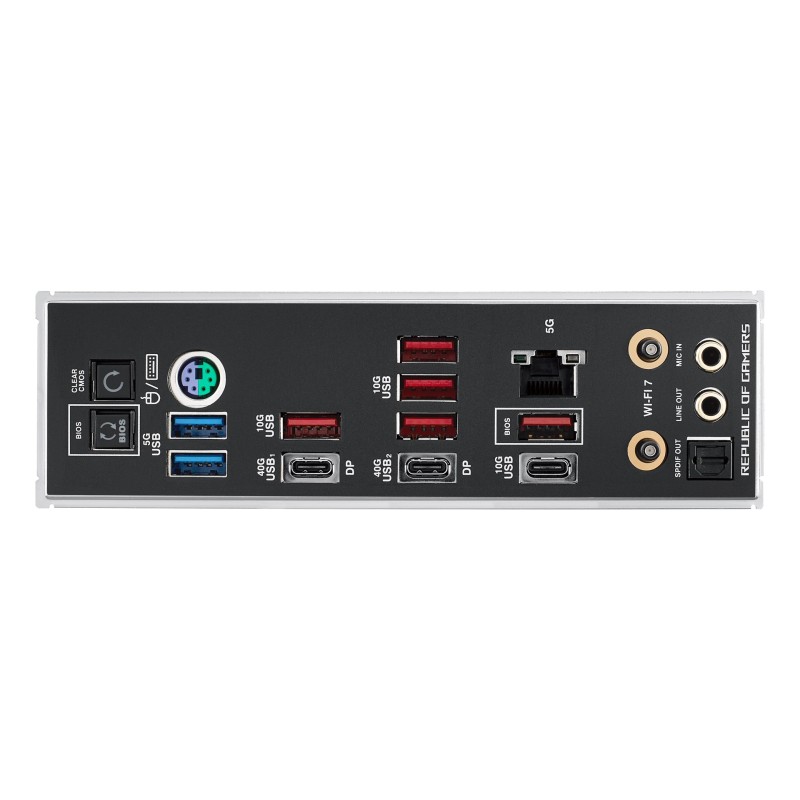

Rear panel I/O ports

S/PDIF out port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB4 Gen 3x2 ports quantity: 2

WiFi-AP antenna jack: 1

Expansion slots

Number of M.2 (M) slots: 5

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 2

1st M.2 largest key size: 2280

PCI Express x16 (Gen 5.x) slots: 2

PCI Express x4 (Gen 4.x) slots: 1

3rd M.2 largest key size: 2280

5th M.2 largest key size: 22110

5th M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 5.0

1st M.2 highest PCI Express generation: 5.0
