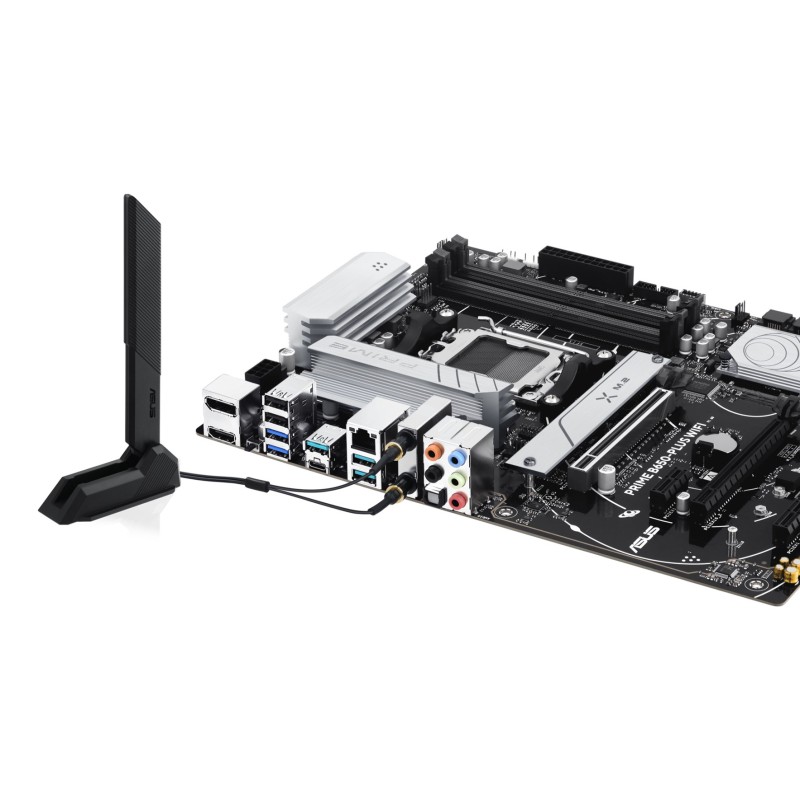

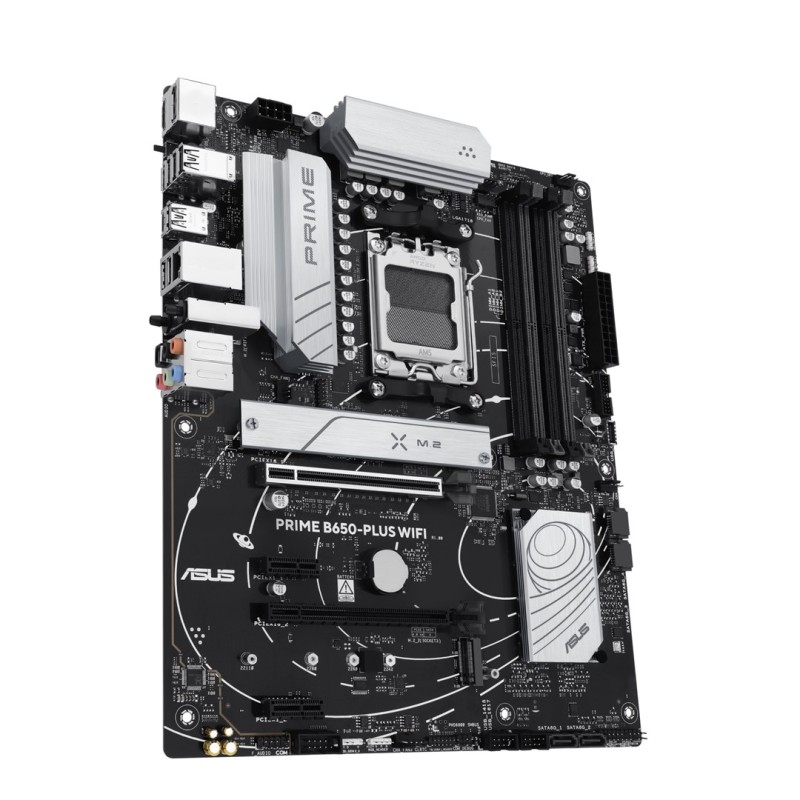

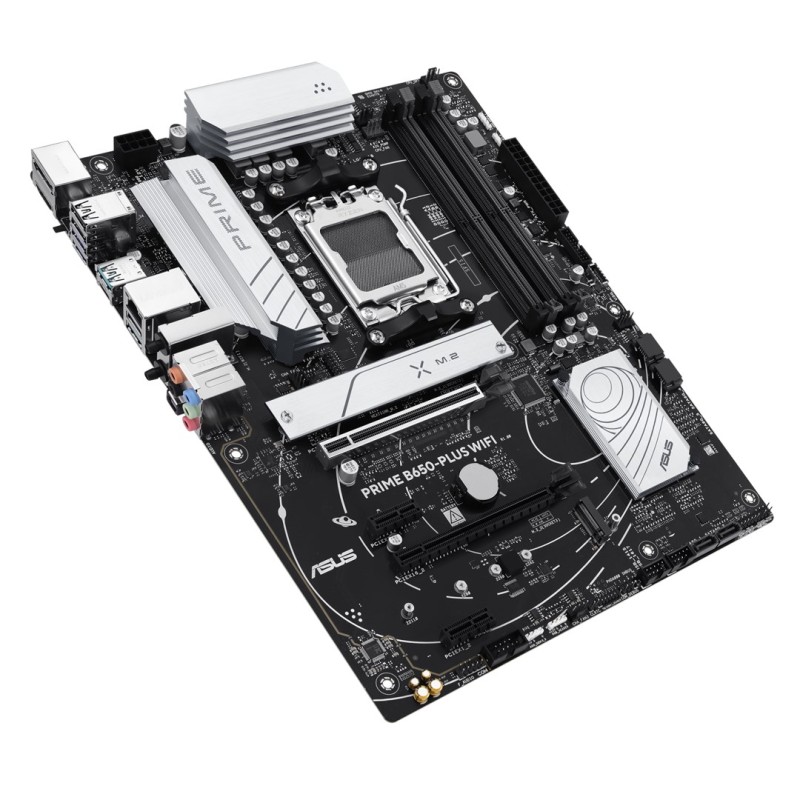

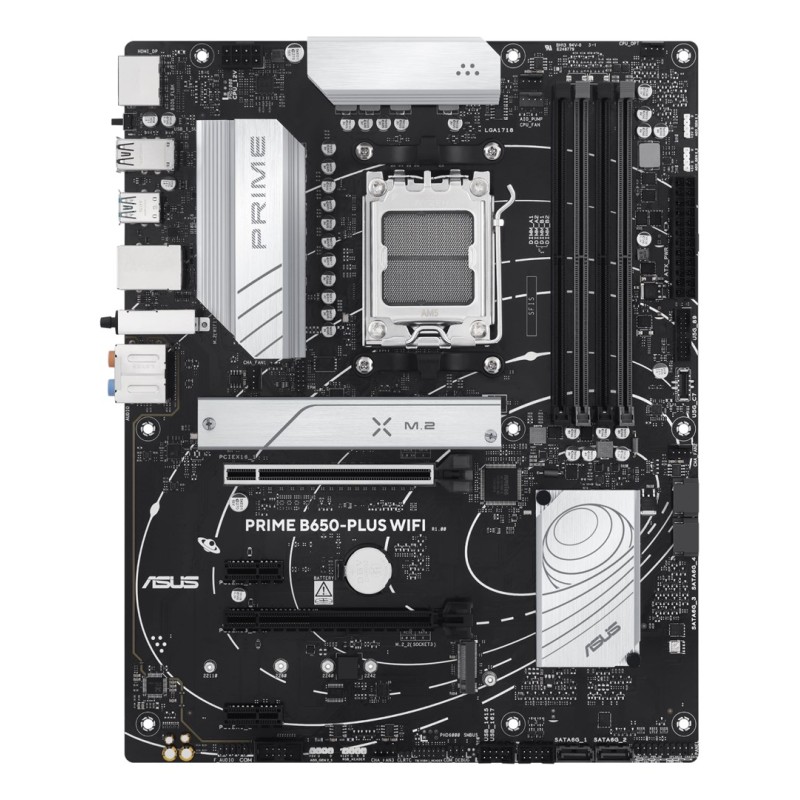

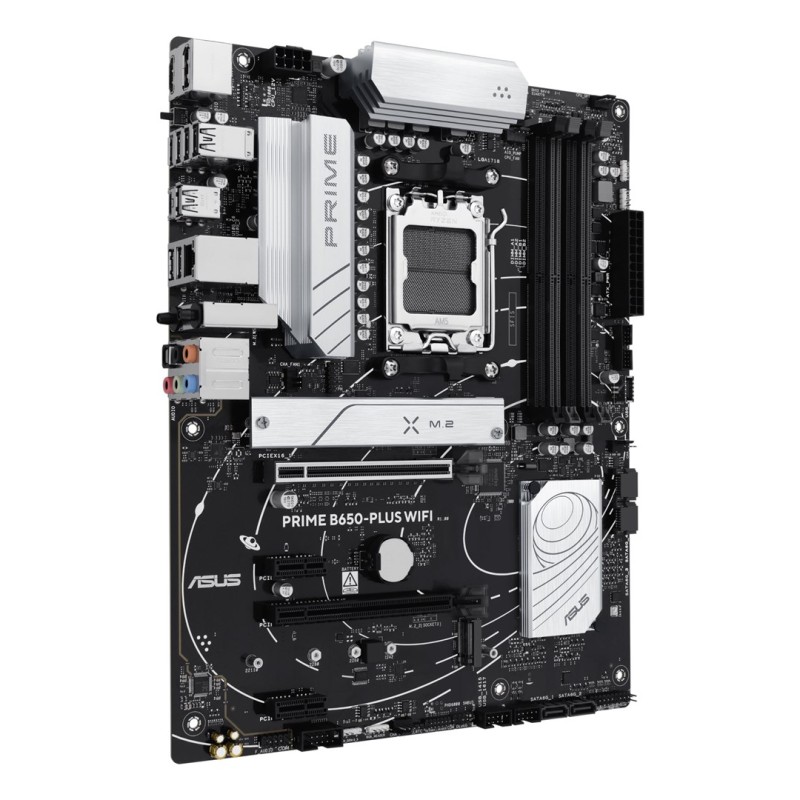

ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX

Περιγραφή

Processor

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: AMD B650

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Windows operating systems supported: Windows 10 x64, Windows 11

Memory

ECC сompatibility: ECC & Non-ECC

Supported memory clock speeds: 5200, 6800, 6400 MHz, 7000, 7600, 7800, 4800, 6000, 5800, 5400, 6200, 6600, 5000, 7400, 5600, 7200

Maximum internal memory: 192 GB

Unbuffered memory: Yes

Supported memory clock speed (max): 7600 MHz

Number of memory slots: 4

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Internal I/O

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

Thunderbolt headers: 1

USB 2.0 connectors: 2

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

Number of COM connectors: 1

RGB LED pin header: Yes

12V power connector: Yes

Number of chassis fan connectors: 3

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 1.35 kg

Package height: 68 mm

Package width: 338 mm

Package depth: 373 mm

Packaging content

Antenna included: Yes

Cables included: SATA

Screws included: Yes

Storage controllers

RAID support: Yes

RAID levels: 0, 1, 10

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 6

Number of HDDs supported: 4

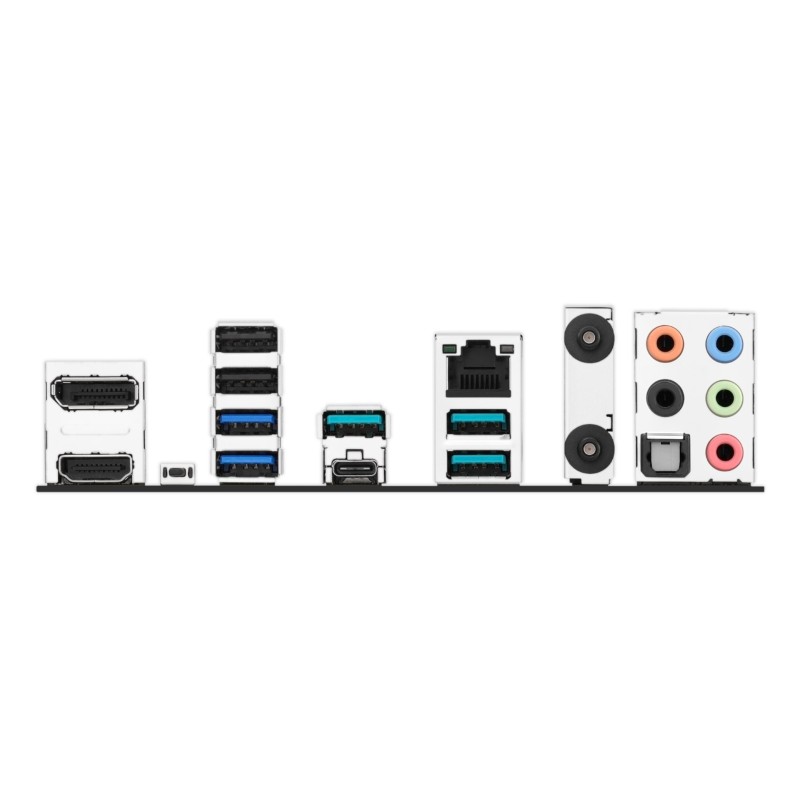

Rear panel I/O ports

USB 2.0 ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

S/PDIF out port: Yes

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

WiFi-AP antenna jack: 1

Expansion slots

1st M.2 largest key size: 22110

2nd M.2 largest key size: 22110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 4.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 2
