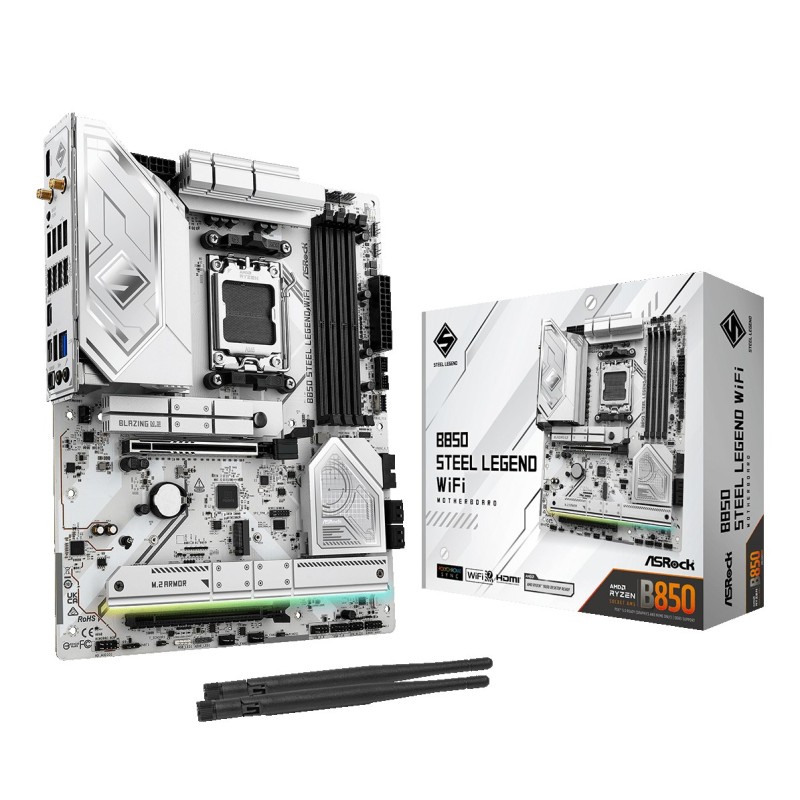

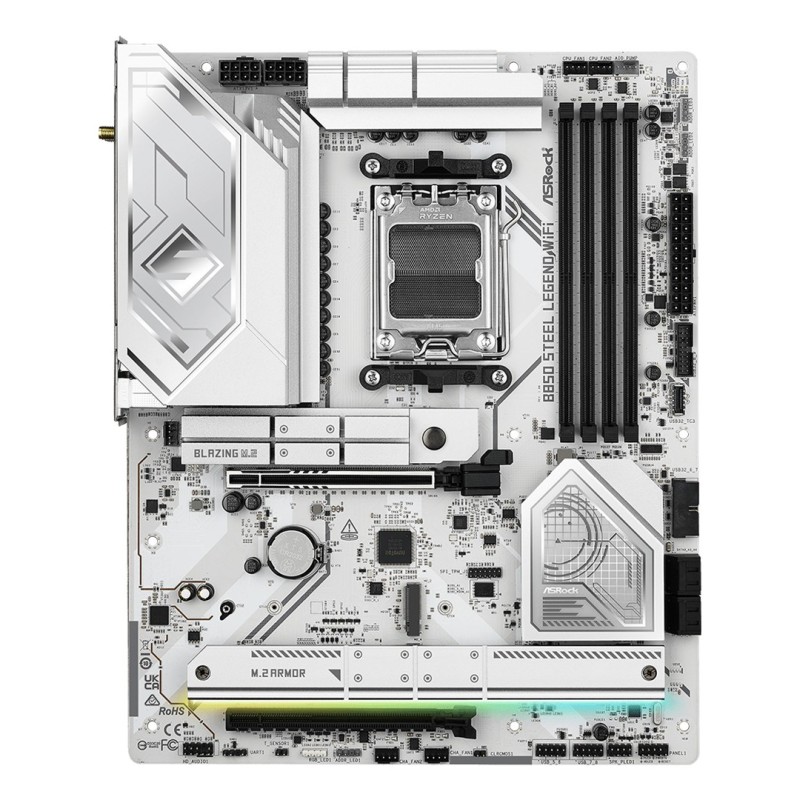

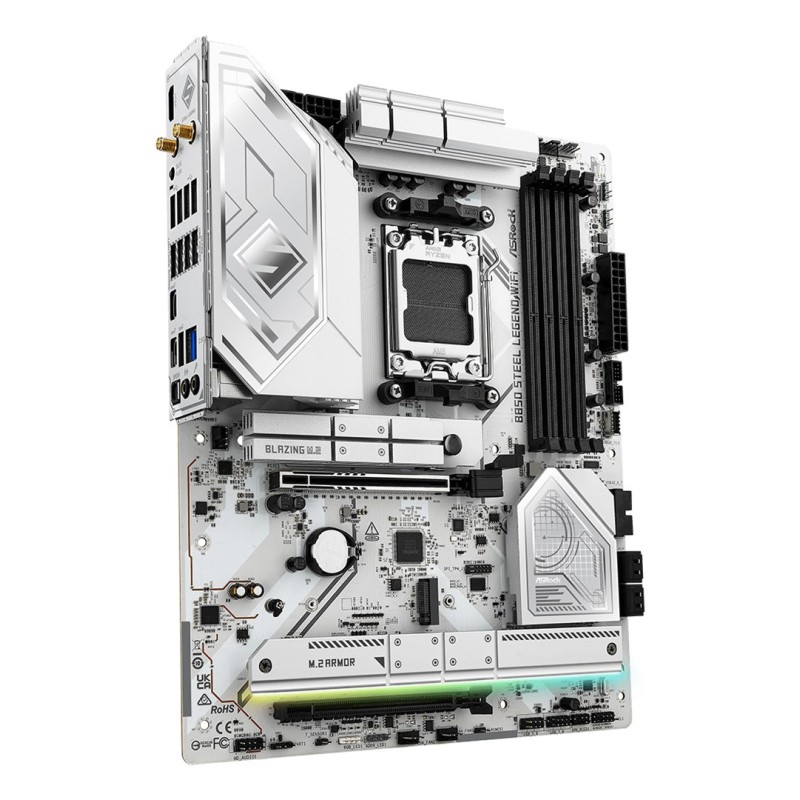

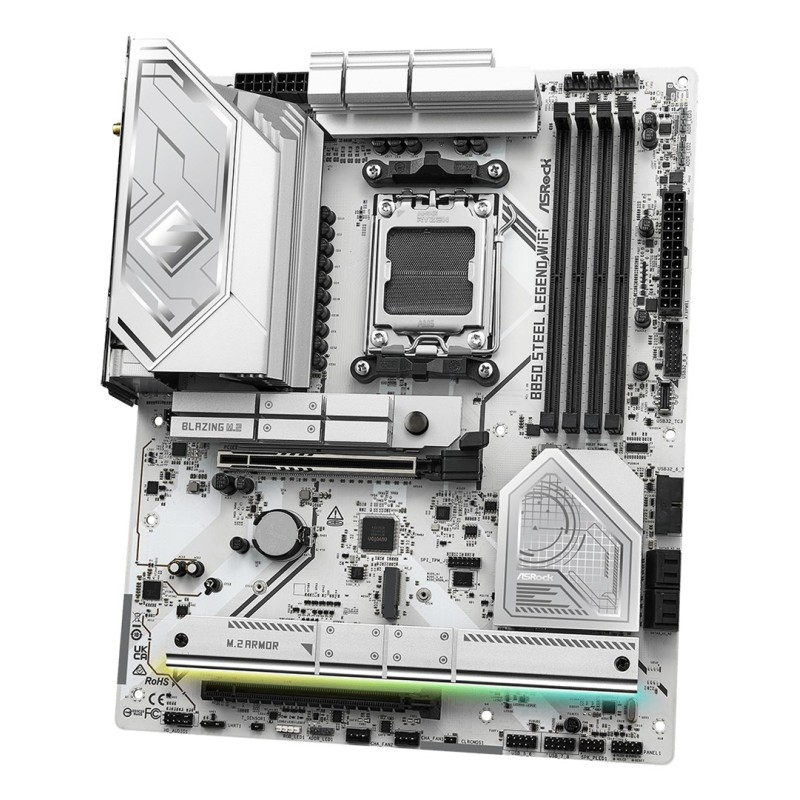

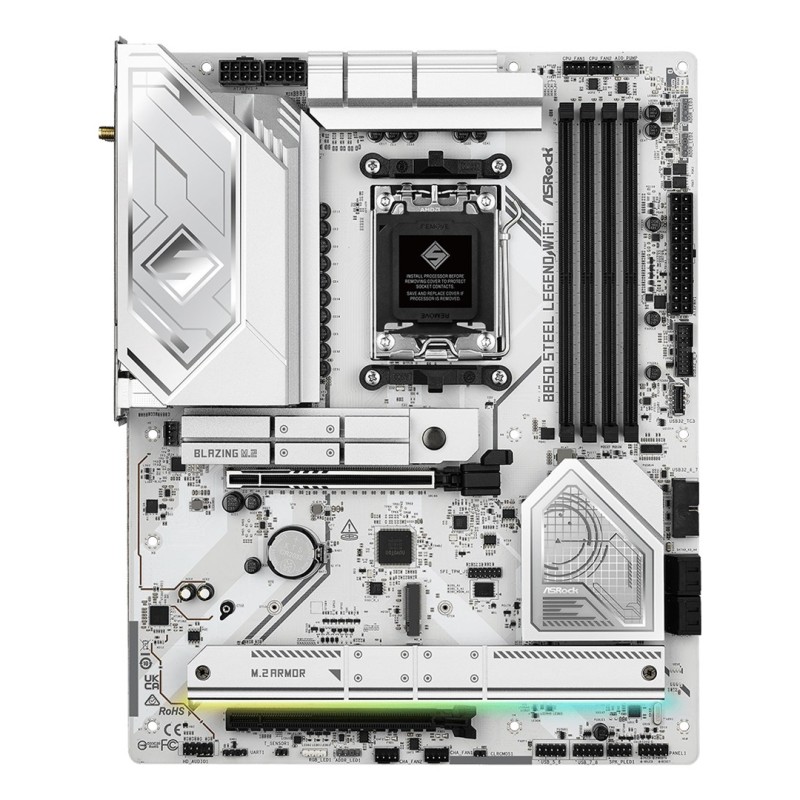

Asrock B850 Steel Legend WiFi AMD B850 Socket AM5 ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Supported processor sockets: Socket AM5

Graphics

HDCP: Yes

Maximum resolution: 3840 x 2160 pixels

Parallel processing technology support: Not supported

Features

Audio chip: Realtek ALC4082

Product colour: White

Motherboard chipset: AMD B850

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard form factor: ATX

Memory

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Maximum internal memory: 256 GB

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Ethernet LAN: Yes

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b

Bluetooth version: 5.4

LAN controller: Dragon RTL8125BG

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

Number of EPS power connectors (8-pin): 2

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

USB 3.2 Gen 2x2 connectors: 1

RGB LED pin header: Yes

12V power connector: Yes

USB 2.0 connectors: 2

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

TPM connector: Yes

Number of chassis fan connectors: 3

Front panel audio connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Antenna included: Yes

Cables included: SATA

Storage controllers

Number of storage drives supported: 8

RAID support: Yes

RAID levels: 0, 1, 10

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

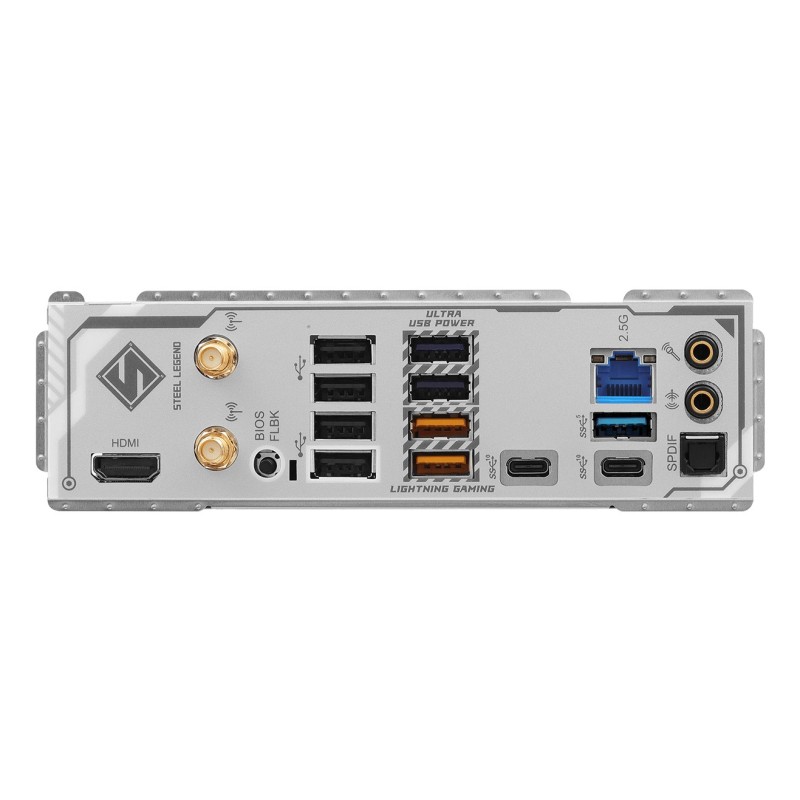

Rear panel I/O ports

Microphone in: Yes

Headphone outputs: 2

Line-in: Yes

WiFi-AP antenna jack: 2

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB connector type: USB Type-C, USB Type-A

S/PDIF out port: Yes

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Expansion slots

2nd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

4th M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

4th M.2 largest key size: 2280

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 4

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
