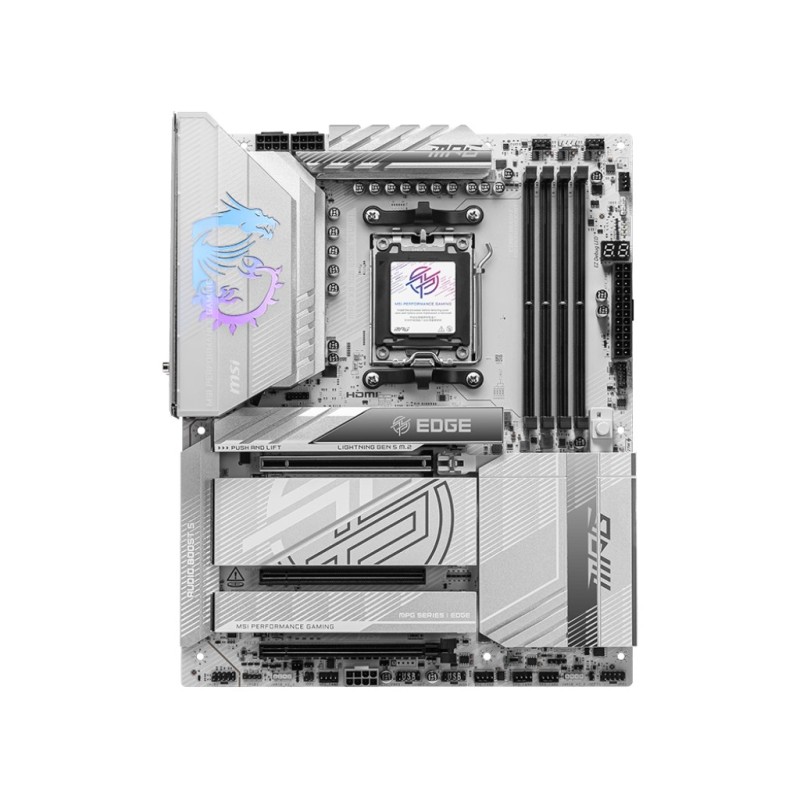

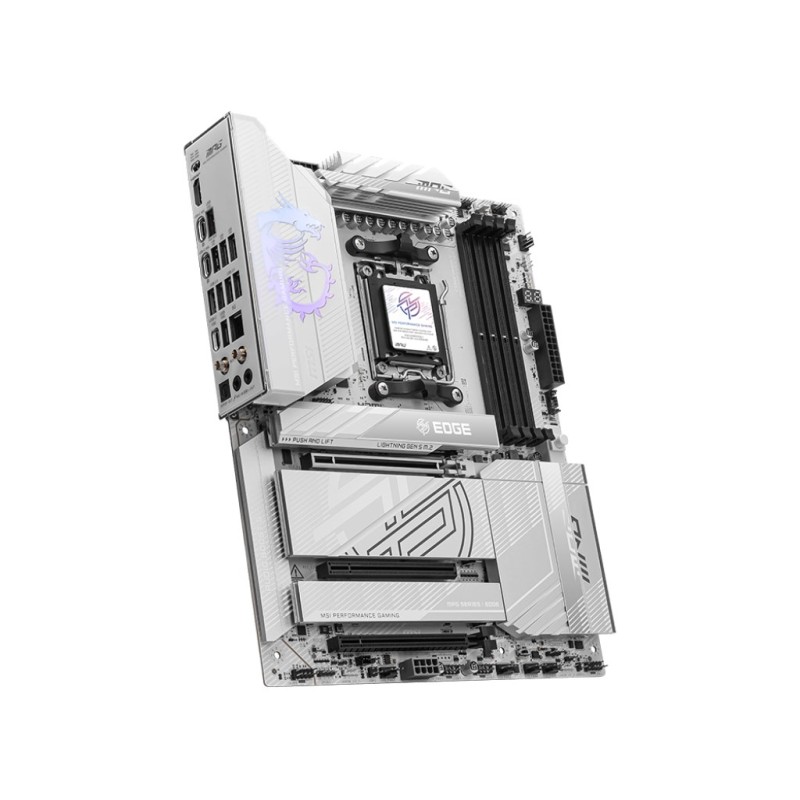

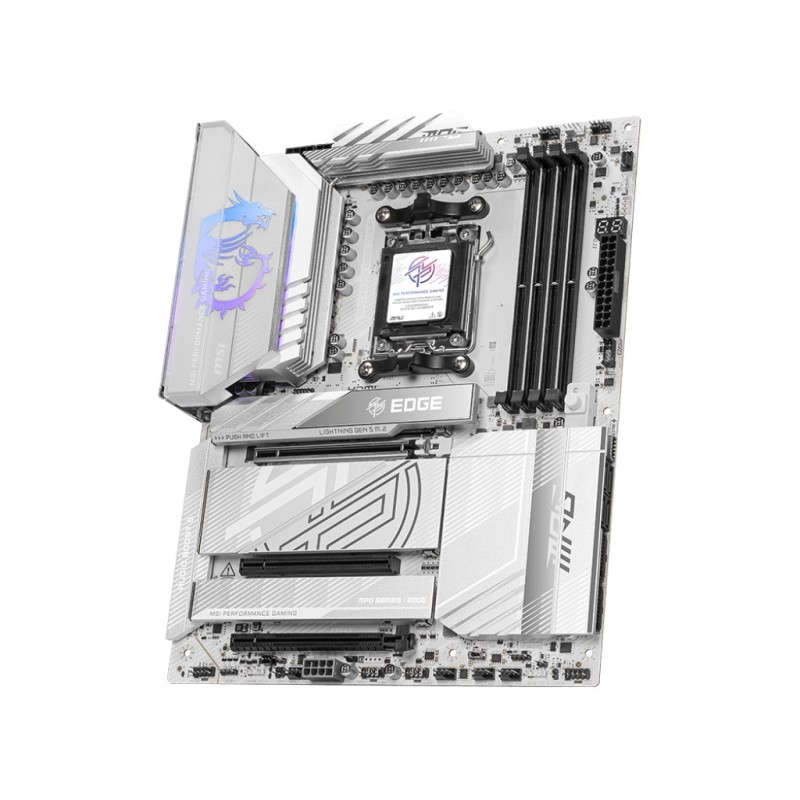

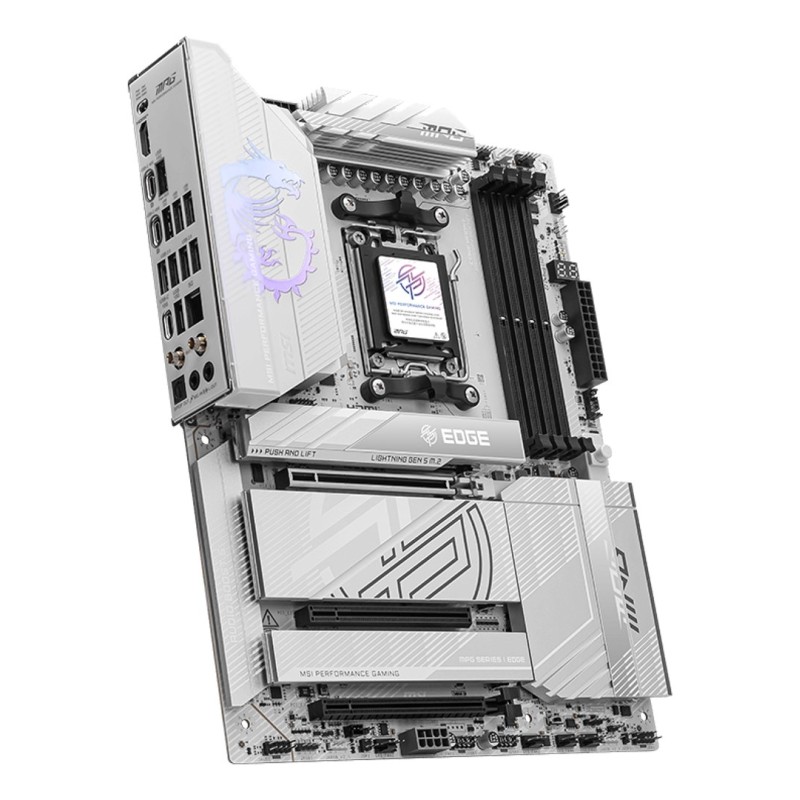

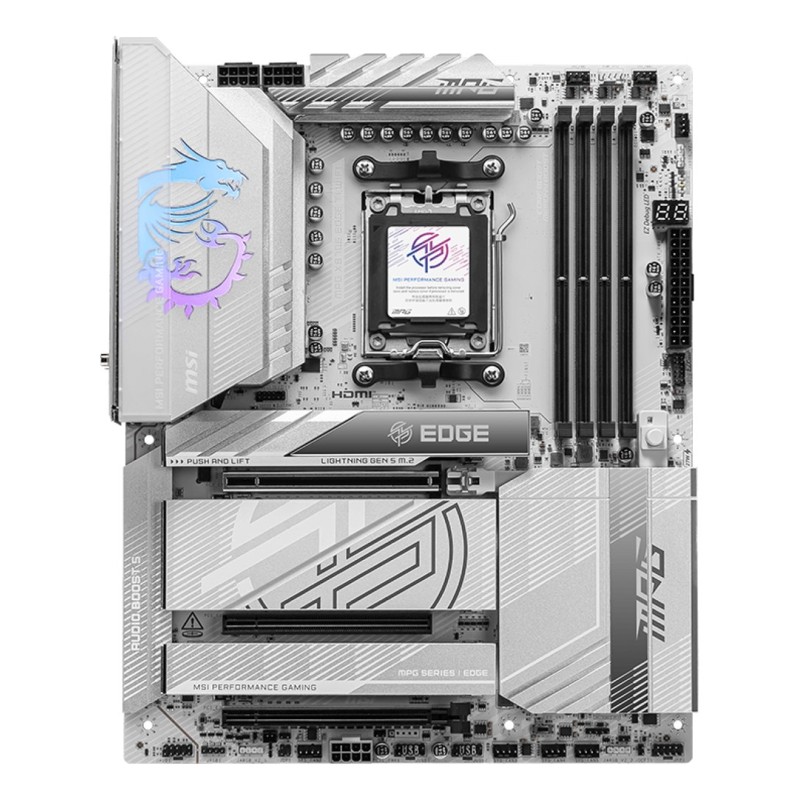

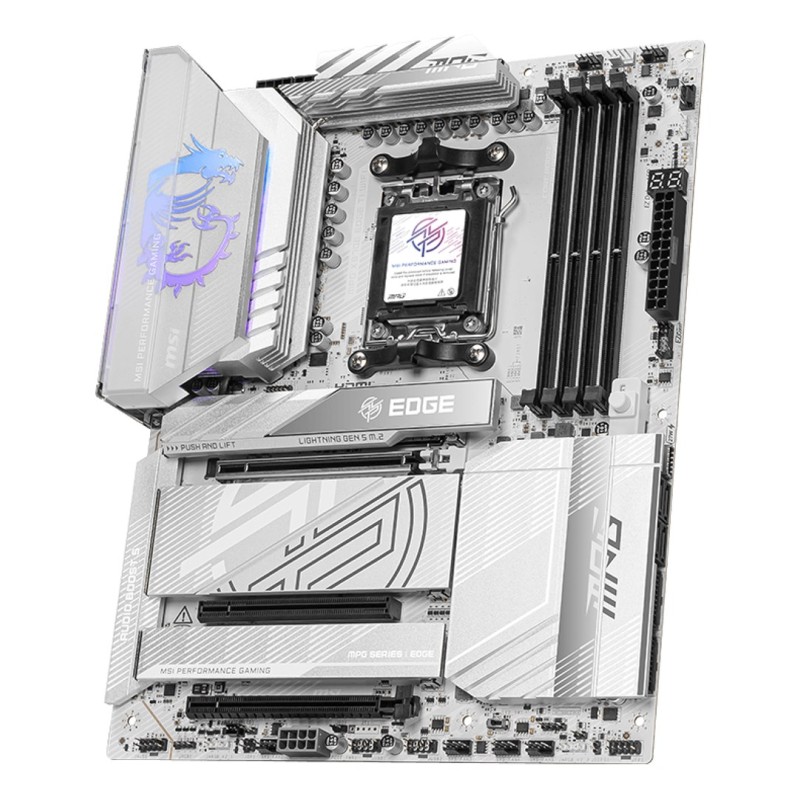

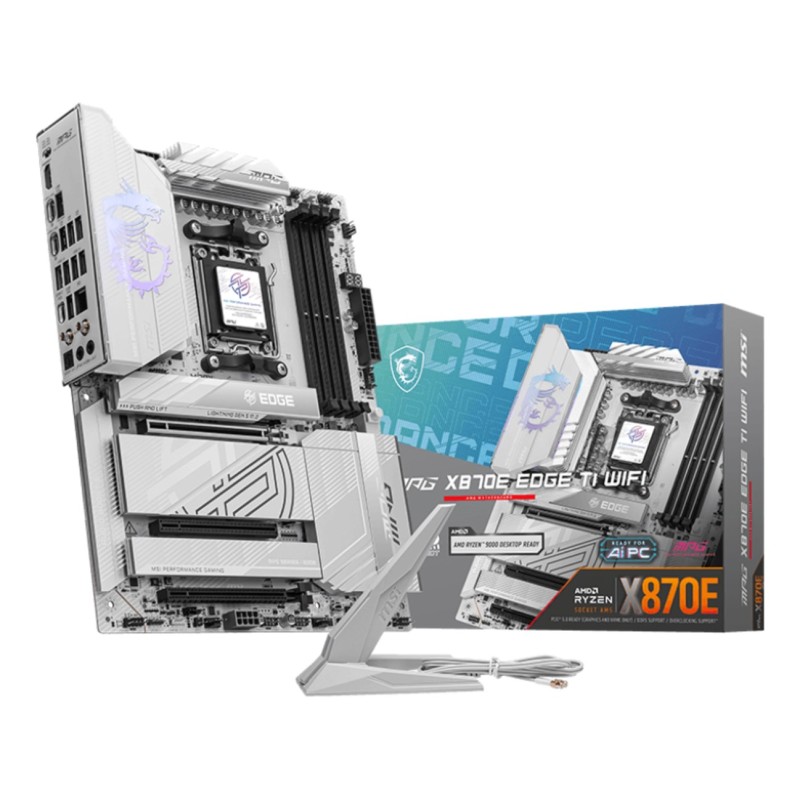

MSI MPG X870E EDGE TI WIFI motherboard AMD X870E Socket AM5 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Maximum internal memory supported by processor: 256 GB

Graphics

On-board graphics card: No

Features

PC health monitoring: Fan, CPU, Voltage, Temperature

Motherboard chipset: AMD X870E

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Product colour: White

Motherboard form factor: ATX

Memory

Supported memory clock speeds: 8400, 5600 MHz, 4800

Memory channels: Dual-channel

Number of memory slots: 4

Maximum internal memory: 256 GB

Memory slots type: DIMM

Supported memory clock speed (max): 8400 MHz

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 304.8 mm

Width: 243.8 mm

Network

Wi-Fi standards: 802.11b, Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n)

Bluetooth version: 5.4

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Bluetooth: Yes

Wi-Fi: Yes

Ethernet interface type: 5 Gigabit Ethernet

LAN controller: Realtek RTL8126

Internal I/O

Total number of SATA connectors: 4

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

Number of SATA III connectors: 4

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 2.0 connectors: 4

Storage controllers

RAID support: Yes

Supported storage drive types: HDD & SSD

RAID levels: 1, 0, 10, 5

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 8

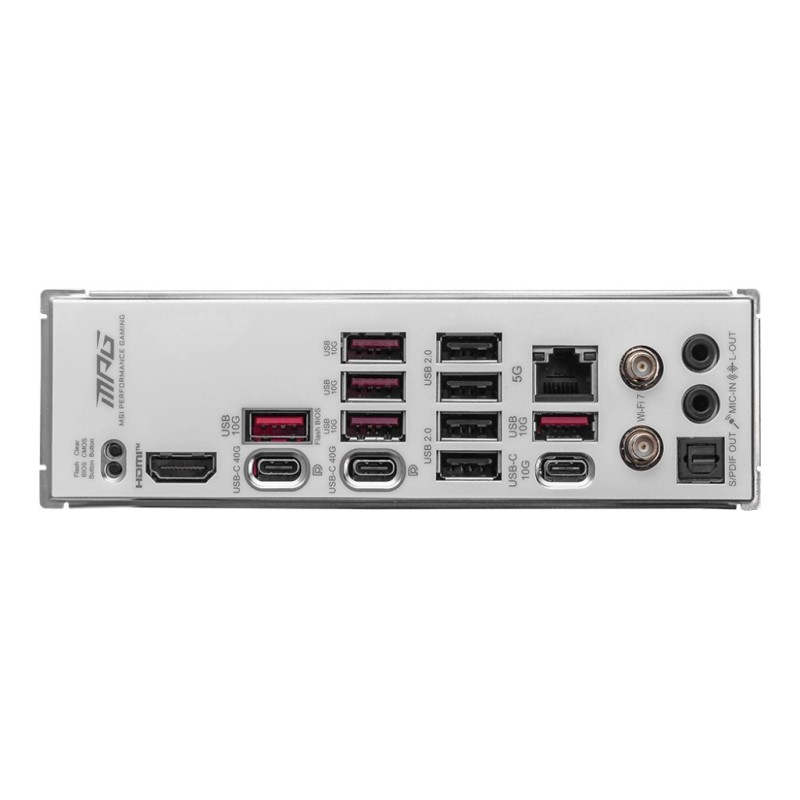

Rear panel I/O ports

Microphone in: Yes

HDMI version: 2.1

S/PDIF out port: Yes

USB4 Gen 2x2 ports quantity: 1

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPorts quantity: 2

USB 2.0 ports quantity: 4

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

2nd M.2 highest PCI Express generation: 5.0

4th M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

1st M.2 largest key size: 22110

3rd M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 4.0

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
