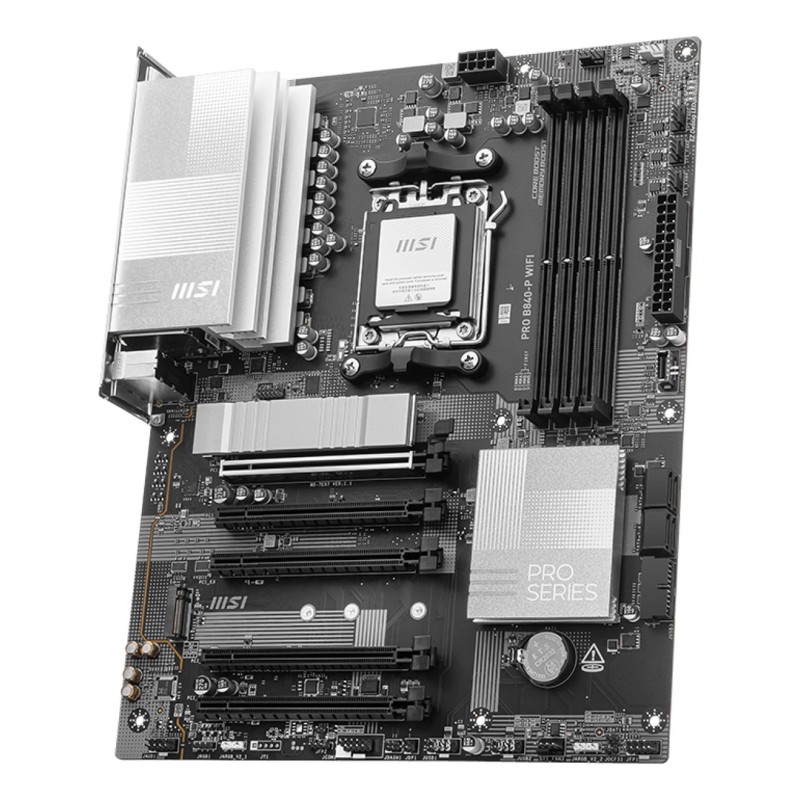

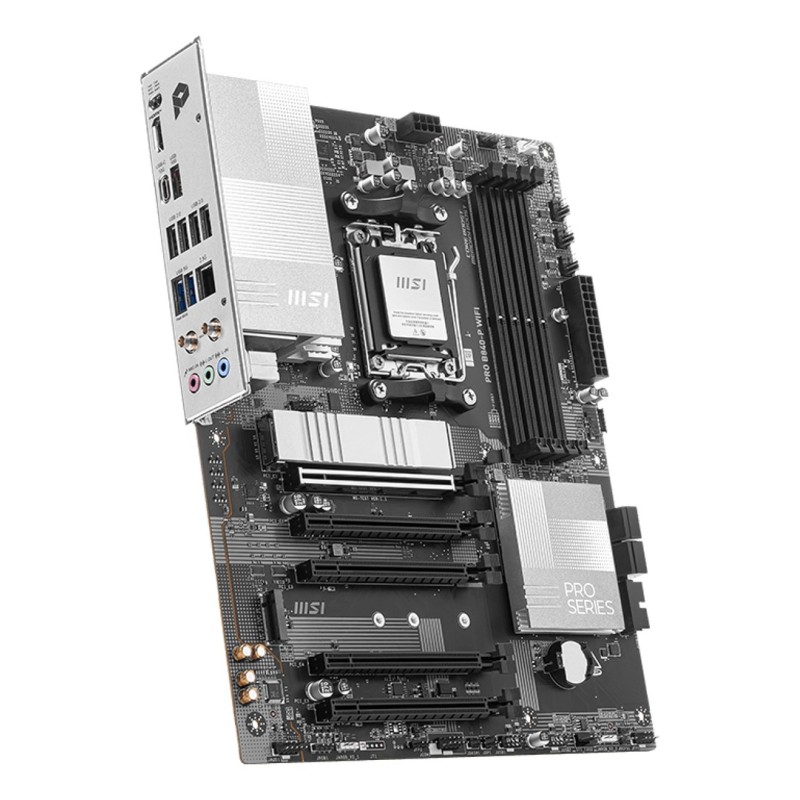

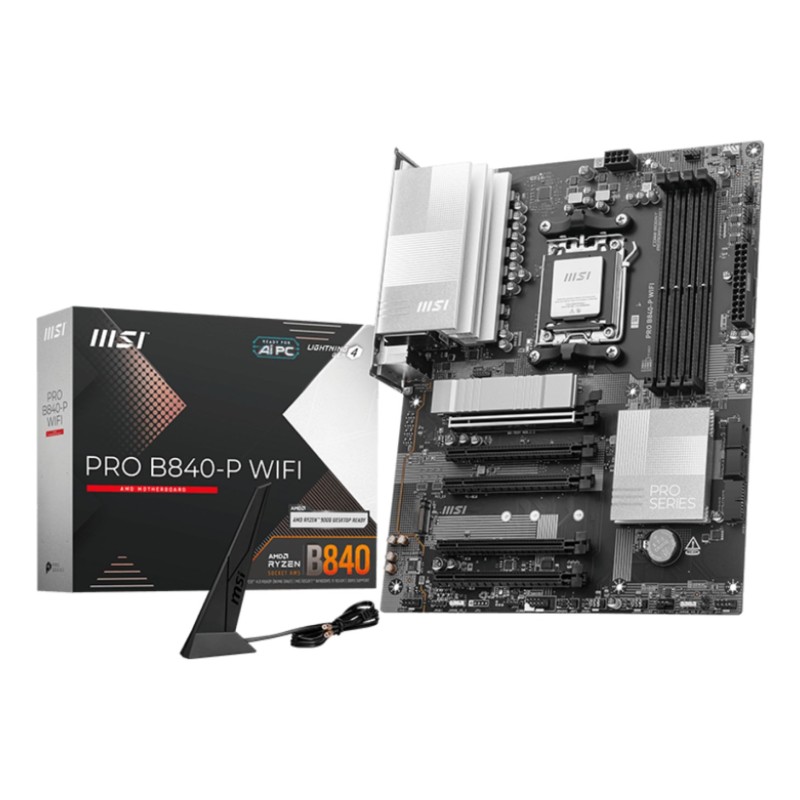

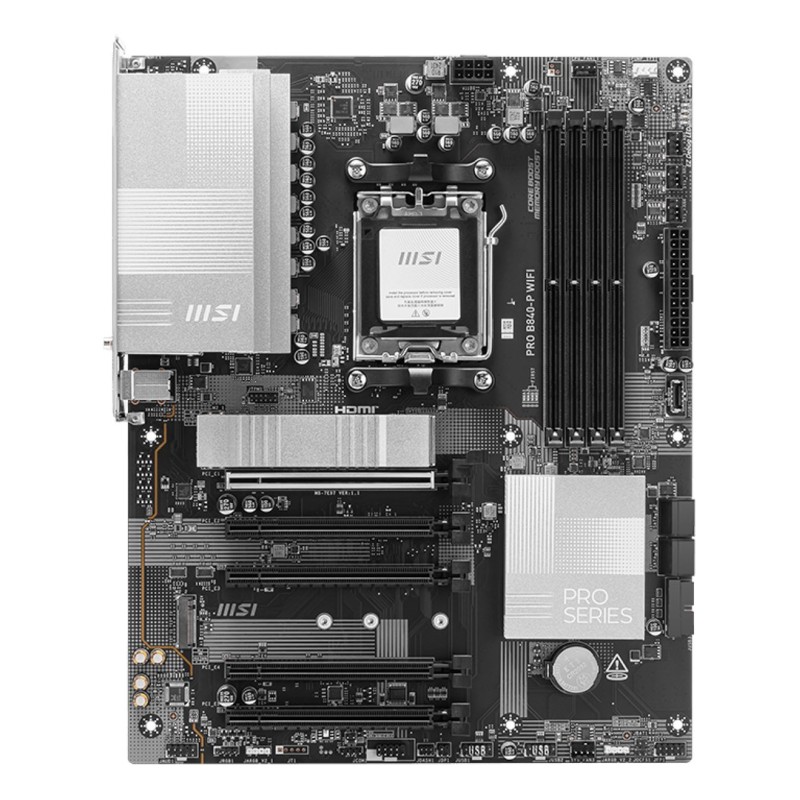

MSI PRO B840-P WIFI motherboard AMD B840 Socket AM5 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

Maximum internal memory supported by processor: 256 GB

Graphics

On-board graphics card: No

Features

Motherboard chipset: AMD B840

Product colour: Black

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11 x64

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Memory

Memory channels: Dual-channel

Supported memory clock speeds: 5600, 8000, 4800

Maximum internal memory: 256 GB

Number of memory slots: 4

Supported memory clock speed (max): 8000 MHz

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 243.8 mm

Depth: 304.8 mm

Network

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax)

Wi-Fi: Yes

Bluetooth: Yes

Bluetooth version: 5.4

Internal I/O

Total number of SATA connectors: 4

Number of SATA III connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 2.0 connectors: 4

Number of chassis fan connectors: 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

RGB LED pin header: Yes

Number of RGB LED pin headers: 3

Number of CPU fan connectors: 1

Number of water pump connectors: 1

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive interfaces: M.2, Micro SATA III

RAID levels: 10, 0, 1

Supported storage drive types: HDD & SSD

Number of storage drives supported: 6

RAID support: Yes

Number of HDDs supported: 4

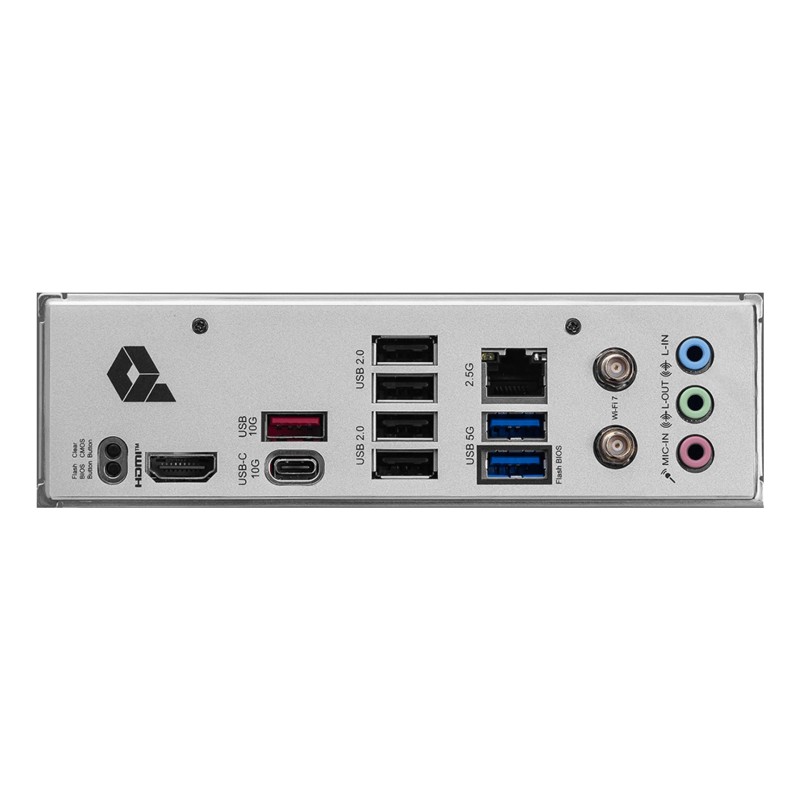

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

Expansion slots

PCI Express x16 (Gen 3.x) slots: 4

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 largest key size: 2280

2nd M.2 largest key size: 22110

1st M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 4.0

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
