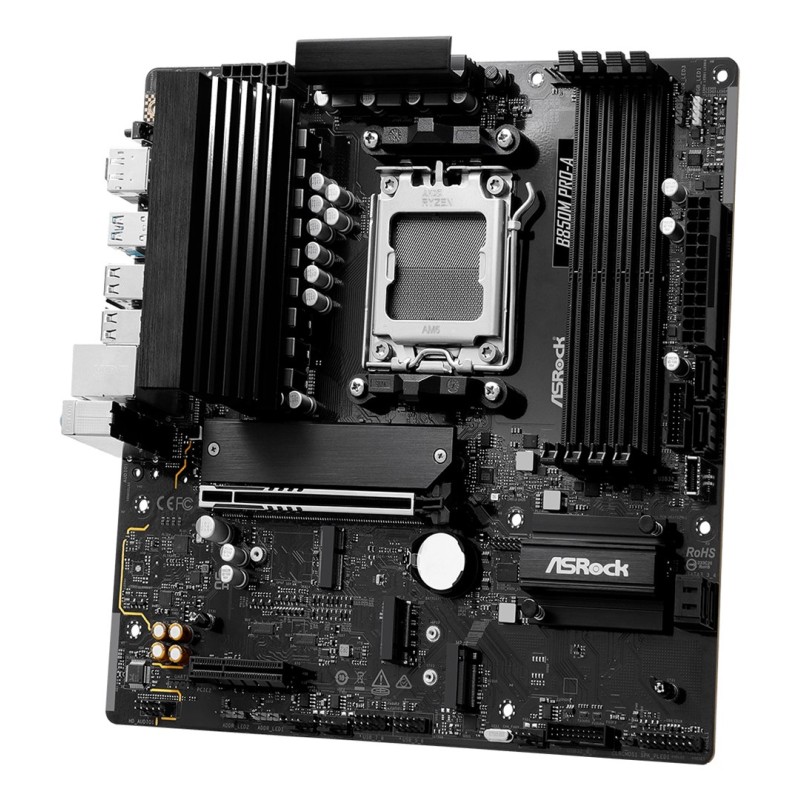

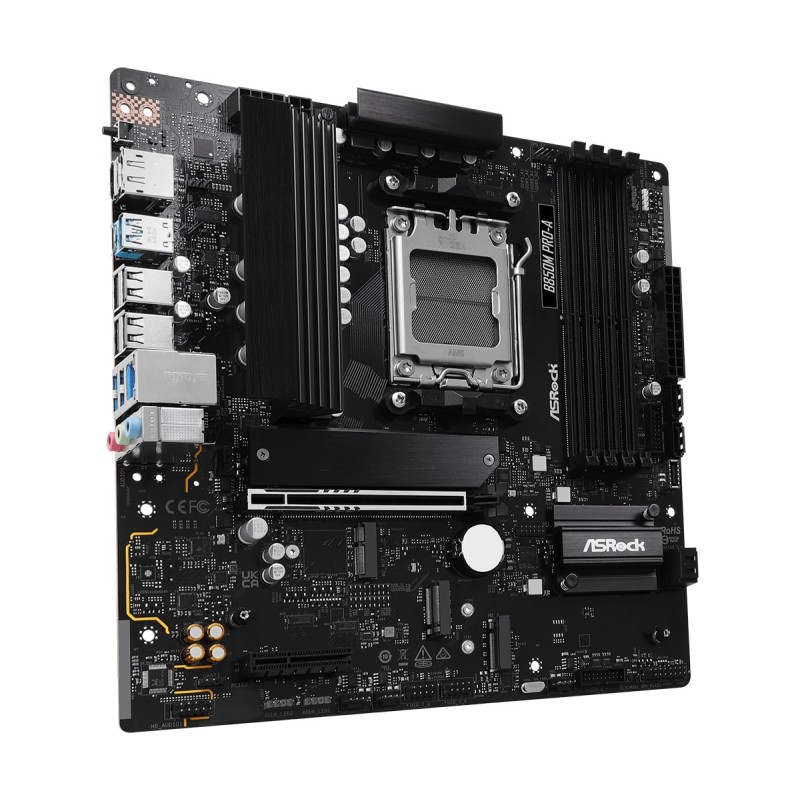

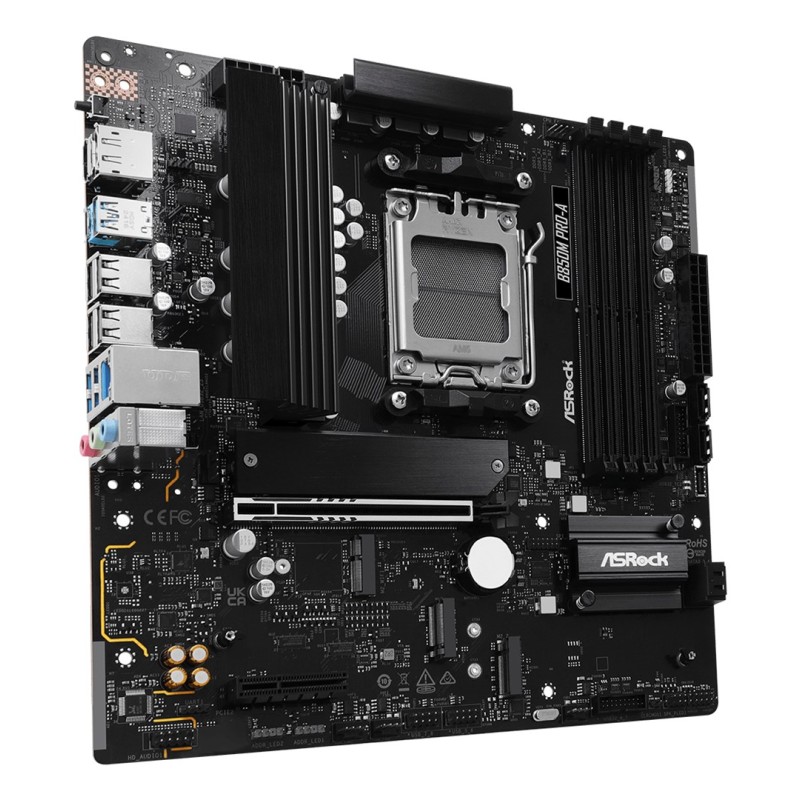

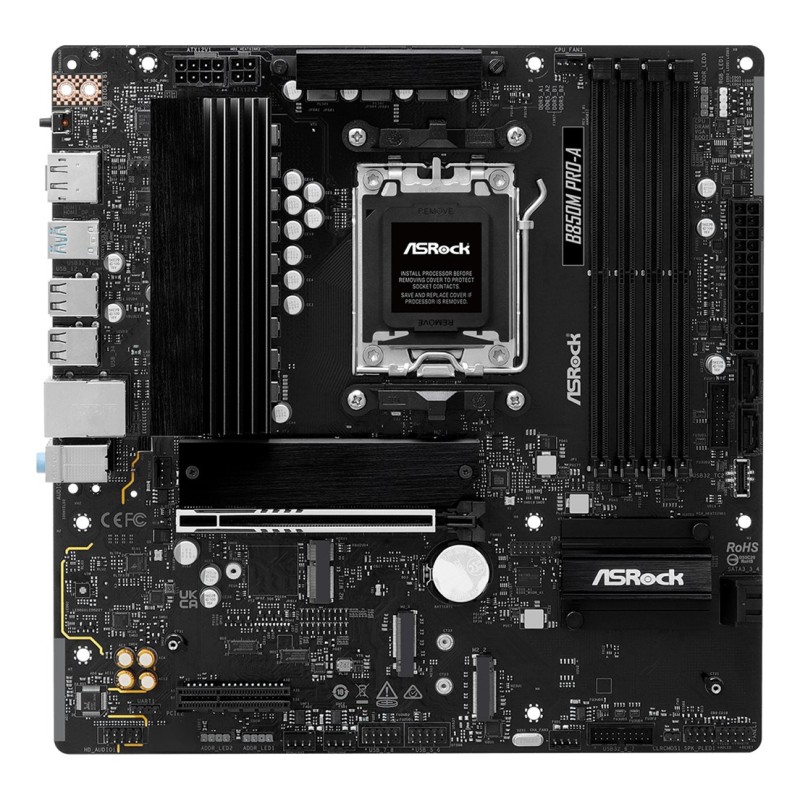

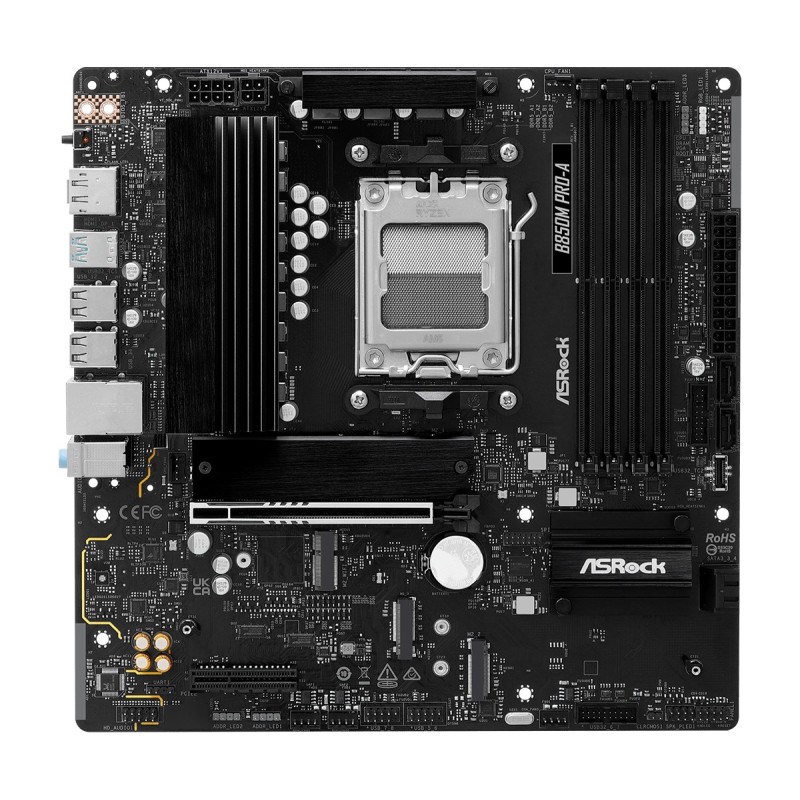

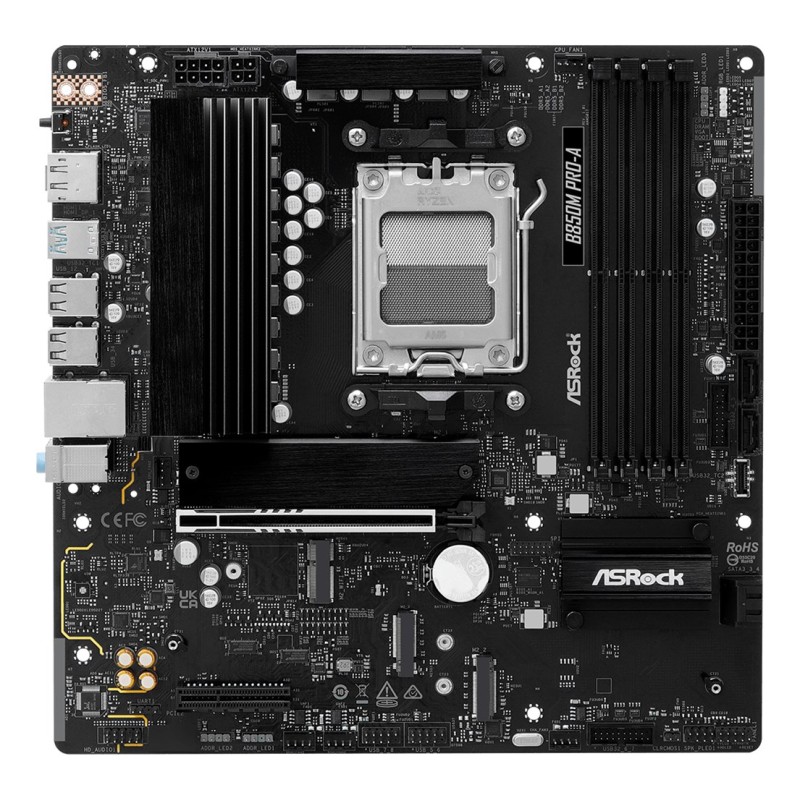

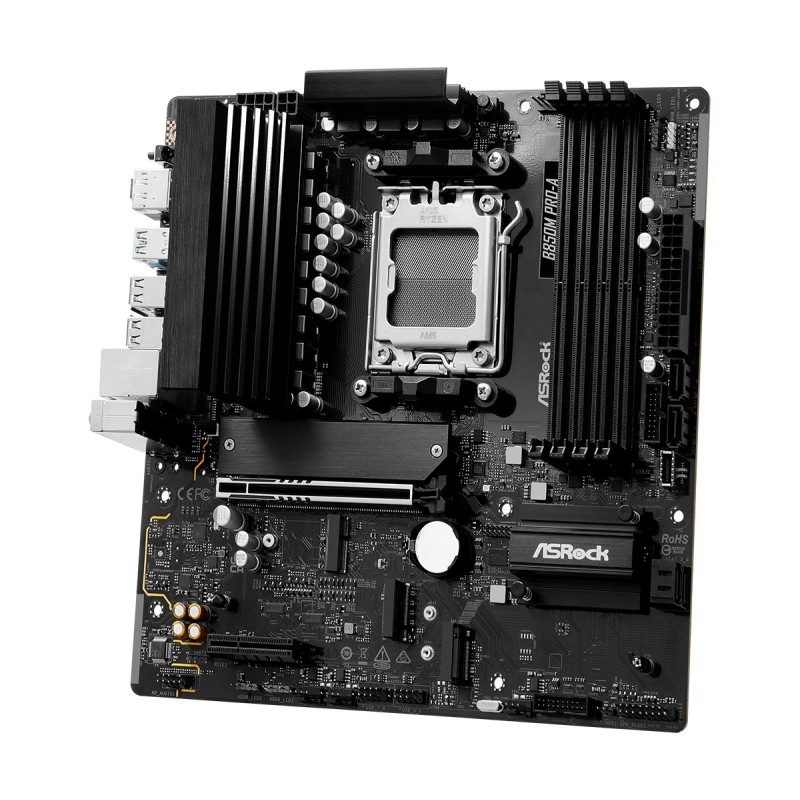

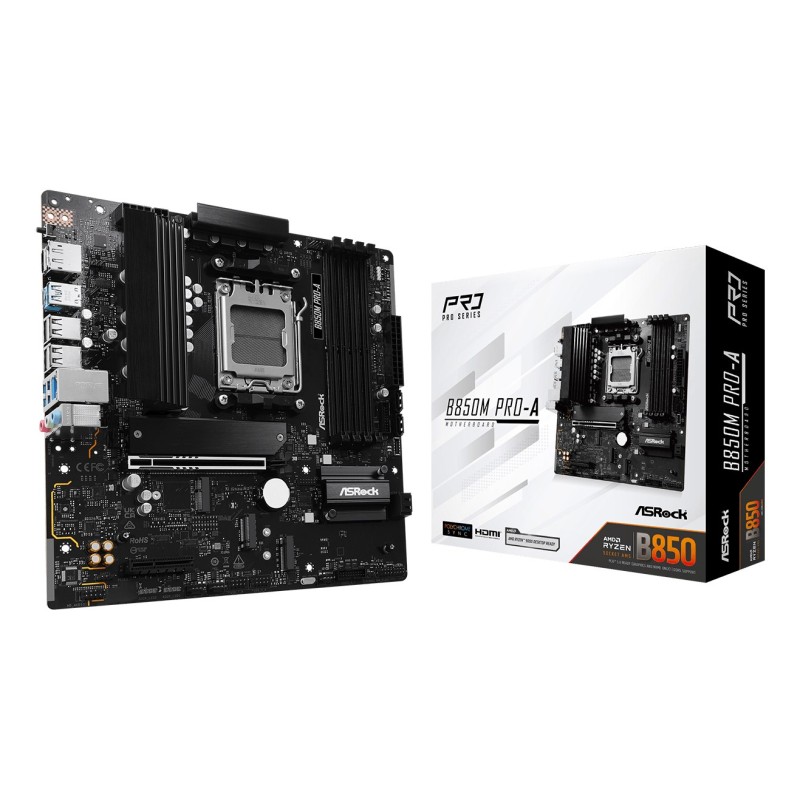

Asrock B850M Pro-A AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor socket: Socket AM5

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Graphics

Maximum resolution: 3840 x 2160 pixels

Parallel processing technology support: Not supported

HDCP: Yes

Features

Motherboard chipset: AMD B850

Product colour: Black

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Memory

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Memory slots type: DIMM

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

LAN controller: Dragon RTL8125BG

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: No

Internal I/O

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

Number of chassis fan connectors: 3

12V power connector: Yes

TPM connector: Yes

Number of EPS power connectors (8-pin): 1

RGB LED pin header: Yes

USB 2.0 connectors: 2

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Screws included: Yes

Cables included: SATA

Storage controllers

Supported storage drive types: HDD & SSD

Number of storage drives supported: 7

RAID levels: 10, 0, 1

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

RAID support: Yes

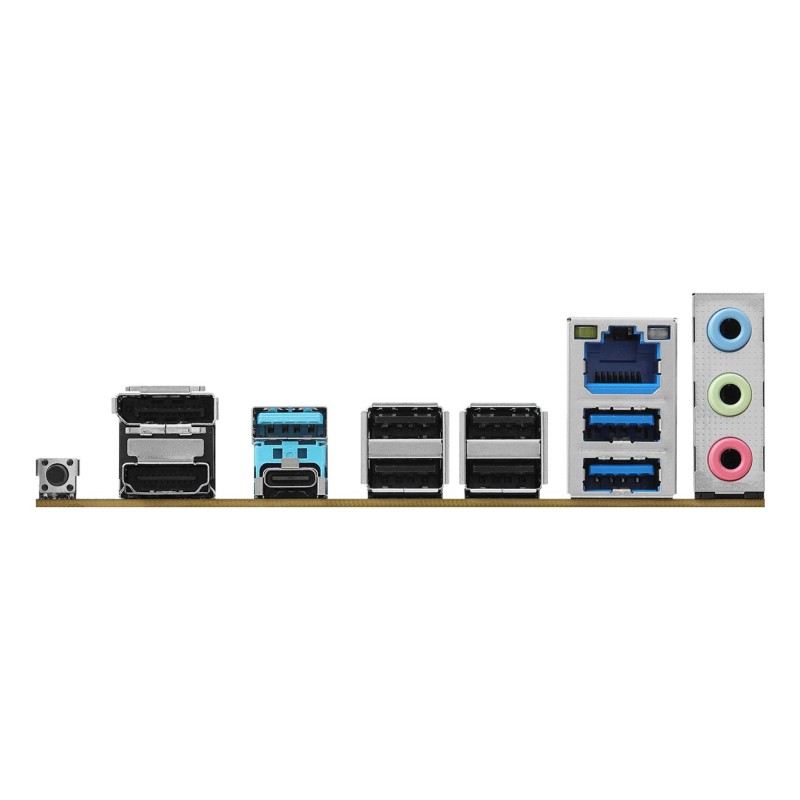

Rear panel I/O ports

Microphone in: Yes

Headphone outputs: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

DisplayPort version: 1.4

Line-in: Yes

HDMI version: 2.1

DisplayPorts quantity: 1

USB connector type: USB Type-A, USB Type-C

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

Number of M.2 (M) slots: 3

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

PCI Express x4 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 largest key size: 2280

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
