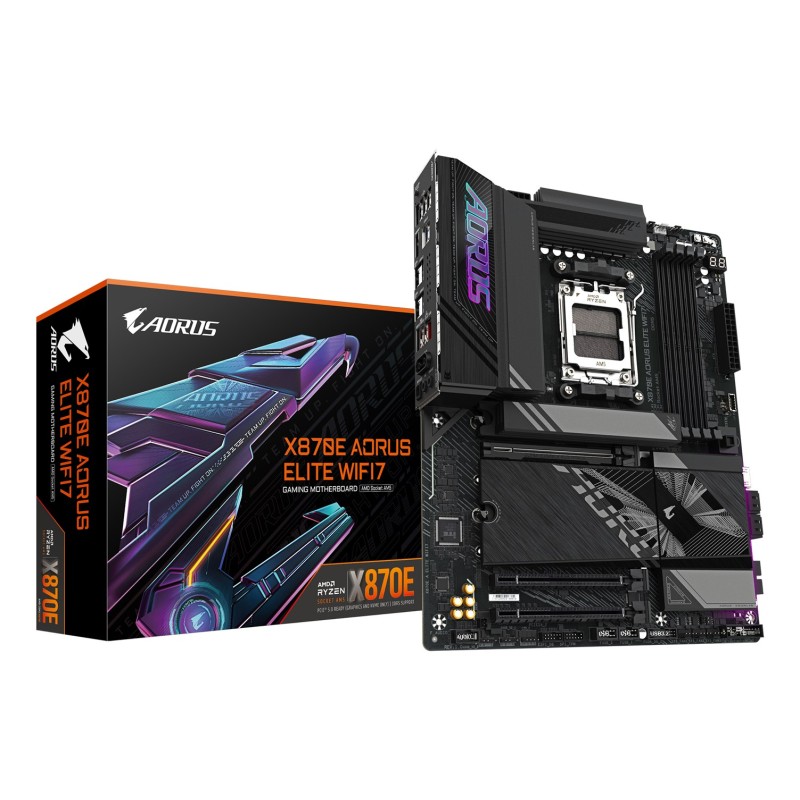

GIGABYTE X870E AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM5

Maximum internal memory supported by processor: 256 GB

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

DirectX version: 12.0

Features

Motherboard form factor: ATX

PC health monitoring: CPU, Temperature, Fan, Voltage

Audio chip: Realtek ALC1220

Windows operating systems supported: Windows 11 x64

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Motherboard chipset: AMD X870E

Product colour: Black

Memory

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 8200 MHz

ECC сompatibility: Non-ECC

Maximum internal memory per slot: 64 GB

Supported memory clock speeds: 6800, 5600, 7200, 7000, 8200 MHz, 6000, 8000, 4400, 7600, 7800, 6400, 5200, 6200, 6666, 6600, 4800

Supported memory module capacities: 32GB, 16GB, 8GB, 1GB, 24GB, 2GB, 4GB

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Weight & dimensions

Height: 35 mm

Depth: 244 mm

Width: 305 mm

Network

Bluetooth version: 5.4

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

WLAN controller model: MediaTek MT7925

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

LAN controller: Realtek RTL8125

Bluetooth: Yes

Internal I/O

TPM connector: Yes

Front panel connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 4

CPU fan connector: Yes

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

RGB LED pin header: Yes

Number of EPS power connectors (8-pin): 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of CPU fan connectors: 2

Number of water pump connectors: 2

Number of RGB LED pin headers: 4

USB 3.2 Gen 2x2 connectors: 1

BIOS

Clear CMOS jumper: Yes

Clear CMOS button: Yes

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Packaging data

Package depth: 294 mm

Package width: 345 mm

Package height: 80 mm

Package weight: 2.74 kg

Packaging content

Screws included: Yes

Batteries included: Yes

Antenna included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

RAID levels: 1, 10, 0

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of storage drives supported: 8

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI version: 2.1

Headphone outputs: 1

HDMI ports quantity: 1

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

WiFi-AP antenna jack: 2

DisplayPort version: 1.4

USB 2.0 ports quantity: 4

USB4 Gen 2x2 ports quantity: 2

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x4 slots: 2

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

1st M.2 largest key size: 25110

3rd M.2 largest key size: 22110

Number of M.2 (M) slots: 4

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 5.0

4th M.2 largest key size: 22110

4th M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 5.0

Battery

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Number of battery cells: 1

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Other features

Weight: 2.4 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
