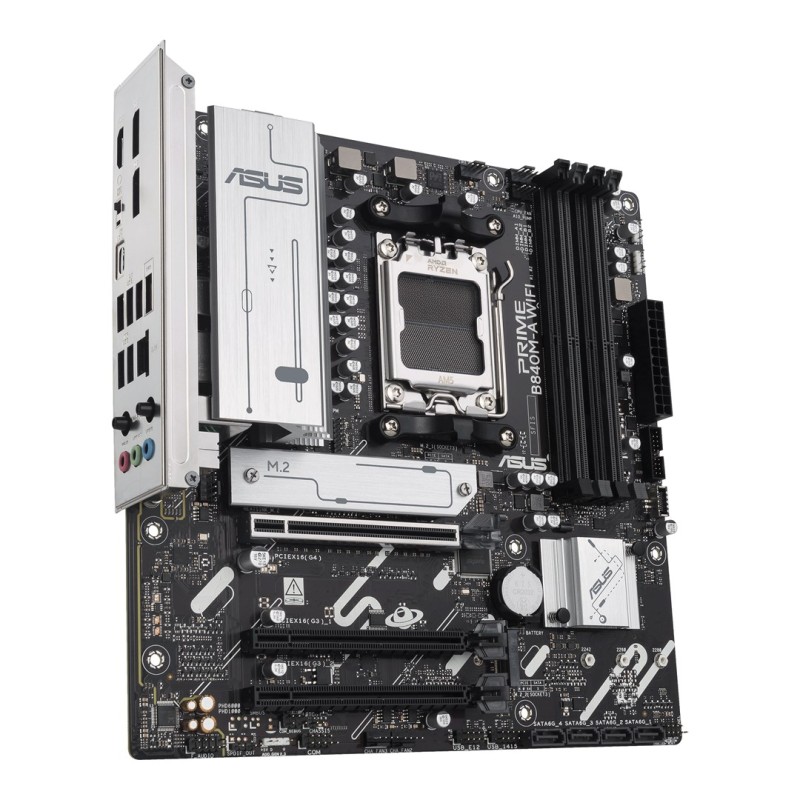

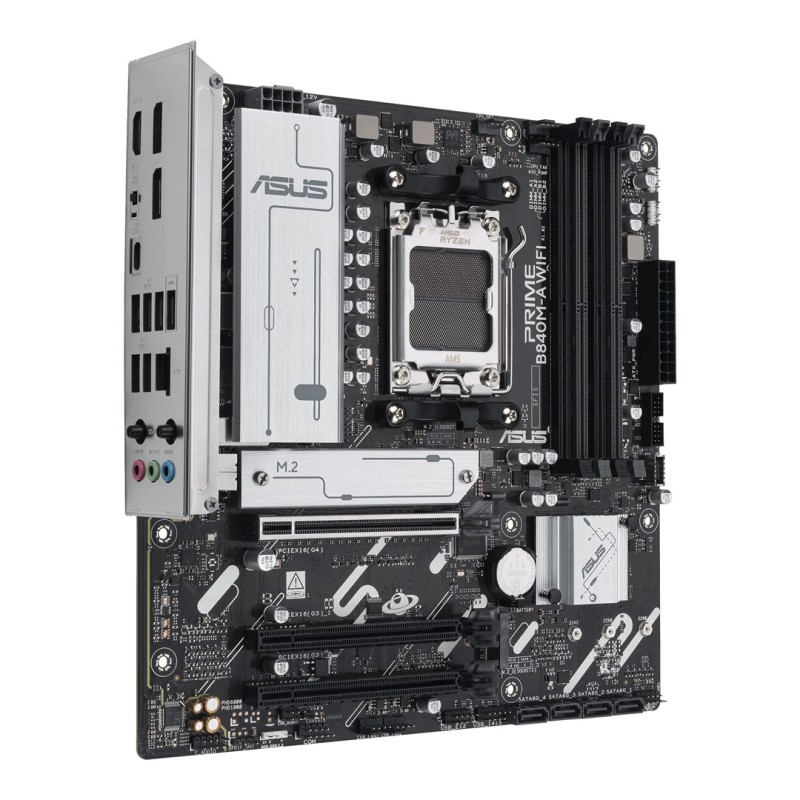

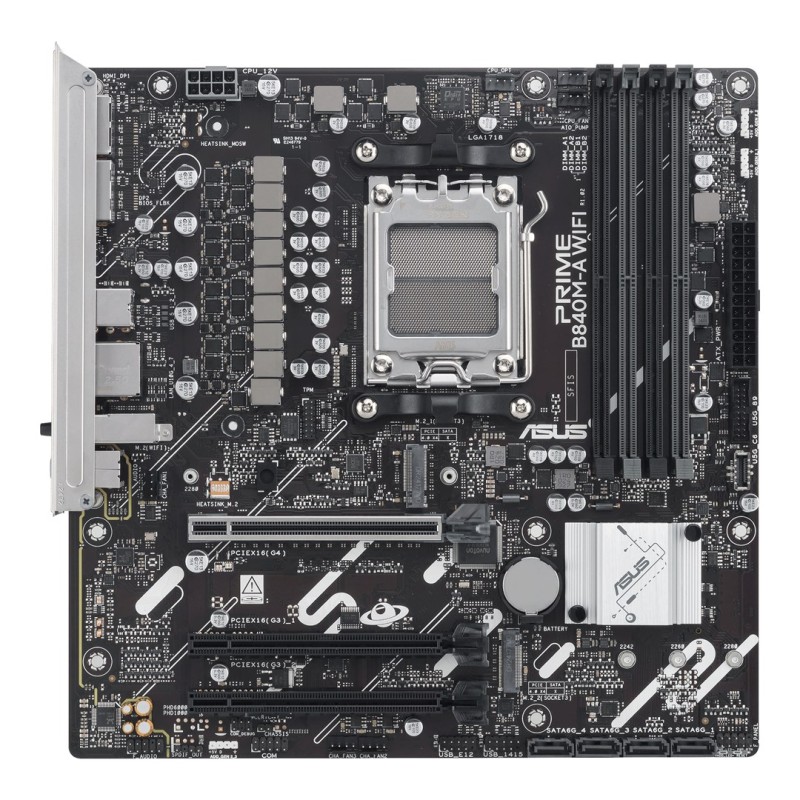

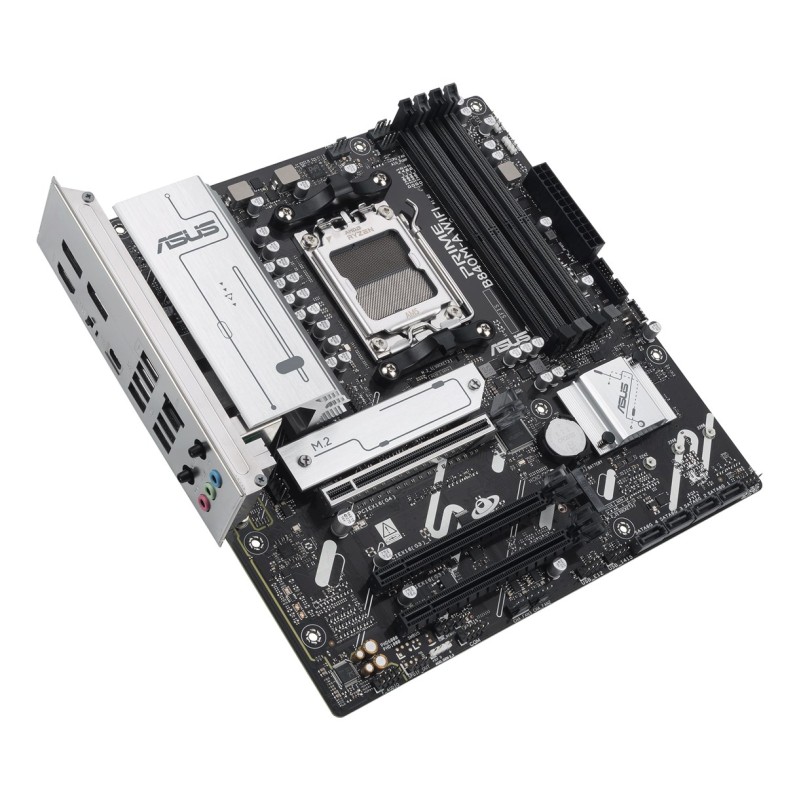

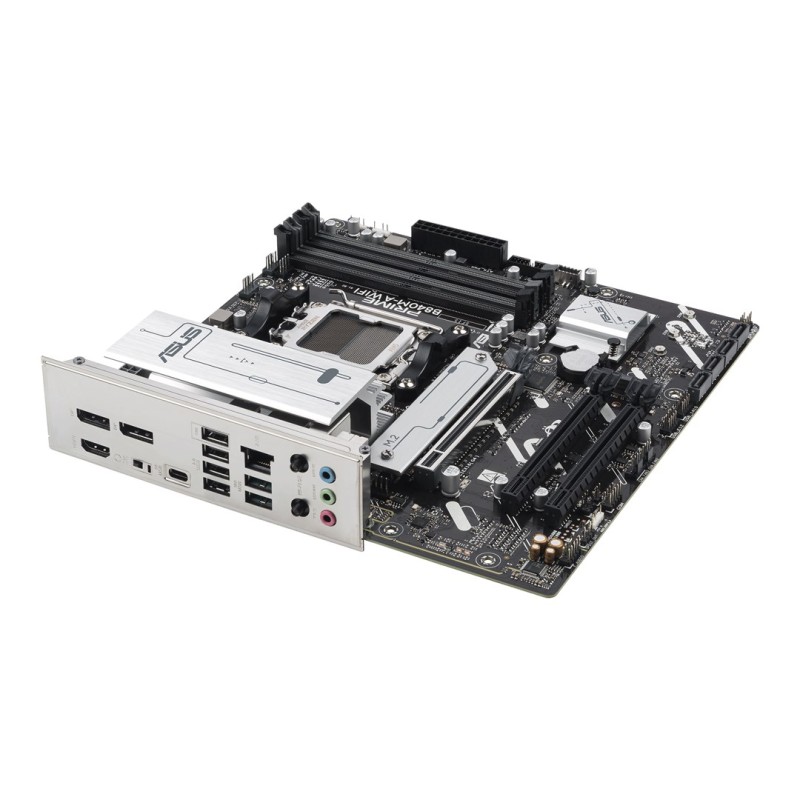

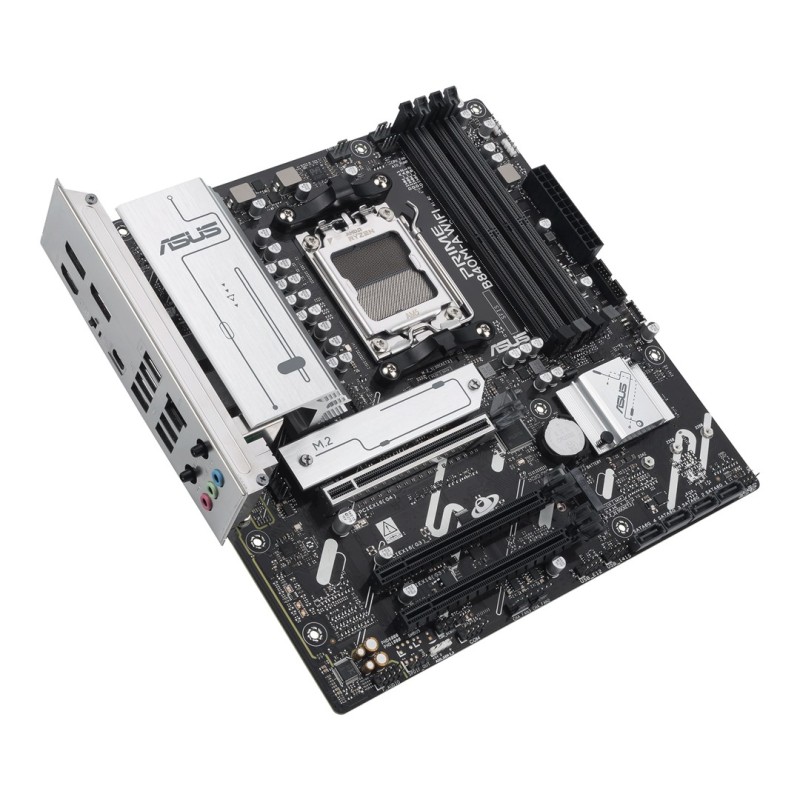

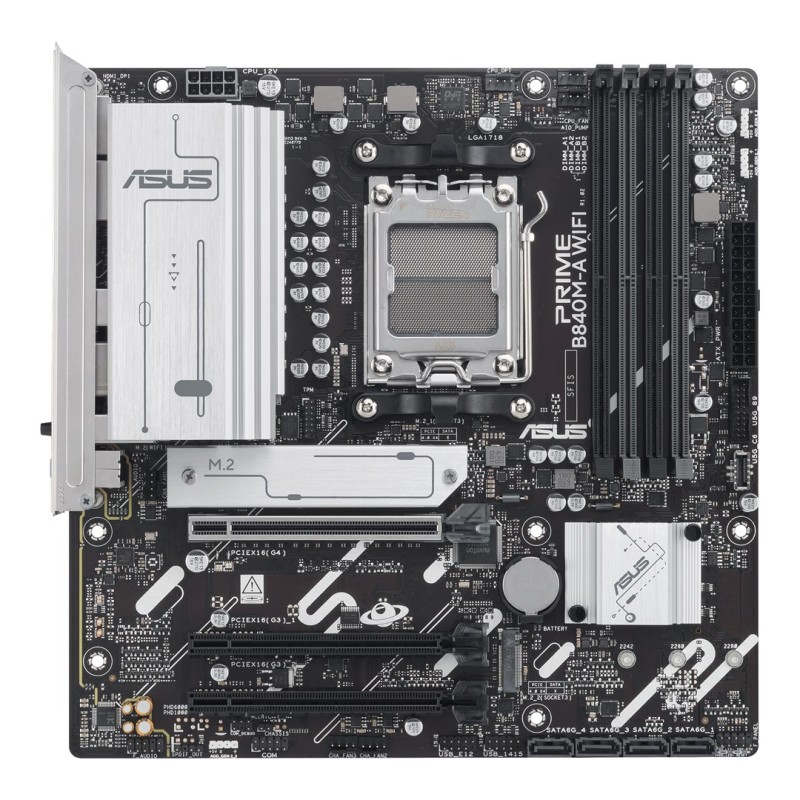

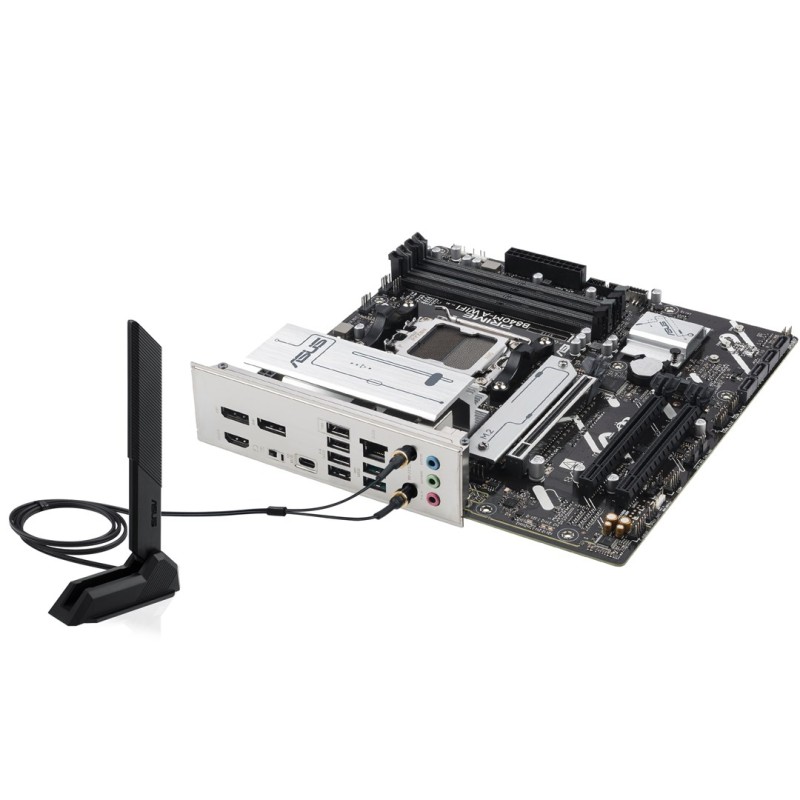

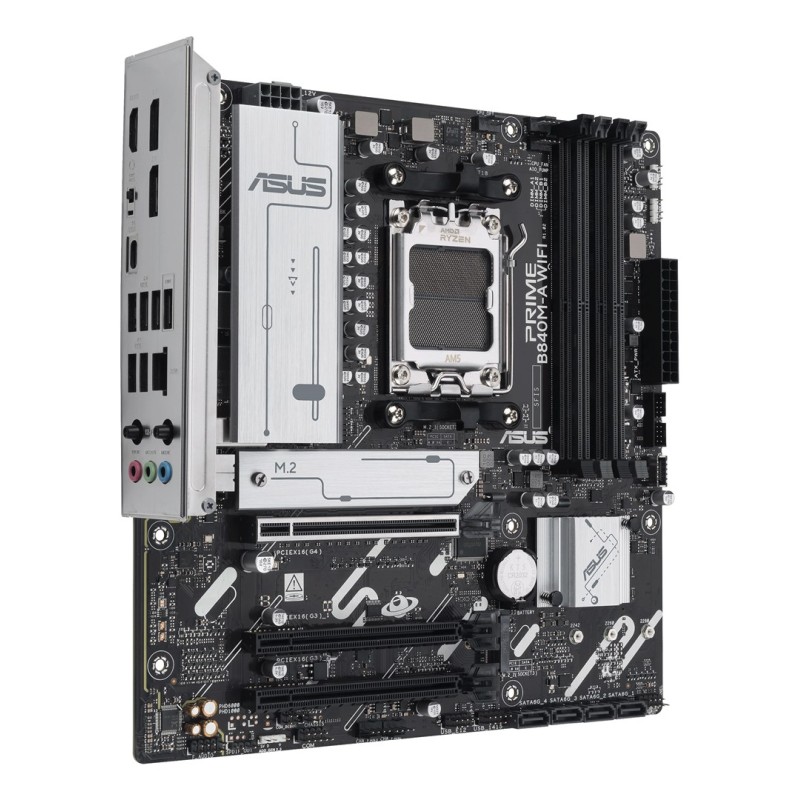

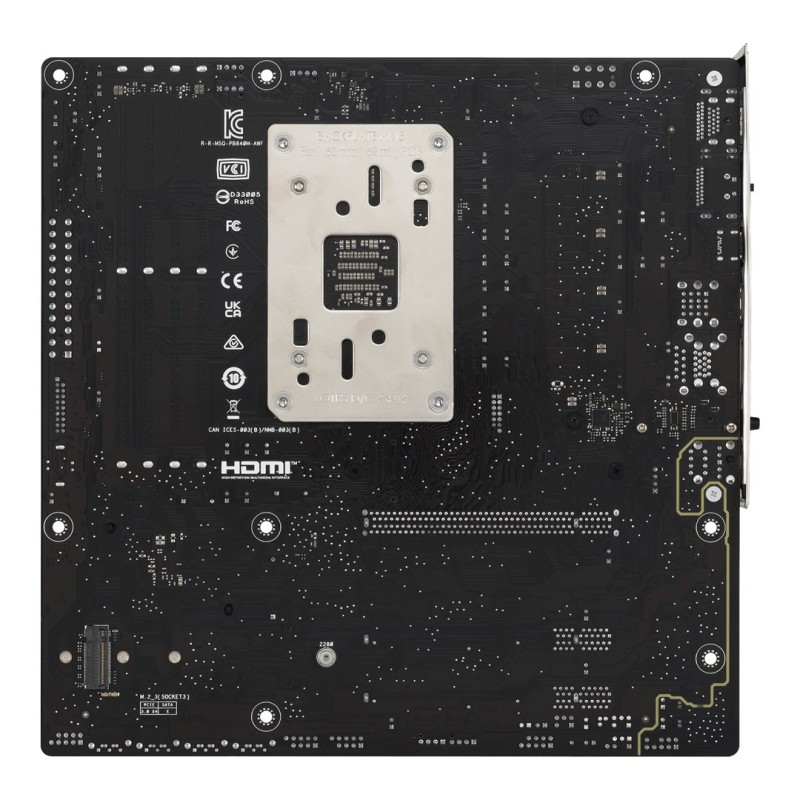

ASUS PRIME B840M-A WIFI AMD B840 Socket AM5 micro ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series

Supported processor sockets: Socket AM5

Graphics

Parallel processing technology support: Not supported

Features

Motherboard form factor: micro ATX

Motherboard chipset: AMD B840

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11, Windows 10 x64

Motherboard chipset family: AMD

Memory

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Number of memory slots: 4

Unbuffered memory: Yes

Memory channels: Dual-channel

Maximum internal memory: 192 GB

Supported memory types: DDR5-SDRAM

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

Bluetooth version: 5.3

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Bluetooth: Yes

Internal I/O

12V power connector: Yes

Number of chassis fan connectors: 3

S/PDIF out connector: Yes

ATX Power connector (24-pin): Yes

TPM connector: Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

Front panel audio connector: Yes

Number of COM connectors: 1

Number of SATA III connectors: 4

USB 2.0 connectors: 2

BIOS

BIOS type: UEFI AMI

Packaging data

Package height: 67.5 mm

Package width: 275 mm

Package weight: 1.52 kg

Package depth: 275 mm

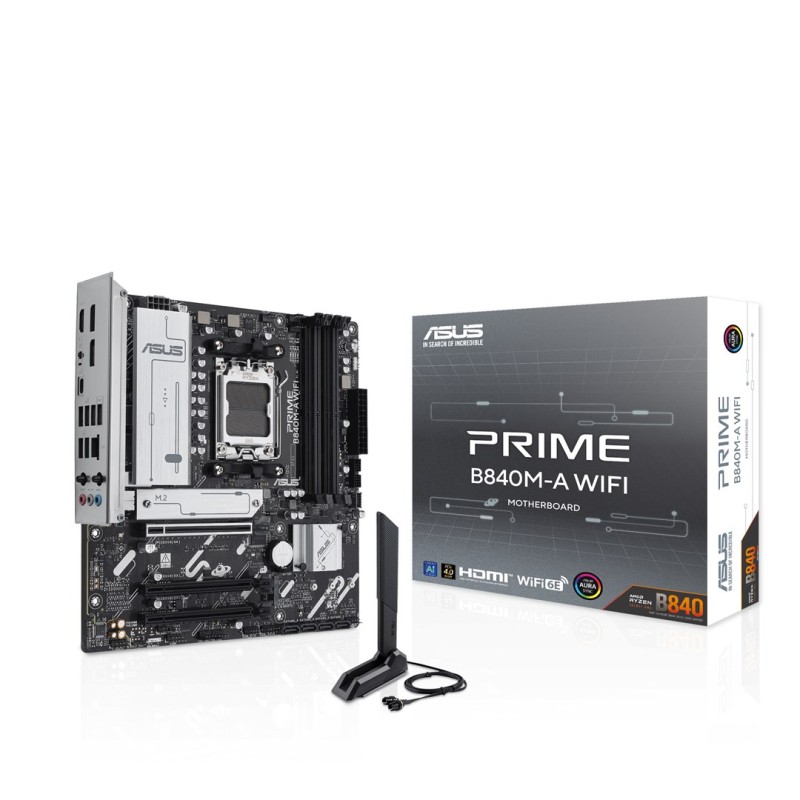

Packaging content

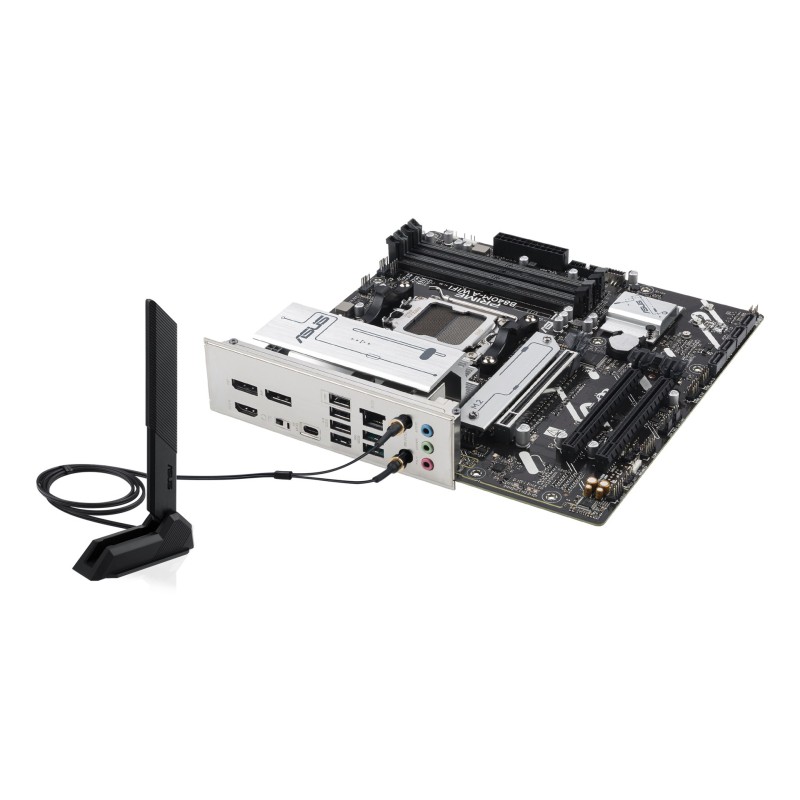

Antenna included: Yes

Screws included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

RAID levels: 0, 1, 5, 10

Supported storage drive types: HDD & SSD

Number of storage drives supported: 7

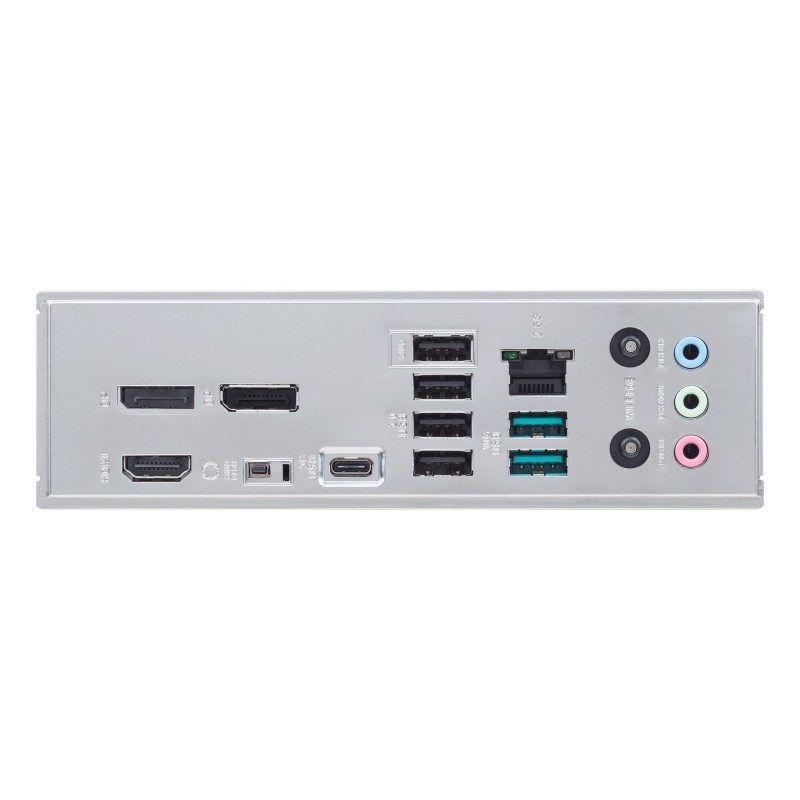

Rear panel I/O ports

WiFi-AP antenna jack: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

HDMI ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

DisplayPorts quantity: 2

Ethernet LAN (RJ-45) ports: 1

Expansion slots

1st M.2 largest key size: 2280

PCI Express x16 (Gen 4.x) slots: 1

3rd M.2 highest PCI Express generation: 3.0

Number of M.2 (M) slots: 3

1st M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 3.x) slots: 2

3rd M.2 largest key size: 2280

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
